Owner's Manual

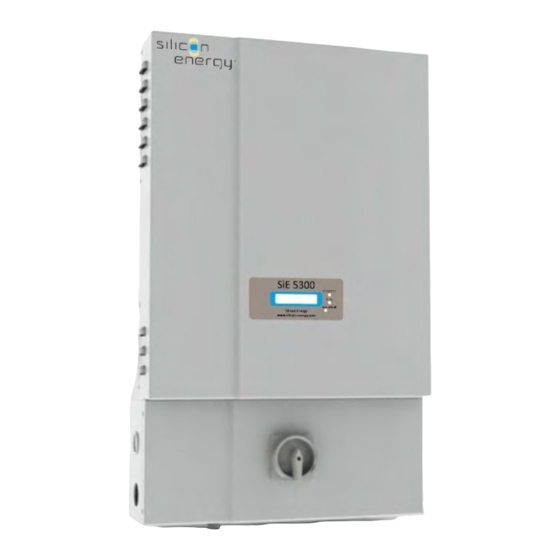

Silicon Energy Solar Inverter
SiE2900 / SiE3840
SiE4900 / SiE5300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SiE2900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Silicon Energy SiE2900

  • Page 1 Owner’s Manual Silicon Energy Solar Inverter SiE2900 / SiE3840 SiE4900 / SiE5300...
  • Page 2 ZOMG-8253USYUS0...
  • Page 3 © 2011 SILICON ENERGY All rights reserved SiEV2.3...
  • Page 6 Safety SAVE THESE INSTRUCTIONS– This manual contains important instructions for the Silicon Energy Solar Inverter Models SiE5300, SiE4900, SiE3840 & SiE2900 that shall be followed during installation and maintenance of the Silicon Energy Solar Inverter [hereafter SiE Inverter(s)]. Safety Precautions/Safety Notes Only trained qualified electrical personnel are to perform the electrical installation, wiring, opening and repair of the SiE Inverters.

  • Page 7: Safety Symbols

    Safety Symbols To reduce the risk of injury and to ensure the continued safe operation of this product, the following safety instructions and warnings are marked in this manual. Warning, risk of electric shock Presents safety information to prevent injury or death to users and/or installers.

  • Page 8: General Safety Precautions

    General Safety Precautions Personnel must remove all conductive jewelry or personal equipment prior  to installation or service of the device, parts, connectors, and/or wiring. Trained qualified personnel are required to mount, reconfigure or repair this  device. Licensed electricians are required to install permanently wired equipment. ...
  • Page 9 Safe Installation and Operation Installation of the device must be in accordance with the safety regulations  (e.g., UL1741) and all other relevant national or local regulations. Correct grounding and short circuit protection must be provided to ensure operational safety. Read all instructions and cautionary remarks in the manual before ...

  • Page 10: Wiring The Inverter

    Repair and Maintenance The SiE Inverter contains no user serviceable parts, except for the fan, the PV string fuses and the GFDI fuse. Only SILICON ENERGY trained staff is authorized to carry out internal repair and maintenance of the unit. Please return the device for repair and maintenance for faults caused by parts other than the fan and the fuses described above.
  • Page 11 Connection of the AC cable WARNING! Reconfirm that the circuit breaker to the main utility is switched OFF before connecting the power cable from the breaker to the AC connector. Connection of the DC cable CAUTION! Identify the different polarity of DC voltage on each PV string and connect respectively to the input terminals marked “UNGROUNDED CONDUCTOR”...

  • Page 12: Table Of Contents

    Contents INTRODUCTION ENERAL PECIFICATIONS CCESSORIES INSTALLATION LACEMENT OUNTING IRING THE INVERTER 2.3.1 Connection of the AC cable ............38 2.3.2 Connection of the DC cable............40 2.3.2.1 Connection of the DC wires for Negative Ground Arrays ....43 2.3.2.2 Connection of the DC wires for Positive Ground Arrays ....45 2.3.2.3 Connection of the DC wires for Negative Ground Arrays without Internal DC Fuses ..................
  • Page 13 WARRANTY INFORMATION TECHNICAL DOCUMENTATION UTLINE RAWING FFICIENCY RATING PERATION AINTENANCE 5.4.1 Exchange of the GFDI Fuse ............97 5.4.2 Exchange of the PV String Fuses ............ 98 5.4.3 Factory Service ................100 5.4.3.1 Remove the Inverter ..............101 5.4.3.2 Re-install the Inverter ..............108 WEATHER PROOF SHIELD (OPTIONAL)
  • Page 14 Utility configurations ................38 Fig 2.3.1.1 AC Terminal Block for AC cable connections......... 39 Fig 2.3.2.1 SiE2900 supports only three (3) PV string fuses ........41 Fig 2.3.2.2 PV- terminal connection ..............42 Fig 2.3.2.1.1 Negative Ground Setting and DC wires connections ....44 Fig 2.3.2.1.2...
  • Page 15 Outline Drawing of SiE2900/3840 ............88 Fig 5.1.2 Outline Drawing of SiE4900/5300 ............89 Fig 5.2.1 CEC Efficiency of the SiE2900 = 96.0% (240V) ......... 90 Fig 5.2.2 CEC Efficiency of the SiE2900 = 95.5% (208V) ......... 90 Fig 5.2.3 CEC Efficiency of the SiE3840 = 96.0% (240V) .........
  • Page 16 Fig 5.4.3.1.2 Remove the DC and AC wires ..........103 Fig 5.4.3.1.3 Keep the well-wrapped DC and AC wires stored in the wiring box ......................... 103 Fig 5.4.3.1.4 Remove the screws and nuts bonding between the inverter and wiring box ....................

  • Page 17: Introduction

    DC power generated by photovoltaic arrays to AC power that is delivered to the home loads and then fed into the utility grid with any excess power. The SiE2900, SiE3840, SiE4900, and SiE5300 are the members of the family for the North American market. The overview of the grid-tied solar energy system is shown in figure 1.1.1.

  • Page 18: Fig1.1.1 Grid Connected Solar System Overview

    controller starts and goes through a system check mode and then into monitoring mode until the PV Start Voltage is reached. During this time, the SiE Inverter will not generate AC power. Once all conditions necessary for grid connection are satisfied, the SiE Inverter goes into the Grid/MPPT mode and begins feeding the AC power into the grid.

  • Page 19: Specifications

    Specifications Specifications for SiE2900 and SiE3840 Name-Part number SiE2900 SiE3840 Grid output (AC) Grid voltage, nominal 240/208 VAC 211~264@240VAC(adjustable) * Grid voltage, operating range 183~228@208VAC (adjustable)* Grid frequency, nominal 60 Hz Grid frequency, operating range 59.3~60.5 Hz (adjustable)* 2900W@240VAC 3840W@240VAC...
  • Page 20 Name-Part number SiE2900 SiE3840 Solar input (DC) Number of fused string inputs Efficiency 96.7%@240VAC 96.7%@240VAC Maximum efficiency 96.4%@208VAC 96.5%@208VAC 96.0%@240VAC 96.0%@240VAC CEC efficiency 95.5 %@208VAC 95.5%@208VAC Night-time tare loss 0.5W Environmental Operating temperature range -25° ~ +55°C (-13° ~ +131°F) Storage temperature range -25°...
  • Page 21 * Factory settings can be adjusted with the approval of the utility. This unit is provided with adjustable trip limits and may be aggregated above 30kW on a single Point of Common Coupling. Adjustable voltage, Frequency and Reconnection Settings Setting Range Default Accuracy...

  • Page 22: Measurement Precision

    Measurement precision Resolution Range Accuracy Display Measurement Input voltage (VDC) 0~640V 0.1V 0.6V ±2V Input Current (IDC) 0~23000mA 100mA 23mA ±200mA Grid voltage (VAC) 0~300V 0.1V 0.6V ±1V 0~19000mA 100mA 38mA ±200mA Grid current (IAC) Grid frequency (Hz) 45~65Hz 0.1Hz 0.004Hz ±0.02Hz 0~5000W...
  • Page 23 Output over current protection Maximum output fault current 25 A Name-Part number SiE4900 SiE5300 Grid output (AC) Startup current < 2A Maximum grid backfeed current Waveform True sine Power factor >0.99 @ nominal power Total Harmonic Distortion <3％ DC Component <0.5% Phase Split Phase or Single phase 240...
  • Page 24 Cooling Cooling fan Accept wire size of 4 to 16 mm Input and output terminals (#12 to #6 AWG) Name-Part number SiE4900 SiE5300 Mechanical Weight/Shipping weight 28 kg / 32 kg (61.7 lb / 70.5 lb) Dimensions (HxWxD) 732x454x210 mm (28.8x17.9x8.3 inches) Shipping dimensions (HxWxD) 840x548x305 mm (33.1x21.6x12 inches) Interface...

  • Page 25: Accessories

    Under-voltage clearing time (cycle) 119~300 ±1 Over-frequency clearing time (cycle) 9~12 ±1 Under-frequency clearing time (cycle) 9~18000 ±1 Setting Range Default Accuracy 100~110 ±1 AC high-voltage limit (%) Reconnect delay** (s) 10~600 ±0.01 PV start voltage (VDC) 200~600 ±2 The default values are within the Range B of ANSI C84.1 ** Once a grid failure, the SiE Inverter waits 300 seconds before the next connection to the grid.

  • Page 26: Installation

    Installation Placement ∙ SiE Inverters that must be vertically mounted and may be located indoors or outdoors, according to protection class Type NEMA 3R. ∙ Leave at least 50 cm (19.7 inches) of free space above and 100 cm (39.4 inches) below the inverter when installed outdoors.

  • Page 27: Mounting

    ∙ Keep DC wiring as short as possible to minimize power loss. ∙ The mounting bracket should be fastened on a concrete or a masonry wall with the accessory anchors. Fig 2.1.1 Clearances required for SiE Inverter installation Mounting The steps listed below describe how to mount the inverter on the wall: After removing the inverter from the carton, the attached mounting bracket must be removed by sliding the bracket down and away from the inverter as...
  • Page 28 shown in the figure 2.2.1 below. Mounting flanges Mounting slots for securing the inverter Mounting flanges...

  • Page 29: Fig 2.2.1 Remove The Bracket From The Inverter

    Fig 2.2.1 Remove the bracket from the inverter Use the bracket (figure 2.2.2) as a template to mark the location of the holes to be drilled in the wall. After drilling the holes, the mounting bracket is then held against the wall and fastened to the wall with anchors as shown in figure 2.2.3.

  • Page 30: Fig 2.2.3 Fasten The Mounting Bracket

    (60)/(23.62) (100)/(39.37) ~ (170)/(66.93) unit:cm/inch The height of the anchor head < 8mm(0.314 in) Fig 2.2.3 Fasten the mounting bracket...
  • Page 31 Once the mounting bracket is attached to the wall, the inverter can be located and fastened to the mounting bracket. Slide the inverter over the mounting bracket flanges and down carefully to lock it in place. Attach the screw through the hole as shown in figure 2.2.4 below used to fasten both inverter and the wiring box together to the mounting bracket.
  • Page 32 Slide the mounting pins on the inverter over the hooks on the mounting bracket. flange with mounting slots 100cm 120cm 39inch 47inch Ensure the inverter is seated properly on the mounting bracket Ground/Floor Ground/Floor...

  • Page 33: 2.3 Wiring The Inverter

    Fig 2.2.4 Hook the Inverter on the mounting bracket and then fasten the screw After the inverter is hung correctly on the bracket and secured with the screw, it is then possible to complete wiring the inverter. 2.3 Wiring the inverter It is necessary to remove the cover of the wiring box before wiring the inverter.

  • Page 34: Fig 2.3.1 Turn The Dc/Ac Disconnect Switch Off

    Fig 2.3.1 Turn the DC/AC disconnect switch OFF...

  • Page 35: Fig 2.3.2 Loosen The Screws

    Fig 2.3.2 Loosen the screws Fig 2.3.3 Remove the cover of the wiring box...

  • Page 36: Fig 2.3.4 Remove The Covers For The Cable Through Holes

    The wiring shall be done in the wiring box for the SiE2900, SiE3840, SiE4900, and SiE5300. There is a pair of DC terminal blocks, two (2) RJ-45 connectors, and one (1) AC terminal block in the wiring box as shown in the figure 2.3.5.

  • Page 37: Wiring Box Front View

    PV String Fuse AC Terminal Block Ground Bar GFDI Fuse RJ45-R RJ45-L Fig 2.3.5 Wiring box front view WARNING! All electrical work shall be done in accordance with the local and with the National Electrical Code (NEC), ANSI/NFPA 70 and should follow the important safety instructions in this manual.
  • Page 38 manner in which it is connected to the utility gird. WARNING! Make sure that you use suitable connecting cables for both the AC and DC wirings. The cable must be adequately dimensioned and suitably inert to temperature fluctuation, UV radiation and other possible hazards.

  • Page 39: Fig 2.3.6 Utility Configuration Jumpers

    be compatible. J210 240V/208V 240V Without Neutral 208V Without Neutral With Neutral (Default) FAN Auto (Default) FAN On Fig 2.3.6 Utility configuration jumpers...

  • Page 40: Connection Of The Ac Cable

    With Neutral With Neutral With Neutral 240 : 120 Split Phase 240 Delta :120 Stinger 120 WYE Neutral Neutral Neutral Without Neutral Without Neutral 240 Delta 208 Delta Fig 2.3.7 Utility configurations Connection of the AC cable 2.3.1 (see page 104 for additional info) Use the following procedure to wire the AC cables.

  • Page 41: Ac Terminal Block For Ac Cable Connections

    L1 wire connected to L1 terminal L2 wire connected to L2 terminal N terminal Equipment ground wire connected to ground bar Fig 2.3.1.1 AC Terminal Block for AC cable connections 5. Connect the cable L1 to the terminal labeled Line1 of the AC terminal block.

  • Page 42: 2.3.2 Connection Of The Dc Cable

    (4) 15A, 600 VDC PV string fuses for the PV strings. For the SiE2900, it is shipped with three (3) 15A, 600 VDC PV string fuses, and therefore, the fourth pair of terminals (from left as shown in figure 2.3.2.1) shall not be used to connect to the PV string.

  • Page 43: Fig 2.3.2.1 Sie2900 Supports Only Three (3) Pv String Fuses

    PV module configured in your system. The maximum input current is 25A for SiE4900/5300 (See Section 1.2 Specification: Maximum input current, pages 3 for SiE2900 and 3840). The maximum current allowed per string is 20A for all SiE models with string fuses.

  • Page 44: Fig 2.3.2.2 Pv- Terminal Connection

    connections in PV system shall accord with NEC 690.9. There are two (2) terminals, labeled UNGROUNDED CONDUCTOR and GROUNDED CONDUCTOR, per PV string located in the wiring box used for the DC cable connections. The DC equipment ground cable shall be connected to the screw of the ground bar labeled in the wiring box of the SiE Inverter.

  • Page 45: Connection Of The Dc Wires For Negative Ground Arrays

    CAUTION! PV arrays are energized when ex-posed to light. Use safe working practices when working on PV arrays. WARNING! Route the DC connection cables to the SiE Inverters away from any possible hazards that could damage the cables. WARNING! Hazardous voltage is still present on the device after disconnection of all PV DC inputs.

  • Page 46: Negative Ground Setting And Dc Wires Connections

    Fig 2.3.2.1.1 Negative Ground Setting and DC wires connections connect to PV+ connect to PV- UNGROUNDED GROUNDED CONDUCTOR CONDUCTOR GROUNDED UNGROUNDED CONDUCTOR CONDUCTOR Fig 2.3.2.1.2 DC terminal blocks for DC cable connection in Negative Ground...

  • Page 47: Connection Of The Dc Wires For Positive Ground Arrays

    CAUTION! Identify the different polarity of DC voltage on each PV string and connect respectively to the input terminals marked “UNGROUNDED CONDUCTOR” “GROUNDED CONDUCTOR”. Make sure the DC voltage that PV arrays generate is less than 600 VDC in any case. ∙...

  • Page 48: Fig 2.3.2.2.1 Positive Ground Setting And Dc Wire Connections

    to UNGROUNDED CONDUCTOR terminal as shown in the figure 2.3.2.2.2. Fig 2.3.2.2.1 Positive Ground Setting and DC wire connections connect to PV+ UNGROUNDED GROUNDED CONDUCTOR CONDUCTOR Fig 2.3.2.2.2 DC terminal blocks for DC cable connection in Positive Ground...

  • Page 49: Connection Of The Dc Wires For Negative Ground Arrays Without Internal Dc Fuses

    CAUTION! The Positive Polarities of the DC input voltage from a PV string shall be correctly connected to the “GROUNDED CONDUCTOR” terminal and the Negative Polarity of the DC input voltage from a PV string shall be connected to the “UNGROUNDED CONDUCTOR”...

  • Page 50: Fig 2.3.2.3.1 Negative Ground Setting And Dc Wires Connections Array

    polarity of the DC input voltage from the PV string shall be connected to the terminal labeled “UNGROUND CONDUCTOR (WITHOUT STRING FUSES)” and the negative polarity of the DC input voltage from the PV string shall be connected to the terminal labeled “GROUNDED CONDUCTOR” as shown in the figure 2.3.2.3.2.

  • Page 51: Dc Terminal Blocks For Dc Cable Connection In Negative

    connect to PV- UNGROUNDED GROUNDED CONDUCTOR CONDUCTOR connect to PV+ Fig 2.3.2.3.2 DC terminal blocks for DC cable connection in Negative Ground array without internal DC Fuses CAUTION! Identify the different polarity of DC voltage on each PV string and connect respectively to the input terminals marked “UNGROUNDED CONDUCTOR (WITHOUT...

  • Page 52: Connection Of The Dc Wires For Positive Ground Arrays Without

    used when the internal DC fuses are not used, all wires connected to this terminal must be removed. ∙ The “+” cable of the DC input voltage shall be connected to the terminal labeled UNGROUNDED CONDUCTOR (WITHOUT STRING FUSES) and the “-” cable of the DC input voltage shall be connected to the terminal labeled GROUNDED CONDUCTOR.

  • Page 53: Fig 2.3.2.4.1 Positive Ground Setting And Dc Wires Connections

    polarity of the DC input voltage from the PV string shall be connected to the terminal labeled “GROUNDED CONDUCTOR” and the negative polarity of the DC input voltage from the PV string shall be connected to the terminal labeled “UNGROUNDED CONDUCTOR (WITHOUT STRING FUSES)” as shown in the figure 2.3.2.4.2.

  • Page 54: Ground Array Without Internal Dc Fuses

    connect to PV+ UNGROUNDED GROUNDED CONDUCTOR CONDUCTOR connect to PV- Fig 2.3.2.4.2 DC terminal blocks for DC cable connection in Positive Ground array without internal DC Fuses CAUTION! The Positive Polarities of the DC input voltage from a PV string shall be correctly connected to the “GROUNDED CONDUCTOR”...

  • Page 55: 2.3.3 Connection Of The Communication Cable

    used when the internal DC fuses are not used, all wires connected to this terminal must be removed. ∙ The “+” cable of the DC input voltage shall be connected to the terminal labeled “GROUNDED CONDUCTOR” and the “-” cable of the DC input voltage shall be connected to the terminal labeled “UNGROUNDED CONDUCTOR (WITHOUT STRING FUSES)”.

  • Page 56: Positions Of The Communication Ports And Termination Switch

    below. If the RS485 is used as the external communication interface and the inverter is the last device within the RS485 loop, then the termination switch shall be put to ON position (shown in the figure 2.3.3.4). Users shall open the front lid of the wiring box to switch the termination switch to ON position.

  • Page 57: Fig 2.3.3.2

    WABG-0918S, which is 180 cm (70.9 inches) in length, is dedicated for the communications between SiE Inverters (SiE5300, SiE4900, SiE3840 and SiE2900) and a computer. Its wire connection between RJ45 and RS-232 is shown in the figure 2.3.3.3. If RS-485 interface is selected, both RJ-45 connectors will be used for the cascaded RS-485 connections shown in the figure 2.3.3.4.

  • Page 58: Wiring Inverter In Parallel

    Fig 2.3.3.4 RS-485 connection Wiring inverter in parallel SiE Inverters can be connected in parallel when more power is required. In the parallel configuration, each inverter shall connect to its own PV array. It is not recommended to connect one PV array to more than one inverter. This may cause the inverter to work abnormally.

  • Page 59: Fig 2.4.1 Parallel Configuration Of Inverter

    Fig 2.4.1 Parallel configuration of inverter...

  • Page 60: Operation

    Operation Overview The SiE Inverter will operate automatically. Once the solar insolation is strong enough to generate DC input voltage over the pre-set threshold value, the inverter turns itself on. The inverter feeds power into the grid after input voltage over the PV start voltage and all necessary conditions are checked and fulfilled.
  • Page 61 grid failure, otherwise it takes 20 seconds normally. If any parameter except the DC input voltage is under the threshold value, the inverter goes to Fault mode. : After the monitoring mode, the SiE Inverter confirms that Grid/MPPT all conditions necessary for feeding the power into the utility grid are fulfilled.

  • Page 62: Operation Feature

    It needs service personnel coming to remove the problems and put the system back to operation. Operation Feature Anti-Island: When an “island” condition is detected, the inverter will stop feeding the power to the grid and/or the load. The “island” is defined as a grid tied inverter maintaining operation and feeding power to a load that has been isolated from the utility power source.
  • Page 63 GFDI Protection and Self Detection Function: All SiE Inverter series products shall have a GFDI (Ground Fault Detection Interrupter) protection and a self-detect function regarding to NEC Section 690.5. For these functions to be active, SiE Inverters must be under a sufficient DC voltage to power on the LCD on front panel and also the internal detect function.

  • Page 64: Led Indication

    LED Indication There are three LED’s on the front panel of the SiE Inverter (SiE5300 in this example) which display the operating status of the inverter as shown in figure 3.3.1. The detailed explanations of the status and the corresponding LED indicators are described in the following table.
  • Page 65 LED Indication Table LED indicators Operating status Description Green Initialization The SiE Inverter is in initialization. Yellow Green System Check mode The inverter is in System Check Yellow mode. Green Monitor mode The inverter is in Monitoring mode. Yellow Green Grid/MPP mode The inverter is in Grid Feeding mode.

  • Page 66: Lcd Display

    LCD Display The SiE Inverter has a 2 x 16 LCD to show the operating status, input/output data, and error messages. As long as the DC input voltage is above the pre-set threshold value, the LCD will display the information following the process flow illustrated in the figure 3.4.1.
  • Page 67 S I L I C O N E N E R G Y S i E 3 8 4 0 3 seconds ↓ After 3 seconds, software versions of two embedded CPU’s, Sequential and Current controller, will be displayed on the LCD. And then the serial number of the inverter and the address for the communication port are displayed.
  • Page 68 If the grid type is set to 240 Vac without neutral, then the display will look as shown in the figure below. G r i d T y p e L 1 - L 2 2 4 0 V 3 seconds ↓ Three (3) seconds later, the LCD will show the voltage setting for the inverter to drop the grid connection.
  • Page 69 V l - n L X X X . X V C l r < X X X C y c s 3 seconds ↓ If the grid type setting of 240 Vac without neutral is used as an example, the settings of the VacH and its clear time will be displayed.
  • Page 70 F a c H X X . X X H z C l r < X X X C y c s 3 seconds ↓ F a c L X X . X X H z C l r < X X X C y c s 3 seconds ↓...
  • Page 71 System Check Mode : After the basic information of the inverter is displayed, the system enters the System Check mode which is then indicated on the LCD. M o d e S y s t e m C h e c k i n g During the system checking, if the DC input voltage is not reaching the point of the PV start voltage setting, , then the following message will be shown on the LCD and the system will stay at this step.
  • Page 72 show the measured data of the DC input voltages and the existing voltage and frequency on the grid side. M o d e M o n i t o r i n g N e x t C o n n e c t X X X s 3 seconds ↓...
  • Page 73 V p v X X X 3 seconds ↓ V a c X X X . X F a c X X . X 3 seconds ↓ Grid/MPPT Mode : After the system enters the grid feeding mode, it will show the following information in order and repeatedly until the system goes to other operating modes.
  • Page 74 V p v X X X W p v X X X X W 3 seconds ↓ V a c X X X . X P a c X X X X W 3 seconds ↓ F a c X X . X I a c X X .
  • Page 75 E a c X X X X X X . X k W h X X X X X 3 seconds ↓ Power De-Rating Message: There are five possible de-rating displays which will be shown if power de-rating is detected in grid feeding mode. Only one occurrence that causes de-rating can be detected at a time.
  • Page 76 M o d e D e r a t i n g I a c M o d e D e r a t i n g P a c M o d e D e r a t i n g V a c H Warning Message : There are three possible warning messages which will be shown when...

  • Page 77: Fault Mode

    W a r n i n g C O M M W a r n i n g F A N B L O C K Fault Mode : The messages for the fault procedure are as follows. It shows the fault mode, serial number of the inverter, software versions of the sequential and current controllers and then the error messages which are listed in the Error Message Table on section 3.6.
  • Page 78 M o d e F a u l t e r r o r m e s s a g e 3 seconds ↓ There are several error messages that show the detailed conditions causing the system to go into the fault mode. For example, the messages shown below describe that the frequency on AC grid is too high (H) or too low (L).
  • Page 79 M o d e F a u l t V a c X X: H or L 3 seconds ↓ T r i p X X X . X V P r e s e n t X X X . X V 3 seconds ↓...
  • Page 80 M o d e F a u l t V a c L 1 V a c L 2 X: H or L 3 seconds ↓ Idle Mode : The messages for idle mode are as follows. It shows the operating mode, serial number of the inverter, software versions of the sequential and current controllers and then the error messages which are listed in the Error Message Table on section 3.6.

  • Page 81: Fig 3.4.1 Sie Inverter Lcd Display Lay-Out

    Fig 3.4.1 SiE Inverter LCD display lay-out...

  • Page 82: Communication

    Then remove the fault condition(s) to return the inverter to a normal condition and continue to feed AC voltage to the utility. Please contact Silicon Energy or your service representative if the same error message persists.
  • Page 83 Error Message Table Error Message Description GridNA No AC voltage is detected on the grid side. Drift Fac Islanding is detected. VacH The AC voltage of utility grid is over the upper limit. VacL The AC voltage of utility grid is under the lower limit. FacH The frequency of AC voltage of the utility is over the upper limit.
  • Page 84 Error Message Description VacL2 L The voltage between L2 and neutral is under the lower limit. MOV Fault,AC High voltage protection function failed in AC side. MOV Fault,DC High voltage protection function failed in DC side. GFDI A grounding fault is detected. The ground fault fuse will be blown.
  • Page 85 Error Message Description CPU Delta Fac Internal measurement comparison error or defective CPU Delta Vac hardware. CPU Delta GFDI CPU Delta Idc IpvH Over current on the DC side. Driver Fault Driver circuit or power device failed. CalDataError Calibration data is out of range. CalDataLoss Calibration data is lost.

  • Page 86: Warranty Information

    Product or parts to the Buyer. Exclusion of Liability Any warranty of SILICON ENERGY will not apply if the Buyer is in default under the Purchase Order Agreement or where the Product, any part or its original label thereof is Damaged by misuse, accident, negligence or failure to maintain the same as specified or required by SILICON ENERGY.
  • Page 87 6. Used in combination with items, articles or materials not authorized by SILICON ENERGY. SILICON ENERGY reserves the rights to determine whether the problem exists within the Product. The Buyer may not assert any claim that the Products are not in conformity with any warranty until the Buyer has made all payments to SILICON ENERGY provided for in the Purchase Order Agreement.

  • Page 88: Factory Service

    All component replacement and its service labor costs are covered by NOTE: the warranty in effect. Once the warranty expires, a Product found upon inspection by SILICON ENERGY, to be in specification is subject to an evaluation fee and applicable freight charges, if any.
  • Page 89 WARRANTY REGISTRATION FORM It is very important to you that you register the product. Changes in product technologies as well as new developments in software and features may make it necessary for us to notice you the related information about your inverter. Please register immediately after purchasing.

  • Page 90: Technical Documentation

    Technical Documentation Outline Drawing Fig 5.1.1 Outline Drawing of SiE2900/3840...

  • Page 91: Fig 5.1.2 Outline Drawing Of Sie4900/5300

    Fig 5.1.2 Outline Drawing of SiE4900/5300...

  • Page 92: Efficiency

    Efficiency of the SiE Inverters 200 Vdc 250 Vdc 400 Vdc 100% % of Rated Output Power Fig 5.2.1 CEC Efficiency of the SiE2900 = 96.0% (240V) 200 Vdc 250 Vdc 400 Vdc 100% % of Rated Output Power Fig 5.2.2...

  • Page 93: Fig 5.2.3

    200 Vdc 250 Vdc 400 Vdc 100% % of Rated Output Power Fig 5.2.3 CEC Efficiency of the SiE3840 = 96.0% (240V) 200 Vdc 250 Vdc 400 Vdc 100% % of Rated Output Power Fig 5.2.4 CEC Efficiency of the SiE3840 = 95.5% (208V)

  • Page 94: Fig 5.2.5

    230 Vdc 275 Vdc 400 Vdc 100% % of Rated Output Power Fig 5.2.5 CEC Efficiency of the SiE4900 = 96.0% (240V) 230 Vdc 275 Vdc 400 Vdc 100% % of Rated Output Power Fig 5.2.6 CEC Efficiency of the SiE4900 = 96.0% (208V)

  • Page 95: Fig 5.2.7

    230 Vdc 275 Vdc 400 Vdc 100% % of Rated Output Power Fig 5.2.7 CEC Efficiency of the SiE5300 = 96.0% (240V) 230 Vdc 275 Vdc 400 Vdc 100% % of Rated Output Power Fig 5.2.8 CEC Efficiency of the SiE5300 = 95.5% (208V)

  • Page 96: De-Rating Operation

    De-rating Operation The conditions when the SiE Inverter will take into account and then regulate the output and/or restrict the input power to ensure the system is in a safe operation are described in detail below. Temperature The SiE Inverter will monitor the temperature on the heat sink. Once the temperature exceeds 78°C (172.4°F) the system will reduce the output power until the temperature drops under the critical value.

  • Page 97: Fig 5.3.1 Temperature Derating Curve Of The Sie2900

    3000 2700 2400 375VDC-240VAC 2100 500VDC-240VAC 1800 250VDC-240VAC 1500 375VDC-208VAC 1200 500VDC-208VAC 250VDC-208VAC Ambient Temp(C) Fig 5.3.1 Temperature derating curve of the SiE2900...

  • Page 98: Fig 5.3.2 Temperature Derating Curve Of The Sie3840

    4000 3700 3400 3100 2800 375VDC-240VAC 2500 500VDC-240VAC 2200 250VDC-240VAC 1900 375VDC-208VAC 1600 500VDC-208VAC 1300 1000 250VDC-208VAC -200 Ambient Temp(C) Fig 5.3.2 Temperature derating curve of the SiE3840 5000 4500 4000 3500 375VDC-240VAC 500VDC-240VAC 3000 250VDC-240VAC 2500 375VDC-208VAC 2000 500VDC-208VAC 1500 250VDC-208VAC 1000...

  • Page 99: Maintenance

    5500 5000 4500 4000 375VDC-240VAC 3500 500VDC-240VAC 3000 250VDC-240VAC 2500 375VDC-208VAC 2000 500VDC-208VAC 1500 250VDC-208VAC 1000 Ambient Temp(C) Fig 5.3.4 Temperature derating curve of the SiE5300 Maintenance 5.4.1 Exchange of the GFDI Fuse Before replacing the fuse, turn off the DC/AC disconnect switch and the breakers and wait for at least 5 minutes for the As shown in the figure 5.4.1.1, turn the cap of the system to discharge.

  • Page 100: 5.4.2 Exchange Of The Pv String Fuses

    (600 VDC, 1 A)! 5.4.2 Exchange of the PV String Fuses The SiE Inverter is shipped with up to four (4) 15A, 600 VDC PV string fuses for the PV strings. For the SiE2900, it is shipped with three (3) 15A, 600 VDC...

  • Page 101: Fig 5.4.2.1 Replacement Of The Pv String Fuses

    PV string fuses. However, the size of the PV string fuse shall be determined by the electrical ratings of the PV module and by UL and National Electrical Code (NEC) requirements. The minimum size of the PV string fuse is calculated using the short circuit current rating (Isc) of the PV module.

  • Page 102: 5.4.3 Factory Service

    Exchange the fuses as shown in the figure 5.4.2.1. 5. Isolate and repair all PV array ground faults before proceeding. Put the cover of the wiring box back and fasten the screws. Turn ON the DC/AC disconnect switch and breakers. WARNING! PV arrays are always energized when exposed to light therefore hazardous voltage is still present on the terminal...

  • Page 103: Remove The Inverter

    product. Please write as detail as possible. 1. Serial number and machine type of the inverter 2. Brief descriptions of connected system 3. Fault message on front panel or fault condition 4. Can the failure be reproduced? How to reproduce it? The following sections will describe the steps to remove and then replace the inverter with the wiring box remaining on the wall.

  • Page 104: Fig 5.4.3.1.1 Remove The Cover Of The Inverter

    Fig 5.4.3.1.1 Remove the cover of the Inverter...

  • Page 105: Fig 5.4.3.1.2 Remove The Dc And Ac Wires

    Black wire Red wire L2 wire N wire L1 wire Fig 5.4.3.1.2 Remove the DC and AC wires Insulating material Fig 5.4.3.1.3 Keep the well-wrapped DC and AC wires stored in the wiring...

  • Page 106: Fig 5.4.3.1.4 Remove The Screws And Nuts Bonding Between The Inverter And

    Fig 5.4.3.1.4 Remove the screws and nuts bonding between the inverter and wiring box...

  • Page 107: Fig 5.4.3.1.5 Un-Hang The Inverter Carefully

    Fig 5.4.3.1.5 Un-hang the inverter carefully cover plate...
  • Page 108 cover plate cover plate...

  • Page 109: Fig 5.4.3.1.6 Locate The Cover Plate In Place And Fasten The Screws

    Fig 5.4.3.1.6 Locate the cover plate in place and fasten the screws Turn the DC/AC disconnect switch to OFF position and turn off all breakers. Wait for at least 5 minutes. Remove the cover of the wiring box by following the steps described in section 2.3.

  • Page 110: Re-Install The Inverter

    wrench so that the inverter can be taken apart from the wiring box as shown in the figure 5.4.3.1.4. 8. Remove the inverter from the mounting bracket as shown in the figure 5.4.3.1.5. 9. Using the cover plate that is on top of the wiring box to cover the through holes of the wires as show in the figure 5.4.3.1.6.

  • Page 111: Fig 5.4.3.2.1 Re-Install The Cover Plate And Fix It On The Top Of The Wiring Box

    cover plate cover plate Fig 5.4.3.2.1 Re-install the cover plate and fix it on the top of the wiring box...

  • Page 112: Fig 5.4.3.2.2 Hang The Inverter Onto The Mounting Bracket Carefully

    Fig 5.4.3.2.2 Hang the inverter onto the mounting bracket carefully...

  • Page 113: Fig 5.4.3.2.3 Fasten The Screws And Nuts Bonding Between The Inverter And

    Fig 5.4.3.2.3 Fasten the screws and nuts bonding between the inverter and the wiring box for its construction and grounding continuity Black wire connected to ACIN_L2 White wire connected to ACIN_N Red wire connected to ACIN_L1 Fig 5.4.3.2.4 Connect the AC wirings to their correct terminals individually...

  • Page 114: Wiring Box

    Fig 5.4.3.2.5 Fasten the screws of cover of the inverter first, then on the wiring box.
  • Page 115 Turn off all DC/AC disconnect switch and breakers. Remove the front cover of the wiring box by following the steps described in section 2.3. 3. Remove the cover plate used to cover the through holes of the wires and put it back to its original place as shown in the figure 5.4.3.2.1.
  • Page 116 WARNING! PV arrays are always energized when exposed to light therefore hazardous voltage is still present on the terminal blocks and the PV string fuse holders even the DC/AC disconnect switch is switched OFF. Please cover the PV arrays with opaque (dark) materials during the inverter removal and absence until the inverter is hooked back and reconnected.

  • Page 117: Weather Proof Shield (Optional)

    Weather Proof Shield (Optional) Please follow these directions to install the weather proof shield to further protect the inverters installed in a harsh environments facing the threat of being damaged by severe weather. Step 1: Release eight (8) screws used to fasten the inverter cover. It is not necessary to remove the inverter cover, but be careful that it does not fall off and.

  • Page 118: Fig 6.2 Step 2: Put The Shield On The Sides Of The Inverter

    Fig 6.2 Step 2: Put the shield on the sides of the inverter. Step 3: Fasten the shields with the screws from step 1. Fig 6.3 Step 3: Fasten the shields with the screws.

  • Page 119: Fig 6.4 An Inverter With The Weather Proof Shield

    Step 4: Complete, the inverter is now more protected for installations in harsh environments. Fig 6.4 An inverter with the weather proof shield.
  • Page 120 Grid type: 120 WYE with Neutral INVERTER wiring: L1-L2-N GRID wiring: R-S-N, S-T-N, or T-R-N Neutral Jumper: 240V/208V with Neutral Grid type: 120 WYE with Neutral INVERTER wiring: L1-L2 GRID wiring: R -S, S- T, or T- R Neutral Jumper: 208V without Neutral or 240V without Neutral Grid type: 240/120 Split Phase INVERTER wiring: L1-L2-N...
  • Page 121 Grid type: 208 Delta without Neutral INVERTER wiring: L1-L2 GRID wiring: L1-L2 Jumper:208V without Neutral...
  • Page 123 Silicon Energy LLC 3506 124 Street NE Marysville, WA 98271 USA tel: 360.618.6500 fax: 360.618.6501 www.silicon-energy.com...
  • Page 124 ZOMG-8253USYUS0...
