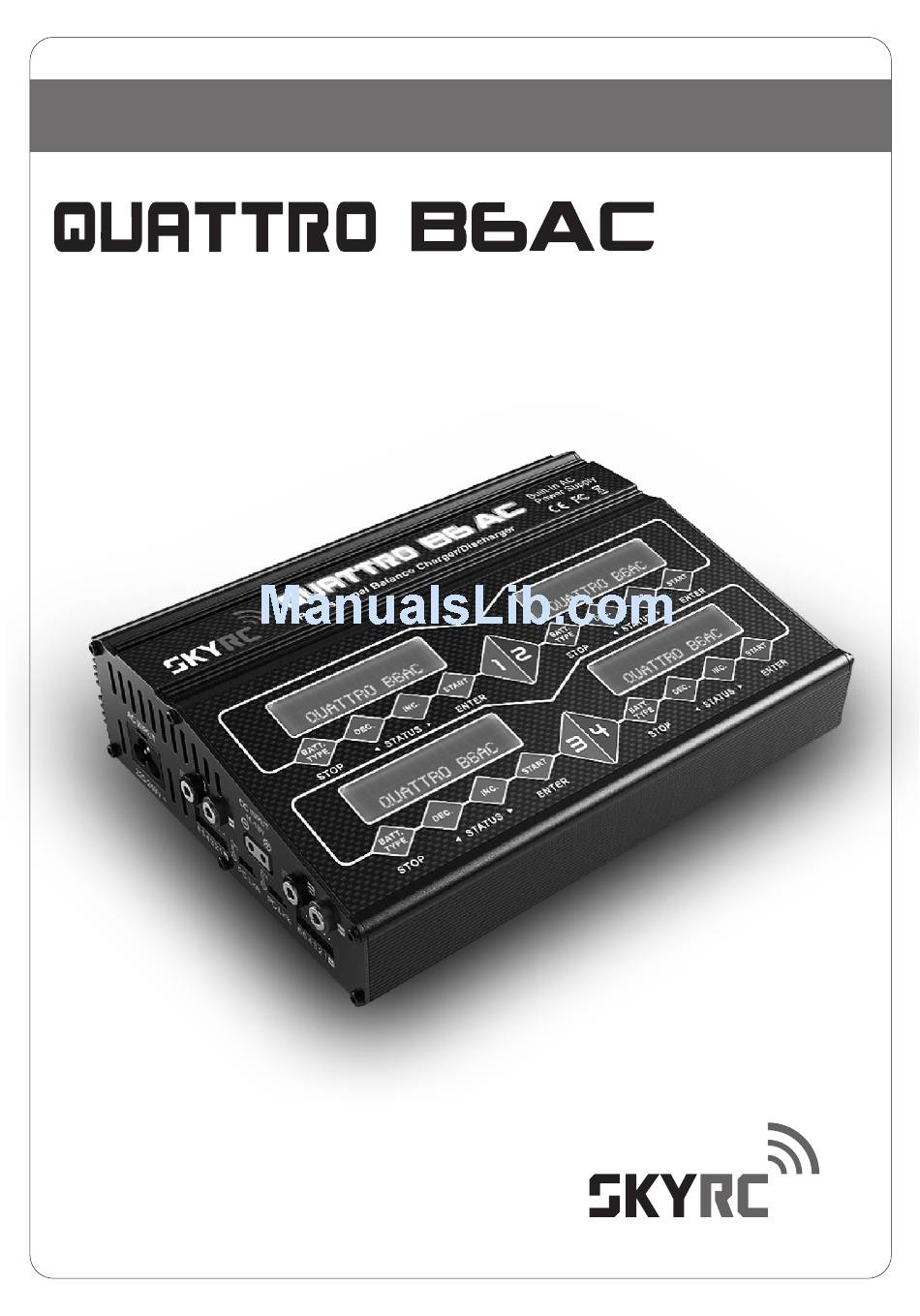

- Page 1 INSTRUCTION MANUAL Built-In AC Power Supply Professional Balance Charger/Discharger...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION..................SPECIAL FEATURES................WARNING AND SAFETY NOTES............PROGRAM FLOW CHART..............LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM........Charging Lithium battery at balance mode..........Charging of Lithium Battery............... ‘FAST' charging of Lithium battery............. 'STORAGE' control of lithium battery............Discharging Lithium battery............... Pb( lead-sulphuric acid) battery program..........Charging of Pb battery................ -
Page 3: Introduction
Total powers are 200 watts. As a result , it can charge or discharge up to 4 x 15 cells of NiCd/NiMH or 4 x 6 series of Lithium batteries simultaneously. Quattro B6AC has four individual cell voltage balancer at each outputs, so it does not required any balancer separately when charging Lithium Battery (LiPo/LiIon/LiFe) for voltage balancing. - Page 4 INTRODUCTION Please read this entire operating manual completely and attentively before using this product, as it covers a wide range of information on operating and safety. Or please do use this product in company with a specialist! LCD Screen Menu Control Buttons Menu Control Buttons Battery Battery...
-
Page 5: Special Features
Adaptable to various type of lithium battery SKYRC QUATTRO B6AC is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries. - Page 6 SPECIAL FEATURES Fast and storage mode of lithium battery Purposes to charge Lithium battery varies, 'fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.
-
Page 7: Warning And Safety Notes
WARNING AND SAFETY NOTES WARNING AND SAFETY NOTES These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or at worst it can cause a fire. Never leave the charger unattended when it is connected to its power supply. - Page 8 WARNING AND SAFETY NOTES Please bear in mind the following points before commencing charging: Did you select the appropriate program suitable for the type of battery you are charging? Did you set up adequate current for charging or discharging? Have you checked the battery voltage? Lithium battery packs can be wired in parallel and in series, i.e.
- Page 9 WARNING AND SAFETY NOTES Charging During charge process, a specific quantity of electrical energy is fed into the battery. The charge quantity is calculated by multiplying charge current by charge time. The maximum permissible charge current varies depending on the battery type or its performance, and can be found in the information by the battery manufacturer.
- Page 10 WARNING AND SAFETY NOTES Discharging The main purpose of discharging is to clean the residual capacity of the battery, or to reduce the battery' voltage to a defined level. The same attention should be paid to the discharging process as the charging process. The final discharge voltage should be set up correctly to avoid deep discharging.
-
Page 11: Program Flow Chart
PROGRAM FLOW CHART PROGRAM FLOW CHART START LiPo BALANCE LiPo CHARGE LiPo FAST CHG LiPo STORAGE LiPo DISCHARGE PROGRAM SELECT 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) LiPo BATT ENTER START Lilo BALANCE Lilo CHARGE Lilo FAST CHG Lilo STORAGE... -
Page 12: Lithium Battery(Lipo/Lilo/Life)Program
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM CONNECTING THE CHARGER SKYRC QUATTRO B6AC comes with the built in switching power supply. You can connect the AC power cord directly to the main AC socket. (100-240V AC) For attaching directly to 12V car batteries. It is critically important that you use a fully charged 13.8V car battery . -
Page 13: Charging Lithium Battery At Balance Mode
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM These programs are only suitable for charging and discharging Lithium batteries with a nominal voltage of 3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different charge technique is termed a constant voltage(CV) and constant current(CC) method. The charge current varies according to the battery capacity and performance. -
Page 14: Fast' Charging Of Lithium Battery
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM The left side of the first line shows the type of battery you choose. The value on the left of the second line of the charger is current user set. After setting the current and voltage, press Start/Enter key for more than 3 seconds to start the process.(charge current: Batt type 0.1-6.0A, voltage: 1S-6S). -
Page 15: Storage' Control Of Lithium Battery
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM 'STORAGE' CONTROL OF LITHIUM BATTERY This is for charging or discharging Lithium battery not to be used for the time being. The program will determine to charge or discharge the battery to the certain voltage depending on the voltage of the battery at its initial stage. They are different from the type of the battery, 3.75V for LiIo, 3.85V for LiPo and 3.3V for LiFe per cell. -
Page 16: Pb( Lead-Sulphuric Acid) Battery Program
PB( LEAD-SULPHURIC ACID) BATTERY PROGRAM This is programmed for charging Pb(lead-sulphuric acid) battery with nominal voltage from 2 to 20V. Pb batteries are totally different from NiCd or NiMH batteries. They can only deliver relatievely lower current compare to their capacity, and similar restrictions definitely apply to charge. -
Page 17: Nimh/Nicd Battery Program
NIMH/NICD BATTERY PROGRAM These programs are for charging or discharging NiMH (Nickel-Metal-Hydride) or NiCd (Nickel-Cadmium) battery commonly used for R/C model aplications. To alter the value at the display, press Start/Enter key to make it blink then change the value using INC or DEC key. -
Page 18: Charging Nicd/Nimh Battery In Re-Peak Charge Mode
NIMH/NICD BATTERY PROGRAM CHARGING NICD/NIMH BATTERY IN RE-PEAK CHARGE MODE Re-peak Charge Mode (NiCd and NiMH batteries only): In re-peak charge mode, the charger can peak charge the battery once, twice or three times in a row automatically. This is good for confirming the battery is fully charged, and for checking how well the battery receives fast charges. - Page 19 BATTERY MEMORY SET Set the voltage and number of cells, along with the normal voltage BATT VOLTS 7.4V(2S) (1-6S). DEC INC CHARGE CURRENT Set the charge current, which can be adjusted(0.1-6.0A). 4.9A DEC INC Set the discharge current, which can be adjusted(0.1A-2.0A, DSCH CURRENT 2.2A each port).
-
Page 20: Lithium Battery Meter
LITHIUM BATTERY METER PROGRAM SELECT Press the Start/Enter button to enter the Lithium Battery Meter. BATT METER Start Enter 4.19 4.15 4.18V The screen indicate each cell's voltage. 0.00 0.00 0.00V The screen indicate the total voltage, the highest voltage, MAIN 12.52V H4.190V L4.160V... -
Page 21: Program Set Up
PROGRAM SET UP It will be operated with the default value of the essential user settings when it is connected to a DC 11~18V batttery for the first time.The screen displays the following information in sequence and the user can change the value of parameter on each screen. When you are willing to alter the parameter value in the program, press Start/Enter key to make it blink then change the value with INC or DEC key. - Page 22 PROGRAM SET UP This program monitors the voltage of input battery. If the voltage Input Power Low drops below the value you set the operation forcibly terminated to Cut-Off 11.0V protect the input battery. DEC INC Ext. Temp This screen shows the external and internal temperature. Int.
-
Page 23: Various Information During The Process
VARIOUS INFORMATION DURING THE PROCESS You can inquire various information on LCD screen during charging or discharging process. When you press DEC button the charger shows the establishment of user settings. And also you can monitor the voltage of individual cell by pressing INC button when the individual connection cable is linked to the Lithium battery being processed. -
Page 24: Warning And Error Message
WARNING AND ERROR MESSAGE It incorporates a variety of functions for the systems to verify processes and the state of the electronics. In case of an error the screen will display the cause of error and emit an audible sound. Incorrect polarity connected. -
Page 25: Specification
6. Tamiya charging cable 1. AC Power Cord 7. Futaba RX charging cable 2. DC Power Input Cable 8.JST/BEC charging cable 3. SKYRC QUATTRO B6AC 9. 18AWG wire charging cable 4. Plug-in battery clamps 10. TP/FP Adaptor 5. Crocodile clip charging cable... -
Page 26: Recommended Accessories
RECOMMENDED ACCESSORIES Temperature Probe Multi Balance Board Adapter Temperature Probe with Magnet SK-600005-01 SK-600040-01 SK-600056-01 EH Adaptor XH Adaptor HP/PQ Adaptor SK-600014-01 SK-600020-04 SK-600016-03 TP/FP Adaptor Dean charging cable Futaba RX charging cable SK-600018-02 5201-0012-01 5201-0044-01 TRAXXAS charging cable Glow charging cable Crocodile clip charging cable 5201-0033-01 5201-0045-01... -
Page 27: Conformity Declaration
CONFORMITY DECLARATION CONFORMITY DECLARATION SKYRC QUATTRO B6AC satisfy all relevant and mandatory CE directives and FCC Part 15 Subpart B: 2008. For EC directives: The product has been tested to meet the following technical standards: Test Standards Title Result For safety of household and similar electrical appliances. - Page 28 Manufactured by SKYRC TECHNOLOGY CO., LTD. www.skyrc.com All specifications and figures are subject to change without notice. Printed in China 2012.12 7504-0324-01 Version 1.1...
