BackStopper CA-5009.2 Installation Instructions Manual

Rear parking assist system with audible buzzer

Advertisement

Quick Links

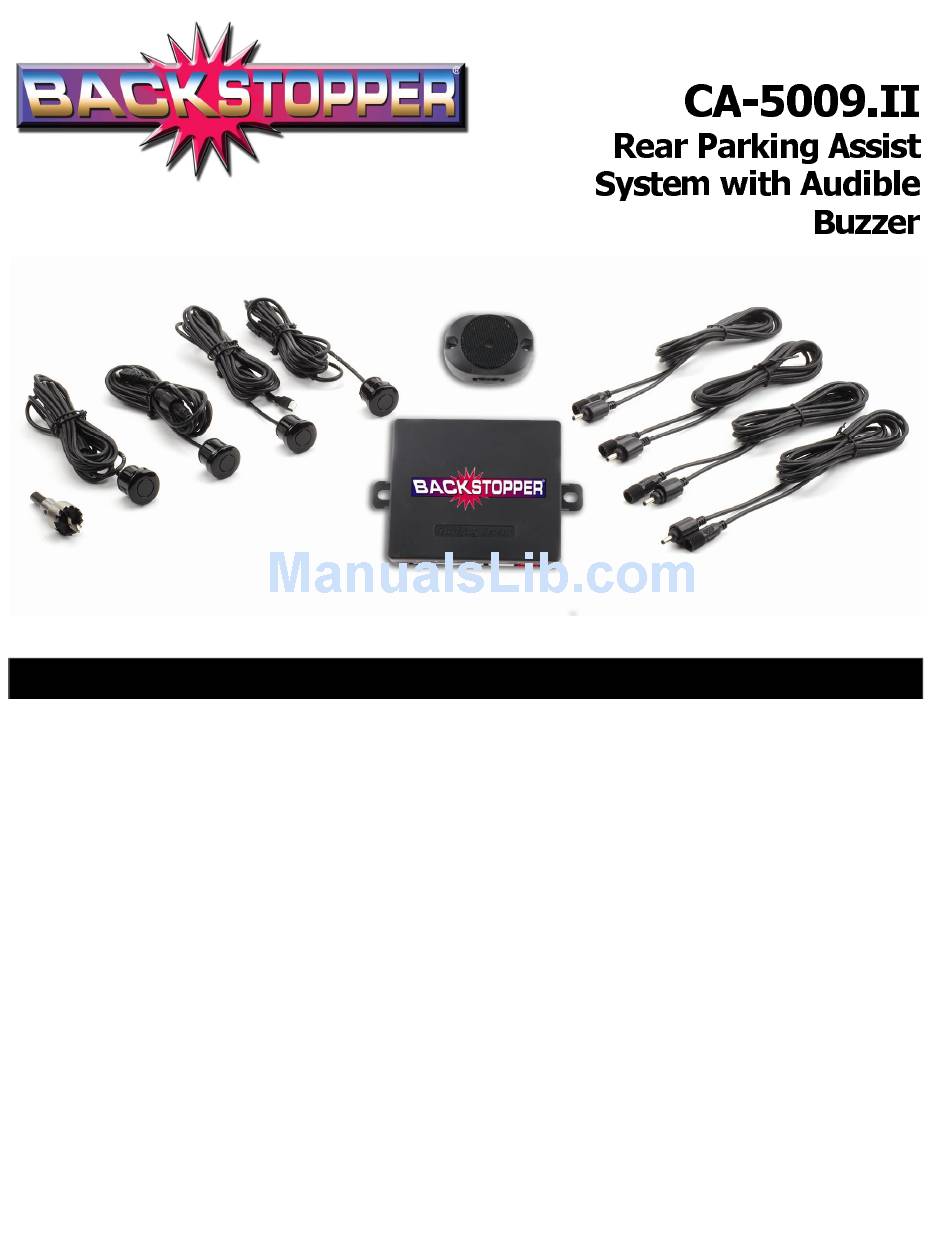

The CA-5009.II is an ultrasonic parking assist system designed for use on the rear bumper of
most cars and trucks. This system detects any people or objects behind the vehicle using (4)
ultrasonic sensors that are mounted in the rear bumper and warns the driver of the distance to
the objects through audible tones using an external mounted speaker. The driver can then judge
the distance and use caution when backing up the vehicle.
FEATURES:
• (4) Ultrasonic sensors with quick disconnect waterproof connectors
• Audible buzzer (No LED Display)
• Volume adjustment on audible buzzer
• Multiple beeping tones to alert the driver of the distance to an object
• Intelligent detection switch to adjust the sensor sensitivity for vehicles with spare tire
racks or tow hitches on the rear bumper
• Sensors can be painted to match the color of the vehicle
• Four-stage audible obstruction warning
• Shallow vertical sensing are (Sensors can be mounted on vehicles that have lower
bumpers or body kits)
• Special metal bumper sensors (MBS) available for trucks that have metal bumpers
• Includes hole saw bit and 3M tape for installation

INSTALLATION INSTRUCTIONS:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-5009.2 and is the answer not in the manual?

Questions and answers

Summary of Contents for BackStopper CA-5009.2

  • Page 1: Installation Instructions

    INSTALLATION INSTRUCTIONS: The CA-5009.II is an ultrasonic parking assist system designed for use on the rear bumper of most cars and trucks. This system detects any people or objects behind the vehicle using (4) ultrasonic sensors that are mounted in the rear bumper and warns the driver of the distance to the objects through audible tones using an external mounted speaker.
  • Page 2: Installing The Sensors

    INSTALLATION INSTALLING THE SENSORS The CA-5009.II can be installed with (2) sensors or (4) sensors on the rear bumper of the vehicle. (4) Sensors are recommended for the best coverage behind the vehicle. 1. Measure out the distance across the bumper and try to space the sensors equally apart. Space the sensors at least 1 -1.5 feet apart from each other if you are installing (4) sensors and 2-2.5 feet apart from each other if you are installing (2) sensors.
  • Page 3 CAR BUMPERS (2) Sensor Install (4) Sensor Install 1.5 - 2.5 feet (Height) 2 - 2.5 feet 1 - 1.5 feet (Width) (Width) TRUCK BUMPERS Use the provided hole saw bit to drill sensor holes Bumper Sensor 1.5 - 2.5 feet Route the sensor cables through the hole and snap (Height) the sensor into place on the bumper...
  • Page 4: Installing The Control Module

    INSTALLATION INSTALLING THE SENSOR CABLES 1. Route the cables into the trunk panels of the vehicle either by drilling and hole or using a pre-existing rubber grommet. If you have the drill a hole, make sure to seal the hole once the installation is complete to prevent leaks and keep out any other weather elements.
  • Page 5: Volume Control

    Buzzer Sensors Control Box CONTROL MODULE MOUNTING 3M TAPE BRACKET Clamp Control Box (Side View) Control Box 3M Double-Side Tape Clamp Mounting Bracket Mounting Surface Clamp BUZZER MOUNTING VOLUME CONTROL Speaker 3M Double-Side Tape NOTE: Again, please make sure when routing the sensor and buzzer cables to the control module to avoid any moving parts (Steering column or pedals) or removable brackets or panels.
  • Page 6 This can sometimes cause a back-feed into the Backstopper system and cause false warnings making the system work incorrectly or not at all. Please see our troubleshooting section for tips on how to solve this issue.
  • Page 7: Operation

    OPERATION DETECTION RANGE When the vehicle is shifted into reverse, the system will activate. The buzzer will sound off to let you know the system is active. The system will not sound again until sensors pick up any objects or people that come into the detection range. SIDE VIEW 0ft.
  • Page 8 0ft. 3ft. 5ft. SAFE AREA 3.5 - 5 ft. ALERT AREA 2.5 - 3.5 ft. Beep... Beep... Beep... Beep Beep Beep Beep ALERT AREA 1.5 - 2.5 ft. DANGER AREA 0 - 1.5 ft. Be Be Be Be Be..Beeeeeeeeeep..DISTANCE AWARENESS DISPLAY...
  • Page 9: Control Module

    This can sometimes cause the Backstopper system to interpret these objects as obstructions behind the vehicle and give the driver a false alert. To solve this problem, the CA-5009.II has an intelligent detection setting switch on the side of the module.
  • Page 10: Installer Notes

    INSTALLER NOTES After the installation of the system is complete, make sure to adjust the direction of the sensors to correct any range problems you might be experiencing such as false alerts or no alerts at all. If need be, the provided plastic shims can be used to adjust the angle of the sensors on the bumper.
  • Page 11: Troubleshooting

    TROUBLESHOOTING Please read the following helpful tips if you run into any trouble installing this system into the vehicle. These tips may also be useful if the operation of the system is not functioning properly. Please make sure that the system is powered up and working properly before reading through these tips.
  • Page 12 5. Make sure the sensor cables are not installed or ran next to any high current power wires or electrical devices such as an amplifier or any other lighting or control modules in the vehicle. Also check to make sure the Backstopper control module is not next to any high current devices.
  • Page 13 Reverse Input of +12 VOLT BATTERY Backstopper Sensor System 9. The sensors may be picking up the ground. Use the supplied shims to angle the sensors back up a little bit to direct them away from the ground. (See FIGURE 4) 10.
  • Page 14 State or Federal Motor vehicle codes with regards to modifications of vehicle bumper or any systems in the vehicle. The manufacturer of the Backstopper™ CA-5009.II assumes no liability or responsibility whatsoever with regards modifications of the vehicle bumper or any other equipment in the vehicle.
