Page 1: Owners Manual

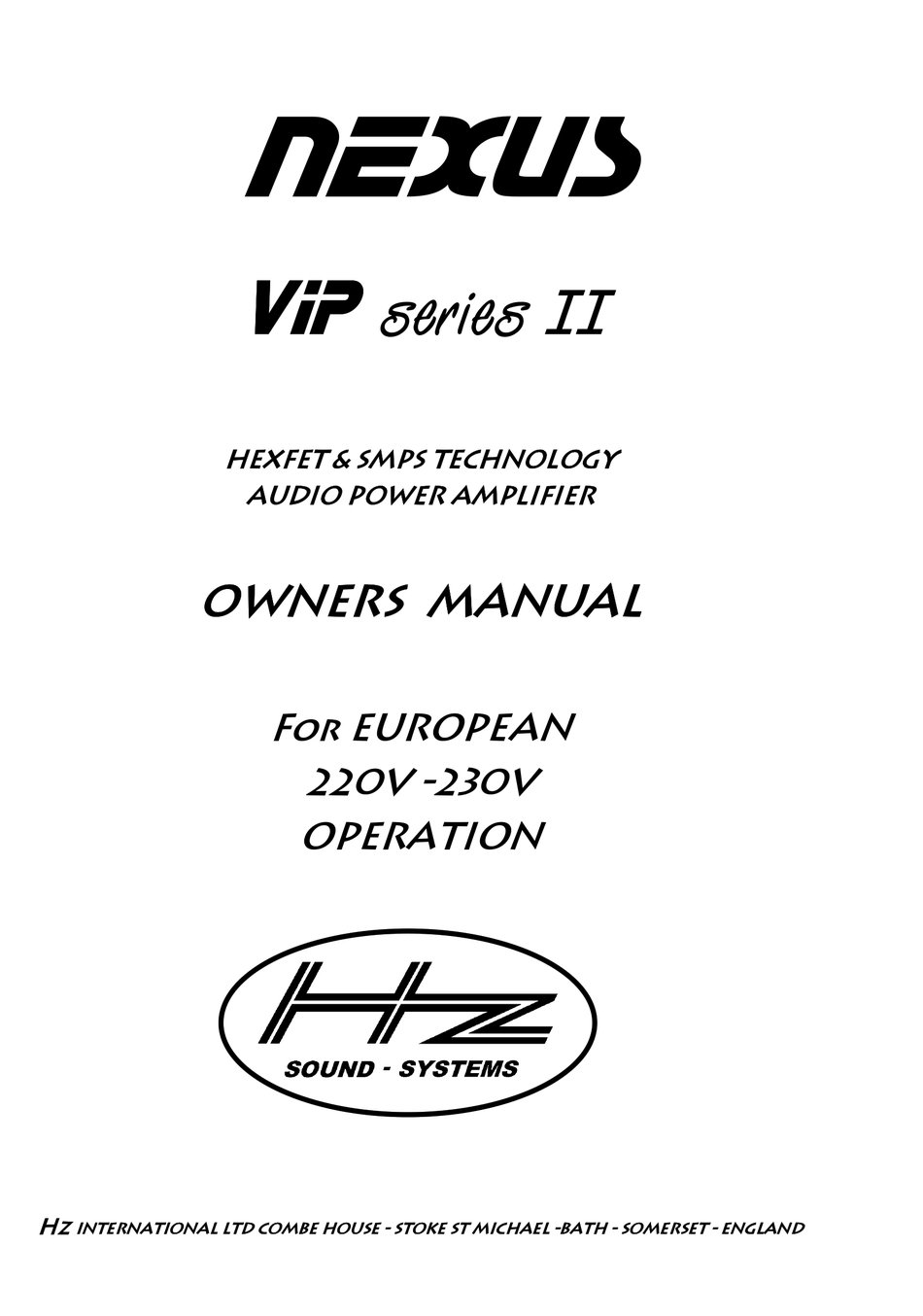

NEXUS series HEXFET & SMPS TECHNOLOGY AUDIO POWER AMPLIFIER OWNERS MANUAL For EUROPEAN 220V -230V OPERATION INTERNATIONAL LTD COMBE HOUSE - STOKE ST MICHAEL -BATH - SOMERSET - ENGLAND... -
Page 2: Table Of Contents
CONTENTS GETTING STARTED 1. Preface 2. Installation 3. Connections 4. Input Cables 5. Output Connections 6. Power Connection OPERATION: 1. BARGRAPH METERS 2. LIMITER 3. MONO/STEREO MODE 4. TRIP INDICATOR 5. POWERING UP AMPLIFIER MAINTENANCE FAULTS AND THEIR LIKELY CAUSES TECHNICAL DATA... -
Page 3: Installation
Rear support brackets are strongly recommended to be used on each unit, to avoid transit damage. CONNECTIONS At the back of the NEXUS amplifier you will find the following connection sockets: - Mains inlet: To connect the unit, via a mains lead, to the mains power supply. -
Page 4: Connections
INPUT /OUPUT LINK CABLES All the inputs are BALANCED for low noise and to give high quality from professional equipment, but can be used for UNBALANCED sources by using the XLR connectors as shown, although it is advised that the cable lengths be as short as possible. -
Page 5: Trip Indicator
OPERATION Your NEXUS Amplifier is now ready for use. Before attempting to operate it, however, it is advisable to familiarise yourself with the functions of the controls and the significance of the indicators. 1. Power Switch: Switches on the Isolating power relay from the mains power supply. -
Page 6: Powering Up
an unacceptable load has been connected to either output. The amplifier will not run until the offending connection has been removed: So switch off and remove all output cables and also check for short circuits or wrong load, (Impedance is too low for safe operation). DO NOT SWITCH ON AMPLIFIER BEFORE CONNECTING THE OUTPUT CABLES AND LOADS Under normal conditions the trip indicator should never light. - Page 7 THE HOOK UP WIRES NEARLY ALL SOUND SYSTEM FAULTS CAN BE TRACED BACK TO POOR WIRING CHECK ALL CABLES REGULARLY HELPLINE (UK) 44 1749840102 TECHNICAL SPECIFICATION POWER OUTPUT NEXUS 2.0 Load Per Channel <0.1% <5% PEAK 16ohm 8ohm 1266 4ohm...
- Page 8 GUARANTEE YOUR EQUIPMENT IS GUARANTEED FOR A PERIOD OF TWELVE MONTHS TAKEN FROM THE DATE OF PURCHASE OF THE PRODUCT AGAINST ANY DEFECTS DUE TO FAULTY MATERIALS OR FAULTY MANUFACTURING. DURING THIS PERIOD, REPAIRS TO THE EQUIPMENT WILL BE CARRIED OUT WITHOUT CHARGE FOR LABOUR OR MATERIALS BY ANY AUTHORISED DEALER OR THE FACTORY SUBJECT TO THE FOLLOWING CONDITIONS.
