Summary of Contents for Advance mobility Liberty push chair

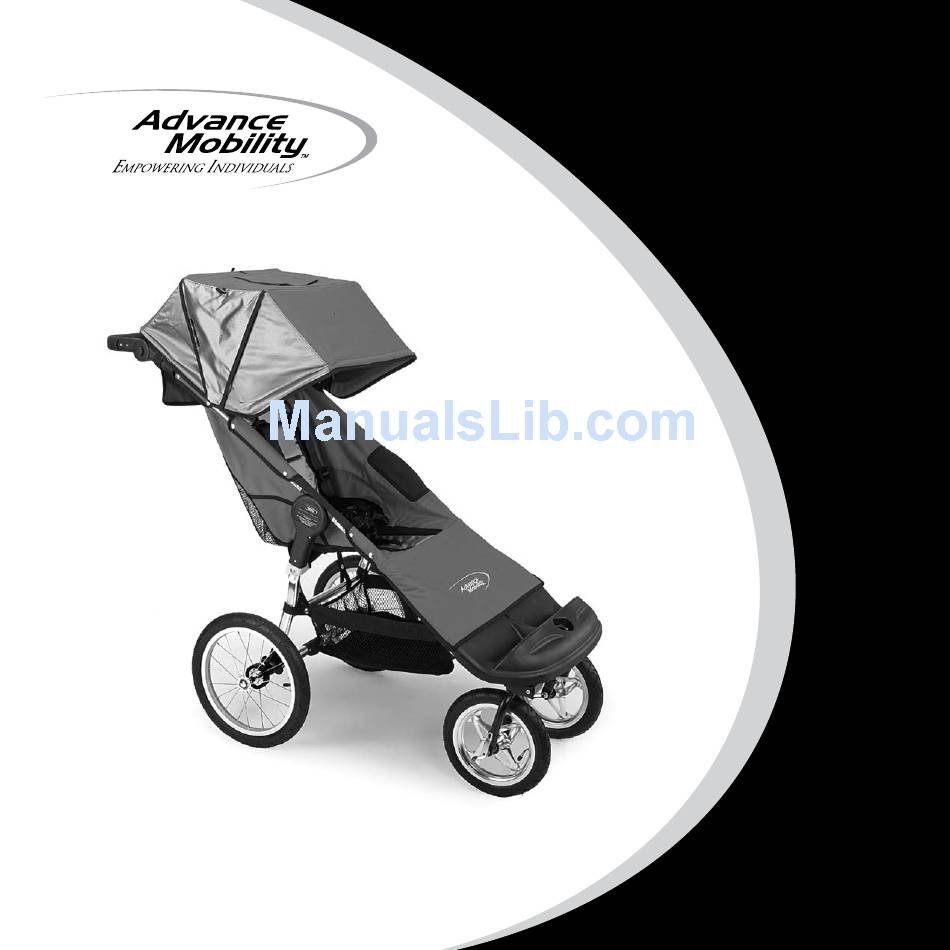

- Page 1 Assembly Instructions A Division of The Baby Jogger Company Read these instructions carefully before use and keep them for Liberty future reference. Push Chair Your passenger’s safety may be affected if you do not follow these instructions. This product is CE approved...
- Page 2 For the sake of your precious cargo, please read these warnings before using your brand new Liberty Push Chair. • WArning: Prevent serious injury to your passenger by always using the safety harness. • WArning: Any load attached to the handle affects the stability of the Push Chair.
- Page 3 Frame Unpack Push Chair from box and set wheels aside. Pull up on handle and push axle of Push Chair forward to assemble frame. Push Chair frame will click into place. Snap yellow safety straps to frame before use.
-
Page 4: Front Wheels
Front Wheels To install front wheels, lay stroller Insert the front wheels into the fork tips by back so the handle is resting on aligning the axle flats with the fork tip flats. the floor. Lock front wheels to prevent the forks from swiveling. Wheel Lever Tighten by turning the wheel lever... -
Page 5: Rear Wheels
Rear Wheels • To install, gently slide the wheel’s axle into the hole in the axle end until you hear it click into place. • To remove, simply push in the spring lock button while pulling out the wheel. -
Page 6: Safety Harness
Safety Harness Unclip top of shoulder strap from the To adjust the strap length: Move the seat and re-clip on the pair of seat plastic guide up or down to lengthen loops closest to child’s shoulder height. or shorten. To unbuckle the harness: Press one side of the center button and pull the corresponding side buckle... -
Page 7: Rear Wheel Brake
To adjust side straps: Press side buckle latch To adjust the center strap: Move its plastic and slide strap to lengthen or shorten. guide up or down. Rear Wheel Brake • Simply push brake pedal down to engage rear parking brakes and lift up to release. -
Page 8: Adjustable Handle
Adjustable Handle Push in side buttons and adjust handle to desired position. - Page 9 Seat AlWAys Be sure The yelloW sAfeTy sTrAp is securely snApped onTo The frAme Before using push chAir! Snap seat to frame. Fasten the two bottom Velcro straps to each other. Thread folding strap through openings in seat. Attach folding strap to folding trigger and secure the triangle shaped fastener.
-
Page 10: Reclining Seat
Reclining Seat To recline: Pinch clamp and slide it down to desired recline and push down on seat. To return to the upright position: Hold the D-ring on the end of the recline strap in one hand and use the other to pinch the clamp and slide it up the strap. - Page 11 Canopy To attach bracket to frame: Unsnap seat To attach canopy to bracket: Insert canopy from frame to reveal mounting location. frame into bracket and attach screws using Use a phillips head screwdriver to attach a phillips head screwdriver. bracket screws to frame. Wrap canopy strap around frame, Unwrap canopy strap to tilt forward fasten Velcro to itself.
- Page 12 Basket To install the basket onto the Liberty frame, it is best to remove bottom seat section as shown on the seat page Place the basket under the Push Chair, narrow end forward and secure front basket snap straps around frame. Secure rear snap straps around the frame above center support bar.
- Page 13 Folding AlWAys Be sure The yelloW sAfeTy sTrAp is securely snApped onTo The frAme Before using push chAir! Retract canopy and unsnap Grasp Fold Strap and pull upwards. Fold Strap from both uprights. (You might have to give it a tiny yank.)
- Page 14 In Motion Steering • Steering your Push Chair is simple. It’s balanced to turn with just a light touch on the handlebar. Wrist Strap • Make sure wrist strap is around your wrist when in use. The Liberty is ready to roll with or without you –...
- Page 15 Push Chair Care Washing • You can machine wash the Liberty’s seat in cold water with a mild detergent. To minimize shrinkage, simply reattach the seat to the frame to dry. (Please do not put the seat in the dryer!) •...
- Page 16 If you have any questions or comments, please give us a call at: 1. 800.241 .1 848 Advance Mobility is a Division of Baby Jogger 8575 Magellan Parkway, Suite 1000 • Richmond, VA 23227 T: 800.241.1848 • F: 804.262.6277 www.advancemobility.org...
