Muxboxs MB-CVHFB User Manual

----------------------------------------------------------------------------------

Overview

Overview Overview Overview

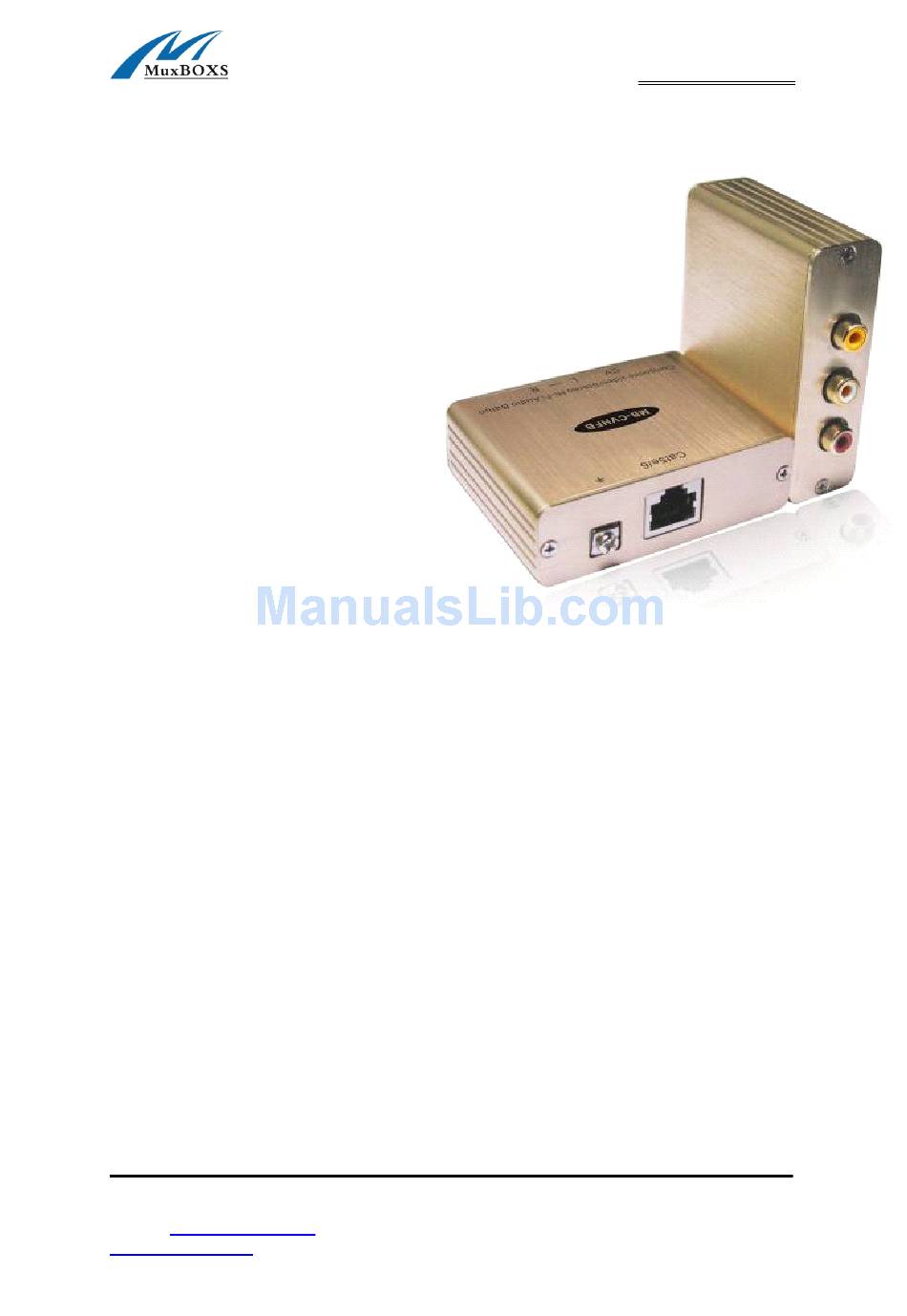

The Composite Video/Stereo Hi-Fi Audio Balun
(MB-CVHFB) allows one composite video,one stereo
audio to be transmitted via a single Cat5e /6 cable
in a point-to-point connection. The Composite
Video/Stereo Hi-Fi Audio Balun features full audio
bandwidth response for high fidelity applications .
The Composite Video/Stereo Hi-Fi Audio Balun
works in pairs,some of the applications are
classroom video distribution, commercial and home
audio/video systems, hospital video training, video
conferencing, and video kiosks

Applications

Applications Applications Applications
classroom video distribution,
commercial and home audio/video
systems, hospital video training, video
conferencing, and video kiosks
Features Features Features & & & & Benefits Benefits Benefits
Features Benefits
Video up to 2,200 feet (670m) via Cat5e/6
Audio up to 3,250 ft (1km) via Cat5e/6
20 Hz to 20 kHz audio bandwidth
Cost-efficient cabling
Quicker moves, adds and changes
Quick Setup Quick Quick Quick Setup Setup Setup Guide: Guide: Guide: Guide:
Plug the RCA connectors of the transmit Balun into the Video and Audio
outputs of the source component you wish to transmit. Plug the Video and
Audio connectors from the receive Balun into your desired input component.
Insert the CAT5 cable into both ends of the Baluns. You may use standard
EIA 568A/B termination.
----------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------- ----------------------------------------------------------------------------------------------------------------------
