Onyx SW2200XS Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

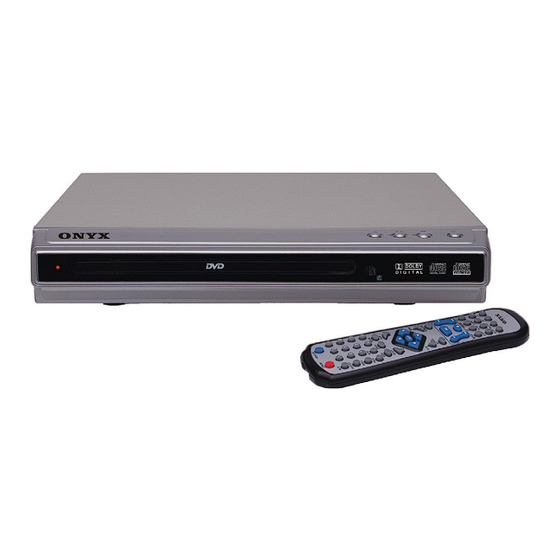

SW2200XS

DVD PLAYER

Table of Contents

Need help?

Do you have a question about the SW2200XS and is the answer not in the manual?

Questions and answers

Summary of Contents for Onyx SW2200XS

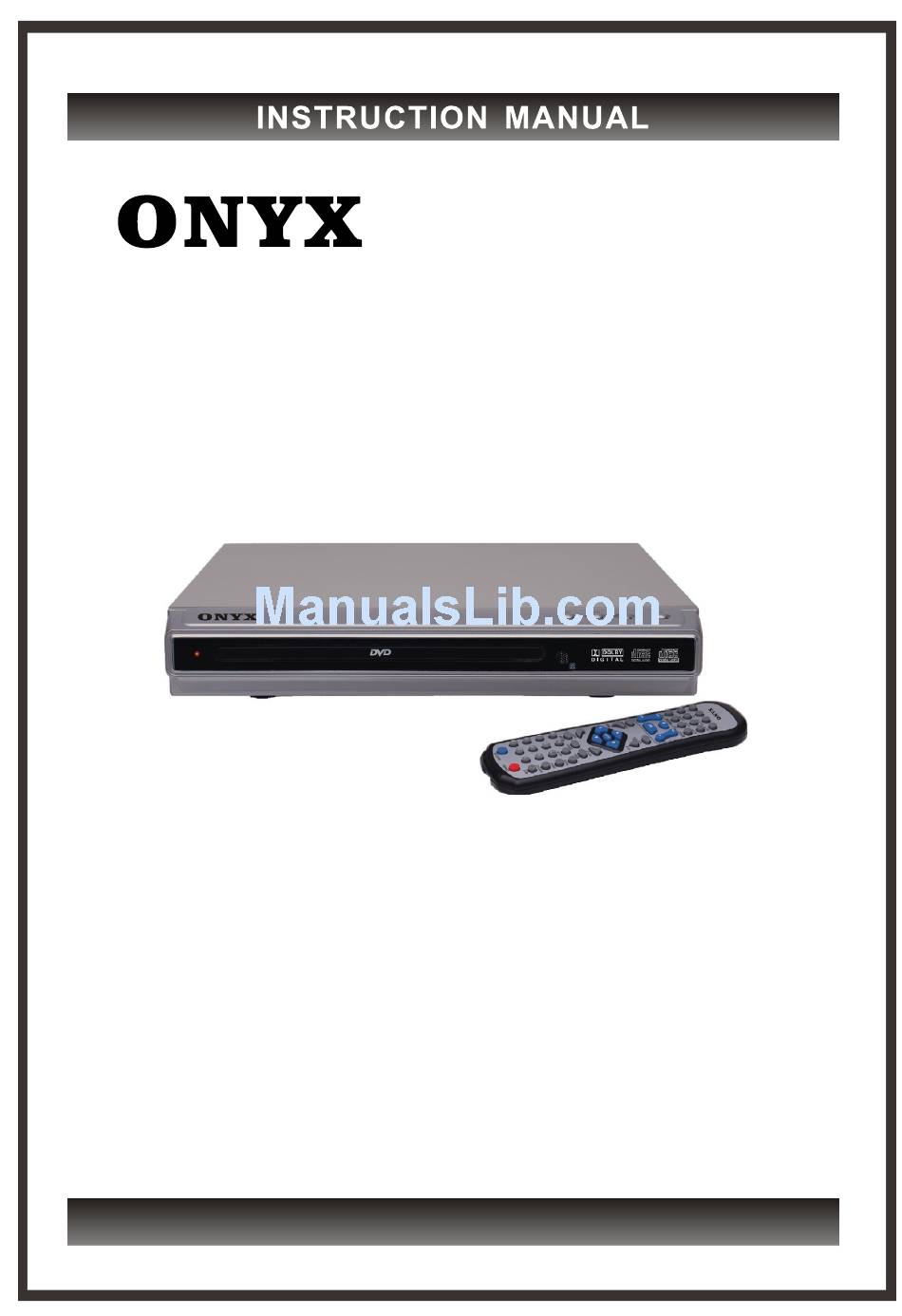

Page 1 SW2200XS DVD PLAYER...
Page 2: Table Of Contents
CONTENT SYMBOLS AND IMPORTANT SAFEGUARD 1. BASIC INFORMATION 1.1 Front and Rear Panel View 1.2 Remote Control View 2 SYSTEM SET UP 2.1 Language Setup 2.2 Screen Setup 8-10 2.3 Audio Setup 11-12 Custom Set up Exit 3 BASIC OPERATIONS 3.1 Turn on/off 3.2 Open/ Close the disc tray 3.3 Prestop/Stop...
Page 3: Symbols And Important Safeguard
Help line For assistance during normal working hours (9am-5pm, Mon-Fri, New Zealand local time) call Oriental Pacific International Ltd. NZ call: 0800 89 85 80 service@orientalpacific.com Email: SYMBOLS The graphic symbols used in this manual or on the back cover of the set mean the following: Read this manual in full before use.
Page 4 WARNING! Do not remove any cover. WARNING! No objects filled with liquid, such as vases, shall be placed on this equipment or in any position where liquid may fall into this equipment or any other electrical apparatus. WARNING! Do not insert any objects into any openings of this equipment or any other electrical apparatus.
Page 5: Basic Information
1 Basic Information 1.1 Front and Rear Panel View Play/Pause Stop Power Open/Close Disc Drawer Remote Control Sensor Y Video Output Cb/Pb Video Output Scart Socket (Connect to TV) Cr/Pr Video Output Video Output S-Video Output Coaxial Output Power C ord Audio Output Right Audio Output Left...
Page 6: Remote Control View
1.2 Remote Control View NUMERIC KEYS LEFT ARROW DOWN ARROW SURROUND...
Page 7: System Setup
2 System Setup Press SETUP to enter SETUP menu. There are 4 options: including【 Language Setup 】、【 Screen Setup 】、【Audio Setup】、【 Custom Setup】 , we PLAY can use to modify setting, and set value will refresh directly right now. When SETUP screen show dialog ,press will return to parent parental menu；In other status, Press...
Page 8 2.1.3 Audio This is to select the SETUP audio language. ”Audio language” appears 13 kinds of languages, including English 、 Chinese、 Japanese、 French 、 German、 Italian 、 Spanish、Portuguese、 Hindi 、Thai、 Russian、Korean、Others. If the DVD Disc supports SETUP audio language, system will play the corresponding audio language, if DVD disc doesn’t support SETUP audio language, system will select first audio language in disc automatically.
Page 9: Screen Setup
※In 【 Menu Language 】、【 Audio Language 】、【 Subtitle Language 】 setup, when we select 【Others】, system will let user input four numbers of language codes, and we can use Reference A language code table to input the number we want, and then pressing ENTER just to finish the input.
Page 10 2.2.2 Screen Saver There are two options: ON and OFF, user can set this function On or Off. TV System 2.2.3 (Color TV) There are 3 options for TV system: NTSC, PAL and Auto. 2.2.4 Video Output It supports S-VIDEO、CVBS+YUV、CVBS+RGB、 YUV P-SCAN If TV support (YUV) input or (RGB) input，we can select the setting, let user get better view If user enters from NONE-【P-SCAN】...
Page 11 Brightness There are 3 kinds of brightness, including 【Normal】、【Bright】、【Soft】. Contrast From -4 to +4, 0 as normal, user can select by his preference.
Page 16: Program Play
Program Play 3.15 This function can set playing order, when playing DVD, press PROG, the screen will appear the following picture. Then use numeric key or buttons to select the Title/Chapter you want. Press PLAY to start playing. When playing VCD/SVCD, press PROG then show program screen: Using numeric key or...
Page 17 orange In【Program】Mode, the selected file will show background and reverse color. User can select the song or picture he wants，for example, user selects test_5_01、test_5_03, and test_5_06 three files, it can select over than one folder, even in sub-folder, or sub-sub-folder. When user wants to play the selected files in【Program】mode, it needs to move the cursor to the buttons, then press key to play.
Page 20: Resume
3.27 Resume This function enables DVD or VCD disc to return back to playback mode and go on playing after pressing Stop button. 3.28 Clear Press Clear to delete selected items in the program list. 3.29 N/P Press this button to change system among NTSC, PAL and Auto. 3.30 Audio Press this button while playing DVD, to select different kind of output voice language.
Page 21: Help And Advice
Help and Advice The DVD Player will not power on. Ensure that the plug is connected to the mains socket and that it is switched on. Replace the fuse in the plug Disc does not play Check that the disc has been correctly loaded, label facing up. Check that the formal of the disc is supported.
Page 22: Technical Specification
Technical Specification Power Supply: AC 100-240V 50/60Hz Power Consumption: Compatible Discs: Audio CD Kodak Picture CD JPEG Video Format: PAL/NTSC/AUTO Output Terminals: Scart out RCA audio/video cable Coaxial digital output S-Video output Y、Cb、Pb、Cr、Pr component video cable Audio: 2.0CH Note: design and specification is subjiect to change without notice.
Page 23: Warranty Card
Warranty Card This product is guaranteed against faulty materials and workmanship for a period of twelve months from the date of purchase with proof of purchase. The obligation to the purchaser under this warranty is limited to servicing the unit and replacing defective parts or refund when the product is returned freight prepaid to the retailer with proof of purchase.
