ORIGINAL OPERATING INSTRUCTIONS C 4/36-90 ⁄ C 4/36-350 ⁄ C 4/36DC charger It is essential that the operating instructions are read before the appliance is operated for the first time. Always keep these operating instructions together with the appliance. Ensure that the operating instructions are with the appliance when it is given to other persons. -
Page 5: General Information
The type designation and serial number can be found on the type identi- fication plate on the appliance. Make a note of this data in your operating instructions and always refer to it when contacting your Hilti representative or service center. -
Page 6: Safety Instructions
Type: Generation: 01 Serial no.: 2 Safety instructions 2.1 General safety rules WARNING! Read all instructions! Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE THESE INSTRUCTIONS! 2.1.1 Work area safety a) Ensure that the workplace is well lit. b) Modification of the machine or tampering with its parts is not permissible. - Page 7 Dirty or dusty appliances should thus be checked at a Hilti service center at regular intervals, especially if used frequently for working on conductive materials.
-
Page 8: Description

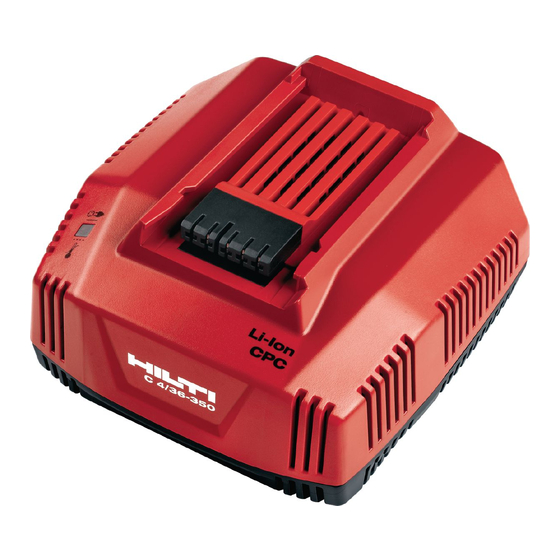

3 Description 3.1 Use of the product as directed The appliance is designed to charge Hilti Li-ion batteries with a rated voltage of 7.2 to 36 volts. The C 4/36-90 and C 4⁄36350 chargers are designed to be connected to a power outlet providing an AC voltage of 100 to 240 volts (depending on country-specific version). -
Page 9: Technical Data
The appliance may be operated only when connected to an electric supply providing a voltage and frequency in compliance with the information given on its type identification plate. 3.2 Items supplied as standard 1 Charger 1 Operating instructions 3.3 Charge status of the Liion battery during charging Charge status in LEDs light constantly LEDs blink... - Page 10 AC supply voltage for 100 V 110…127 V 220…240 V C 4/36350 AC supply fre- 50…60 Hz 50…60 Hz 50…60 Hz quency Output power 315 W 350 W 365 W C 4/36DC motor 12 V 24 V vehicle voltage Output power 60 W 60 W NOTE...
-
Page 11: Before Use
The green LED lights after the appliance has been plugged in. 5.3 Switching on the C4/36DC charger NOTE When charging a Hilti battery with the C4/36-DC charger, the motor vehicle’s starter battery may become discharged to such an extent that it no longer functions (i.e. the vehicle won’t start). -
Page 12: Operation
6 Operation 6.1 Inserting and charging the battery CAUTION Make sure that the outer surfaces of the battery are clean and dry before inserting it in the charger. Observe the operating instructions for the charger. CAUTION Do not use the charger to charge other, unspecified batteries. A risk of personal injury or fire and irreparable damage to the battery and charger may otherwise result. - Page 13 Charge the batteries with the Hilti chargers approved for use with Li-ion batteries. NOTE – A conditioning charge (as is required with NiCd or NiMH batteries) is not necessary. – Interruption of the charging procedure has no negative effect on battery life.
-
Page 14: Care And Maintenance
If no LED lights on the battery after activation of the charge status indicator, the battery is defective. Have the battery tested at a Hilti center. 7 Care and maintenance CAUTION Disconnect the supply cord plug from the power outlet. -
Page 15: Manufacturer's Warranty - Tools
Batteries that have reached the end of their life must be disposed of in accordance with national regulations or returned to Hilti. Most of the materials from which Hilti tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. -
Page 16: Ec Declaration Of Conformity (Original)
2006/95/EC, until 19th April 2016: 2004/108/EC, as of 20th April 2016: 2014/30/EU, 2011/65/EU, EN 603351, EN 60335229, EN ISO 12100. Hilti Corporation, Feldkircherstrasse 100, FL9494 Schaan Paolo Luccini Tassilo Deinzer Head of BA Quality and Process Management Executive Vice President Business Area Electric Tools &... - Page 17 Hilti Corporation LI-9494 Schaan Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan Pos. 1 | 20150210 Printed: 26.02.2015 | Doc-Nr: PUB / 5129952 / 000 / 05...
