Summary of Contents for Site Buddy PROFESSIONAL SERIES 30TP

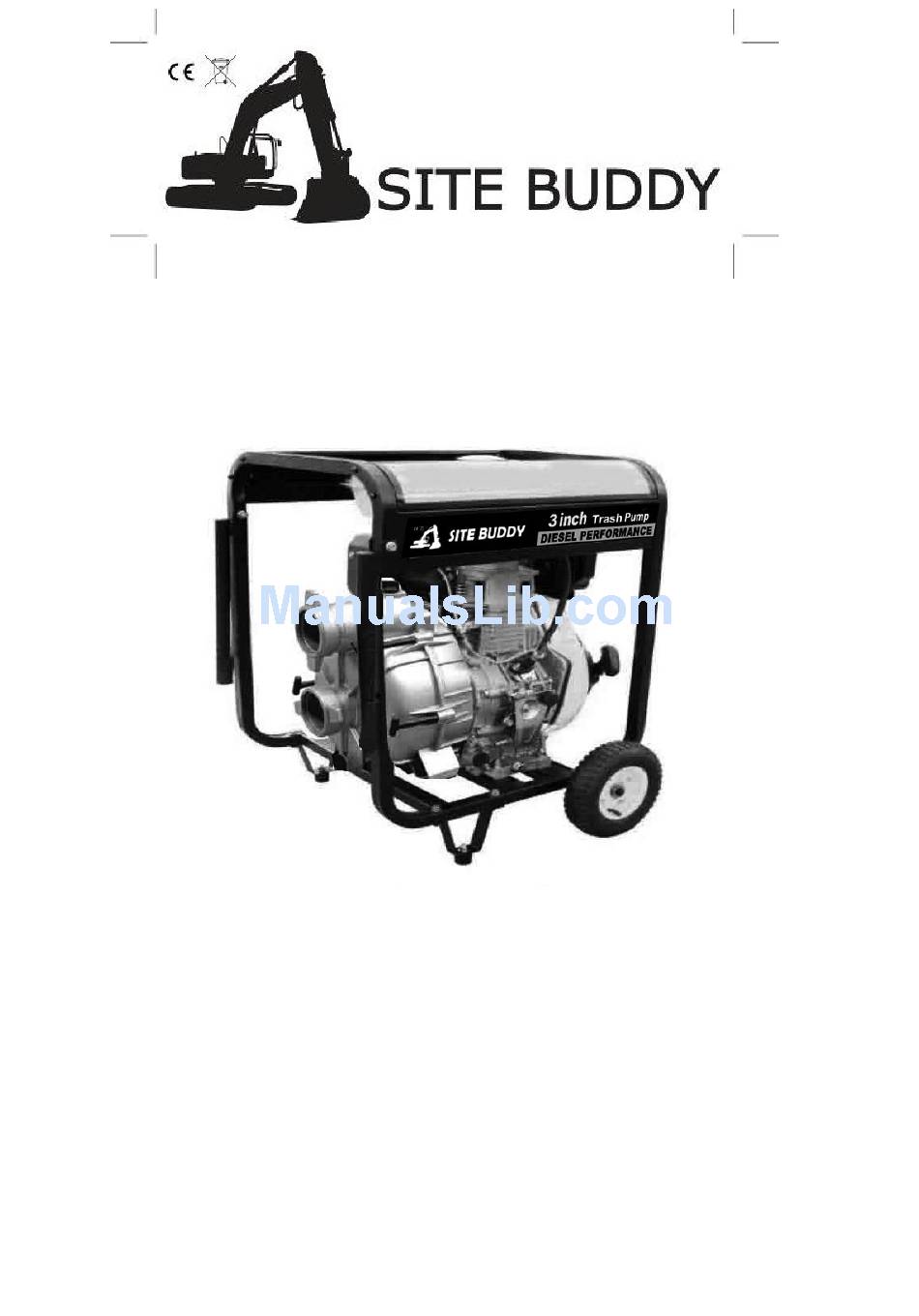

- Page 1 OWNER’S MANUAL DIESEL POWERED TRASH PUMP IMPORTANT ─ Please make certain that persons who are to use this equipment thoroughly read and understand this user’s manual prior to operation...
- Page 2 PREFACE Thank you for purchasing our products. We appreciate your business. The following manual is only a guide to assist you and is not a complete of comprehensive manual of all aspects of your water pump unit. Some of the illustrations and photos will differ slightly then your model and only serve as an illustration.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page number OVERVIEW OR VARTOUS MODELS OF WATER PUMPS ………………….…...….….1 TECHNICAL SPECIFICATIONS ……………………………………………………………2 WATER PUMP SAFETY PRECAUTIONS …………… ……………………….……4 KNOWING YOUR SEMI-TRASH PUMP ………………………………………………….. PRE-OPERATTON PREPARATION ………………………………………………………..6 STARTING THE ENGINE ………………………………………………………………….10 OPERATION ………………………………………………………………………………...14 STOPPING THE ENGINE …………………………………………………………………..15 MAINTENANCE …………………………………………………………………………...16 IRAN SPORTING AND STORAGE …………………………………………………….….20 TROUBLESHOOTING……………………………………………………………………...21... -
Page 4: Overview Or Vartous Models Of Water Pumps
OVERVIEW OF VARIOUS MODELS OF WATER PUMPS Figure 1.Overall view of the diesel water pump unit PROFESSIONAL SERIES MODEL... -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS Table 1. Specifications in Metric units Model No. 30TP Suction port diameter(mm) Discharge port diameter(mm) Suction height(m) Pump Pump lift (m) Displacement (m3) Engine TP178E Speed(rpm) 3600 Displacement(cc) Engine Max.Output(kw) Forced air cooling by flywheel Cooling system Ignition Direct fuel injection Shaft rotation Clockwise from flywheel end... - Page 6 Wiring Diagram (optional for electric start models only)
-
Page 7: Water Pump Safety Precautions
SEMI-TRASH PUMP SAFETY PRECAUTIONS ● Do not smoke or allow flames or sparks to Do not during operation. place flammable get near fuel. Always refuel your engine in a objects or liquids close to the pump. well-ventilated place. Do not overfill the tank and always close the filler cap securely. -
Page 8: Knowing Your Semi-Trash Pump
KNOWING YOUR WATER PUMP STANDARD MODEL Fuel cap Priming water filler cap Muffler Outlet Cleaner Suction Port Recoil Starter Oil drain plug Oil Depth Gauge and Inlet Port... -
Page 9: Pre-Operatton Preparation
PRE-OPERATION PREPARATION Suction Hose hose. For The first step in preparing the pump for operation is to install the suction the suction hose, use a reinforced-wall or wire braided hose to prevent suction collapse. A short hose is recommended long standard over a hose. - Page 10 Engine oil Engine oil is an important factor in determining the performance and life of your engine. Always lower make sure the oil level is within the upper and limits specified on the oil dipstick. Make on a surface sure to check the engine oil level or incorrect readings will result.
- Page 11 Fuel Remove the fuel cap and fill the fuel tank with diesel fuel. preferred fuel for diesel diesel obtained engines is number 2, which can easily from a gas station. Do not use other fuels until consulting with your local dealer or our company. flames refuel engine...
- Page 12 Air Cleaner Before starting your water pump, remove your air cleaner cover and verify that the air filter is clean and free of debris. Clean the air filter if necessary. Priming water The pump chamber should be completely filled before operating. Note: Never operate the pump without priming water or the pump will overheat.
-
Page 13: Starting The Engine
STARTING THE ENGINE Recoil Starting Note: When the engine is running, do not pull the recoil handle, otherwise the engine may be damaged. - Page 15 Diesel Engine with Electric Starter System Starting The preparation of the diesel engine for the electric starting system is the same as the manual recoil type. a. Open the fuel cock. h. Set the speed governor lever to the start position. c.
- Page 16 Cold starting If the engine is difficult to start in winter, take off the rubber seal plug and put 2cc of machine oil into the hole. Notice: Engines supplied to the Torrid Zone will not contain the rubber plug. A solid plug is provided instead.
-
Page 17: Operation
OPERATION Operating condition The water pumps operating range should be based upon the NPSH (net positive suction head). A more precise definition of available NPSH is “the difference between the total suction head and the vapor pressure of the liquid, in feet of liquid, at the suction flange”. We can measure the total suction head of the pump and we can find vapor pressure from the liquid temperature. -
Page 18: Stopping The Engine
STOPPING THE ENGINE First, bring down the speed of the engine by using the speed governor. Let it run for 3 minutes at no load before stopping it. Then stop the engine. Sudden stops to the engine will cause abnormal temperature increases in the block of the engine. -
Page 19: Maintenance
MAINTENANCE Oil check During operation, it is a good idea to check the oil every morning to ensure the engine has sufficient oil. CHECK OIL EVERY MORNIING Oil change Engine oil is a critical factor in determining the life of your engine. Change the engine oil on time. - Page 20 Note: Do not touch motor oil for long periods of time. Used motor oil can cause skin cancer if it comes in contact with the skin for prolonged periods of time. Getting cancer from used motor oil is unlikely unless you handle used motor oil on a daily basis. To be safe always wash your hands thoroughly with soap and water as soon as possible after handling used oil.
- Page 21 Do not wash the air filter if it is the paper type. Also, never use gasoline to wash air filter elements because gasoline is highly flammable and dangerous. A fire or explosion could occur. Instructions on changing the air filter. ●Take the wing nut off and remove the air filter cover.
- Page 22 Note: When changing the seal on the water pump, be sure to apply adhesive to the seal and the pump housing. This will prevent future leaks. Also, while installing the seal, do not hit or apply force, as this will damage the seal. Slowly ease the seal into place. Please refer to Figure 2-2 for a cross sectional view of the housing and shaft.
-
Page 23: Iran Sporting And Storage
TRANSPORTING AND STORAGE A few guidelines need to be followed before transporting the water pump. Below is a list of instructions to be followed during transportation. ●When transporting the pump, turn the fuel valve off and keep the pump on a level surface to prevent fuel spillage. -
Page 24: Troubleshooting
TROUBLESHOOTING Problem Cause Remedy Not fill enough water Refill the pump with water Check the inlet pipe and connector of pipe, Leaking inlet pipe change pipe or tighten the clipper joint screw Pump Adjust the engine speed accordingly or find cause Low pump speed within the engine pumping... - Page 25 Problem Cause Remedy The impeller and flow Listen to the sound of the pump carefully. If Power guidance are rubbing each there are rubbing noises, adjust the impeller consumption other until the noise is gone of pump The impeller is clogged with is too large Check and clean the pump weeds or foreign matter...
-
Page 26: Pump Diagrams And Parts Listings
PUMP DIAGRAMS AND PARTS LISTING Figure 4-1. exploded view of the water pump Table 4-1. Please refer to figure 4 - 1 for a complete illustration of the parts Parts Name Parts Name φ87 hose band O ringφ275×5 Hose coupling Snap pin handle In/Out Joint...
