Summary of Contents for Jinan USR IOT Technology LonHand USR-HTW

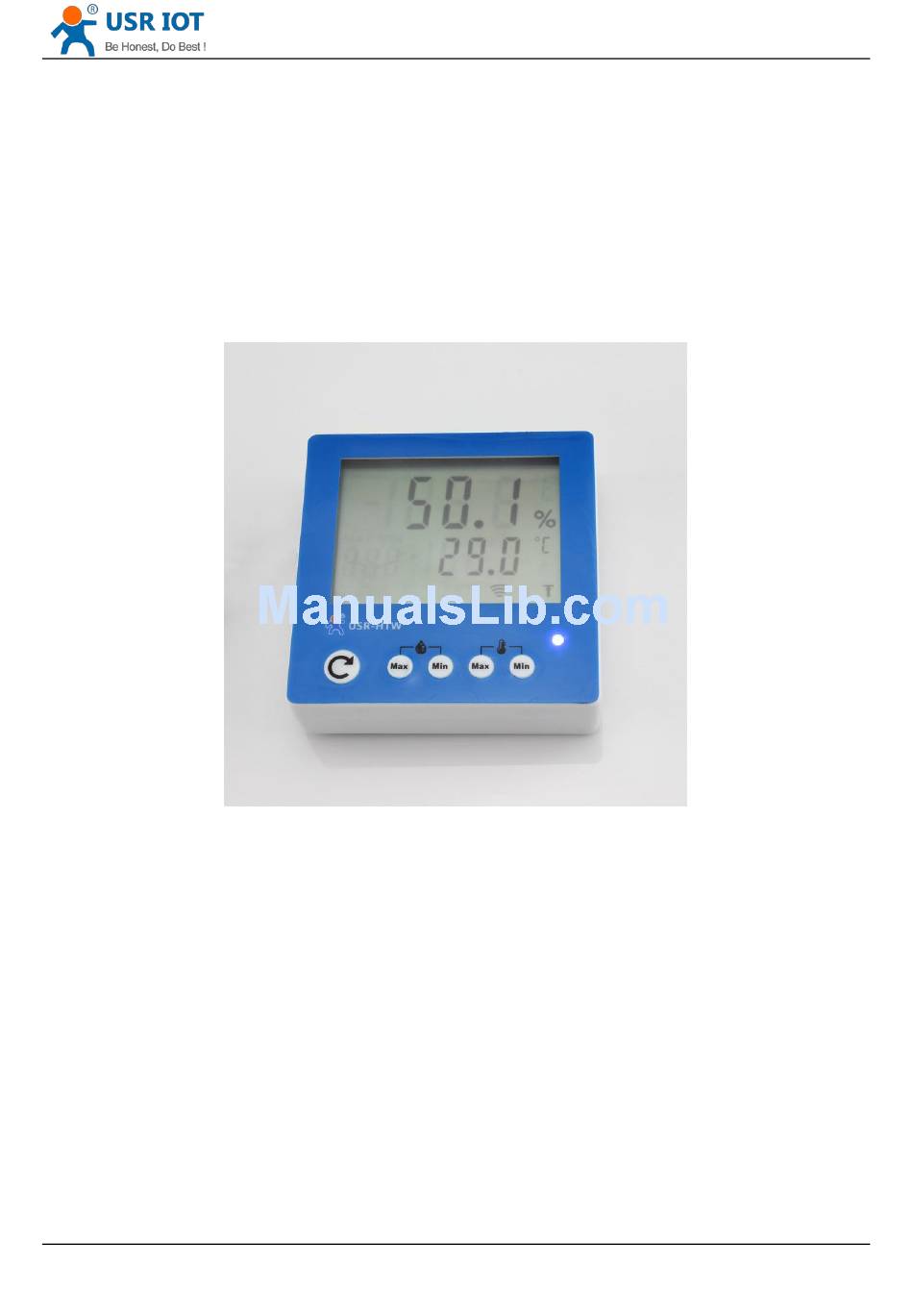

- Page 1 USR-HTW User Manual www.usr.so LonHand Series Product Specification USR-HTW Version: V1.0 Jinan USR IOT Technology Limited 1 / 21 tec@usr.cn...
-
Page 2: Table Of Contents
2.4 Smartlink Instructions ........................12 2.5 WPS Instructions ..........................13 Instructions for Use ..........................14 LonHand of Windows Introduction ......................... 18 Contact Information ............................21 Disclaimer ..............................21 Update History ............................. 21 Jinan USR IOT Technology Limited 2 / 21 tec@usr.cn... -
Page 3: Quick Start
The Product information CD contains all versions of software. We supply back-end server and software on different platforms such as Windows, IOS, Android and MAC system. Install it on your computer or your cell phone or your pad. Jinan USR IOT Technology Limited 3 / 21 tec@usr.cn... -
Page 4: Wlan Control Operation
1. Connect Smartphone to USR-HTW’s wireless network Open the settings, find USR-HTW in WLAN, connected to the network, as shown below. 2. Open LonHand software. Slide to the fourth page, click on start button. Jinan USR IOT Technology Limited 4 / 21 tec@usr.cn... - Page 5 USR-HTW User Manual www.usr.so 3. Control menu Enter the equipment list, find the USR-HTW, click the USR-HTW tab, enter into the control menu. 4. Control Test User can monitor the USR-HTW now. Jinan USR IOT Technology Limited 5 / 21 tec@usr.cn...
-
Page 6: Equipment Network Settings
2. Enter the default user name and password (admin) into pop-up window , enter the fast setting page. The web Webpage default is Chinese Webpage, users can click on the English to switch to the English Webpage。 Jinan USR IOT Technology Limited 6 / 21 tec@usr.cn... - Page 7 3. Click Scan router to get the router information list, and then select the router which want to connect, click OK. 4. Input router passwords, save it, and then restart. Jinan USR IOT Technology Limited 7 / 21 tec@usr.cn...
-
Page 8: Remote Control
Select the user center in LonHand software, register remote control account, and then login in. 2. Return device interface, refresh the list of equipment, can see the USR-HTW equipment. Long press equipment information icon, click activate. Jinan USR IOT Technology Limited 8 / 21 tec@usr.cn... - Page 9 3. After activate the device, click get activated devices in the user center. Then disconnect the wireless network, using 2G/3G Internet,, refresh the equipment list, you can see the device icon into a remote icon, now you can control the devices via internet. Jinan USR IOT Technology Limited 9 / 21 tec@usr.cn...
-

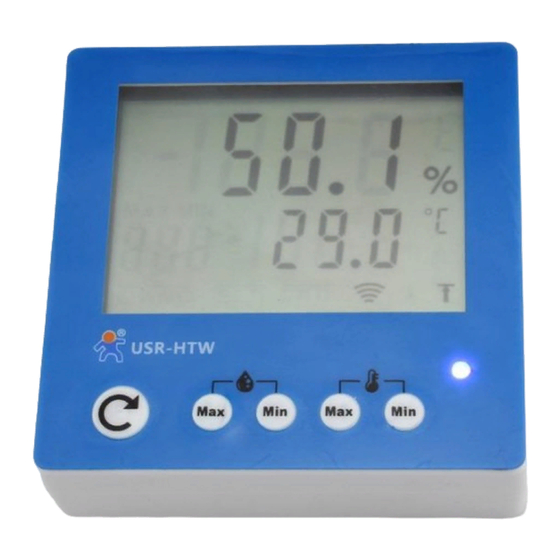

Page 10: Product Introduction
Temperature measuring resolution Humidity measuring 0~99.9%RH range ± 2%RH （25℃） Humidity measuring accuracy Humidity measuring 0.1%RH resolution Installation wall mounting type Preservation temperature : -40-85° C environment Humidity: <90%RH Packing List USR-HTW*1 Jinan USR IOT Technology Limited 10 / 21 tec@usr.cn... -
Page 11: Indicator And Key Function Introduction
Display the min value in last 1 hour after you press it. Humidity max: Display the max value in last 1 hour after you press it. Humidity min: Display the min value in last 1 hour after you press it. Jinan USR IOT Technology Limited 11 / 21 tec@usr.cn... -
Page 12: Smartlink Instructions
SmartLink working mode, the blue indicator lights is flashing, device is waitting for the configuration. 3. Click the connect button LonHand software, start network configuration,the blue indicator light will become slow flash in the configuration process. Jinan USR IOT Technology Limited 12 / 21 tec@usr.cn... -
Page 13: Wps Instructions
WPS signal within 1 minutes, will end configuration. 4. When the blue indicator light lighting stably, the network configuration is success, mobile phone will be prompted to configure the success. if failed configuration after 45s, device will restart. Jinan USR IOT Technology Limited 13 / 21 tec@usr.cn... -
Page 14: Instructions For Use
1. The HTW’s default work mode is AP mode. After the HTW work, double-click wireless network button to get the wireless list. 2. Find “USR-HTW” and connect it. 3. Open the Website of HTW,IP address: 10.10.100.254. Jinan USR IOT Technology Limited 14 / 21 tec@usr.cn... - Page 15 Picture.2 Enter the web 5. Click Scan router to get the router information list, and then select the router which want to connect, click sure。 Scan router Picture.3 6. Input router passwords, save it. Jinan USR IOT Technology Limited 15 / 21 tec@usr.cn...
- Page 16 HTW will connect to the router automatically after restart, the blue indicator will light up. Now you can control HTW via internet. The detailed operation please refer to the manual of LonHand. Jinan USR IOT Technology Limited 16 / 21...
- Page 17 USR-HTW User Manual www.usr.so Jinan USR IOT Technology Limited 17 / 21 tec@usr.cn...
-
Page 18: Lonhand Of Windows Introduction
3. After searched HTW, you can see the information as following. If the WIFI symbol is gray, means HTW is not connected to computer. If the WIFI logo is blue, means HTW is connected to computer. Picture.7 Device list 4. Click HTW,enter into control menu. Jinan USR IOT Technology Limited 18 / 21 tec@usr.cn... - Page 19 ,then click active.After active device success,click Synchronized to local, refresh the equipment list, you can see the device icon into a remote icon, now you can control the devices via internet. Jinan USR IOT Technology Limited 19 / 21 tec@usr.cn...
- Page 20 USR-HTW User Manual www.usr.so Picture.11 Active device Picture.12 Remote control Mobile phone remote control refer to the first chapter or the manual of LonHand. Jinan USR IOT Technology Limited 20 / 21 tec@usr.cn...
-
Page 21: Contact Information
USR-HTW User Manual www.usr.so Contact Information ----------------------------------------------------------------------------------- Company: Jinan USR IOT Technology Limited Address: 1-728, Huizhan Guoji Cheng, Gaoxin Qu, Jinan, Shandong, China Tel: 86-531-55507297 86-531-88826739-803 Web: http://en.usr.cn Email: sales@usr.cn, order@usr.cn ----------------------------------------------------------------------------------- Disclaimer This document provides information about USR-HTW, this document does not grant any license to intellectual property rights.
