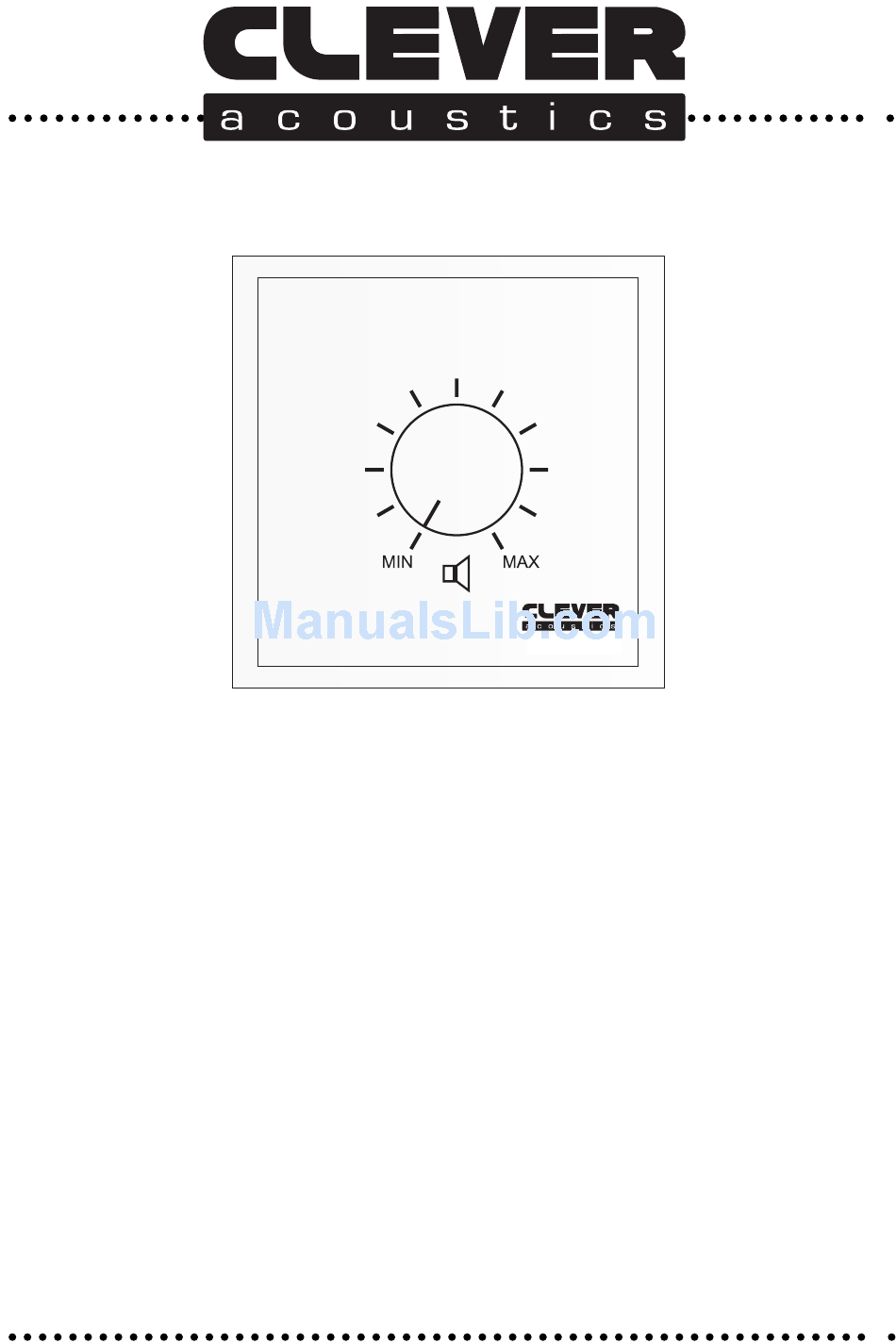

www.cleveracoustics.co.uk
VC 20 100V 20W VOLUME CONTROL
VC 40 100V 40W VOLUME CONTROL
VC 60 100V 60W VOLUME CONTROL
VC 20R 100V 20W VOLUME CONTROL + RELAY
VC 40R 100V 40W VOLUME CONTROL + RELAY
VC 60R 100V 60W VOLUME CONTROL + RELAY
Code: CRVOL01
Code: CRVOL02
Code: CRVOL03
Code: CRVOL04
Code: CRVOL05
Code: CRVOL06
USER MANUAL
Advertisement
Table of Contents
Related Manuals for Clever Acoustics CRVOL01
Summary of Contents for Clever Acoustics CRVOL01
- Page 1 VC 20 100V 20W VOLUME CONTROL Code: CRVOL01 VC 40 100V 40W VOLUME CONTROL Code: CRVOL02 VC 60 100V 60W VOLUME CONTROL Code: CRVOL03 VC 20R 100V 20W VOLUME CONTROL + RELAY Code: CRVOL04 VC 40R 100V 40W VOLUME CONTROL + RELAY...
- Page 2 WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 70-100V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! Before your initial start-up, please make sure that there is no damage caused during...
- Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 The 100V VC volume controls are designed specifically for use in permanent audio installations with optional 24V relay input (VC 20R, 40R & 60R) for emergency override. This 100V volume controller warranted from defects for one year from the date of purchase.
- Page 5 Identification: 1. 100V transformer 2. Screw mounting holes - Use these to attached the controller to the controller wall back box. 3. +ve 100V line input - Use this input to connect the speaker cable from the amplifier. 4. Input ground 5.
- Page 6 EMERGENCY PANEL (VC 20R, 40R 60R ONLY) 24V DC INPUT (Optional) POWER AMPLIFIER CONNECT WITH AUDIO PROCESSOR EQUIPMENT, USE THE METAL JUMPER BARS WHEN NOT CONNECTED FOR THE AMP TO WORK MAINS MIC 1 MIC 2 MIC 3 MIC 4 RECORDER EQUIPMENT CASSETTE EQUIPMENT...
- Page 7 CAUTION - DANGER TO LIFE SWITCH OFF AMPLIFIER AND DISCONNECT THE SPEAKER BEFORE STARTING MAINTENANCE Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse.
- Page 8 www.cleveracoustics.co.uk...
