V2109 Series

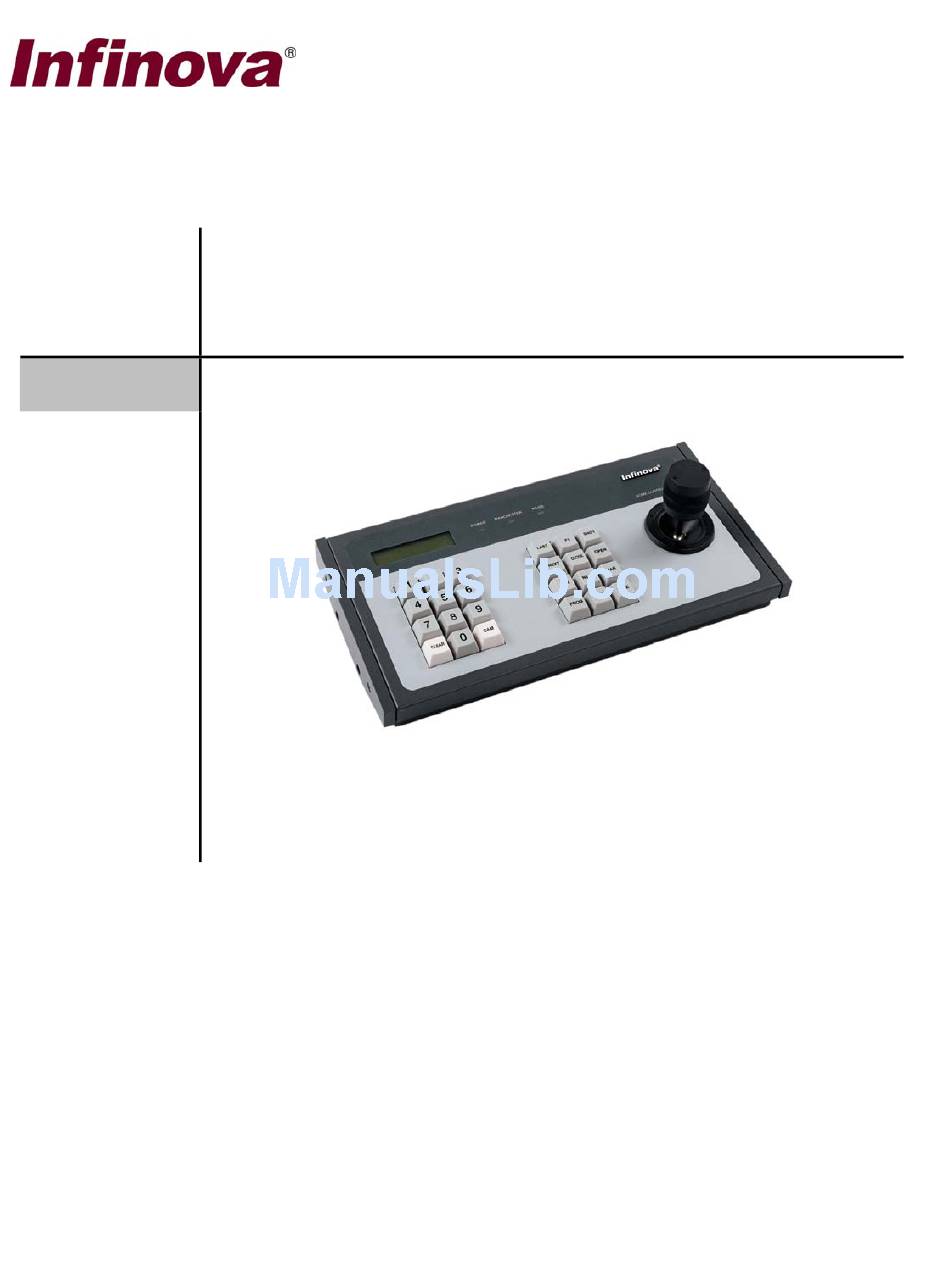

Dome Controller
Installation/Operation Instructions
This manual applies to below series products:
V2109/V2109X
This manual describes the installation and operation procedures for V2109 series dome controller.
V2109 dome controller can directly control Infinova series super domes and receivers to handle address
switching, PTZ and lens control, preset setting and calling-up, etc.
V2109 communicates with Infinova series super domes and receivers via RS485 or Manchester code
communication protocol. The built-in RS485 generator provides various kinds of baud rates and protocols for
users to select.
LCD displays camera address ID number, the controller status and any number entered from the controller. The
operation is quite easy.
Advertisement
Table of Contents
Related Manuals for Infinova V2109 Series
Summary of Contents for Infinova V2109 Series
- Page 1 V2109/V2109X This manual describes the installation and operation procedures for V2109 series dome controller. V2109 dome controller can directly control Infinova series super domes and receivers to handle address switching, PTZ and lens control, preset setting and calling-up, etc. V2109 communicates with Infinova series super domes and receivers via RS485 or Manchester code communication protocol.
- Page 3 This manual may not be reproduced in any form or by any means to create any derivative such as translation, transformation, or adaptation without the prior written permission of Infinova. Infinova reserves the right to change this manual and the specifications without prior notice. The most recent product specifications and user documentation for all Infinova products are available on our website www.infinova.com.
- Page 4 Read this manual carefully before installation. This manual should be saved for future use. Important Safety Instructions and Warnings Electronic devices must be kept away from water, fire or high magnetic radiation. Clean with a dry cloth. Provide adequate ventilation. Unplug the power supply when the device is not to be used for an extended period of time.
-
Page 5: Table Of Contents
Table of Contents 2.3.1 Control Super Domes ............ 3 Chapter I General Description .............1 1.1 Description................1 2.3.2 Controls Receivers/Drivers..........4 1.2 Models ..................1 Chapter III Controller Operation and Programming ....4 1.3 Features .................1 3.1 Controller Operation ............. 4 1.4 Controller Layout ..............1 3.1.1 Camera Selection............ -
Page 7: Chapter I General Description
1.1 Description The V2109 dome controller is compatible with the high-speed dome cameras/receivers under multiple protocols such as MANCHESTER, Infinova ® PELCO-D/P, SAMSUNG, VICON and INFINOVA. The V2109 RS485 POWER MANCHESTER DOME CONTROLLER dome controller is capable of handling camera switching, menu... -
Page 8: Chapter Ii Controller Setup And Connections
In order to facilitate system connection, please use the connection To select types, just press the ACK key to toggle through below five accessories provided by Infinova. To ensure normal operation and options: desired functions, please perform the following setup procedures on... -
Page 9: Joystick Setup
RS485 Manchester control code generators for direct control over Infinova series receiver/drivers or dome cameras. T+ T- R+ R- Figure 2-1. V2109 rear panel Figure 2-1 (shown above) illustrates the communication ports on the profile of V2109 controller:... -
Page 10: Controls Receivers/Drivers
3.1.1 Camera Selection 1. Enter the ID number of the desired camera. 2. Press the CAM key to call up the camera. The ID number of the called camera will be displayed on the controller LCD. Infinova ® POWER MANCHESTER RS485... -
Page 11: Running A Pattern
55mm (H)×316mm (W)×165mm (D) Weight……………………………………………… 6.6 lb (3.0kg) 3.2.1 Preset Programming Color……………………………………………………………Grey Infinova series receivers and super domes feature a preset function, which is programmable via the SHOT button and the numeric keys Compatibility MANCHESTER CODE, PELCO P/D, SAMSUNG, VICON, AND on the controller. -
Page 12: Appendix Ii Controller Operation Instructions
Appendix II Controller Operation Instructions 1. PELCO-P/D PROTOCOL Camera ID 1~255 under PELCO-P, 1~254 under PELCO-D protocol. We can set/call up 62 presets under PELCO-P protocol, 32 presets under PELCO-D protocol. PATTERN SET/SAVE/CALL UP CONTROLLER FUNCTION KEYS SET A PATTERN PROGRAM 70+SHOT SAVE A PATTERN... - Page 13 6＋SHOT CONFIRM TO ENTER THE NEXT MENU 5＋SHOT EXIT THE MENU 67＋SHOT 4. INFINOVA PROTOCOL Camera ID 1~128 under INFINOVA protocol, we can set/call up 64 presets under INFINOVA protocol. PATTERN SET/SAVE/CALL UP CONTROLLER FUNCTION KEYS SET PATTERN 1 PROGRAM...
- Page 14 CONTROLLER FUNCTION KEYS SET AUTOSCAN LEFT BORDER PROGRAM 66+SHOT SET AUTOSCAN RIGHT BORDER PROGRAM 66+SHOT RUN AUTOSCAN OPERATE 66+SHOT CONTROLLER FUNCTION KEYS ENTER THE MENU PROGRAM 65+SHOT AUTO FLIP 180° OPERATE 65+SHOT CLEAR PROGRAM 67+SHOT REMOTE RESET PROGRAM 68+SHOT Note: To clear or re-call up the patterns, we need to select the corresponding patterns after pressing “69+SHOT” 5.
-
Page 15: Appendix Iii Cable Diameter Calculation And Lightning & Surge Protection
Appendix III Cable Diameter Calculation and Lightning & Surge Protection Relation between 24VAC Cable Diameter and Transmission Distance In general, the maximum allowable voltage loss rate is 10% for AC-powered devices. The table below shows the relationship between transmission power and maximum transmission distance under a certain specified cable diameter, on condition that the 24VAC voltage loss rate is below 10%. - Page 16 Lightning & Surge Protection The product adopts multi-level anti-lightning and anti-surge technology integrated with gas discharge tube, power resistor and TVS tube. The powerful lightning and surge protection barrier effectively avoids product damage caused by various pulse signals with power below 4kV, including instantaneous lightning, surge and static.
- Page 18 Infinova 51 Stouts Lane, Monmouth Junction, NJ 08852, U.S.A. Tel: 1-888-685-2002 (USA only) 1-732-355-9100 Fax: 1-732-355-9101 sales@infinova.net V2.1 1107...
