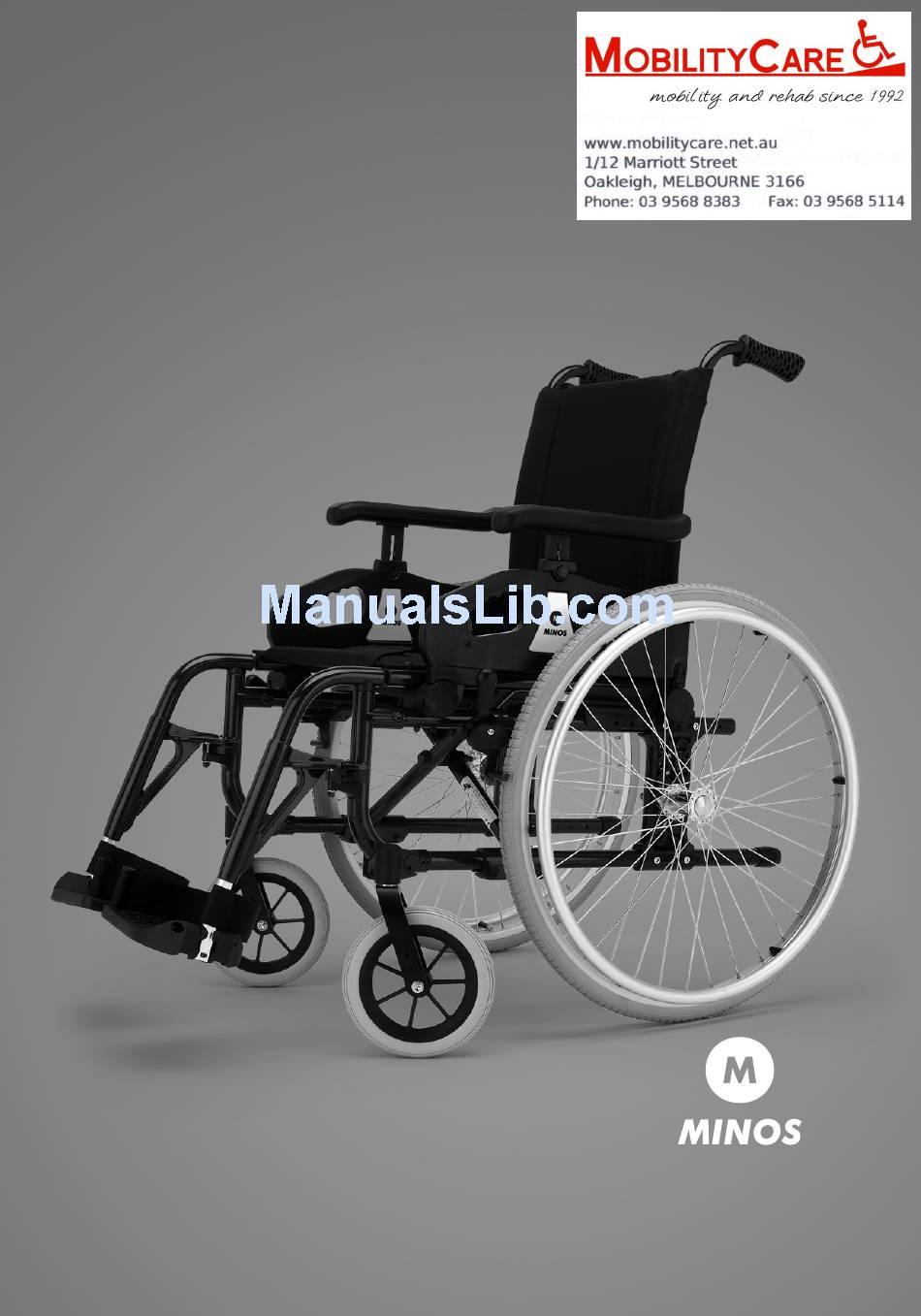

- Page 1 MINOS GLOBAL ALU User Manual Think Global...
- Page 2 Introduction Thank you for choosing a MINOS wheelchair. Our company is young but we have broad experience in the sector. The wheelchair you have just bought is the product of that experience. We are sure that the quality, durability and design of the chair will not disappoint you.
- Page 3 IMPORTANT INFORMATION BEFORE USING THE WHEELCHAIR Serial number Each chair comes with a sticker containing the serial number on the packaging box and the sideframe. The serial number identifies the date of production, batch and other relevant information about the wheelchair. Opening the chair Push down on the tubes supporting the seat upholstery, taking care not to pinch your fingers...
- Page 4 Fitting the footrest Fit each footrest perpendicular to the sideframe in the hole shown in the photo. Once fitted, turn it 90° until it is fastened in position. To remove the footrest, press the lever, turn each footrest 90° outwards and pull them out.
-
Page 5: Wheelchair Parts
WHEELCHAIR PARTS 1. Push-handles. 2. Backrest. 3. Armrest. 4. Armrest pad. 5. Rear wheel. 6. Aluminium handrim. 7. Quick-release axle. 8. Folding crossbar. 9. Detachable footrests. 10. Footplate. 11. Heel strap. 12. Front fork. 13. Caster wheel. 14. Padded seat with pocket. 15. -
Page 6: Getting In And Out Of The Chair
GETTING IN AND OUT OF THE CHAIR First of all apply the parking brake. Do not use the footplates for support. Swing the armrest backwards and get in or out of the chair sideways or from the front, as recommended by the technician, occupational therapist or physiotherapist. -
Page 7: Safety And Operation
All the wheelchair parts and components are original and must not be replaced by other spareparts parts available on the market. The use of any part that is not an original Minos part renders the chair guarantee null and void. Please consult your distributor before replacing spare parts and/or components. - Page 8 Easy downward gradient Keep your back straight and use the handrim to move forward. Light upward gradient Bend your back forwards slightly and use the handrim to move forward. Turning round Use both handrims, turning them in opposite directions. Inclined plane (side position) Keep the side of the body slightly angled towards the higher part of the slope.
- Page 9 Leaning forwards or backwards These movements could tip the chair over. Consequently, we recommend you make no sudden movements under any circumstances. If you need to lean backwards, keep your back against the back of the chair at all. If you need to lean forwards, make sure that the front wheels point forwards to give maximum support.
-
Page 10: Controls And Maintenance
Tyres Make sure that the tyres have the pressure recommended on the tyre wall. Correct tyre pressure is essential for the manoeuvrability of the chair. The correct pressure also affects the performance of the parking brake. Street use Make sure at all times that your manoeuvres can be seen by passers-by, especially by vehicles if you have to cross the road. - Page 11 RECYCLING AND PACKAGING The cardboard in which the wheelchair is packaged is 100% recyclable. Please dispose of it in a rubbish container especially for cardboard. MINOS GLOBAL WHEELCHAIR MODELS MINOS GLOBAL ALU SELF-PROPELLED Ajusting the parking brake Adjust the brake according to the type of tyre, solid or pneumatic.
- Page 12 The down axle of the front fork must always be at 90º angle with the floor. A template is provided with each chair to check the perpendicularity. Use a 5 mm allen key and undo the bolt half a turn (see picture). Then we need a second 5 mm allen key to complete the adjustment.
- Page 13 Adjusting the position of the wheelchair handles without modifying the position of the rear wheel bracket The MINOS GLOBAL wheelchair allows to move the handles of the wheelchair without modifying the position of the rear wheel bracket. This is useful if we need to exchange the standard sling backrest upholstery for a rigid backrest without losing seat depth.
- Page 14 Reclining backrest (Optional) The MINOS GLOBAL wheelchair offers a reclining backrest as an option (the reclining range is from -6º to 10º). To recline the wheelchair backrest we have to turn both knobs clockwise.
- Page 15 MINOS GLOBAL TRANSIT (ATTENDANT-PROPELLED) Important Remark for the Attendant person: When not pushing the chair, please apply the parking brake at all times! Never leave the person/chair unattended. Dimensions and general information Minos Global Minos Global Transit Seat width 36, 40, 44, 48, 51 cm...
- Page 16 Lifetime Guarantee for the crossbar and side frames. Distributed by:...
