Summary of Contents for ProDVX F101 HD

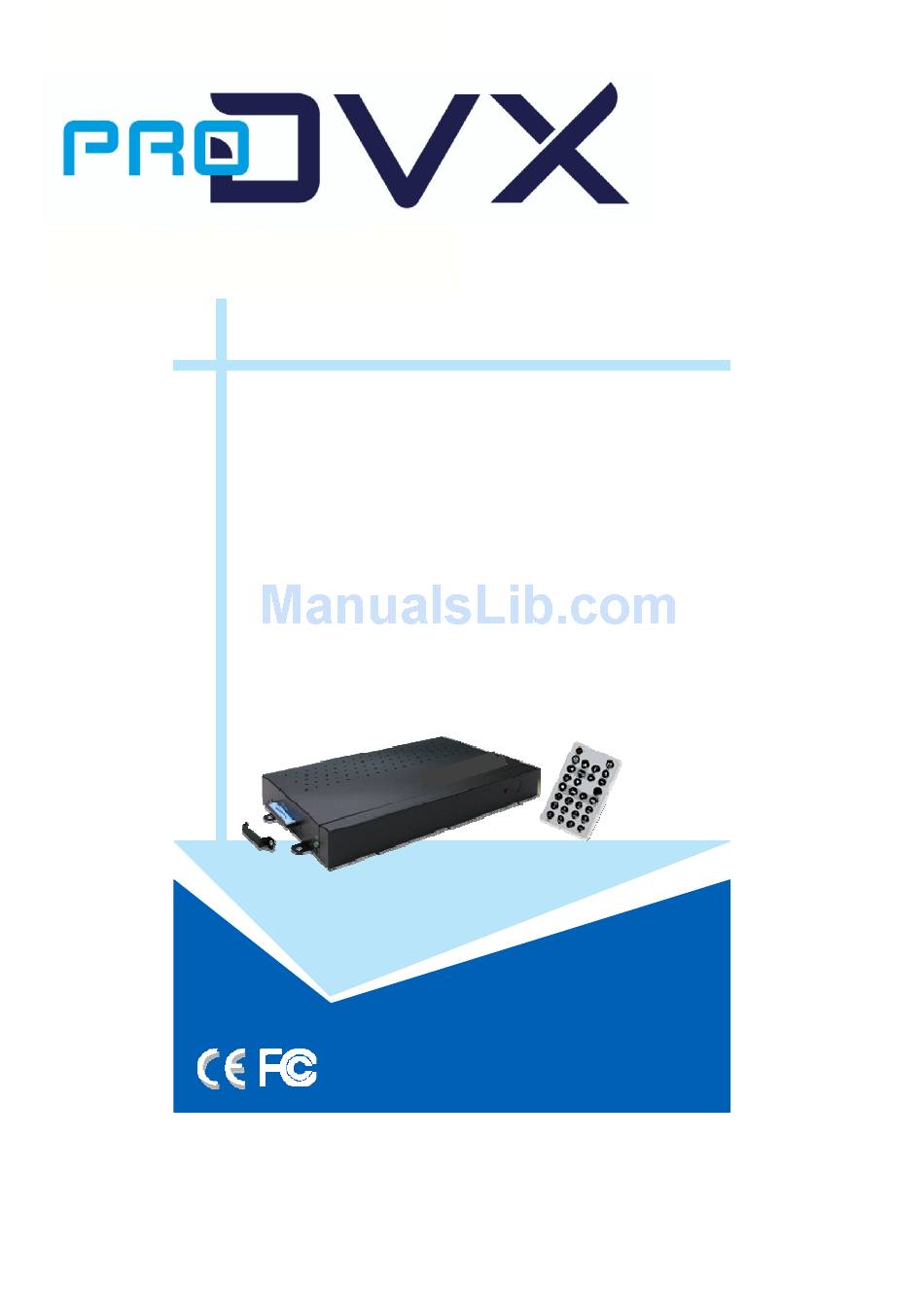

- Page 1 ProDVX F101 HD User manual & instructions V April 18 2012...
- Page 2 SPECIFICATIONS: ProDVX F101HDn Name: ProDVX F101HD Type: Standalone mediaplayer Productgroup: Prodvx mediaplayers Dimensions: Height x Width x Depth: 30mm x 131mm x 236mm Color: Black Mounting: 56mm x 225mm (holes 4,5mm) 100mm x 105mm (thread M3, maximum screw length 4mm)
-
Page 3: Table Of Contents
2. Introduction..................................2 3. Features..................................2 4. Hardware Overview.................................3 5. Remote Control................................4 6. Starting the ProDVX F101HD............................5 7. Setting Up..................................6 7.1 Video Setup................................. 6 7.2 Other Setup................................. 7 8. Using the ProDVX F101HD.............................. 7 8.1 Play Media Files from the CF Card. -
Page 4: Package Contents
The ProDVX F101 HD offers multiple outputs to match your display’s input including HDMI, VGA and YPbPr (optional VGA to YPbPr cable). The ProDVX F101 HD is an ideal for advertising, retail displays, digital poster, museum exhibits and other applications. 3. FEATURES Supports multiple file formats: Video (WMV9), Picture and Music. ... -
Page 5: Hardware Overview
4. HARDWARE OVERVIEW “RESET” Button: Restart the ProDVX F101 HD. CF Card Slot: Insert the CF memory card. “CF READY” Indicator: Steady green confirms that the CF card is inserted correctly. Power Switch: Toggle between main power on & off. DC Input: Connect the supplied power adapter. (DC 12V / 1.5A) VGA/ Y.Pb.Pr Output: Connect to VGA/ YPbPr input on TV (VGA to Y.Pb.Pr Cable is optional). L‐Audio‐R Output: Connect to Audio input on TV or external speakers. ... -
Page 6: Remote Control
5. REMOTE CONTROL Power on/ off Open the setup menu Mute sound Show the information of the selected file Volume up/ down Move the cursor Confirm the selection/ entry Go back one level Select the output mode Stop playback Play the selected file View the previous/ next file Play the previous/ next file if in playback Numeric Key Delete last entry Search video timeframe ... -
Page 7: Starting The Prodvx F101Hd
6. STARTING THE ProDVX F101 HD Insert the CF memory card with media files. Connect the supplied power adapter and turn on the power switch, the ProDVX F101 HD will power on automatically. The boot‐up will take approximately 30‐45 seconds. During boot‐up no picture will be ... -
Page 8: Setting Up
7. SETTING UP Press the SETUP button to open the settings screen (If there is file that is being played, please stop this first). There are two groups of sub‐menu in the main menu (“Video Setup” and “Other Setup”). 、 In the settings screen, you can use the “▲、▼、 ” buttons to select an item, and press the ENTER button to confirm the selection. Press the SETUP button to save and quit the settings screen. It takes time to store the settings, please wait until the settings are fully stored. 7.1 Video Setup TV Standard: Select the output TV video format (NTSC / PAL). NTSC Active Output: Select the output mode (HDMI/ VGA/ HD YPbPr). Aspect‐ratio: Select TV mode 4:3, 16:9, 16:10 or 5:4. HDMI: Select the HDMI output resolution among 480i/ 480p/ 720p / 1080i/ 1080p. Select the “Auto EDID”, the ProDVX F101 HD will scan the display device connected and set the correct resolution automatically. VGA 60Hz: Select the VGA output resolution (640*480 / 800*600/ 1024*768/ 1280x1024 1360x768). HD YPbPr 60Hz: Select the YPbPr output resolution among 480p/ 720p/ 1080i. ... -
Page 9: Other Setup
7.2 Other Setup Play OSD Display: Enable or disable the OSD display. Auto Play Movies: Play movies automatically after the ProDVX F101 HD is powered on. Pictures: Play pictures automatically after the ProDVX F101 HD is powered on. All Files: Play all the media files automatically after the ProDVX F101 HD is powered on. Off: Turn off the Auto Play function. SlideShow Interval: Set the time each picture is shown to 10, 15, 30 seconds or 1, 10, 15, 30 minutes or 1 hour. Transition effect: Set transition effects for your photo slideshow. 8. USING THE ProDVX F101 HD 8.1 Play Media Files on the CF Card Step 1: Insert the CF card with media files and turn on the ProDVX F101HD. Select the type of data (VIDEO/ AUDIO/ PICTURES) you want to play and press the ENTER button to take you into the VIDEO LIBRARY, AUDIO LIBRARY etc. RETURN ... -
Page 10: Using The Remote Control When Playing
Note: If the symbol (return) appears on the screen, you can use BACK button to go back one layer. Step2: Select a file you want to play, and press ENTER or PLAY button to play the selected file. VIDEO LIBRARY AUDIO LIBRARY PICTURE LIBRARY 8.2 Using the Remote Control when Playing SETUP: Press the SETUP button with the “+ VOLUME –” button to adjust the brightness, contrast or saturation while the video or picture is playing. ‐ First Press: Adjust the brightness. ‐ Second Press: Adjust the contrast. ‐ Third Press: Adjust the saturation. Brightness Contrast Saturation MUTE: Mute the sound while the movie or music is playing. ... -
Page 11: Troubleshooting
3. Ensure the VGA or HDMI cable is connected between the ProDVX F101 HD and TV. No Picture 4. Wait at least 60 seconds after power up. 5. Press the “TV MODE” button on the remote control to select the correct output mode. 6. Make sure the file format on the CF card is correct. 7. Check if the display device input is set to correct video input source. 1. Ensure that the battery (CR2025 3v lithium battery) in the remote control and it is inserted the correctly. 2. Ensure the transparent plastic battery seal is removed. No Response From 3. Check for any barrier between the remote control and ProDVX F101 HD. the Remote Control 1. Check if the mute function is on. 2. Check if the volume is set properly. No sound 3. Check if audio cable has been connected correctly. ...
