Summary of Contents for Versio VL 750
-

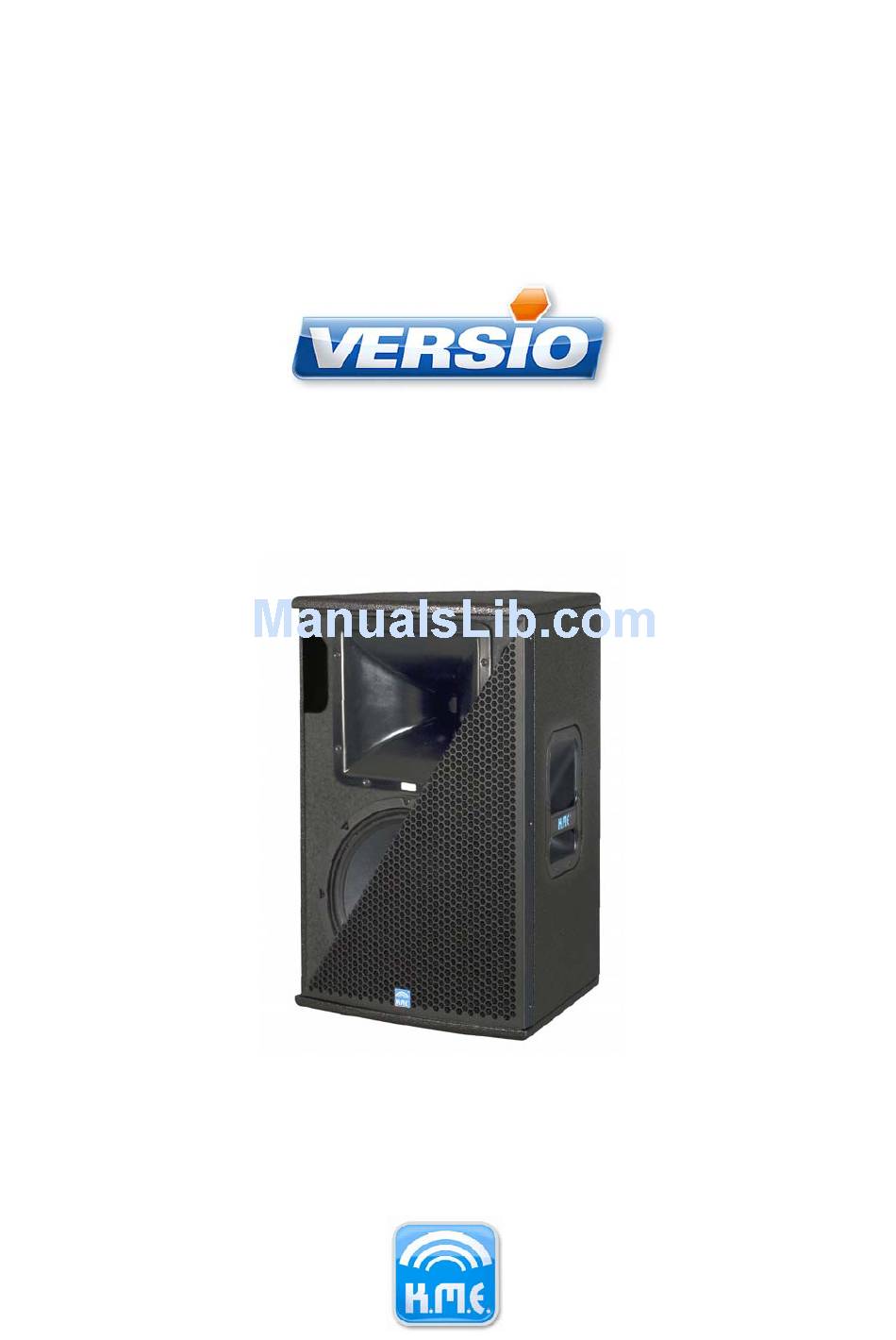

Page 1: User Manual
User Manual VL 750 & VL 760... -
Page 2: Table Of Contents
In this User Manual you will find some hints and warning notes for your new product with which a save use of the VL 750 / VL 760 is allowed. Please read this instructions before you switch on the unit for the first time, to get in touch with particular features of your new product. -
Page 3: The Completely Digital Audio System Vl 750 / Vl 760
The scope of delivery includes: 1x VL 750 / VL 760, 1x PowerCon-mains cable and user manual When you power up the VL 750 / VL 760 for the very first time the following default parameters in the main menu are pre-set: preset 2 „... -
Page 4: The Control- And Connection Panel
5. The control- and connection panel Operation and audio input 1. The LCD display is used as operation mode display of the VL 750 / VL 760. The arrows in the LCD display show the directions to navigate through the submenus (see navigation structure). -
Page 5: Choose Your Factory Preset - Play! - 6.1 Powering Up / Down
To switch on / off your VL 750 / VL 760, please follow the instructions: 1. Apply power supply connection (90 - 250 Volt / 50 - 60 Hz) on VL 750 / VL 760 (if the unit is switched to power mode „Always On“, it is switched on now) 2. -
Page 6: Selecting Presets
In this list you can read out the application of the presets. Choose: preset 01 – to use the VL 750 / VL 760 as top unit in the PA system SD7 / SD8 preset 02 – to use the VL 750 / VL 760 as full-range without additional sub preset 03 –... -
Page 7: Navigation Structure On The Hardware Unit
7. The navigation structure (menu navigation) by means of the information of the menu list... -
Page 8: Operation
Pot unlocked [just unlock volume pot] In this menu item you can set a „lock - function“ for the volume pot of VL 750 / VL 760. • Sig LED Threshold Here you can set the threshold value where the LED starts to light green when the set value is reached by the audio signal. - Page 9 In this menu item you switch the input to „analogue“ or „Digital L“ or „Digital R“ or „Digital L+R“. You can reproduce a analogue signal or a digital signal (left or right side) or a digital mono signal on VL 750 / VL 760. Analog Link Mode...
- Page 10 Equalizer 3 [see equalizer1] Frequency Gain Q (bandwidth) Type Parametric High Shelf Output Level [adjust output level, it is independent to the adjustment of the volume pot] Limiter [adjust limiter] Attack Time Release Time Threshold This dynamic processor is working when the audio signal exceeds the entered threshold-value. The two time constants attack and release time draw the speed of the gain regulation mechanism and are dependent to the program material.
-
Page 11: The Most Important Menu Functions - 9.1 Muting Pa
A repeated pressing of this arrow key causes the deactivation of the mute-function (see display). If the unit is muted and you press for 1 second the OK-button, you switch off the VL 750 / VL 760. If you have chosen the power mode „Always On“ (before switching off the unit) you have to pull the mains plug to switch off the unit. -
Page 12: Entering Password
9.3 Entering password You can lock the VL 750 / VL 760 with or without a password. To lock the unit with a password (max. 8 digits) you have to enter it first. This password can be changed every time. -
Page 13: Locking Your Pa
(if entered before) you can press the OK button for two times and the VL 750 / VL 760 is playing in the current adjustment of the volume control or you press the OK button only once after entering your... -
Page 14: Specifications Vl 750 / Vl 760
10. Specifications VL 750 VL 760 Speaker: Components 12“ + 1“ bi-radial Horn (neodymium) 15“ + 1“ bi-radial Horn (neodymium) Dispersion (h x v) 80° x 60° (rotatable horn) 80° x 60° (rotatable horn) Frequency range 55 Hz - 19 kHz, depending on preset 50 Hz - 19 kHz, depending on preset SPL nom. - Page 15 VL 750 VL 760 2 side mounted handles, swivelling 2 side mounted handles, swivelling Special features flange with variable tilt angle +/- 20°, flange with variable tilt angle +/- 20°, 4x M8 treads 4x M8 treads Dimensions in mm 430 x 670 x 430...
-
Page 16: Rotate The Horn Of Vl 750 / Vl 760
10.1 Rotate the horn of VL 750 / VL 760 For an optimal adaption of the VL 750 / VL 760, you can rotate the horn in this box. Normally the horn is positioned that you have a dispersion of 80° in the horizontal position and 60° in the vertical position. -
Page 17: Fitting The Flying Frame Frq 12 / Frq 15
At first remove the top (u-bracket) of the flying frame and put it aside. • Unscrew now the four screws of the flying frame. After this you have to fix the VL 750 / VL 760 within a vertical position of 0° into the lower part of the flying frame. -
Page 18: Pa-Systems Active: Sd7 & Sd8 - 11.1 Specifications
PA-systems with extraordinarily compact design and a brilliant sound. The different formats / combinations of the VERSIO PA systems are the functional answer to a multiplicity of tasks in mobile use as well as in the area of installation. Simple speech... -
Page 19: Set-Up Pa Systems
11.2 Set-up PA systems Note! Please note specific and useful set-up of a first-class loudspeaker system. A universal statement about the correct (standard)-adjustment and set-up of PA systems is impossible, because each reinforcement is bound to a different place and has always different features. -
Page 20: Connection Shemes
SD 7 consists of: 2x VSS 18 + 2x VB 18 + 2x VL 750 1. Set-up PA: - place a VSS 18 to the left and right side in front of the audience (on solid underground) - Page 21 SD8 OMNI (VSS 18 preset no. 2 & VL 760 preset no. 1) Out B Out B for passive for passive dual dual cable cable Out A Out A for passive for passive audio input right SD 8 consists of: 2x VSS 18 + 4x VB 18 + 2x VL 760 1.
- Page 22 VB 18 VB 18 Setup consists of: 2x VSS 18 + 2x VB 18 + 2x VL 750 or VL 760 1. Set-up PA: - place a VSS 18 to the left and right side in front of the audience (on solid underground) - place a VB 18 each behind of the VSS 18 in a distance of 24 cm;...
- Page 23 Out B for front sub VB 18 Setup consists of: 2x VSS 18 + 4x VB 18 + 2x VL 750 or VL 760 1. Set-up PA: - place a VSS 18 to the left and right side in front of the audience...
- Page 24 VB 18 sub VB 18 Setup consists of: 2x VSS 18 + 4x VB 18 + 2x VL 750 or VL 760 1. Set-up PA: - place a VSS 18 to the left and right side in front of the audience (on solid underground) - place one VB 18 to the front and one backwards on each VSS 18 (see drawing);...
-
Page 25: System Extension
2x VL 750 or VL 760 + 2x VSS 18 + 2x VL 750 or VL 760 + 2x VSS 18 + 2x VB 18 + max. 8 monitors (VL 8 / VL 12 / VL 15) max. 4 monitors (VL 8 / VL 12 / VL 15) - Page 26 2 2x VL 750 or VL 760 + 2x VSS 18 + 2x VL 750 or VL 760 + 2x VSS 18 + 4x VB 18 2x VB 18 + 2x 500 watts speaker outputs ((e.g. free routable as top...
-
Page 27: Ec-Declaration Of Conformity
Warranty claims please learn from the warranty card included. You will find the User Manual of the VERSIO-Series in an other manual or on K.M.E.`s website at www.kme-sound.com. -
Page 28: Disposal Of Your Old Appliance
Deutsch Entsorgung von Altgeräten 1. Wenn dieses Symbol eines durchgestrichenen Abfalleimers auf einem Produkt angebracht ist, unterliegt dieses Produkt der europäischen Richtlinie 2002/96/EC. Klingenthaler 2. Alle Elektronik-Altgeräte müssen getrennt vom Hausmüll über dafür Musikelektronik GmbH staatlich vorgesehene Stellen entsorgt werden. Auerbacher Straße 268 08248 Klingenthal Germany 3.
