Onatco Super-Efficiency SE-199-80 Installation, Operation Manual, And Service Manual

High-efficiency water heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Recognize this symbol as an indication of
important Safety Information!
This water heater is designed for use in a commercial application. The installation and maintenance of it
should be performed by qualified, licensed service personnel.
Read and review this entire manual with special emphasis on the Venting and Operation Sections prior to
any installation work.
This product contains chemicals known to the State of California to cause cancer, birth defects and other
reproductive harm.
If the information in these instructions are not followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY!
— Do not store or use gasoline or other flammable
vapors or liquids or other combustible materials in
the vicinity of this or any other appliance. To do so
may result in an explosion or fire
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any
phone in your building.
•
Immediately call your gas supplier from a neighbor's
Printed in the USA

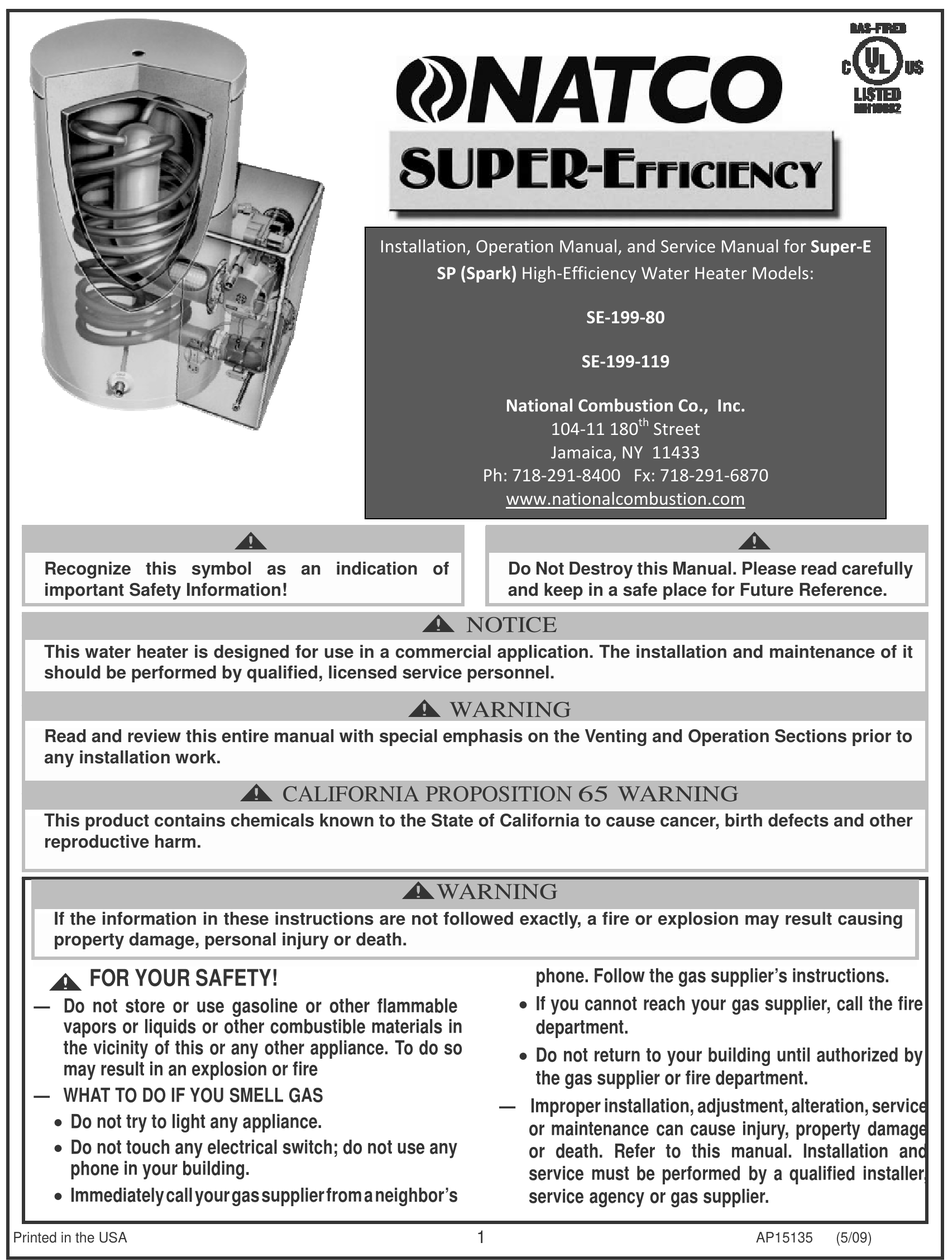

Installation, Operation Manual, and Service Manual for Super‐E
CALIFORNIA PROPOSITION 65 WARNING
SP (Spark) High‐Efficiency Water Heater Models:
SE‐199‐80
SE‐199‐119
National Combustion Co.,  Inc.
104‐11 180
Jamaica, NY  11433
Ph: 718‐291‐8400   Fx: 718‐291‐6870
www.nationalcombustion.com
Do Not Destroy this Manual. Please read carefully
and keep in a safe place for Future Reference.
NOTICE
WARNING
WARNING
phone. Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire
department.
•
Do not return to your building until authorized by
the gas supplier or fire department.
— Improper installation, adjustment, alteration, service
or maintenance can cause injury, property damage
or death. Refer to this manual. Installation and
service must be performed by a qualified installer,
service agency or gas supplier.
1
th
 Street
AP15135
(5/09)
