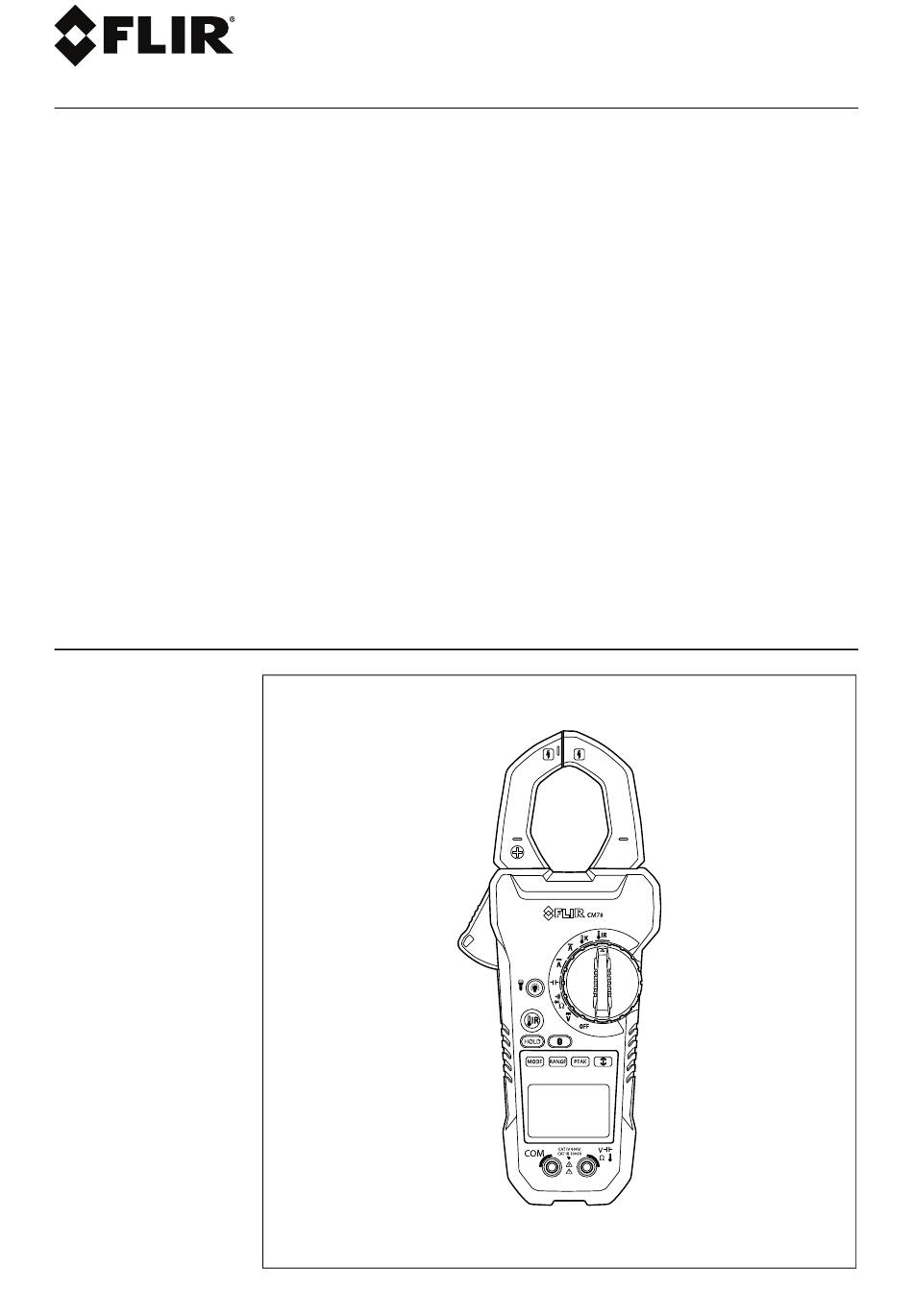

- Page 1 User’s manual FLIR CM78 True RMS Clamp/DMM with infrared thermometer and Bluetooth METERLiNK®...
- Page 3 User’s manual FLIR CM78 #T559826; r. AD/ 9130/9130; en-US...
-
Page 5: Table Of Contents
Table of contents Disclaimers............. . 1 Copyright. - Page 6 Warranties ............. .30 FLIR Global Limited Lifetime Warranty ..... .30 FLIR Test and Measurement Limited 2 Year Warranty.
-
Page 7: Disclaimers
ISO 9001 standard. FLIR Systems is committed to a policy of continuous de- velopment; therefore we reserve the right to make changes and improvements on any of the products with- out prior notice. -
Page 8: Safety Information
Before operating the device, you must read, understand, and follow all in- structions, dangers, warnings, cautions, and notes. Note FLIR Systems reserves the right to discontinue models, parts or accessories, and other items, or to change specifications at any time without prior notice. Note Remove the batteries if the device is not used for an extended period of time. - Page 9 2 Safety information WARNING Do not measure the current on a circuit when the voltage increases to more than 600 V. This can cause damage to the instrument and can cause injury to persons. WARNING You must disconnect the test leads from the circuit that you did a test on be- fore you change the range.
- Page 10 2 Safety information WARNING Be careful when you do the measurements if the voltages are more than 25 VAC rms or 35 VDC. There is a risk of shock from these voltages. Injury to per- sons can occur. WARNING Do not do diode, resistance or continuity tests before you have removed the power from capacitors and other devices under test during a measurement.
-
Page 11: Fcc Complicance
2 Safety information WARNING Do not cause a short-circuit of the batteries. This can cause damage to the in- strument and can cause injury to persons. WARNING Do not put the batteries into a fire. Injury to persons can occur. CAUTION Do not use the device for a procedure that it is not made for. -
Page 12: Industry Canada Compliance
2 Safety information and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to cor- rect the interference by one or more of the following measures: •... -
Page 13: Introduction
3 Introduction Congratulations on your purchase of the FLIR CM78 True RMS Clamp/DMM with infrared thermometer and Bluetooth METERLiNK®. This meter is supplied in the METERLiNK® kit and includes a Bluetooth module designed for use with FLIR infrared cameras. The combination of a clamp meter and an infrared (IR) camera is used for electrical power measurement, analysis, and documentation. -
Page 14: Description
4 Description 4.1 Meter parts Figure 4.1 Front view Clamp jaw. Jaw opening trigger Function buttons, see section 4.3 Function buttons, page 10. Work light. Function switch, see section 4.2 Function switch, page 9. LCD display. Probe/thermocouple terminals. #T559826; r. AD/ 9130/9130; en-US... -
Page 15: Function Switch
4 Description Figure 4.2 Rear view IR sensor. Laser pointer diode. Battery compartment. 4.2 Function switch The meter can measure voltage or frequency through the probe inputs. The type of measurement is selected by the button. The meter can measure resistance, continuity, or diode polarity through the probe inputs. -
Page 16: Function Buttons
4 Description The meter can measure DC current through the clamp jaws. The meter can measure AC current through the clamp jaws. The meter can measure temperature through the thermocouple inputs. The meter can measure IR temperature through the IR sensor. The meter is in full power-saving mode 4.3 Function buttons Press the button to change the operating mode for the currently... -
Page 17: Display Icons And Indicators
4 Description Press the button to toggle between Normal and Hold mode. In Hold mode, the display freezes the last reading and continues to display this value. Press the button to enable/disable METERLiNK® (Bluetooth) communication, see section . 4.4 Display icons and indicators Figure 4.3 Display Indicates that METERLiNK®... - Page 18 4 Description Indicates that the meter is in Hold mode. Indicates the battery voltage status. Indicates that the meter is measuring AC current or voltage. Indicates that the meter is measuring DC current or voltage. Indicates that the continuity function is active. Indicates that the diode test function is active.
-
Page 19: Operation
5 Operation Note Before operating the device, you must read, understand, and follow all in- structions, dangers, warnings, cautions, and notes. Note When the meter is not in use, the function switch should be set to the position. Note When connecting the probe leads to the device under test, connect the nega- tive lead before connecting the positive lead. -
Page 20: Current Measurements
5 Operation To enter Manual range mode, press the button. To change the range, press the button repeatedly until the desired range is displayed. To return to Auto range mode, press and hold the button until the indi- cator is displayed. 5.3 Current measurements When measuring current using the clamp jaws, only one conductor should be en- closed by the jaws—refer to Figure 5.1. -
Page 21: Voltage Measurements
5 Operation Note The meter can also be set to display peak values only, see section 5.13 Peak hold, page 20. 5.3.1 DC Zero The DC Zero feature removes offset values and improves the accuracy of DC current measurements. Set the function switch to the position. -
Page 22: Resistance Measurements
5 Operation 5.5 Resistance measurements WARNING Do not do diode, resistance or continuity tests before you have removed the power from capacitors and other devices under test during a measurement. Injury to persons can occur. Set the function switch to the position. -
Page 23: Frequency Measurements
5 Operation Note For very large capacitance values, it may take several minutes for the meas- urement to settle and the final reading to stabilize. 5.7 Frequency measurements Set the function switch to the position. Insert the black probe lead into the negative COM terminal and the red probe lead into the positive V terminal. -
Page 24: Diode Test
5 Operation Insert the black probe lead into the negative COM terminal and the red probe lead into the positive Ω terminal. Use the button to select continuity measurement. The indicator should be displayed. Touch the tips of the probe across the circuit or component under test. If the resistance is less than 30 Ω, the meter beeps continuously. - Page 25 5 Operation from the target, the diameter (spot) of the object under test must be at least 1 inch (2.54 cm). Refer to Figure 5.2. Figure 5.2 IR spot-to-distance ratio IR measurement notes: • The object under test should be larger than the size of the laser beam spot. •...
-
Page 26: Max/Min Mode
5 Operation WARNING Do not use the laser pointer near explosive gases or in other possible explo- sive areas. Injury to persons can occur. Set the function switch to the position. Press and hold the button to enable the IR sensor and the laser pointer diode. -
Page 27: Temperature Units
5.15 Streaming measurement data using Bluetooth 5.15.1 General Some IR cameras from FLIR Systems support Bluetooth communication, and to those cameras you can stream measurement data from the meter. The data is then merged into the result table in the IR image. - Page 28 5 Operation 5.15.2 Procedure Pair the IR camera with the instrument. Refer to the camera manual for infor- mation on how to pair Bluetooth devices. Turn on the camera. Turn on the meter. Press the on the meter to enable Bluetooth. Choose the variable that you want to use (voltage, current, resistance, etc.).
-
Page 29: Maintenance
As with most electronic products, this equipment must be disposed of in an envi- ronmentally friendly way, and in accordance with existing regulations for elec- tronic waste. Please contact your FLIR Systems representative for more details. #T559826; r. AD/ 9130/9130; en-US... -
Page 30: Technical Specifications
7 Technical specifications 7.1 General specifications Display 4000-count with bar Controls • 8-position rotary switch • Dedicated IR button • 8 dedicated function buttons: flashlight, IR, maximum/minimum, Bluetooth, hold, range, mode, peak Backlight White LED Work light White LED array Measurement ranges See section 7.2 Electrical range specifications, page 25. -
Page 31: Electrical Range Specifications
7 Technical specifications Other indications Low battery, over-range, IR, memory Operating temperature –10 to 50℃ (14 to 122℉) Storage temperature –25 to 60℃ (–14 to 140℉) Operating humidity Maximum 90% up to 35℃ (95℉) de- creasing linearly to 60% at 45℃ (113℉) 90% maximum Storage humidity... - Page 32 7 Technical specifications Function Range Resolution Accuracy (of reading) AC voltage 400.0 mV 0.1 mV ±(1.5% + 10 digits) 4.000 V 0.001 V ±(1.5% + 5 digits) 40.00 V 0.01 V 400.0 V 0.1 V 1000 V ±(2.0% + 5 digits) Note All AC voltage ranges are specified from 5% of the range to 100% of the...
- Page 33 7 Technical specifications Function Range Resolution Accuracy (of reading) Capacitance 4.000 nF 0.001 nF ±(5.0% + 30 digits) 40.00 nF 0.01 nF ±(5.0% + 20 digits) 400.0 nF 0.1 nF ±(3.0% + 5 digits) 4.000 μF 0.001 μF 40.00 μF 0.01 μF 400.0 μF 0.1 μF...
-
Page 34: Thermal Range Specifications
7 Technical specifications 7.3 Thermal range specifications IR range Accuracy (of Function Thermocouple range reading) IR temperature –29 to –20℃ (– ±5℃ (±9℉) (8:1 ratio) 20 to –4℉) –20 to 270℃ (–4 ±2.0% reading or ±2℃ (±4℉) to 518℉) (whichever is greater) Type K inputs –20 to 760℃... -
Page 35: Technical Support
8 Technical support Website http://www.flir.com/test Technical support T&MSupport@flir.com Repairs Repair@flir.com #T559826; r. AD/ 9130/9130; en-US... -
Page 36: Warranties
PRICE AND HAVE NO OTHER OBLIGATION OR LIABIL- “Product”) purchased either directly from FLIR Commer- ITY TO BUYER WHATSOEVER. cial Systems Inc and affiliates (FLIR) or from an author- ized FLIR distributor or reseller that Purchaser registers 5. WARRANTY EXCLUSIONS AND DISCLAIMERS. -
Page 37: Warranty
7. NON-WARRANTY RETURN. Purchaser may request including accessories which may have their own warranty. that FLIR evaluate and service or repair a Product not cov- 3. WARRANTY PERIODS. The applicable Limited War- ered under warranty, which FLIR may agree to do in its ranty Period measured from the Purchase data are: sole discretion. - Page 38 RANTY AGREEMENT BETWEEN PURCHASER AND 7. NON-WARRANTY RETURN. Purchaser may request FLIR AND SUPERSEDES ALL PRIOR WARRANTY NE- that FLIR evaluate and service or repair a Product not cov- GOTIATIONS, AGREEMENTS, PROMISES AND ered under warranty, which FLIR may agree to do in its UNDERSTANDINGS BETWEEN PURCHASER AND sole discretion.
- Page 40 A note on the technical production of this publication This publication was produced using XML — the eXtensible Markup Language. For more information about XML, please visit http://www.w3.org/XML/ A note on the typeface used in this publication This publication was typeset using Linotype Helvetica™ World. Helvetica™ was designed by Max Miedinger (1910–1980) LOEF (List Of Effective Files) T501021.xml;...
