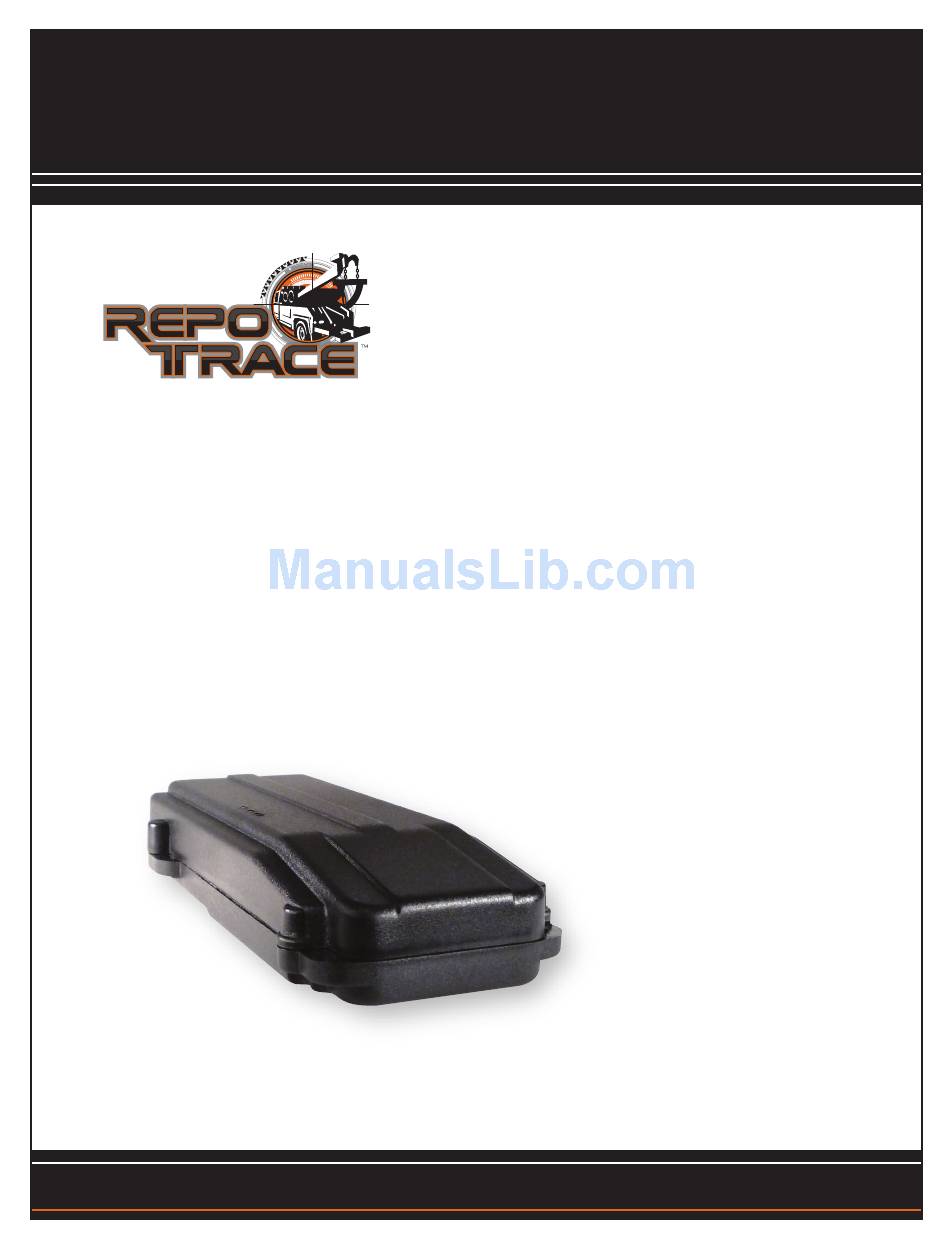

The Wedge
Install Guide
TM
Table of Contents
Getting started ..........................................................................................................2
Standard Installation .................................................................................................2
GPS Antenna Installation and Placement .................................................................3
Testing, Installation ...................................................................................................3
Starter Disable Installation ........................................................................................4
Wiring Schematics ....................................................................................................5
Toll Free Support
877.563.0012
ProconGPS,Inc. © 2010
RPT-C-S-0110-Wedge
Advertisement
Table of Contents
Summary of Contents for RepoTrace Wedge
- Page 1 The Wedge Install Guide Table of Contents Getting started ......................2 Standard Installation ....................2 GPS Antenna Installation and Placement ..............3 Testing, Installation ....................3 Starter Disable Installation ..................4 Wiring Schematics ....................5 Toll Free Support 877.563.0012 ProconGPS,Inc. © 2010 RPT-C-S-0110-Wedge...
-
Page 2: Getting Started
The Wedge Standard Installation Getting Started The Wedge tracking device with internal cellular antenna Package also contains an external GPS antenna, zip ties, and connectors. Tools required performing the installation: • Wire strippers and cutter • Crimping tool • Voltmeter •... -
Page 3: Led Indications
GPS Antenna Installation and Placement The Wedge requires the installation of an external GPS antenna. This antenna MUST be mounted to a metallic surface in a location that provides a clear view of the sky. Metallic objects will block the GPS signal and severely reduce tracker performance. - Page 4 Starter Disable Installation To install the starter disable relay, you must locate the starter wire in the ignition switch harness in the vehicle. The wire is usually one of the thickest wires in the ignition wire harness. The best way to locate the correct wire is to probe the suspected starter wire with a voltmeter.
- Page 5 Wiring Schematics Constant +12VDC power BLACK Ground (chassis ground is preferred) BLUE Ignition Sense wire BROWN Door Unlock (Double Negative Pulse to drive relay) GREEN Starter Disable Output (to drive relay) WHITE Not used Support: 877 .563.0012...
