Changing EDID mode:

It is recommended to keep the EDID in the factory default MODE1.
If necessary, you may set to different EDID mode by following these
instructions.

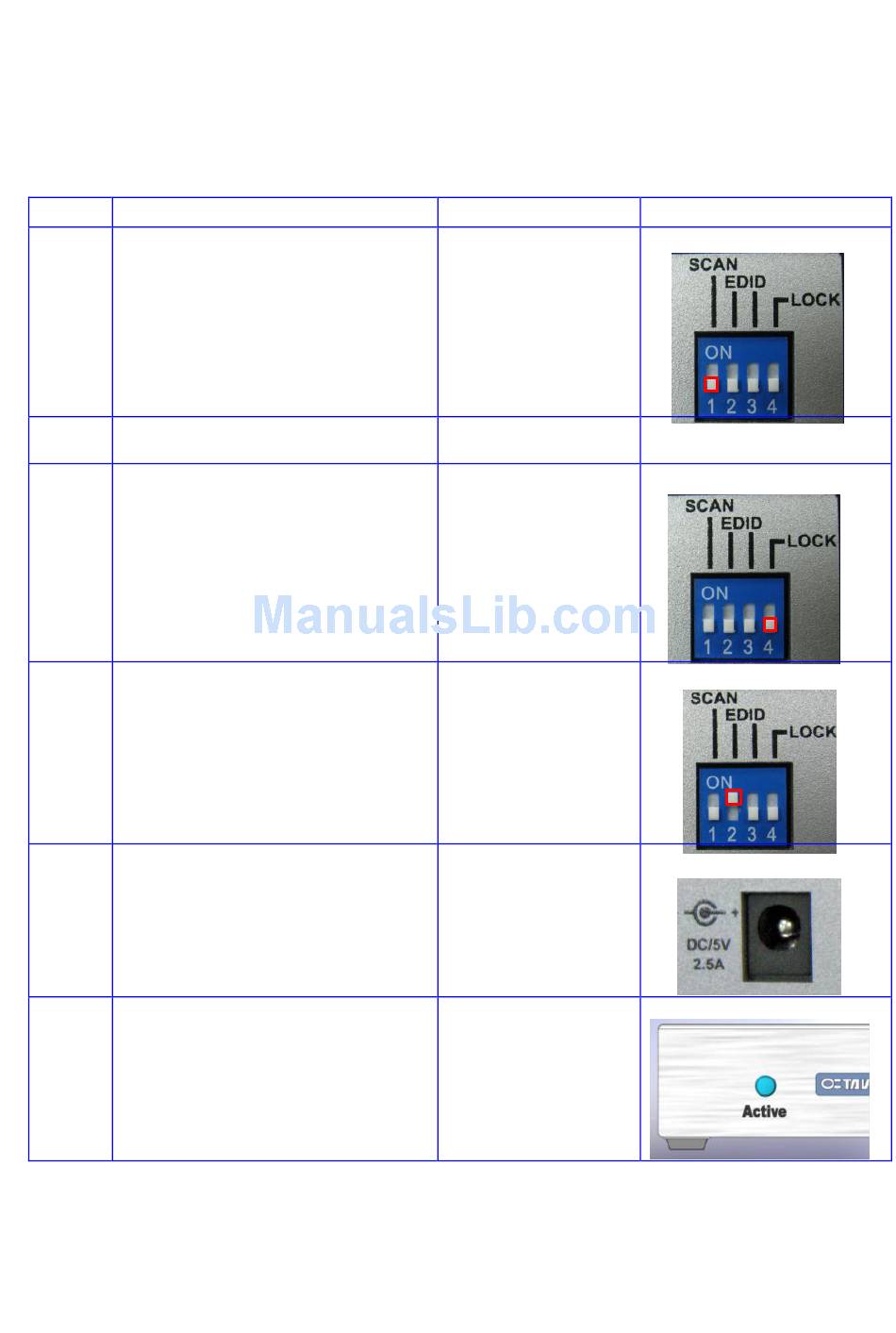

Step
1 Set the Smart Scan switch to OFF
2 Disconnect all sources and
display from Distribution Amp
3 Set the Program/Lock switch #4
to "program mode" ( down)
4 Set the EDID to the mode
desired.(MODE 2 shown.)
5 Reset Power to the Distribution
Amp by disconnecting the power
and reconnecting power.
6 The LED will now indicate the
EDID Mode that you will program.
Action
See page 4 for
other EDID modes
.
LED will flash:
Flash 1x= mode 1
Flash 2x= mode 2
Flash 3x= mode 3
Flash 4x= mode 4
6
Notes
