USER'S INSTRUCTIONS
BSV-01SERIES,BSV-02SERIES,BSV-03,BSV-04,
BSV-05&15, BSV-06&16, BSV-07, BSV-08, BSV-09 SERIES,
BSV-17SERIES, BSV-21, BSV-22, BSV-23, BSV-24, BSV-25,
BSV-26,BSV-701,BSV-702,BSV-703,BSV-704,BSV-801,BSV-8
02,BSV-803,BSV-804,BSV-805
PLEASE READ THIS USER'S INSTRUCTIONS CAREFULLY WHEN YOU ASSEMBLE,
INSTALL, OPERATE, AND MAINTAIN YOUR STOVES! IF ANY MORE QUESTIONS,
PLEASE CONTACT OUR DEALERS IN YOUR LOCAL PLACE.
DEALER STAMP
STOVES
EN13240:2001
Manufacturer:Xuzhou Best Art&Crafts Co.,Ltd.
Second floor,South building, No.390,Fuxing South Road,
Xuzhou City,Jiangsu,221000,P.R.China
TM
Advertisement
Table of Contents
Summary of Contents for Kingfire BSV-01SERIES
- Page 1 STOVES USER’S INSTRUCTIONS BSV-01SERIES,BSV-02SERIES,BSV-03,BSV-04, BSV-05&15, BSV-06&16, BSV-07, BSV-08, BSV-09 SERIES, BSV-17SERIES, BSV-21, BSV-22, BSV-23, BSV-24, BSV-25, BSV-26,BSV-701,BSV-702,BSV-703,BSV-704,BSV-801,BSV-8 02,BSV-803,BSV-804,BSV-805 PLEASE READ THIS USER’S INSTRUCTIONS CAREFULLY WHEN YOU ASSEMBLE, INSTALL, OPERATE, AND MAINTAIN YOUR STOVES! IF ANY MORE QUESTIONS, PLEASE CONTACT OUR DEALERS IN YOUR LOCAL PLACE.
- Page 2 STOVES The user’s instructions are suitable for Kingfire models ranged from BSV01 to BSV26, totally more than 30 models. Please see the following chart information, and select your models: Specification Nominal Recommended Weight Dimension Models of cast iron fuels Heat output...
- Page 3 BSV701 grey iron 18# 8 kW Same above 86kg 650*360*440 (mm) BSV702 grey iron 18# 11kW Same above 120kg 650*400*600(mm) BSV703 grey iron 18# 14 kW Same above 168kg 725*465*700(mm) BSV704 grey iron 18# 10kW Same above 115kg 682*422*476(mm) BSV801 grey iron 18# Same above 88kg...
- Page 4 ↓ → Remove the crate and take out all the components ↓ → Remove the protective plywood panel on the bottom of the stove. ↓ STOVES → fix the legs with the set of bolts and washers, do not over tighten. (Legs are supplied packed inside the stove) ↓...
-
Page 5: Installation
→ fit the baffle, retainer bar, and ashpan as shown. ↓ → fix the flue collar with set bolts and washers supplied; rear or top flue option. Assembling your stove correctly is essential for ensuring a safe and efficient burning control. If you have any doubts, please contact local dealer where your stove was purchased. - Page 6 Handling Necessary facilities must be available for loading, unloading and site handling. Minimum of 2 persons is required for handling and a sack barrow is recommended, always ensure you make the necessary precautions to avoid injury. Fire Cement Some types of fire cement are caustic and should not touch your skin. In case of contact, wash immediately with plenty of water.
- Page 7 check the flue draught when fire is on high output. Chimney Connection You should brick up or seal an existing fireplace opening with a register plate. A short length of flue pipe of a minimum 125mm internal diameter may then be used to connect the stove to the chimney.
-
Page 8: Air Controls

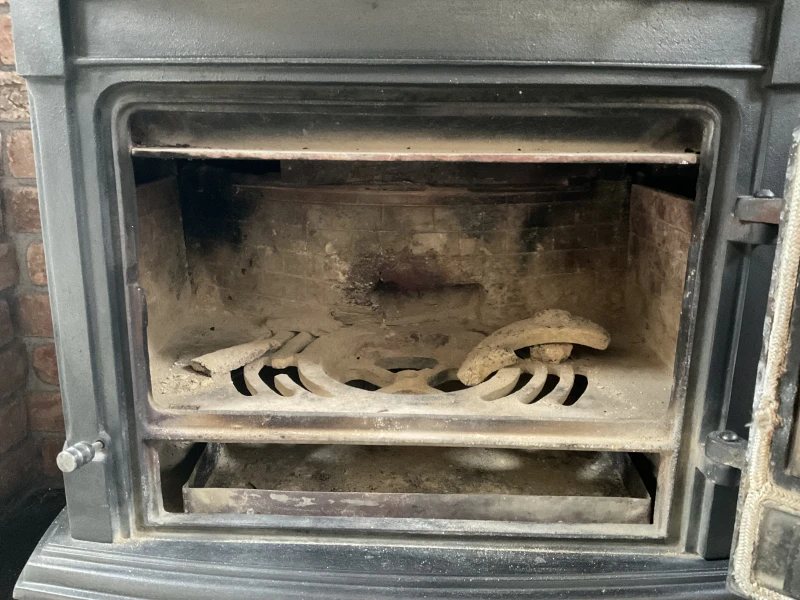

The hearth on which the stove is to be placed should not be less than 125mm thick and should be in accordance with the current building regulations. Care should be taken to level the stove using the adjusting screws in the feet. The appliance shall be installed on floors with an adequate load-bearing capacity. - Page 9 They are operated as follows: Bottomgrate Two types of bottomgrate are equipped with your Kingfire stoves for your option: rotary style and grid style. For rotary style grate, you can operate it by dragging stainless steel rod forward and backward to de-ash. For grid style grate, a special hook is supplied to de-ash.
-
Page 10: Shutting Down
In order to prevent the ash from being stacked to the underside of the bottomgrate, please always de-ash before refueling. Once the ash builds up, it possibly stifles the airflow and causes the fire to die. Important!- It is very important to empty the ashpan regularly. In case the ash build up the underside of the grate, burnout or distortion of the grate may be caused;... -
Page 11: Recommended Fuels
Warning! The stove is still hot in the following time after the fire has been extinguished. Recommended Fuels Fuels vary greatly in quality and performance. Anthracite is an approved natural smokeless fuel( not processed). Sufficient air supply and above average fuelbed temperatures are required to maintain best performance for this fuel, therefore, we suggest the fuel is used in combination with other approved manufactured smokeless fuels as per the HETAS approved list. -
Page 12: Maintenance
1) Open doors and windows 2) Let the fire out, or take out of fuel form the stove safely. 3) Check flue chimney to prevent blockage and clean if required. 4)Do not try to re-light the fire before the cause has been identified and corrected. 5) If needed, please seek professional assistance. -
Page 13: Trouble Clearing
of smokeless fuels, sweep at east once a year; for wood and other fuels, at least twice a year. If the stove is fitted in place of an open fire, then the chimney should be swept one month after installation to clear any soot falls which may have occurred due to the difference in combustion between the stove and the open fire.
