Page 1: Instructions For Use

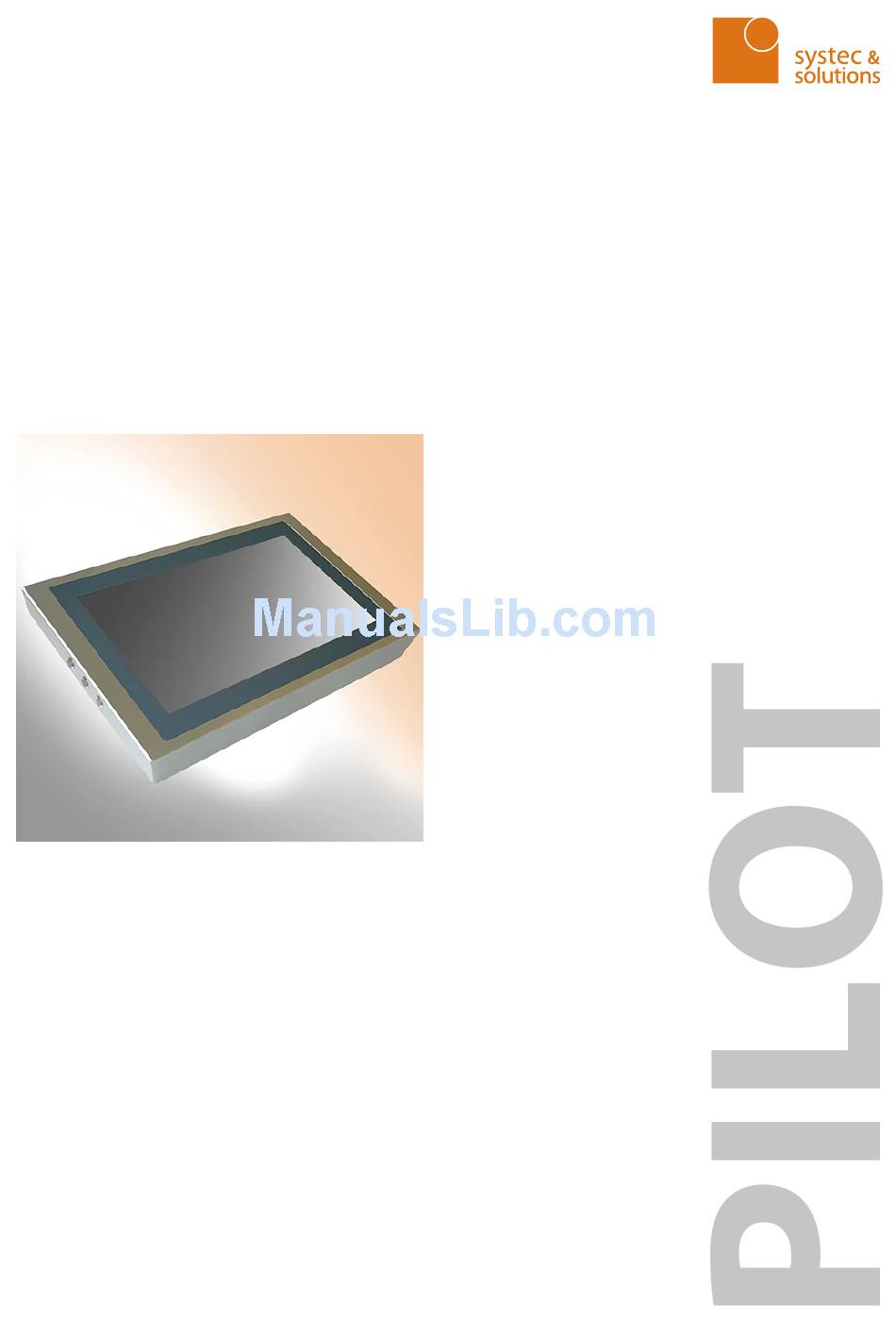

INSTRUCTIONS FOR USE INDUSTRIAL MONITOR/THIN CLIENT PILOT 217 MONITOR/THIN CLIENT Read the instructions prior to performing any task! - Page 2 Systec & Solutions GmbH Emmy-Noether-Straße 17 D–76131 Karlsruhe Telephone: 0721 6644 400 Fax: 0721 6644 444 email: talk@systec-solutions.com Internet: www.systec-solutions.com © 2013 PILOT, 1, en_US, 19.03.2014 PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 3: Table Of Contents
Repairs......................31 Storage......................33 7.1 Unmounting the device..............33 7.2 Storing the device................35 Packaging and transport..............37 8.1 Packaging the device............... 37 8.2 Transporting the device..............37 Disposal......................39 Site information..................41 PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 4 Table of contents PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 5: General Information
Copyright notice General information 1.1 Information on the user guide This original user guide is an integral part of the PILOT 217 monitor/ thin client and provides you with information on the set-up, use, storage and disposal of the device. - Page 6 General information Copyright notice PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 7: Safety
Safety notices Safety 2.1 Designated use PILOT 217 monitor/thin client is an HMI PC system. PILOT 217 monitor/ thin client is used to implement control and operating concepts and to display and manipulate information in industrial and commercial envi- ronments. -
Page 8: Important Safety Notes
– Never plug in or unplug the power supply plug when live with voltage. – The supply cable must not be supplied with voltage until assembly has completely finished. PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 9 – Save your data regularly. – Check the charge capacity regularly. – Don’t allow it to drop below 5%. PILOT 217 monitor/thin client - Industrial monitor/thin client...
- Page 10 Safety Important safety notes PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 11: Product Description
Used to connect a USB stick. OSD (on-screen display) Fig. 2: Rear view of monitor The OSD button on the back of the monitor is used to display informa- tion and modify the monitor settings. PILOT 217 monitor/thin client - Industrial monitor/thin client... -
Page 12: Type Plate
The product designation and identification will be found on the type plate. This is always located on the rear of the device and contains the following information: Fig. 4: Position of type plate PILOT 217 monitor/thin client - Industrial monitor/thin client... -
Page 13: Technical Data For The Device
17.3" LCD display with LED backlight (Sunlight Readable optional) Display area 382.08 x 214.92 mm Native (maximum) resolution 1600 x 900 Page ratio 16:9 Colors 262 thousand Brightness 220 cd/m Contrast 500:1 Response time 8 ms PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 14 2 x USB, 1 x Ethernet All the installed USB components (VoIP hardware, touchscreen, keyboard, WLAN, etc.) are connected to the PILOT 217 monitor/thin client using only one connector (type Power supply / consumption Extra-low voltage power supply 12 ‒ 24 V DC, 10 ‒ 5 A Protection of supply lead (Extra-low max.
-
Page 15: Dimensions
0 °C ‒ +40 °C Humidity 10 % ‒ 90 %; non condensing Maße (in mm ohne Tastaturgelenk) Width Height Depth Weight Net weight ca. 8 kg 3.4 Dimensions Fig. 6: Dimensions of front of device PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 16 Product description Dimensions Fig. 7: Dimensions of back of device Fig. 8: Dimensions in side view PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 17: External Connectors
= 24-pole DVI socket for connecting to the basic computer Fig. 11: DVI socket with pinout HDMI port = 19-pole HDMI socket for connecting to the basic computer Fig. 12: HDMI socket with pinout PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 18 Risk of material damage if the device is connected to an incorrect power supply. Connecting the device to an incorrect power supply may cause material damage. – Check the power rating of your device. PILOT 217 monitor/thin client - Industrial monitor/thin client...
- Page 19 (100 – 240 V AC, 50 – 60 Hz) GF-7,62. The corresponding plug carries the designation Phoenix Con- tact PC 4/ 3-ST-7,62. Fig. 17: 3-pole Phoenix Contact socket for the power supply Designation Significance Surge protectors Phase Neutral conductor PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 20: Conformity
Systec & Solutions GmbH Emmy-Noether-Straße 17 D–76131 Karlsruhe Germany Phone +49 721 6634 400 Fax +49 721 6634 444 talk@systec-solutions.com www.systec-solutions.com Karlsruhe, July 1, 2013 Karl G. Linder PILOT 217 monitor/thin client - Industrial monitor/thin client... -
Page 21: Starting Up
Make sure the ambient temperature does not exceed the specified maximum value (see Ä Chapter 3.3 “Technical data for the device” on page 13). When installing the equipment also observe Ä Chapter 3.4 “Dimen- sions” on page 15. PILOT 217 monitor/thin client - Industrial monitor/thin client... -
Page 22: Mounting The Device
Working on heavy equipment may lead to serious injuries. – Always have two people when working with heavy equipment. Hold the PILOT 217 monitor/thin client firmly so that it is level with the equipment rack adapter. PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 23 Ä Chapter 3.5 “External connectors” on page 17 – and the requirement for the electrical supply lead Ä Chapter 3.3 “Technical data for the device” on page 13. PILOT 217 monitor/thin client - Industrial monitor/thin client...
- Page 24 Starting up Mounting the device Fig. 18: Interface plate on the rear of the PILOT 217 monitor/thin client (depending on the configuration) Connect up all the cables between the interface plate and the equipment rack adapter. Tighten the screws on the mains plug.
-
Page 25: Operation
5.1 Switching the device on Fig. 20: ON/OFF button for switching on and off Press the ON/OFF button between the dummy plugs on the left- hand side of the PILOT 217 monitor/thin client. ð The system goes into operation. 5.2 Switching the device off NOTICE! Loss of data due to failure to save it. -
Page 26: Cleaning The Device
Clean the display without applying any excessive pres- sure. Regularly clean the surface of the device using a soft, moist, lint- free cloth. For more significant soiling: Use isopropanol as cleaning agent. PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 27 Bichromate Glycerine Triacetin Ferrocyanide salts Heating oil III-trichloroethane Drilling emulsion Isopropanol Trichloroethylene Brake fluid Potash soap Trichloroacetic acid <10% Butyl cellosolve Potassium hydroxide Tricresyl phosphate <30% Sodachlorine <20% Kerosene Thinner (white spirit) PILOT 217 monitor/thin client - Industrial monitor/thin client...
- Page 28 Ajax Jet Dry Grape juice Domestos Coffee Downey Lenor Vortex Fantastic Milk Wisk Formula 409 PersiI Windex Slight discoloration was detectable for the following materials: Mustard Tomato ketchup Tomato juice Lemon juice PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 29: Using The Optional Usb Connection
The WLAN antenna together with the WLAN USB stick are located in the equipment rack adapter. The WLAN USB stick may be connected only directly to a USB interface with no interposed USB hub. PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 30 Operation Setting up the WLAN (optional) Install the WLAN driver from the supplied USB stick. ð The WLAN is set up. PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 31: Repairs
(see Ä Chapter 5.2 “Switching the device off” on page 25). The device is defective. Send an e‑mail to support@systec-hardware.com or Fill out a support form at http://www.systec-hardware.com/de/hardware-support.html. PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 32 Repairs PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 33: Storage
Working on live equipment may give rise to material damage. – Before you carry out any work on a device: Disconnect it from the power supply. You will need the following tools: Allan key (4) for M5 x 16 PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 34 Lift the device off the equipment rack adapter and hold it firmly. ð You can now see the interface plate on the rear of the device. Fig. 22: Interface plate on the rear of the PILOT 217 monitor/thin client (depending on the configuration) Release the screws on the mains plug.
-
Page 35: Storing The Device
Avoid mechanical vibration and shocks. Avoid cold weather and extreme temperature fluctuations. Pay attention to the information in the “Technical data” section. Ä Chapter 3.3 “Technical data for the device” on page 13 PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 36 Storage Storing the device PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 37: Packaging And Transport
Pay attention to the information in the “Technical data” section. When the consignment is delivered, immediately check it for possible transport damage and deal appropriately with any detected transport damage or non-obvious defects. PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 38 Packaging and transport Transporting the device PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 39: Disposal
Systec-Services GmbH for proper dis- posal. Do not dispose of the equipment via your local municipal col- lection centers. Under the WEEE Directive these may be used only for privately used equipment. PILOT 217 monitor/thin client - Industrial monitor/thin client... - Page 40 Disposal PILOT 217 monitor/thin client - Industrial monitor/thin client...
-
Page 41: Site Information
VAT ID no. as per §27a Value Added Tax Act: DE 815434969 ©Systec & Solutions GmbH / All rights reserved Technical modifications reserved All trademarks and registered trademarks mentioned are the property of their respective owners PILOT 217 monitor/thin client - Industrial monitor/thin client...
