Electronics Worldwide EASYFIND Quick Start Manual

Camping Satellite System Quick Start Guide
Congratulations on your new purchase and welcome to the world of "EASYFIND" Satellite TV, the simpleist system
to set up and operate. Everything you need to watch Free To Air satellite TV is included in this system apart from
the TV!
This guide will take you through the simple process required to get you watching all your favourite channels as
soon as possible.

Dish Set UP

1. Assemble the dish as per instructions enclosed with feed arm contents in the brown box.
- For camping case system choose mounting method of choice
- For tripod mounted systems open out Tripod and push on tripod head (do not tighten thumb
screws at this stage)
2. Fix Dish to Tripod head using U clamp in feed arm box
3. Set dish elevation to 26°.
To do this loosen the wing
nut on the dish bracket
and slide up or down until the
notch is set pointing at 26°.
Try to be as accurate as possible.
4. Skew LNB 15° anti-clockwise from behind the dish. To do this stand behind the
dish so you are lookingat the yellow end cap, now line up the third marking to the
right of the centre triangle to 12 o'clock. Try to be as accurate as possible.
5. The dish face should be at roughly 90° to the ground and the cable from the LNB should be pointing to the
ground (LNB feed arm should be angled at 26° to the ground). Find a position for the dish with no trees or
obstructions when the dish and LNB are pointing at 145° (SE)
electronics

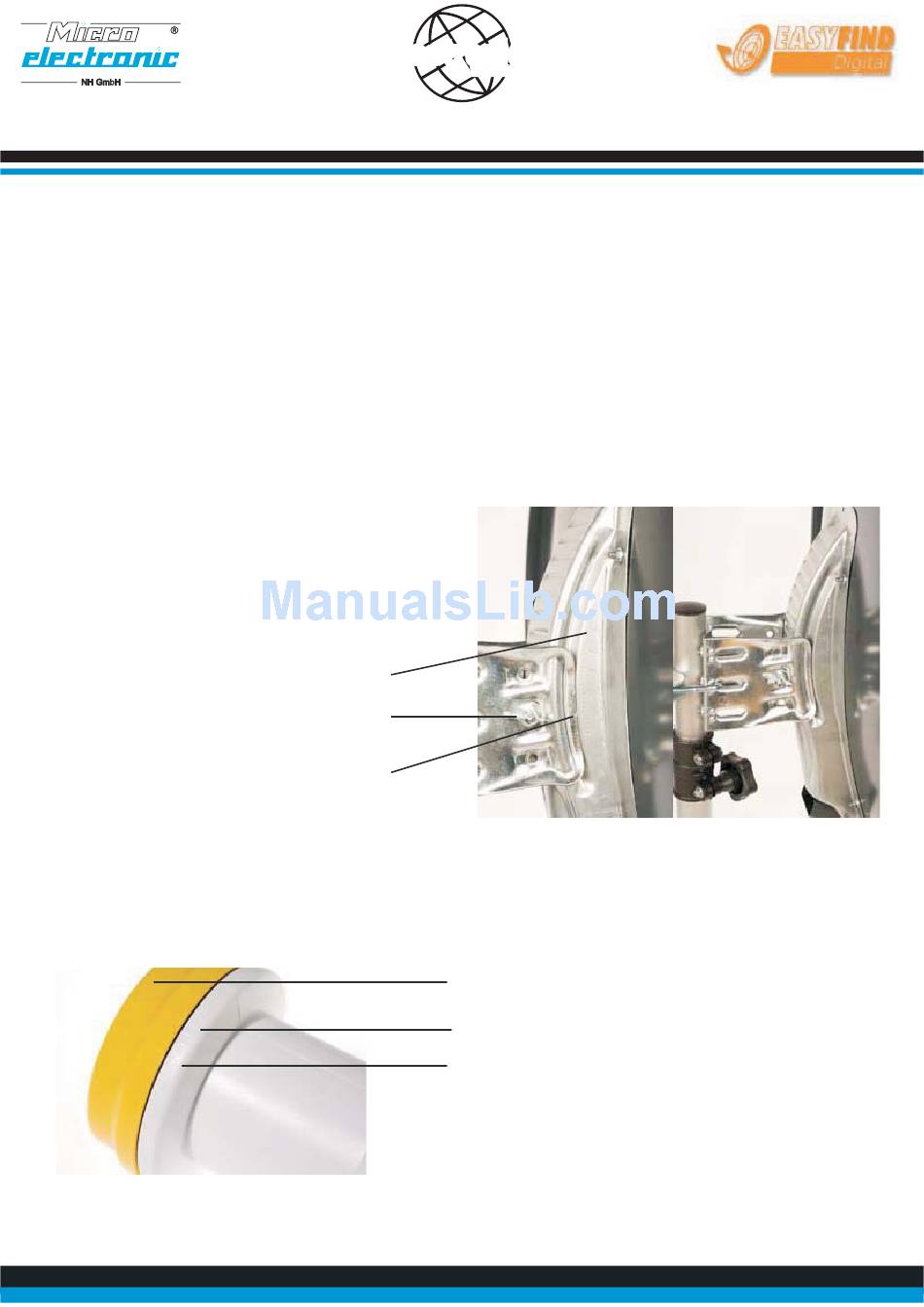

Angle Markings
Wing Nut
Notch
WORLDWIDE
Yellow End Cap
Third Line to the right Marking
Center Triangle Marking
