Summary of Contents for Divitec XIN-VC-0622

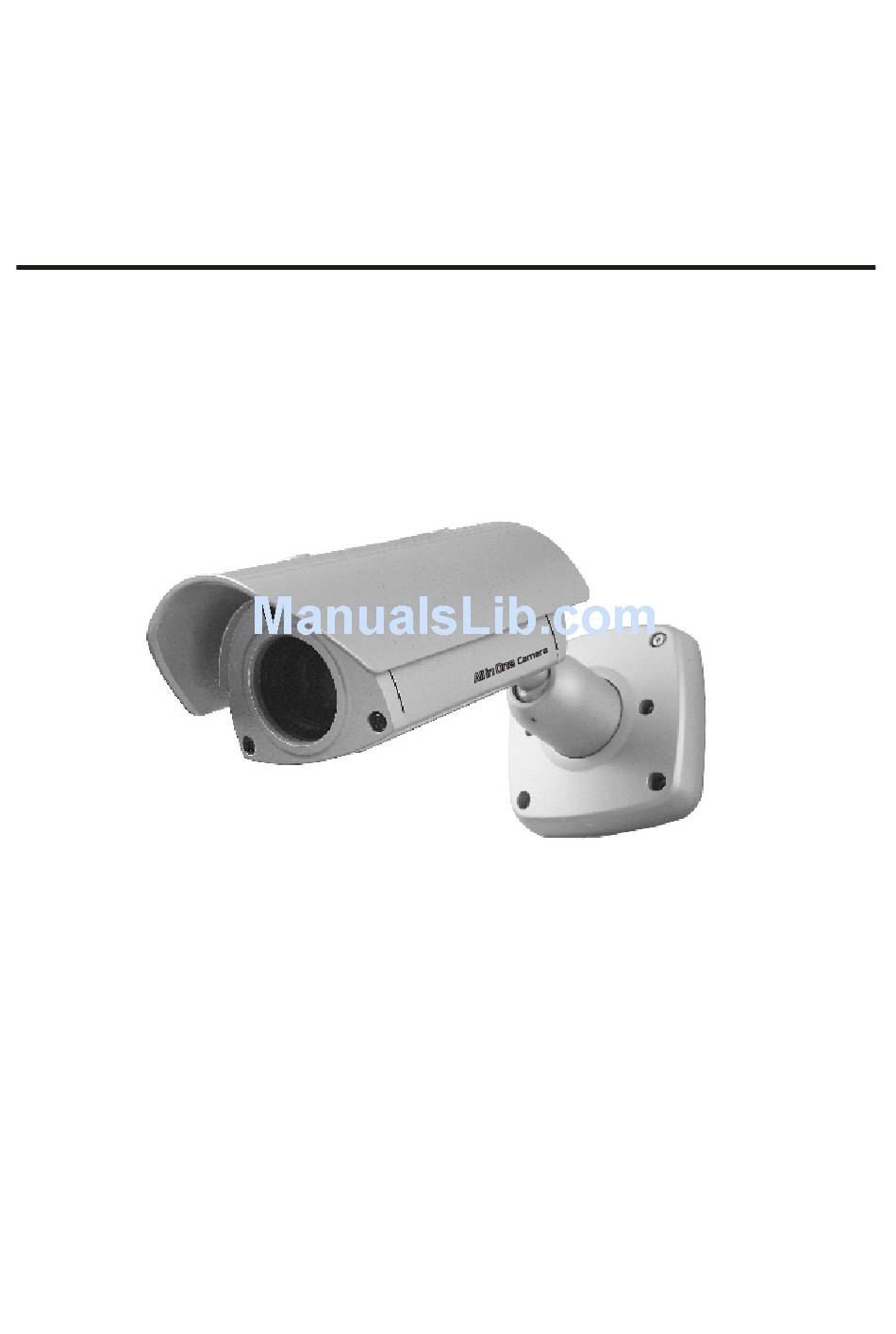

- Page 1 Instruction Manual ALL-IN-ONE CAMERA COLOR CCD WEATHERPROOF AF D&N ZOOM CAMERA Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Limitation Of Liability
ISSUE 1 - JUNE 2006 LIMITATION OF LIABILITY THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS, HOWEVER, WE CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF. THE INFORMATION CONTAINED HEREIN IS SUBJECT TO CHANGE WITHOUT NOTICE. REVISIONS OR NEW EDITIONS TO THIS PUBLICATION MAY BE ISSUED TO INCORPORATE SUCH CHANGES. - Page 3 WARNINGS AND CAUTIONS: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY MET ALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION: CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...
- Page 4 FCC COMPLIANCE STATEMENT FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
- Page 5 IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that product heat..
- Page 6 THIS PAGE INTENTIONALLY LEFT BLANK. - vi -...
-
Page 7: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION 1.1 THE CAMERA FEATURES 2. SYSTEM INSTALLATION 2.1 PACKAGE CONTENTS 2.2 OPERATION REQUIREMENTS 3. PARTS NAME 3.1 INSTALLATIONS 4. CONNECTION 4.1 COLOR LEAD WIRE & COLOR DISPLAY LABEL 4.2 EXTERNAL DAY/NIGHT CONTROL 4.3 RS-485 CONNECTION 4.4 EXTERNAL LENS CONTROL 4.5 EXTERNAL A/D KEY CONTROL 5. -
Page 8: Introduction
1. INTRODUCTION The Day & Night AutoFocus Zoom color DSP Camera provides especially for closed circuit television (CCTV) and security surveillance application. 1.1 THE CAMERA FEATURES : ALL-IN-ONE: Auto-focus camera / Lens / Weatherproof housing High performance SONY 1/4" Super HAD CCD 242x zooming capability (Optical : 22x / Digital : 11x) Ultra Sensitivity Minimum illumination of 0.001 lux @F1.6 (low shutter) Excellent picture quality... -
Page 9: System Installation
2. SYSTEM INSTALLATION Installation of the camera must be performed by qualified service personnel in accordance with all local national electrical and mechanical codes must perform installation of the camera. Perform the following steps to install the camera. 2.1 PACKAGE CONTENTS Camera - 1EA Instruction Manual - 1EA A/D Remote Controller (option) -
Page 10: Parts Name
3. PARTS NAME Carefully remove the contents from the box, and verity that nothing was damaged in shipment. CAMERA CONTENTS SUNSHADE AF D&N CAMERA MODULE MOUNT BASE BIMETAL HEATER CONNECTION CABLE CABLE LABEL POLY BAG DRILLING GUIDE LABEL ACCESSORY KIT Drilling Position 4 Point - MOUNT TORX SCREWS(M6x35.0)(4X) - Page 11 3.1.1 INSTALLATION 1 (Cable through the wall with the mount base) A. Drill the mounting location, using the template sheet (or the bottom of the mount base) as a template. B. Insert the plastic anchors into the hole which has just drilled. C.
- Page 12 3.1.2 INSTALLATION 2 (Using the conduit knockout punched with Mount Base) A. Drill the mounting location, using the template sheet (or the bottom of the mount base) as a template. B. Insert the plastic anchors into the hole which has just drilled. C.
- Page 13 3.1.3 INSTALLATION 3 (Cable through junction box with mount base) The camera can be mounted on the junction box using the UNC # 8-32 machine screws. Junction Box Socket Set Screw Torx Screws (T-20) Hexagon Wrench M5.0, L=5.0mm UNC 8-32 x 0.75" (4x) (not provided) - 6 -...
-
Page 14: Connection
4. CONNECTION CAUTION : Do not connect the power cable until all other connections have been completed. If you complete the whole connection of cameras, then you have to cut the extra cable. VIDEO(BNC) MONITOR DVR / VCR (RED) (WHITE) POWER CONNECTION (BLUE) (GREEN) -
Page 15: External Day/Night Control
4.2 EXTERNAL DAY/NIGHT CONTROL Is connect to an external sensor to receive day/night detection signals. DAY/NIGHT External sensor switch ON/OFF DAY : OPEN (BLACK) DAY/NIGHT NIGHT : CLOSED COLOR EXT-OUT EXT-IN (GRAY) EXT-OUT (WHT-BLK) COLOR *Note: To validate the sensor inputs, select Function menu B/W mode the EXT 4.3 RS-485 CONNECTION Connecting to the RS-485 : The Camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485... -
Page 16: External A/D Key Control
4.5 EXTERNAL A/D KEY CONTROL External Controller Circuit Schematic A/D KEY ADKEY2 Remote Controller A/D KEY (ORANGE) A/D KEY (BLACK) (WHITE) TELE MENU NEAR WIDE REMOTE CONTROLLER 40mm Remote Controller - 9 -... -
Page 17: Camera Adjustment
5. CAMERA ADJUSTMENT 5.1 OSD MAIN SCREEN HITRON AEAUTO NORMAL F1.6 CAM 01 Camera title. Status of the auto exposure. Status of the auto white balance. Status of the focus mode. Status of the zoom position, brightness, or sharpness. Status of the shutter speed. Status of the iris. -
Page 18: Main Menu
5.2 MAIN MENU <MAIN MENU> TITLE DISPLAY CAM SET EFFECT PRESET 5.2.1 WB (White Balance) <WB> INDOOR OUTDOOR MANUAL R/B WAWB Auto white balance mode. INDOOR Indoor white balance mode. OUTDOOR Outdoor white balance mode. MANUAL Manual mode. You can change R and B Gain manually. For changing R and B gain, use "NEAR"... - Page 19 5.2.2 AE (Auto Exposure) <WE> AUTO IRIS PRI SHUTTER PRI MANUAL IRIS SHUT LOWSHUT AUTO Auto exposure mode. (Iris, Shutter, AGC) IRIS PRI Iris priority auto exposure mode. SHUTTER PRI Shutter priority auto exposure mode. Auto gain control on/off. MANUAL Manual exposure mode.
- Page 20 5.2.4 TITLE TITLE <TITLE MENU> A. TITLE B. Character Table C. Command Line : Move to left : Move to right < : Erase a left character > : Erase a right character S : Save title E : End 5.2.5 DISPLAY <DISPLAY>...
- Page 21 5.2.6 CAM SET <CAM SET> BRIGHTNESS SHARPNESS DISTANCE MAX LOW SHUT PROTOCOL SAVE PROTOCOL & BPS Select the camera ID. (1 ~ 255) Select serial communication speed. (2400 / 4800 / 9600 / 19200) BRIGHTNESS Select brightness level (0 ~ +90) Default value is 30.
- Page 22 5.2.7 EFFECT <EFFECT> D-ZOOM NEGA/POSI MIRROR FREEZE D-ZOOM Digital Zoom on/off. NEGA/POGI Select the Negative or Positive picture. Select Color & B/W picture or EXT mode. MIRROR Select horizontal reverse picture. Picture In picture on/off. FREEZE Select real and still picture. Day &...
- Page 23 5.2.8 PRESET <PRESET> FOCUS INIT LOAD SAVE SHOT FOCUS Select auto, manual, pushauto mode. INIT Camera initialize mode selection(DEFAULT / PRESET). LOAD Load default or preset parameters of camera (DEFAULT / PRESET). SAVE Save preset camera parameters. Digital Noise Reduction mode on/off. SHOT Select Normal, DIS, WDR, or Low-Shutter mode.
- Page 24 THIS PAGE INTENTIONALLY LEFT BLANK. - 17 -...
-
Page 25: Troubleshooting And Maintenance
6. TROUBLESHOOTING AND MAINTENANCE 6.1 TROUBLESHOOTING If problems occur, verify the installation of the camera with the instruction in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. -
Page 26: Specifications
7. SPECIFICATIONS MODEL NTSC Power Source AC 24V / DC 12V (Dual Power) POWER Power Consumption 9.0 Watts Image Sensor 1/4" SONY Super HAD CCD Total Pixels 811(H) x 508(V) 795(H) x 596(V) Scanning System 2:1 interlace Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V) Sync. -
Page 27: Dimensions
8. DIMENSIONS 86mm 4- 6.4 SC HOLES 85mm 120mm 120mm < FRONT VIEW > < REAR VIEW > 308mm 218mm 271mm < SIDE VIEW > - 20 -... - Page 28 ALL-IN-ONE AF D&N ZOOM CAMERA 50302061A PRINTED IN KOREA...
