Summary of Contents for SAC SE7120 Ultra PRO
-
Page 1: User Manual

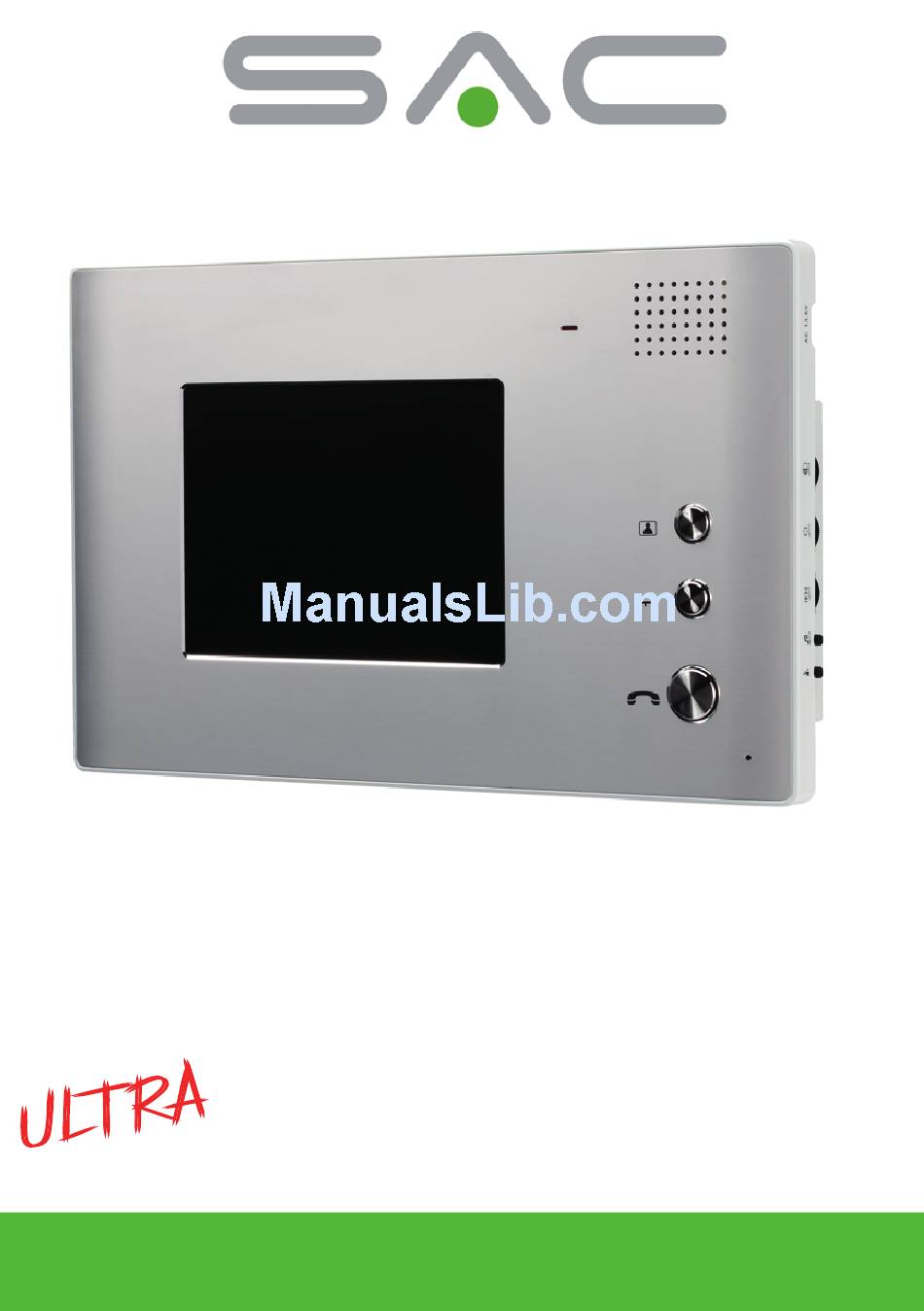

SE7120 User Manual PRO Intercom Display www.sacelectronics.co.uk... - Page 2 1. Slim fit aluminium alloy panel of indoor monitor with simplicity and classic design style. 2. 5.6" color TFT screen with low power consumption, no radiation and high definition. 3. Hands free communication. 4. Monitoring the outside of house. 5. Fourteen polyphonic melodies. 6.
- Page 3 Active Area 113.28【H】X 84.708【V】 Pixel Size 0.118【W】X 0.362【H】 Screen Figure Dimension 126.5.4【W】X 100【H】X 5.7【D】 Bracket 1. Fix the bracket of the video indoor monitor on the wall with screws (Picture 1). 2. Hang the monitor on the bracket after finishing the wire connection. Plug the enclosed adapter into the sockets and connect the monitor (Picture 2).
- Page 4 1. The 1,2,3,4 connection terminals of the indoor monitor connect to the 1,2,3,4 connection terminals of the outdoor camera accordingly. 2. The 5,6 connection terminals of the outdoor camera connect to the electronic lock. 1. Press CALL button of outdoor camera and graceful rings will be heard from indoor monitor and images of visitors will be seen.
