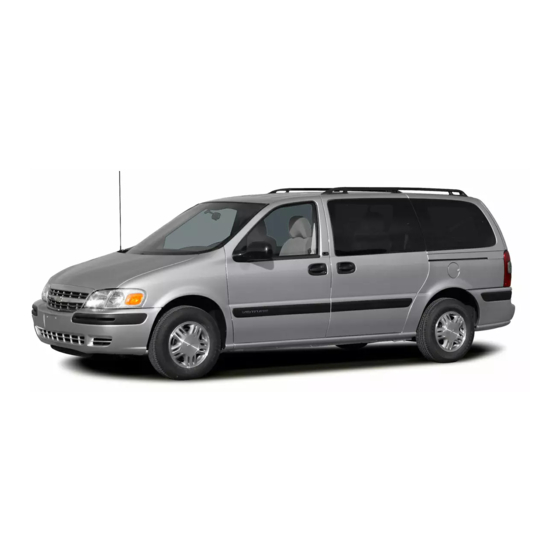

Chevrolet 2004 Venture Owner's Manual

Chevrolet 2004 Venture Owner's Manual

Hide thumbs Also See for 2004 Venture:

Owner's manual (508 pages)

,

Getting to know manual (12 pages)

page of 516

/ 516
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual

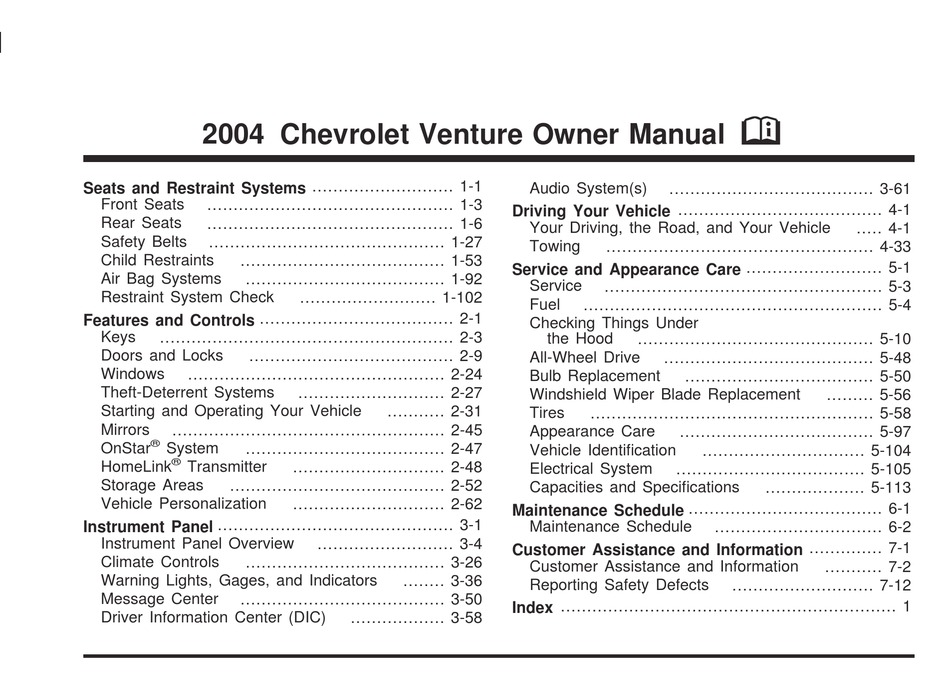

2004 Chevrolet Venture Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-3

Rear Seats

............................................... 1-6

Safety Belts

............................................. 1-27

Child Restraints

....................................... 1-53

Air Bag Systems

...................................... 1-92

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-3

Doors and Locks

....................................... 2-9

Windows

................................................. 2-24

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-45

®

OnStar

System

...................................... 2-47

®

HomeLink

Transmitter

Storage Areas

......................................... 2-52

Vehicle Personalization

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-26

Warning Lights, Gages, and Indicators

Message Center

....................................... 3-50

Driver Information Center (DIC)

.......................... 1-102

............................ 2-27

........... 2-31

............................. 2-48

............................. 2-62

.......................... 3-4

........ 3-36

.................. 3-58

Audio System(s)

....................................... 3-61

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-33

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-4

Checking Things Under

the Hood

............................................. 5-10

All-Wheel Drive

........................................ 5-48

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-58

Appearance Care

..................................... 5-97

Vehicle Identiﬁcation

Electrical System

.................................... 5-105

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance and Information .............. 7-1

Customer Assistance and Information

Reporting Safety Defects

Index ................................................................ 1

M

.................................... 5-50

......... 5-56

............................... 5-104

................... 5-113

................................ 6-2

........... 7-2

........................... 7-12

..... 4-1

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2004 Venture and is the answer not in the manual?

Questions and answers

Summary of Contents for Chevrolet 2004 Venture

Page 1 2004 Chevrolet Venture Owner Manual Seats and Restraint Systems ......1-1 Audio System(s) ........3-61 Front Seats ..........1-3 Driving Your Vehicle ........4-1 Rear Seats ..........1-6 Your Driving, the Road, and Your Vehicle ..4-1 Safety Belts ..........1-27 Towing ...........
Page 2: Canadian Owners
P.O. Box 07130 Detroit, MI 48207 GENERAL MOTORS, GM, the GM Emblem, How to Use This Manual CHEVROLET, the CHEVROLET Emblem and the name VENTURE are registered trademarks of General Many people read the owner manual from beginning to Motors Corporation.
Page 3 Safety Warnings and Symbols In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you don’t, you You will ﬁnd a number of safety cautions in this book. or others could be hurt.
Page 4: Vehicle Symbols
Vehicle Damage Warnings Vehicle Symbols Also, in this manual you will ﬁnd these notices: The vehicle has components and labels that use symbols instead of text. Symbols are shown along with Notice: These mean there is something that could the text describing the operation or information damage your vehicle.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7 Section 1 Seats and Restraint Systems Front Seats ............1-3 Rear Seat Passengers ........1-46 Manual Seats ..........1-3 Rear Safety Belt Comfort Guides for Children Six-Way Power Seats ........1-4 and Small Adults ........1-50 Reclining Seatbacks ........1-4 Safety Belt Pretensioners .......1-52 Head Restraints ..........1-6 Safety Belt Extender ........1-52 Rear Seats ............1-6 Child Restraints ..........1-53...
Page 8: Table Of Contents
Section 1 Seats and Restraint Systems Air Bag Systems ..........1-92 Restraint System Check ........1-102 Where Are the Air Bags? .......1-95 Checking Your Restraint Systems ....1-102 When Should an Air Bag Inﬂate? ....1-98 Replacing Restraint System Parts After What Makes an Air Bag Inﬂate? .....1-99 a Crash ..........1-103 How Does an Air Bag Restrain? .....1-99 What Will You See After an Air Bag Inﬂates? ..1-100...
Page 9: Front Seats
Front Seats CAUTION: Manual Seats You can lose control of the vehicle if you try to Use the lever located on adjust a manual driver’s seat while the vehicle the front of the seat to is moving. The sudden movement could startle adjust the seat forward or and confuse you, or make you push a pedal rearward.
Page 10: Reclining Seatbacks
Six-Way Power Seats Reclining Seatbacks Your vehicle may have this feature. If it does, the six-way power seat control is located on the outboard sides of the driver’s and front passenger’s seats. • Move the front of the control up or down to adjust the front portion of the cushion up or down.
Page 11 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can not do their job when you are reclined like this. The shoulder belt can not do its job because it will not be against your body.
Page 12: Head Restraints
Head Restraints Rear Seats Rear Seat Operation The rear seats in your vehicle have levers and straps used to adjust, remove, and reinstall the seats. By using the levers and straps in the correct order, you can easily remove the seats from the vehicle. When you put the seats back in the vehicle, follow the label on the back of the seat for proper location.
Page 13: Flip And Fold Feature
Flip and Fold Feature To return the seat(s) to the normal position, do the following: The rear seats in your vehicle can be folded forward. 1. Push the seat back and ﬁrmly push the rear hooks Use this feature for exiting and entering third row seats. onto the rear ﬂoor pins by pushing down on the 1.
Page 14: Split Bench Seats
Split Bench Seats If you have the split bench seat (50/50 or 40/60), the seatbacks can be folded forward or reclined individually and the seats can be removed individually. The second row (40/60) sections can also be adjusted forward or rearward individually. The second row (40/60) split bench may be equipped with a built-in child restraint.
Page 15 The other lever is located The seatbacks on each section of the split bench seat on the rear of the seat. can be either folded forward or reclined. The following explains how to use the nylon strap or recliner lever to fold or recline the seatbacks.
Page 16: Removing The Split Bench Seat
To recline the seatback, pull the nylon strap or lift the 2. Push the red center of recliner lever. Press back on the seatback until you the buckle with a small reach the desired position then let go of the strap pointed object to or lever.
Page 17 5. From behind the bench seat, pull the nylon strap at 6. To unlatch the front latches, squeeze the angled the center of the base of the seat to release the bar toward the straight crossbar. rear latches from the ﬂoor pins. 7.
Page 18: Replacing The Split Bench Seats
Replacing the Split Bench Seats CAUTION: CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the If the seatback is not locked, it could move protection needed in a crash. The person forward in a sudden stop or crash. That could wearing the belt could be seriously injured.
Page 19 2. Make sure the bench seat is angled so that the front hooks clear the ﬂoor pins. If the front legs are not attached correctly, the rear legs will not attach to the rear set of ﬂoor pins. 1. Squeeze the angled bar toward the solid crossbar while placing the front hooks of the bench seat onto the front two ﬂoor pins.
Page 20: Bucket Seats
If the front latches are not attaching correctly, check Bucket Seats that the seat is in the full rear position. If your vehicle has the bucket seats, the seatbacks can 3. Firmly push the rear hooks onto the rear ﬂoor pins be folded down or reclined.
Page 21 The other lever is located The seatback on a bucket seat can be either folded on the rear of the forward or reclined. The following explains how to use bucket seat. either the nylon strap or the lever to fold or recline the seatback.
Page 22: Removing The Bucket Seats
To recline the seatback, pull the nylon strap or lift the recliner lever. Press back on the seatback until you reach the desired position, then let go of the strap or lever. To return the seatback to an upright position, pull on the nylon strap or lift the recliner lever without putting any pressure on the seatback.
Page 23 You can also lift the lever on the side of the seat to 4. To unlatch the front latches, with the seat folded release the rear latches from the ﬂoor pins. forward, squeeze the angled bar toward the straight crossbar. Do not let go of the strap or lever until the seat is folded all the way forward.
Page 24: Replacing The Bucket Seats
Replacing the Bucket Seats CAUTION: CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the If the seatback is not locked, it could move protection needed in a crash. The person forward in a sudden stop or crash. That could wearing the belt could be seriously injured.
Page 25 2. Make sure the bucket seat is angled so that the front hooks clear the ﬂoor pins. If the front legs are not attached correctly, the rear legs will not attach to the rear set of ﬂoor pins. If the front latches are not attaching correctly, check that the seat is in the full rear position.
Page 26: Captain Chairs
Captain Chairs If your vehicle has captain’s chairs, the chairs and seatbacks can be adjusted forward or rearward. Adjusting the Captain’s Chairs (Second Row) The second row captain’s chairs can be adjusted forward or rearward. There are two adjustment levers on each seat. One is located below the center, in front of the seat.
Page 27 Removing the Captain’s Chairs 2. The seat can then be lifted off the front ﬂoor pins and removed from the vehicle. 1. Pull the nylon strap behind the chair to release the rear hooks from the ﬂoor pins. 1-21...
Page 28: Replacing The Captain's Chairs
Replacing the Captain’s Chairs CAUTION: CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the If the seatback is not locked, it could move protection needed in a crash. The person forward in a sudden stop or crash. That could wearing the belt could be seriously injured.
Page 29 1. Hook the front latches over the front ﬂoor pins. 2. Push the rear of the seat down to lock the rear latches onto the rear set of ﬂoor pins. 3. Push and pull on the seat to be sure it is properly attached.
Page 30: Stowable Seat
Stowable Seat To fold down the seatback, pull up on the lever located on the back of the seat, and Your vehicle may have a stowable seat. The stowable push the seatback down seat is a full bench seat and comes with the until it is locked into place.
Page 31: Removing The Stowable Seat
To raise the seatback, do one of the following: • From the rear of the vehicle, pull up on the lever to release the seatback, then pull the strap located on the right side of the seat, to pull the seatback up. The seatback has a patch of hook and loop fastener to stow the strap on the rear of the seat when not in use.
Page 32: Replacing The Stowable Seat
Replacing the Stowable Seat CAUTION: CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the If the seatback is not locked, it could move protection needed in a crash. The person forward in a sudden stop or crash. That could wearing the belt could be seriously injured.
Page 33: Safety Belts
The seat must be placed in the proper location for the legs to attach correctly. CAUTION: Make sure the seat is in its upright position before beginning this procedure. Do not let anyone ride where he or she can not 1.
Page 34: Why Safety Belts Work
Your vehicle has a light Why Safety Belts Work that comes on as a When you ride in or on anything, you go as fast as reminder to buckle up. See it goes. Safety Belt Reminder Light on page 3-41. In most states and in all Canadian provinces, the law says to wear safety belts.
Page 35 Put someone on it. Get it up to speed. Then stop the vehicle. The rider doesn’t stop. 1-29...
Page 36 The person keeps going until stopped by something. In or the instrument panel... a real vehicle, it could be the windshield... 1-30...
Page 37: Questions And Answers About Safety Belts
Questions and Answers About Safety Belts Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be – whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 38: Driver Position
Driver Position If I’m a good driver, and I never drive far from home, why should I wear safety belts? This part describes the driver’s restraint system. You may be an excellent driver, but if you’re in an Lap-Shoulder Belt accident –...
Page 39 3. Pick up the latch plate and pull the belt across you. Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 40 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 41: Shoulder Belt Height Adjuster
Shoulder Belt Height Adjuster To move it down, push down on the button and move the height adjuster to the desired position. You can Before you begin to drive, move the shoulder belt move the adjuster up just by pushing up on the shoulder adjuster to the height that is right for you.
Page 42 What’s wrong with this? CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. The shoulder belt is too loose. It won’t give nearly as much protection this way.
Page 43 What’s wrong with this? CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 44 What’s wrong with this? CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
Page 45 What’s wrong with this? CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones.
Page 46 What’s wrong with this? CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 47 To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 48: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For Safety belts work for everyone, including pregnant pregnant women, as for anyone, the key to making women.
Page 49: Center Passenger Position
Center Passenger Position Lap Belt (Bucket Seat) If your vehicle has bucket seats, someone can sit in the center position bucket seat. When you sit in the center position bucket seat, you have a lap safety belt which has a retractor. 1.
Page 50: Bench Seat
2. Push the latch plate into the buckle until it clicks. If Make sure the release button on the buckle is the belt stops before it reaches the buckle, let it go positioned so you would be able to unbuckle the back all the way and start again.
Page 51 Lap Belt If your vehicle has a third row rear bench seat, someone can sit in the center position. To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap-shoulder belt.
Page 52: Rear Seat Passengers
Rear Seat Passengers Rear Seat Outside Passenger Positions It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash.
Page 53 1. Pick up the latch plate and pull the belt across you. Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 54 Third Row Outside Passenger Position 3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock.
Page 55 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. The lap part of the belt should be worn low and snug on the hips, just touching the thighs.
Page 56: Rear Safety Belt Comfort Guides For Children And Small Adults
Rear Safety Belt Comfort Guides for Children and Small Adults Rear safety belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.
Page 57 2. Place the guide over the belt and insert the two 3. Be sure that the belt is not twisted and it lies ﬂat. edges of the belt into the slots of the guide. The guide must be on top of the belt. 1-51...
Page 58: Safety Belt Pretensioners
Safety Belt Pretensioners Your vehicle has safety belt pretensioners. You’ll ﬁnd them on the buckle end of the safety belts for the driver and right front passenger. They help the safety belts reduce a person’s forward movement in a moderate to severe crash in which the front of the vehicle hits something.
Page 59: Child Restraints
Child Restraints What is the proper way to wear safety belts? If possible, an older child should wear a Older Children lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 60 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 61 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 62: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 63 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12-lb.
Page 64 What are the different types of add-on child restraints? CAUTION: Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Children who are up against, or very close to, Selection of a particular restraint should take any air bag when it inﬂates can be seriously into consideration not only the child’s weight, height injured or killed.
Page 65 CAUTION: CAUTION: Newborn infants need complete support, The body structure of a young child is quite including support for the head and neck. This unlike that of an adult or older child, for whom is necessary because a newborn infant’s neck the safety belts are designed.
Page 66: Child Restraint Systems
Child Restraint Systems A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, An infant car bed (A), a special bed made for use in a acts to keep the infant positioned in the restraint.
Page 67 A forward-facing child seat (C-E) provides restraint for A booster seat (F-G) is a child restraint designed to the child’s body with the harness and also sometimes improve the ﬁt of the vehicle’s safety belt system. Some with surfaces such as T-shaped or shelf-like shields. booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 68 When choosing a child restraint, be sure the child How do child restraints work? restraint is designed to be used in a vehicle. If it is, A child restraint system is any device designed for it will have a label saying that it meets federal use in a motor vehicle to restrain, seat, or position motor vehicle safety standards.
Page 69: Where To Put The Restraint
Where to Put the Restraint CAUTION: (Continued) Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, If you secure a forward-facing child restraint in therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing the right front seat, always move the front infant seat, a child riding in a forward-facing child...
Page 70: Top Strap
Top Strap Some child restraints have a top strap, or “top tether.” It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. Some top strap-equipped child restraints are designed for use with or without the top strap being anchored.
Page 71 Don’t use a child restraint that requires a top strap in Top Strap Anchor Location the right front passenger’s position because there’s no place to anchor the top strap. Anchor the top strap to one of the following anchor points. Be sure to use an anchor point located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 72 Third Row Third Row (Stowable Seat) An anchor bar for a top strap is located at the rear of The anchor bar for the stowable bench seat is located the seat cushion for each second and third row outboard on the passenger’s side of the crossbar. Use the center seating position, and for the center position of the seating position to use the anchor bar properly.
Page 73 Lower Anchorages and Top Tethers This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts. for Children (LATCH System) Instead, it uses vehicle anchors and child restraint attachments to secure the restraints. Some restraints also use another vehicle anchor to secure a top tether strap .
Page 74 To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a label on the seatback. The labels are located at each lower anchor position, near the base of the second row outboard bucket seats, the 40 side of the 60/40 split bench seat, and both second row captain’s chairs.
Page 75: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed Securing a Child Restraint in a Rear for the LATCH System Outside Seat Position 1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. See Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-67.
Page 76 For vehicles with a full bench seat in the third row, there is no top strap anchor in the driver’s side position. Do not secure a child seat in this position if a national or local law requires that the top strap be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.
Page 77 3. Buckle the belt. Make sure the release button is 4. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-71...
Page 78 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 79 Securing a Child Restraint in a Center Seat Position (Third Row Bench Seat) 1. Make the belt as long as possible by tilting the latch plate and pulling it along the belt. 2. Put the restraint on the seat. If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for 3.
Page 80 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. To tighten the belt, pull its free end while you push down on the child restraint. If you’re using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 81 Securing a Child Restraint in a If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Center Seat Position (Bucket Seat) Children (LATCH System) on page 1-67. See Top Strap on page 1-64 if the child restraint has one. If your child restraint does not have the LATCH system, you’ll be using the lap belt to secure the child restraint in this position.
Page 82 1. Put the restraint on the seat. 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the 2. Pull the lap belt all the way out without stopping. safety belt quickly if you ever had to. 3.
Page 83 5. To tighten the belt, feed it back into the retractor while you push down on the child restraint. If you’re using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt. 6.
Page 84: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Your vehicle has a front passenger air bag. Never put a rear-facing child restraint in this seat. Here’s why: Right Front Seat Position CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the front passenger’s air bag inﬂates.
Page 85 A rear seat is a safer place to secure a forward-facing child restraint. If you need to secure a forward-facing child restraint in the right front seat, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 86 6. To tighten the belt, push down on the child restraint, 5. Pull the rest of the lap belt all the way out of the pull the shoulder portion of the belt to tighten the retractor to set the lock. lap portion of the belt and feed the shoulder belt back into the retractor.
Page 87: Built-In Child Restraint
Built-In Child Restraint 60/40 Bench Seat Bucket Seat If your vehicle has this option in a bucket seat, each bucket seat that has the built-in child restraint ﬁts in only one location in your vehicle. To ﬁnd out where a bucket seat that has a built-in child restraint must be located in your vehicle see Rear Seat Operation on page 1-6.
Page 88 This child restraint system conforms to all applicable Federal Motor Vehicle Safety Standards. CAUTION: Each child restraint is designed for use only by children who weigh between 22 and 40 pounds (10 and 18 kg), Using the vehicle’s built-in child restraint as a whose height is between 33.5 and 40 inches (850 and booster seat for a larger child could cause 1 016 mm), whose shoulders are below the shoulder belt...
Page 89: Securing A Child In The Built-In Child Restraint
Securing a Child in the Built-In Child Restraint 2. Rotate the head restraint rearward until it touches the top of the seatback. Make sure there is no gap between the lower edge of the head restraint and the top of the seatback. 1.
Page 90 You will be using the child restraint’s harness (A) to 3. Lower the child restraint cushion. secure your child. Do not use the vehicle’s safety belts. 1-84...
Page 91 CAUTION: Using the vehicle’s regular safety belts on a child seated on the built-in child restraint cushion can cause serious injury to the child in a sudden stop or crash. Secure the child using the built-in child restraint’s harness. WARNING: FAILURE TO FOLLOW THE MANUFACTURER’S INSTRUCTIONS ON THE USE OF THIS CHILD RESTRAINT SYSTEM CAN RESULT IN YOUR CHILD STRIKING THE VEHICLE’S...
Page 92 9. Push the latch plate into the buckle until it clicks. 6. Select only one side of the harness. Place the harness over the child’s shoulder. 10. Pull up on the latch plates to make sure they are 7. Push the latch plate (B) into the buckle until secure.
Page 93 CAUTION: A built-in child restraint harness that is not properly adjusted can cause injury to the child in a sudden stop or collision. A harness that is loose, twisted, worn improperly or improperly fastened will not be able to restrain the child’s upper body.
Page 94 13. Adjust the position of the harness on the child’s 12. Pull the shoulder harness adjustment strap (C) shoulder by moving the clip along the harness until it ﬁrmly until the harness is snugly adjusted around is level with the child’s armpits. On each side of the the child.
Page 95 Removing the Child from the Built-In Child Restraint 2. Unlatch the harness by pushing the button on the buckle. 3. Move one side of the harness off the child’s 1. Unfasten the shoulder harness clip. shoulder. 4. Move the other side of the harness off the child’s shoulder.
Page 96: Storing The Built-In Child Restraint
Storing the Built-In Child Restraint Always properly store the built-in child restraint before using the vehicle’s lap-shoulder belt. 2. Fold the child restraint cushion and leg rest up into the seatback. 3. Press the child restraint cushion ﬁrmly into the seatback.
Page 97 4. Then press the leg rest ﬁrmly into the seatback, 5. Rotate the head restraint forward and push it all the and secure it by pressing the upper corners way down. against the fastener strips on the seatback. Just like the other restraint systems in your vehicle, your built-in child restraint needs to be periodically checked and may need to have parts replaced after a crash.
Page 98: Air Bag Systems
Air Bag Systems This part explains the frontal and side impact air bag systems. Your vehicle has air bags – a frontal air bag for the driver and another frontal air bag for the right front passenger. Your vehicle may also have side impact air bags.
Page 99 Here are the most important things to know about the air bag systems: CAUTION: (Continued) CAUTION: The side impact air bags for the driver and right front passenger are designed to inﬂate only in moderate to severe crashes where You can be severely injured or killed in a crash something hits the side of your vehicle.
Page 100 CAUTION: CAUTION: Both frontal and side impact air bags inﬂate Anyone who is up against, or very close to, with great force, faster than the blink of an eye. any air bag when it inﬂates can be seriously If you are too close to an inﬂating air bag, as injured or killed.
Page 101: Where Are The Air Bags
There is an air bag Where Are the Air Bags? readiness light on the instrument panel cluster, which shows the air bag symbol. The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem.
Page 102 The right front passenger’s frontal air bag is in the If your vehicle has one, the driver’s side impact air bag is instrument panel on the passenger’s side. in the side of the driver’s seatback closest to the door. 1-96...
Page 103 CAUTION: If something is between an occupant and an air bag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating air bag must be kept clear. Do not put anything between an occupant and an air bag, and do not attach or put anything on the steering wheel hub or on or near any other air...
Page 104: When Should An Air Bag Inﬂate
When Should an Air Bag Inﬂate? Your vehicle may or may not have a side impact air bag. See Air Bag Systems on page 1-92. Side impact air bags are designed to inﬂate in moderate to severe The driver’s and right front passenger’s frontal air bags side crashes.
Page 105: What Makes An Air Bag Inﬂate
What Makes an Air Bag Inﬂate? How Does an Air Bag Restrain? In an impact of sufficient severity, the air bag sensing In moderate to severe frontal or near frontal collisions, system detects that the vehicle is in a crash. For even belted occupants can contact the steering wheel or both frontal and side impact air bags, the sensing the instrument panel.
Page 106: What Will You See After An Air Bag Inﬂates
What Will You See After an Air Bag CAUTION: Inﬂates? After the air bag inﬂates, it quickly deﬂates, so quickly When an air bag inﬂates, there is dust in the that some people may not even realize the air bag air.
Page 107 In many crashes severe enough to inﬂate an air bag, • Let only qualiﬁed technicians work on your air bag windshields are broken by vehicle deformation. systems. Improper service can mean that an air Additional windshield breakage may also occur from the bag system will not work properly.
Page 108: Servicing Your Air Bag-Equipped Vehicle
Servicing Your Air Bag-Equipped Restraint System Check Vehicle Checking Your Restraint Systems Air bags affect how your vehicle should be serviced. There are parts of the air bag systems in several places Now and then, make sure the safety belt reminder light around your vehicle.
Page 109: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts If safety belts or built-in child restraint harness straps are cut or damaged, replace them. Collision damage also After a Crash may mean you will need to have safety belt, built-in child restraint, LATCH system or seat parts repaired or replaced.
Page 110 NOTES 1-104...
Page 111 Section 2 Features and Controls Keys ...............2-3 Starting and Operating Your Vehicle ....2-31 Remote Keyless Entry System ......2-4 New Vehicle Break-In ........2-31 Remote Keyless Entry System Operation ...2-5 Ignition Positions ..........2-32 Starting Your Engine ........2-33 Doors and Locks ..........2-9 Engine Coolant Heater ........2-34 Door Locks ............2-9 Automatic Transaxle Operation .......2-36 Power Door Locks ........2-10...
Page 112 Section 2 Features and Controls Storage Areas ..........2-52 Vehicle Personalization ........2-62 Glove Box ...........2-52 Entering Programming Mode ......2-62 Cupholder(s) ..........2-53 Delayed Illumination and Exit Lighting ....2-63 Compact Overhead Console ......2-53 Automatic Door Locks ........2-64 Overhead Console ........2-54 Last Door Locking and Lockout Deterrent ..2-65 Front Seat Storage Net .........2-56 Remote Driver Unlock Control ......2-66 Luggage Carrier ...........2-56...
Page 113: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 114: Remote Keyless Entry System
Your vehicle’s key can be used for the ignition as well Remote Keyless Entry System as the driver’s door lock and storage compartments. If you need a new key, contact your dealer, who If equipped, the keyless entry system operates on a can obtain the correct key code.
Page 115: Remote Keyless Entry System Operation
At times you may notice a decrease in range. This is Remote Keyless Entry System normal for any remote keyless entry system. If the Operation transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: You can lock and unlock •...
Page 116: Remote Alarm
With the content theft-deterrent system, the UNLOCK When you use the remote keyless entry transmitter to button on the remote keyless entry transmitter will lock your vehicle, the parking lamps will ﬂash to let you disarm the system. See Content Theft-Deterrent on know the command has been received.
Page 117: Remote Power Sliding Door Operation
Remote Power Sliding Door Operation If your vehicle’s fuel ﬁller door is opened, the driver’s side power sliding door will not open completely. Do not try to If your vehicle has the power sliding door, your force the door. Once the fuel ﬁller door is closed, the remote keyless entry transmitter will have a button that driver’s side sliding door can be opened normally.
Page 118: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about three years. You can tell the battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
Page 119: Doors And Locks
Doors and Locks There are several ways to lock and unlock your vehicle. From the outside, use your key or the remote keyless entry transmitter. Door Locks To unlock the driver’s door from the outside with the key, insert the key and turn it toward the front of the vehicle.
Page 120: Power Door Locks
Power Door Locks From the inside, use the manual or power door locks. To unlock either front door from the inside, pull back on From the inside, press the front of the power door lock the manual lever. To lock either front door from the switch, located on either front door, to unlock all inside, push the manual lever forward.
Page 121: Last Door Closed Locking
You can lock all doors and the liftgate from the inside by Last Door Closed Locking pressing the rear of the power lock switch on either front door. With the content theft-deterrent system, the power The last door closed locking feature will delay the power door lock switch may cause the system to arm.
Page 122: Programmable Automatic Door Locks
Programmable Automatic Door Sliding Door Delayed Locking Locks If either sliding door is open when you use the power door locks to lock the vehicle, the sliding door that All of the doors will lock automatically when you move is open will not lock. Normally the last door closed your shift lever out of PARK (P).
Page 123: Lockout Protection
Lockout Protection Dual Sliding Doors The lockout protection feature makes it difficult for you To open either sliding door from outside the vehicle, pull to lock your keys in your vehicle. If the driver’s door the handle out and then pull the door toward the rear. is open while the keys are in the ignition, a chime will If you slide the door all the way back, the door will rest in sound and you will not be able to use your power...
Page 124: Sliding Door Lock
Sliding Door Lock CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut be sure to hold it open until everyone is clear of the door, and only then allow it to slowly close.
Page 125: Sliding Door Security Lock
Sliding Door Security Lock Your vehicle is equipped with a sliding door security lock that helps prevent young children or other passengers from opening the sliding door(s) using the inside door handle. To use one of these locks, do the following: 1.
Page 126: Power Sliding Door (Psd)
If your vehicle has the power sliding door(s), you can Power Sliding Door (PSD) override the security lock by pressing either power door lock switch while the power sliding door override If your vehicle has this feature, you can open and close switch(es) is turned off.
Page 127 If you have the dual sliding doors, your vehicle has these switches. The left switch is for the driver’s side power sliding door and the right switch is for the passenger’s side sliding door. The power sliding door and the power sliding door override is one switch.
Page 128 This switch is in front of the driver’s or the passenger’s CAUTION: side sliding door. If you shift the transaxle out of PARK (P) and accelerate before the power sliding door latches closed, the door may reverse to the open position. A child or others could fall out of the vehicle and be injured.
Page 129 The driver’s side sliding door is designed to open only a little if the fuel door is open. If this ever happens, do not try to force the sliding door. When the fuel ﬁller door is closed, the driver’s side sliding door can be opened normally.
Page 130 CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut, turn on the power sliding door feature.
Page 131: Resetting The Power Sliding Door
Resetting the Power Sliding Door 3. If the power sliding door override is on, press the textured end of the power sliding door override The power sliding door may operate incorrectly or not at switch to turn it off. all because of the following conditions: 4.
Page 132: Liftgate
Liftgate CAUTION: To unlock or lock the liftgate from the outside, use the remote keyless entry transmitter. For more information, see Remote Keyless Entry System Operation on It can be dangerous to drive with the liftgate page 2-5. open because carbon monoxide (CO) gas can Open the liftgate using the handle located above the come into your vehicle.
Page 133 To close the liftgate, pull down on the handle, then ﬁrmly shut the liftgate. Don’t drive with the liftgate open, even slightly. See Engine Exhaust on page 2-43. A message in your instrument panel cluster will warn you if the liftgate is not completely closed. See Rear Hatch Ajar Warning Message on page 3-46.
Page 134: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 135: Power Windows
Power Windows Express-Down Window To activate the express-down feature, push the AUTO switch all the way down to the second position, then release it. The window will lower completely. To stop the window from lowering all the way, pull up on the front of the switch.
Page 136: Power Rear Quarter Windows
Power Rear Quarter Windows The ignition must be in RUN, ACCESSORY, or Retained Accessory Power (RAP) must be active, to use the power rear quarter windows. See “Retained Accessory Your vehicle may have power rear quarter windows. Power (RAP)” under Ignition Positions on page 2-32. This switch, located in the Sun Visors overhead console...
Page 137: Theft-Deterrent Systems
Theft-Deterrent Systems While armed, the doors will not unlock with the power door lock switch. Vehicle theft is big business, especially in some cities. Once armed, the alarm will go off if someone tries to Although your vehicle has a number of theft-deterrent enter the vehicle without using the remote keyless entry features, we know that nothing we put on it can make it transmitter or a key, or turns the ignition to ON.
Page 138: Disarming With Your Key
Arming with the Remote Keyless Entry Arming Conﬁrmation Transmitter If remote unlock conﬁrmation is on, your parking lamps will ﬂash brieﬂy to let you know when your alarm Your alarm system will arm when you use your remote system has disarmed. If you would not like the parking keyless entry transmitter to lock the doors, if the key lamps to ﬂash, see Vehicle Personalization on is not in the ignition.
Page 139: Pass-Key ® Iii
® ® PASS-Key PASS-Key III Operation ® Your PASS-Key III system operates on a radio Your vehicle is equipped frequency subject to Federal Communications ® with the PASS-Key Commission (FCC) Rules and with Industry Canada. (Personalized Automotive This device complies with Part 15 of the FCC Rules. Security System) Operation is subject to the following two conditions: theft-deterrent system.
Page 140 If the engine still does not start, and the key appears to To program the new key, do the following: be undamaged, try another ignition key. At this time, 1. Verify the new key has PK3 stamped on it. you may also want to check the instrument panel PASS 2.
Page 141: Starting And Operating Your Vehicle
Starting and Operating Your • Avoid making hard stops for the ﬁrst 200 miles (322 km) or so. During this time your new Vehicle brake linings are not yet broken in. Hard stops with new linings can mean premature wear and earlier replacement.
Page 142: Ignition Positions
Ignition Positions Notice: Using a tool to force the key from the ignition switch could cause damage or break the key. Use the correct key and turn the key only with With the key in the ignition, you can turn it to ﬁve your hand.
Page 143: Starting Your Engine
Starting Your Engine 3. If your engine still will not start, or starts but then stops, it could be ﬂooded with too much gasoline. Try pushing your accelerator pedal all the way to the Move your shift lever to PARK (P) or NEUTRAL (N). ﬂoor and holding it there as you hold the key in Your engine will not start in any other position –...
Page 144: Engine Coolant Heater
Engine Coolant Heater Your vehicle may have an engine coolant heater. In very cold weather, 0°F (−18°C) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 145: To Use The Engine Coolant Heater
To Use the Engine Coolant Heater 4. Before starting the engine, be sure to unplug and store the cord as it was before to keep it away from 1. Turn off the engine. moving engine parts. If you don’t, it could be damaged.
Page 146: Automatic Transaxle Operation
Automatic Transaxle Operation If you cannot shift out of PARK (P), ease pressure on the shift lever – push the shift lever all the way into PARK (P) as you maintain brake application. Then move the shift lever into the gear you wish. See Shifting Out of Park (P) on page 2-42.
Page 147 REVERSE (R): Use this gear to back up. Notice: Shifting out of PARK (P) or NEUTRAL (N) with the engine racing may damage the transaxle. Notice: Shifting to REVERSE (R) while your vehicle The repairs would not be covered by your warranty. is moving forward could damage the transaxle.
Page 148: Warm-Up Shift
Warm-Up Shift Notice: Driving in SECOND (2) for more than 25 miles (40 km) or at speeds over 55 mph (90 km/h) Your vehicle has a computer controlled transaxle may damage the transaxle. Also, shifting into designed to warm up the engine faster when the outside SECOND (2) at speeds above 65 mph (105 km/h) can temperature is 35°F (2°C) or colder.
Page 149: Parking Brake
Parking Brake To release the parking brake, hold the regular brake pedal down with your right foot while you push down on the parking brake pedal with your left foot. To release The parking brake is the tension on the parking brake cable, you will need to located under the apply about the same amount of pressure to the instrument panel on the...
Page 150: Shifting Into Park (P)
Shifting Into Park (P) 2. To move the shift lever into PARK (P), do the following: CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 151: Leaving Your Vehicle With The Engine Running
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 152: Shifting Out Of Park (P)
Torque Lock Shifting Out of Park (P) If you are parking on a hill and you do not shift your Your vehicle has an automatic transaxle shift lock transaxle into PARK (P) properly, the weight of the control system which locks the shift lever in PARK (P) vehicle may put too much force on the parking pawl in when the ignition is in the OFF position.
Page 153: Parking Over Things That Burn
Parking Over Things That Burn Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can not see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different.
Page 154: Running Your Engine While You Are Parked
Running Your Engine While You CAUTION: Are Parked It is better not to park with the engine running. But if It can be dangerous to get out of your vehicle if you ever have to, here are some things to know. the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set.
Page 155: Mirrors
Mirrors Then use the control to adjust each mirror so that you can see a little of the side of your vehicle and the area beside and behind your vehicle when you are Manual Rearview Mirror sitting in a comfortable driving position. If you are not adjusting either mirror, leave the control in To reduce glare from lights behind you, pull the lever the center off position.
Page 156: Outside Convex Mirror
Outside Convex Mirror Outside Heated Mirrors Your passenger’s side mirror is convex. A convex If your vehicle has the outside rearview mirrors, they are mirror’s surface is curved so you can see more from the heated when you activate the rear window defogger. driver’s seat.
Page 157: Onstar System
® ® OnStar System OnStar Services One of the following plans is normally included for a speciﬁc duration with each vehicle equipped with ® ® OnStar . You can upgrade or extend your OnStar service plan to meet your needs. Safe and Sound Plan •...
Page 158: Homelink Transmitter
® Luxury and Leisure Plan HomeLink Transmitter • All Directions and Connections Plan services • Personal Concierge ® OnStar Personal Calling ® With OnStar Personal Calling, you have a safer way to stay connected while driving. It’s a hands-free wireless phone that’s integrated into your vehicle.
Page 159: Programming The Homelink
This device complies with RSS-210 of Industry Canada. Read the instructions completely before attempting to ® Operation is subject to the following two conditions: program the HomeLink Transmitter. Because of (1) this device may not cause interference, and (2) this the steps involved, it may be helpful to have another device must accept any interference, including person available to assist you in programming the...
Page 160 ® Your vehicle’s engine should be turned off while 5. Press and hold the newly-trained HomeLink button programming the transmitter. Follow these steps to and observe the indicator light. program up to three channels: If the indicator light stays on constantly, programming is complete and your device should 1.
Page 161: Using Homelink
® 8. Return to the vehicle. Firmly press and hold the Continue to press and hold the HomeLink button while ® programmed HomeLink button for two seconds, you press and release every two seconds (cycle) then release. Repeat the press/hold/release your hand-held transmitter until the frequency signal has ®...
Page 162: Storage Areas
® Reprogramming a Single HomeLink Storage Areas Button Your vehicle’s large carrying capacity can store many ® ® items. If you have the extended wheelbase version, you To program a device to HomeLink using a HomeLink can carry even larger items. You can also use the button previously trained, follow these steps: ﬂoor pins that are used to attach the seats, to secure ®...
Page 163: Cupholder(S)
Cupholder(s) Compact Overhead Console There are cupholders located below the center instrument panel switchbank. The cupholders have a removable liner for larger size cups and for cleaning the cupholders. To use the cupholders, simply pull out the tray. Keep the tray stowed in when not in use. Your vehicle also has cupholders on the bottom inboard side of the second row driver’s side captain’s chairs and the seatbacks have cupholders that can be...
Page 164: Overhead Console
Overhead Console If your vehicle is equipped with an overhead console, it may contain the following: • Reading lamps. See “Front Reading Lamps” or “Rear Reading Lamps” under Interior Lamps on page 3-14. • Switchbank. See Switchbanks on page 3-17. •...
Page 165: Garage Door Opener Compartment
Garage Door Opener Compartment 3. Line up the button of the garage door opener with one of the four buttons on the compartment door. You can store your garage door opener in the rear Make sure the garage door opener button is compartment of your overhead console, and operate it facing down and press the opener ﬁrmly into place.
Page 166: Front Seat Storage Net
Front Seat Storage Net Luggage Carrier CAUTION: If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier — like paneling, plywood, a mattress and so forth — the wind can catch it as you drive along.
Page 167 Notice: Loading cargo on the luggage carrier that weighs more than 150 lbs. (68 kg) or hangs over the rear or sides of the vehicle may damage your vehicle. Load cargo so that it rests on the slats as far forward as possible and against the side rails, making sure to fasten it securely.
Page 168: Rear Storage Area
Rear Storage Area To use the convenience net, do the following: Your vehicle has a storage compartment and may have a cupholder on the driver’s side of the vehicle, next to the third row seat(s). Convenience Net Your vehicle may have a convenience net. The convenience net is designed to help keep small loads, like grocery bags, from falling over.
Page 169: Convenience Center
Convenience Center CAUTION: If any removable convenience item is not secured properly, it can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to secure any such item properly. Your vehicle may have a convenience center. It comes with the stowable seat.
Page 170: Removing The Convenience Center
Removing the Convenience Center 1. Make sure that all items are off of the convenience center and that it is empty. 2. Turn the hand knob counterclockwise until the knob is loose. 3. Lift up on the hand knob, then grip the convenience center to lift it up.
Page 171 5. Slide the convenience center in and align it so that The convenience center has six hooks on the inside the forks, located on the bottom rear of the cover for hanging items on. The prop rods can hold up convenience center, slide into the seat anchors.
Page 172: Vehicle Personalization
Vehicle Personalization Your vehicle’s locks and lighting systems can be programmed with several different features. The features you can program depend on the options that came with your vehicle. The following chart shows the features that can be programmed. To determine which features your vehicle is equipped with, follow the steps listed for entering the programming mode.
Page 173: Delayed Illumination And Exit Lighting
Delayed Illumination and Exit Your vehicle was originally programmed to Mode 4. The mode may have been changed since then. To determine Lighting the current mode, or to change the mode, do the following: This feature allows you to customize the interior lamps 1.
Page 174: Automatic Door Locks
Automatic Door Locks • Shift out of PARK (P) with the ignition on and the driver’s door closed; all doors will lock automatically. This feature allows you to customize the automatic Your vehicle was originally programmed to Mode 3. The locking and unlocking of the doors when using the shift mode may have been changed since then.
Page 175: Last Door Locking And Lockout Deterrent
Last Door Locking and Lockout Your vehicle was originally programmed to Mode 4. The mode may have been changed since then. To Deterrent determine the current mode, or to change the mode, do the following: This feature allows you to customize the automatic 1.
Page 176: Remote Driver Unlock Control
Remote Driver Unlock Control 3. Count the number of chimes you hear. The number of chimes indicates the vehicle’s current programmed mode. If you do not wish to change This feature allows you to customize the UNLOCK the current mode, you can either exit the button on the remote keyless entry transmitter.
Page 177: Remote Lock And Unlock Conﬁrmation
Remote Lock and Unlock Mode 3: Exterior Lamps Flash and Horn Sounds • When you use the remote keyless entry transmitter Conﬁrmation to lock your vehicle, the horn will sound and your parking lamps will ﬂash to let you know the If your vehicle has this feature, it allows you to command has been received.
Page 178: Content Theft-Deterrent System
Your vehicle was originally programmed to Mode 4. The Content Theft-Deterrent System mode may have been changed since then. To determine the current mode, or to change the mode, do This feature allows you to turn the content theft deterrent the following: on and off.
Page 179: Arming And Disarming The Content Theft-Deterrent System
3. Count the number of chimes you hear. The number Arming and Disarming the Content of chimes indicates the vehicle’s current Theft-Deterrent System programmed mode. If you do not wish to change the current mode, you can either exit the To arm or disarm the content theft-deterrent system, the programming mode by following the instructions system must be turned on by using Modes 1, 2, or 4...
Page 180 Mode 2: Remote Keyless Entry Transmitter Mode 3: Standard Arming and Disarming Arm/Disarm Only • The system will arm when you lock the doors using • The system will arm when you lock the doors with either power door lock switch while any door or the your remote keyless entry transmitter.
Page 181: Exiting Programming Mode
3. Press the button with the horn symbol on the Exiting Programming Mode remote keyless entry transmitter. To exit programming mode, turn the key from 4. Count the number of chimes you hear. The number ACCESSORY to OFF and put the BCM PRGRM fuse of chimes indicates the vehicle’s current back into the instrument panel fuse block.
Page 182 NOTES 2-72...
Page 183 Section 3 Instrument Panel Instrument Panel Overview .......3-4 Warning Lights, Gages, and Indicators ....3-36 Hazard Warning Flashers ........3-6 Instrument Panel Cluster ........3-37 Other Warning Devices ........3-7 Speedometer and Odometer ......3-39 Horn .............3-7 Tachometer ..........3-40 Tilt Wheel .............3-7 Safety Belt Reminder Light ......3-41 Turn Signal/Multifunction Lever ......3-8 Air Bag Readiness Light ........3-41 Exterior Lamps ..........3-16...
Page 184 Section 3 Instrument Panel Door Ajar Warning Message ......3-55 Entertainment System ........3-108 Rear Hatch Ajar Warning Message ....3-56 Rear Seat Audio (RSA) ® PASS-Key III Security Message ....3-56 (Without Entertainment System) ....3-116 All-Wheel Drive Disable Warning Message ..3-57 Rear Seat Audio (RSA) Low Fuel Warning Message ......3-57 (With Entertainment System) .....3-118 Theft-Deterrent Feature...
Page 185 NOTES...
Page 186: Instrument Panel Overview
Instrument Panel Overview...
Page 187 The main components of the instrument panel are the L. Ignition Switch. See Ignition Positions on page 2-32. following: M. Climate Controls. See Climate Control System on A. Side Outlets. See Outlet Adjustment on page 3-29. page 3-26. B. Front Outlets. See Outlet Adjustment on page 3-29. N.
Page 188: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers button is located on top of the steering column. Your hazard warning ﬂashers work no matter what position your key is in, and even if the key isn’t in. Press the button to make the front and rear turn signal lamps ﬂash on and off.
Page 189: Other Warning Devices
Other Warning Devices To tilt the wheel, hold the steering wheel and pull the lever. If you carry reﬂective triangles, you can set one up at the side of the road about 300 feet (100 m) behind your vehicle. Horn You can sound the horn by pressing the horn symbols on your steering wheel.
Page 190: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down. When the turn is ﬁnished, the lever will return automatically.
Page 191 If a bulb is burned out, replace it to help avoid an When the high beams are accident. If the arrows do not go on at all when you on, this light on the signal a turn, check for burned-out bulbs and check the instrument panel cluster fuse.
Page 192: Windshield Wipers
Windshield Wipers Heavy snow or ice can overload your wipers. A circuit breaker will stop them until the motor cools. Clear away snow or ice to prevent an overload. WIPER: Turn this band to operate the windshield wipers. Windshield Washer MIST: Turn the band to MIST for a single wiping cycle.
Page 193 Rear Window Washer/Wiper To wash and wipe the rear window, press the washer symbol on the top of the switch. Washer ﬂuid will run down the glass as long as the switch is held in. If your vehicle has a rear When the top of the switch is released, the wiper will window wiper, the switch is continue to cycle three more times.
Page 194: Cruise Control
Cruise Control CAUTION: (Continued) Your vehicle may have cruise control. With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on Cruise control can be dangerous on slippery the accelerator. This can really help on long trips. roads.
Page 195 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 196 Resuming a Set Speed • Move the cruise switch from ON to R/A. Hold it there until you get up to the speed you want, Suppose you set your cruise control at a desired speed and then release the switch. To increase your speed and then you apply the brake.
Page 197 Passing Another Vehicle While Using applying the brake takes you out of cruise control. Many drivers ﬁnd this to be too much trouble and do not Cruise Control use cruise control on steep hills. To pass another vehicle while using cruise control, use Ending Cruise Control the accelerator pedal to increase your speed.
Page 198: Exterior Lamps
Exterior Lamps (Off/Auto): Turning the control to this setting will activate the automatic headlamps when it is dark enough outside and turn off all the lamps and lights during the day except the Daytime Running Lamps (DRL). (Parking Lamps): Turning the control to this setting turns on the parking lamps together with the following: •...
Page 199: Lamps On Reminder
Lamps on Reminder When it is dark enough outside, the exterior lamps will come on automatically. When it is bright enough If the driver’s door is opened and you turn the ignition to outside, the exterior lamps will turn off and the DRL will OFF or LOCK while leaving the lamps on, you will turn on.
Page 200: Interior Lamps
Interior Lamps Dome Lamp The dome lamp is located in the headliner and has two Instrument Panel Brightness buttons to manually turn it on or off. The dome lamp will come on each time you open a door, unless you turn The thumbwheel for this feature is located below the on the interior lamps override feature.
Page 201: Exit Lighting
The interior lamps may stay on for up to 25 seconds Exit Lighting after all doors have been closed if they have not been With exit lighting, the interior lamps will come on for locked. See “Delayed Lighting” following. about 25 seconds whenever you remove the key from To turn the entry lighting feature off or on, see Vehicle the ignition.
Page 202: Rear Reading Lamps
Front Reading Lamps Rear Reading Lamps There may be two reading lamps in the third row headliner. To turn either reading lamp on or off, press the lens of the lamp. There is also a reading lamp in the second row, integrated with the dome lamp.
Page 203: Switchbanks
Battery Run-Down Protection Instrument Panel Switchbank Your vehicle has a feature to help prevent you from draining the battery, in case you accidentally leave the interior lamps on. If you leave any interior lamps on while the ignition is in LOCK or OFF, they will automatically turn off after 10 minutes.
Page 204: Overhead Console Switchbank
Overhead Console Switchbank Ultrasonic Rear Parking Assist (URPA) The Ultrasonic Rear Parking Assist (URPA) system is designed to help you park, while the vehicle is in REVERSE (R). It operates only at very low speeds, less than 3 mph (5 km/h). URPA can help make parking easier and to help you avoid colliding with objects such as parked vehicles.
Page 205 URPA can be turned off by pressing the rear park aid CAUTION: disable switch located in the overhead console switchbank. While the Even with the Ultrasonic Rear Park Assist system is disabled, system, the driver must check carefully before an indicator light will be lit backing up.
Page 206: How The System Works
How the System Works When the System Does Not Seem to Work Properly Unless disabled, the URPA will turn on automatically when the shift lever is moved into REVERSE (R). When The light may ﬂash red when the vehicle is in the system turns on, the three lights on the display will REVERSE (R) if the ultrasonic sensors are not kept illuminate for one and a half seconds to let you know that...
