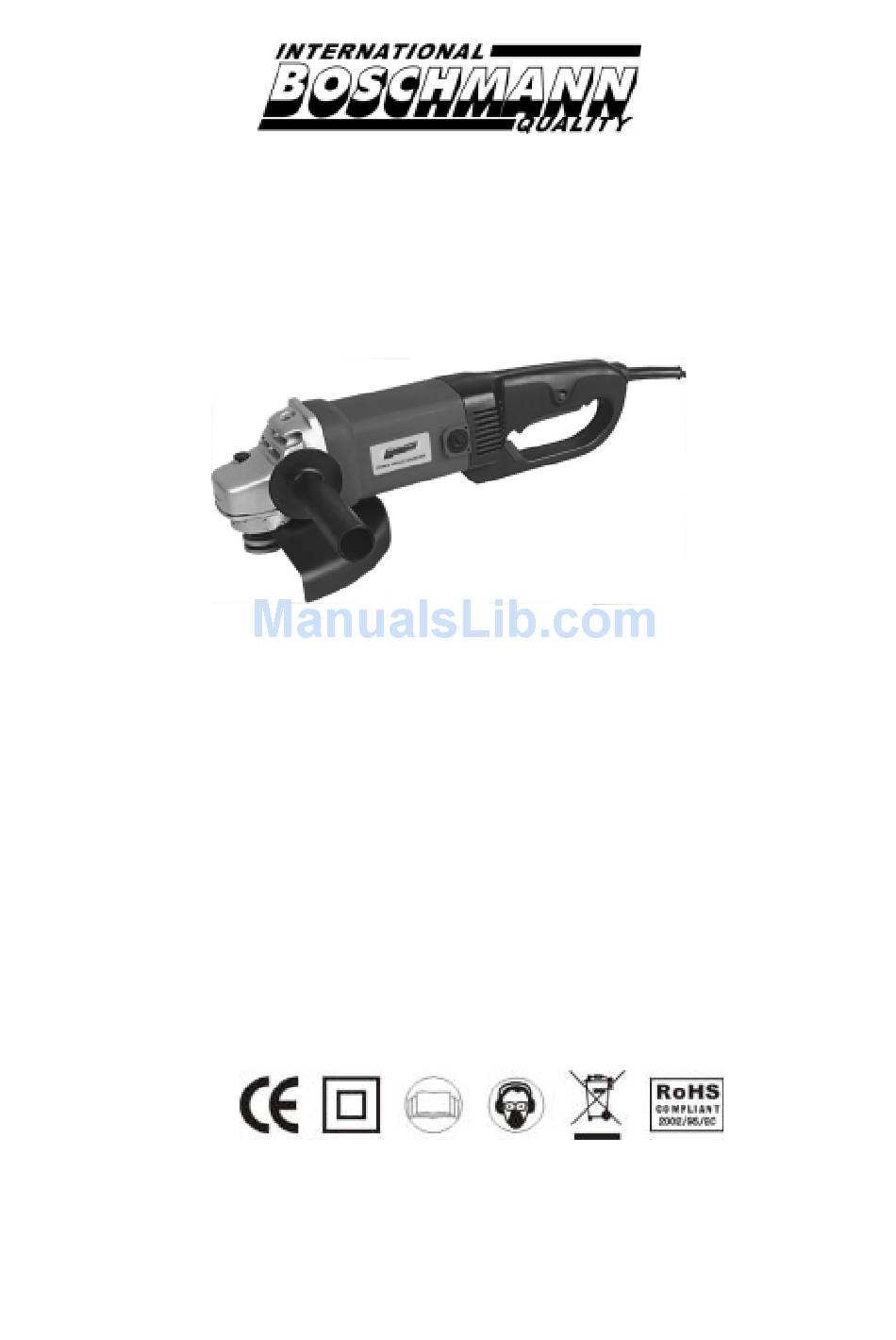

- Page 1 Product code CT1644 and CT1645 230mm heavy duty Angle grinder Instruction Manual Please keep this instruction manual for future reference...
-
Page 2: Table Of Contents
Table of Contents Section Page Declaration of conformity Product specification Power tool safety instructions 3 - 4 - 5 Know your angle grinder Controls and operation Fitting a cutting, and grinding disc 7 - 8 General information Carton contents Symbols Parts Diagram Parts List Electrical Information... -
Page 3: Product Specification
Cautions and Warnings TECHNICAL DATA We have made every effort to ensure accuracy of information in this manual at time of going to print. Specification Angle grinder 9”230mm Product CT1644 Product CT1645 Voltage 230/240v-50Hz 110/115v-60Hz Input power... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS To use this tool properly, you must observe the safety regulations, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the machine have to be acquainted with this manual and must be informed about any potential hazards. Children and infirm people must not use this tool. -
Page 5: Power Tool Safety Instructions 3
19. Stay alert. Watch what you are doing. Use common sense. Do not operate a power tool when you are tired. 20. Check for damaged parts. Before using a tool, check that there are no damaged parts, if a part is slightly damaged carefully determine if it will operate properly and perform its intended function other wise replace. -
Page 6: Know Your Angle Grinder
• Do not secure the angle grinder in a vice or work bench and use it as a static grinder. It can lead to serious injury. • Never apply excessive pressure to the disc it might shatter causing personal injury. •... -
Page 7: Controls And Operation
CONTROLS 1/ Looking at the angle grinder from the top, the spindle lock (2) is located at the front middle. 2/ There are attachment holes for the handle left and right of the housing (3) attach the handle in the position that best suits the planned operation. -
Page 8: Fitting A Cutting, And Grinding Disc
FITTING A GRINDING DISC Caution. Switch off the grinder and disconnect 8/ Place the grinding disc onto the spindle with it from the power point label facing the angle grinder. The hole in the disc 1/ Turn the angle grinder should locate onto the on to its back and spindle and fit firmly... -
Page 9: General Information
FITTING A CUTTING DISC 1/ Use the same procedure as for the grinding disc except use the outer flange the other way round. The spigot section should face away from the disc. WARNING Do not immerse the disc into any type of lubrication including water. This angle grinder is designed as a dry grinder/cutter/polisher. -
Page 10: Carton Contents
CARTON CONTENTS Model CT1644 shown Page 9... -
Page 11: Symbols
SYMBOLS WARNING Some of the following symbols may be used on the tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer Speed of normal load no load speed volts amperes hertz... -
Page 12: Parts Diagram
PARTS DIAGRAM – MODEL CT1644- CT1645 Heavy duty Angle grinder Page 11... -
Page 13: Parts List
PARTS LIST FOR MODEL CT1644 - C1645 PART NO PART NO Bearing Stator WIND SCREEN Front cap Bearing Main spindle Bearing plate Screw Rotor Guard Woodruff key Pressure plate Bearing plate Pressure plate Bearing Screw Small bevel gear Nameplate Screw... -
Page 14: Electrical Information
ELECTRICAL INFORMATION Warning Mains plug replacement (UK & Ireland only) If you need to replace the fitted plug of the tool, then follow the instruction below. Machines that are connected direct to the mains supply For Machines that are double insulated. Do not require a connection to earth. If in doubt consult a Qualified Electrician. - Page 15 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 OJU.U.K. Made in china...
