COMFILE CUTOUCH CT1820 User Manual

Lcd touch screen with an integrated basic & ladder logic controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

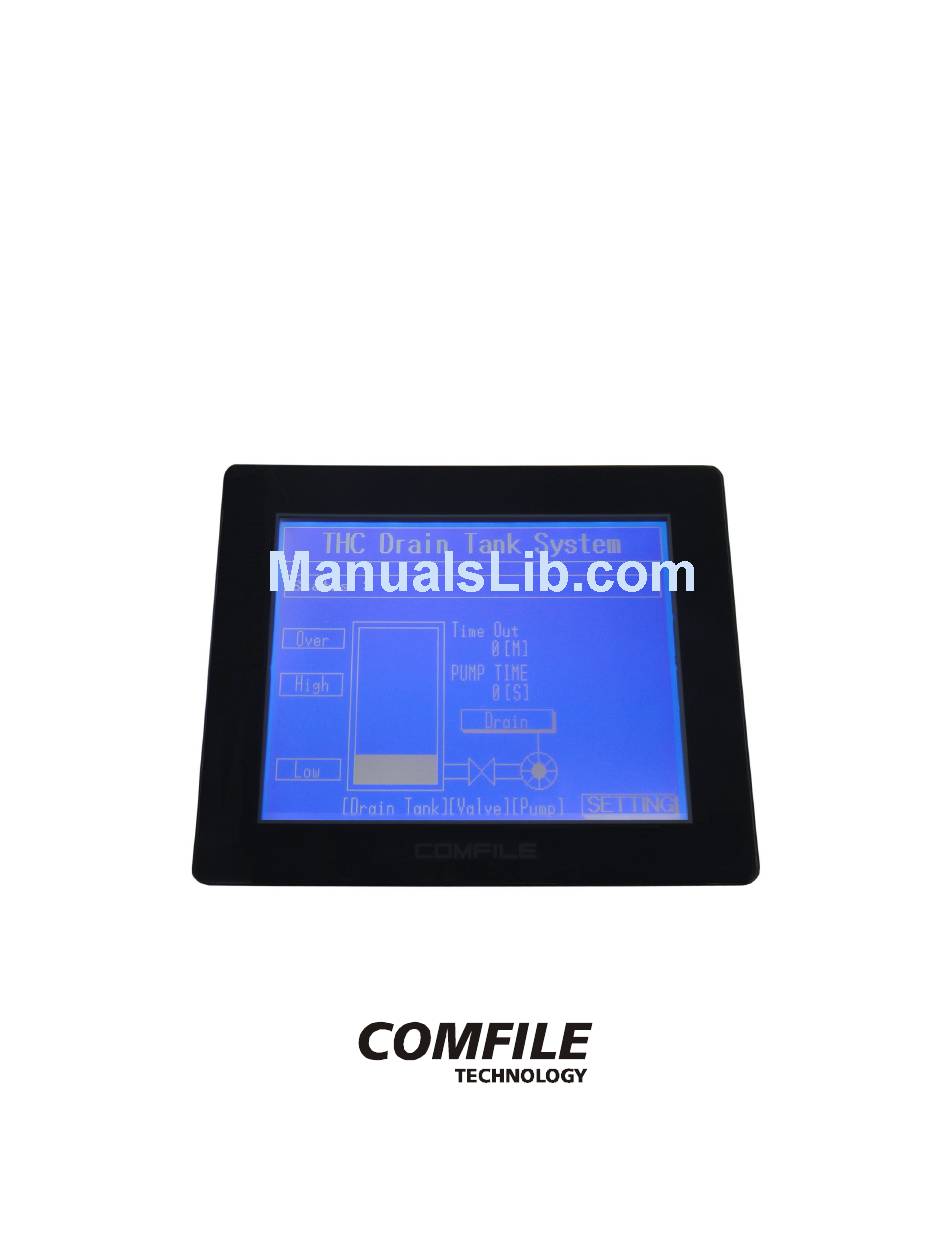

An LCD Touch Screen with an
Integrated BASIC & Ladder Logic Controller
CUTOUCH
CT1820
Last Updated 2015-06-08
www.ComfileTech.com
Comfile Technology, Inc
CT1820 User's Manual
1 Of 93

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUTOUCH CT1820 and is the answer not in the manual?

Questions and answers

Summary of Contents for COMFILE CUTOUCH CT1820

  • Page 1 An LCD Touch Screen with an Integrated BASIC & Ladder Logic Controller CUTOUCH CT1820 Last Updated 2015-06-08 www.ComfileTech.com Comfile Technology, Inc CT1820 User's Manual 1 Of 93...
  • Page 2 The data memory has been reduced: 28KB  7KB FRAM non-volatile memory has been added: 32KB The number of communication ports have been increased: 1 to 3 I/O can be extended with Comfile Technology's MODPORT (Field I/O) The enclosure is rated waterproof IP65. CT1721C...

  • Page 3: Table Of Contents

    Sample 6: Multi-page Menu Implementation................67 Sample 7: Contrast Adjustment....................72 Sample 8: RTC Adjustment....................74 Sample 9: Input Status Monitor....................78 Sample 10: Digital Output Control...................79 Chapter 7 Panel Mounting......................82 Dimensions..........................83 Panel Cutout.........................84 Panel Mounting Procedure......................85 Comfile Technology, Inc CT1820 User's Manual 3 Of 93...

  • Page 4: Chapter 1 Overview

    Chapter 1 Overview Comfile Technology, Inc CT1820 User's Manual 4 Of 93...

  • Page 5: Product Comparison

    RTC and RTC Battery Built-in Built-in The CT1820 does not contain a backup battery for the data memory. To retain data between power cycles, please use the FRAM non-volatile memory instead. Comfile Technology, Inc CT1820 User's Manual 5 Of 93...

  • Page 6: Cutouch Overview

    LCD, and PLC can be significant, but the Cutouch provides and integrated solution at a relatively low cost.. Futhermore, the Cutouc is programmed is BASIC, a language that is quite easy to learn and use. Comfile Technology, Inc CT1820 User's Manual 6 Of 93...

  • Page 7: The Ct1820'S Appearance

    The CT1820's Appearance Comfile Technology, Inc CT1820 User's Manual 7 Of 93...
  • Page 8 Comfile Technology, Inc CT1820 User's Manual 8 Of 93...
  • Page 9 Comfile Technology, Inc CT1820 User's Manual 9 Of 93...

  • Page 10: Cubloc Studio

    Cubloc Studio is the Integrated Development Environment used to program the CT1820 in both BASIC and Ladder Logic. It is a free download available from www.ComfileTech.com. * To program the CT1820, be sure to #include "CT18XX" at the top of the source file. Comfile Technology, Inc CT1820 User's Manual 10 Of 93...

  • Page 11: Downloading Programs To The Ct1820

    CT1820 end is a 3-pin Molex SPOX 5268 female connector. If the host PC does not have any built-in RS-232 serial ports, a USB-to-serial adapter can be used. Comfile Technology, Inc CT1820 User's Manual 11 Of 93...
  • Page 12 Comfile Technology, Inc CT1820 User's Manual 12 Of 93...
  • Page 13 After the host PC is connected to the CT1820 via the download cable, open Cubloc Studio and choose → "Setup" "PC int erface setup..." from the menu. Select the host PC's serial port (Com Port) that is connected to the CT1820. Comfile Technology, Inc CT1820 User's Manual 13 Of 93...

  • Page 14: Download And Execution

    Clicking this icon will save the source code, compile, and initiate downloading Once a program is compiled and downloaded to the CT1820, it cannot be retrieved and decompiled back into source code form. Comfile Technology, Inc CT1820 User's Manual 14 Of 93...

  • Page 15: Firmware Download

    If new firmware is released, a new version of Cubloc Studio will also be released. When downloading with the latest version of Cubloc Studio, a prompt may appear to update the CT1820's firmware. Comfile Technology, Inc CT1820 User's Manual 15 Of 93...

  • Page 16: Ct1820 Start Pack

    CT1820 Start Pack The CT1820 Start Pack is recommended for initial CT1820 purchases. It contains all the necessary accessories to take full advantage of the CT1820's features. Comfile Technology, Inc CT1820 User's Manual 16 Of 93...
  • Page 17 Comfile Technology, Inc CT1820 User's Manual 17 Of 93...
  • Page 18 NOTE: The CT1820 Start Pack does not include a USB-to-serial adapter/cable. If your host PC does not have a built-in RS-232 serial port, you may need to buy a USB-to-serial adapter/cable separately. Comfile Technology, Inc CT1820 User's Manual 18 Of 93...

  • Page 19: Chapter 2 I/O

    Chapter 2 Comfile Technology, Inc CT1820 User's Manual 19 Of 93...

  • Page 20: The Ct1820'S I/O Ports

    *Please do not attempt to disassemble the the CT1820, as it can result in unintentional damage to the the LCD and other components. Products that have been tampered with will not receive warranty or service benefits. Comfile Technology, Inc CT1820 User's Manual 20 Of 93...
  • Page 21 If the load is inductive, such as a relay, please be sure to connect the positive terminal to the V pin. This can help to eliminate sparking when switching. *Warning. Please refrain from wiring while power is connected to avoid shorts and subsequent damage to the unit. Comfile Technology, Inc CT1820 User's Manual 21 Of 93...
  • Page 22 This is a 40-pin terminal block connector with 16 inputs and 16 outputs, as depicted in the following image. Cables and terminal block are sold separately. The Start Pack includes a 1-meter cable, but 0.5-meter, 2-meter, and 5-meter cables are also available. Comfile Technology, Inc CT1820 User's Manual 22 Of 93...
  • Page 23 *Please do no use unassigned pins (e.g. Low 56 'This pin is not assigned) *Warning. Please refrain from wiring while power is connected to avoid shorts and subsequent damage to the unit. Comfile Technology, Inc CT1820 User's Manual 23 Of 93...

  • Page 24: Pwm Output

    Low 45 Pwm 9,950,1024 Pwm 10,750,1024 Pwm 11,450,1024 The PWM output is an open-collector transistor output. It can be used in the configuration below to control the brightness of an LED. Comfile Technology, Inc CT1820 User's Manual 24 Of 93...
  • Page 25 RX, TX Channel 1 RS-232 Channel 2 RX, TX Channel 2 RS-485 Channel 3 4+, 4-, SG Channel 3, Modport or other RS-485 connection 5V (0.25A) Output, generated internally by the CT1820. Comfile Technology, Inc CT1820 User's Manual 25 Of 93...
  • Page 26 For reading voltage signals Warning: Please do not exceed the specified current and voltage ranges, or the device may become damanged. Use the download port to connect the 3-pin download cable as shown below. Comfile Technology, Inc CT1820 User's Manual 26 Of 93...

  • Page 27: Ct1820'S I/O Port Electrical Specifications

    5 ~ 30VDC Recommended Operating Voltage 6 ~ 27VDC Maximum Switching Frequency 100Hz Maximum Current 250mA / Pin Minimum Current 10mA / Pin High-speed counter and external interrupt features are not supported. Comfile Technology, Inc CT1820 User's Manual 27 Of 93...

  • Page 28: Interfacing To Proximity Sensors

    They are used quite often in the field of automation. The following instructions show how to connect the 2-wire and 3-wire type DC 2-Wire Model Sensor output connected in reverse Comfile Technology, Inc CT1820 User's Manual 28 Of 93...
  • Page 29 Comfile Technology, Inc CT1820 User's Manual 29 Of 93...
  • Page 30 DC 3-Wire Model (PNP type) Sensor output connected in reverse DC 3-Wire Model (NPN type) Sensor output connected in reverse Comfile Technology, Inc CT1820 User's Manual 30 Of 93...

  • Page 31: Ct18Xx Series' Relays & Registers

    Lower numbered designations are stored in the lower significant bits and higher numbered designations are stored in higher significant bits. For example, the P region would appear as follows when accessed as WP. Comfile Technology, Inc CT1820 User's Manual 31 Of 93...

  • Page 32: Chapter 3 Command Reference

    Chapter 3 Command Reference Comfile Technology, Inc CT1820 User's Manual 32 Of 93...

  • Page 33: Ct1820 Analog Input

    The CT1820 8 10-bit analog input channels: Channels 0~3 are 0~20mA current analog inputs. • Channels 4~7 are 0~10VDC voltage analog inputs. • A = ADIn(4) ' Read from analog input channel 4 Comfile Technology, Inc CT1820 User's Manual 33 Of 93...

  • Page 34: Ct1820'S Non-Volatile Fram

    : Address to read the data from Reads one byte of data from the FRAM at address address, and stores the result in variable. A = FramRead(14) ' Reads one byte of data from address 14 Comfile Technology, Inc CT1820 User's Manual 34 Of 93...

  • Page 35: Real-Time Clock

    , then then the number of seconds is 11, not 17. Displaying the value in hexadecimal, is one way to show the value in decimal as illustrated in the example below. A = RTCRead(0) Debug Hex2 A,Cr Comfile Technology, Inc CT1820 User's Manual 35 Of 93...
  • Page 36 = RTCRead(5) Debug Goxy,1,6,Hex2 i, " Month" i = RTCRead(6) Debug Goxy,1,7,Hex2 i, " Year" Wait 500 Loop The results of this example are displayed in the Cubloc Studio debug terminal. Comfile Technology, Inc CT1820 User's Manual 36 Of 93...
  • Page 37 However, the RTC is not 100% accurate, and if used for an extended period of time, a drift may become apparent, and will need to be re-synchronized with a current time source. Comfile Technology, Inc CT1820 User's Manual...

  • Page 38: Beep (Sound)

    CT18Beep value value : Integer variable or constant (less than 255). Generates a beep. To generate an adequate feedback beep on a touch event, use a value between 20 and 50. Comfile Technology, Inc CT1820 User's Manual 38 Of 93...

  • Page 39: Rs-232/485 Communication

    ' Open Channel 1 By #include "CT18XX", channel 3 can be used for RS-485 for communicating with RS-485 peripherals such as Comfile Technology's ModPort field I/O controller. Be sure to use Set RS485 to set pin 71 as the transmit enable pin.

  • Page 40: Lcd Contrast Adjustment

    &HFFF. The following program shows how this value can be read and corrected to ensure an appropriate value. Dim Cont_value As Byte Cont_value = EERead(&hfff, 1) If Cont_value < 100 Or Cont_value > 200 Then ' Ensure an appropriate value Cont_value = 150 EndIf CT18Contrast Cont_value Comfile Technology, Inc CT1820 User's Manual 40 Of 93...

  • Page 41: Chapter 4 Touch Input

    Chapter 4 Touch Input Comfile Technology, Inc CT1820 User's Manual 41 Of 93...

  • Page 42: Menu System Library

    Each button's status can be changed at any time by calling the MenuSet command, and each button can be given a different function on a different screen, resulting in virtually an unlimited number of menus and buttons. Comfile Technology, Inc CT1820 User's Manual 42 Of 93...
  • Page 43 This is useful to provide visual feedback to a user, indicating that a menu button has been touched. MenuSetClear MenuSetClear Clears all menu buttons on the screen. Call this before creating a new menu. This commands is not available in the CT1721C. Comfile Technology, Inc CT1820 User's Manual 43 Of 93...
  • Page 44 : Coordinates of the caption from the button's top-left corner string : The caption to display MenuSet only draws the button itself. Use the MenuTitle command to set the button's caption. MenuTitle 0,13,13,"Gas Left" MenuTitle 1,16,13,"Initialize" MenuTitle 2,13,13,"Total Cost" Comfile Technology, Inc CT1820 User's Manual 44 Of 93...
  • Page 45 (y1), 2 will read the x coordinate of the bottom-right corner (x2), and 3 will read the y coordinate of the bottom-right corner (y2). If Menu(0,1) < 100 THEN If menu button 0's top is less than 100 Comfile Technology, Inc CT1820 User's Manual 45 Of 93...
  • Page 46 Print Dec TX1, " ", Dec TY1 If Menucheck(0,TX1,TY1) = 1 Then Menureverse2 0,3 Notice the '2' at the end of this command Ct18beep 20 Audio feedback I = 0 End If Return Comfile Technology, Inc CT1820 User's Manual 46 Of 93...

  • Page 47: Processing Touch Input

    CT1721C CT18XX Set Pad 0,4,5 On Pad Gosub TouchInput On Pad Gosub TouchInput Loop Loop TouchInput: TouchInput: Tx = Getpad(2) Tx = Sys(10) Ty = GetPad(2) Ty = Sys(11) Return Return Comfile Technology, Inc CT1820 User's Manual 47 Of 93...
  • Page 48 End If If Menucheck(1,TX1,TY1) = 1 Then Menureverse 1 CT18beep 20 ' Audio feedback End If If Menucheck(2,TX1,TY1) = 1 Then Menureverse 2 CT18beep 20 ' Audio feedback End If Return Comfile Technology, Inc CT1820 User's Manual 48 Of 93...

  • Page 49: Touch Calibration

    After the calibration is finished, the screen contrast can be adjusted. The screen contrast values will be written to EEPROM address &HFFF and can be read at runtime if necessary. Displays Increase the current screen date and contrast time Decrease the screen contrast Comfile Technology, Inc CT1820 User's Manual 49 Of 93...
  • Page 50 Dim Cont_value As Byte Cont_value = EERead(&hfff,1) If Cont_value < 100 Or Cont_value > 200 Then ' Set and appropriate value if needed Cont_value = 150 Endif CT18Contrast Cont_value Comfile Technology, Inc CT1820 User's Manual 50 Of 93...

  • Page 51: Setting The Rtc's Date And Time

    After setting the date and time, the CT1820 will execute a program that can be used to adjust the screen contrast. The screen contrast will be saved to the EEPROM at address &HFFF and can be read to set the screen contrast at runtime. Comfile Technology, Inc CT1820 User's Manual 51 Of 93...

  • Page 52: Chapter 5 Modport I/O Expansion

    Chapter 5 ModPort I/O Expansion Comfile Technology, Inc CT1820 User's Manual 52 Of 93...

  • Page 53: Using The Ct2820 With The Modport

    Using the CT2820 with the Modport The Modport is a modular, RS-485, Modbus field I/O controller from Comfile Technology featuring digital input and output, analog input, temperature sensing, and a variety of other features. It can be purchased from http://www.comfiletech.com/modport.aspx.

  • Page 54: Modport Function Library

    OnOff: Whether to turn the pin on or off (on = 1, off = 0) Command to turn on/off a pin on the MD-DOSO8 DC source output module. MPSource 1, 2, 1 ' Turn on module 1, pin 2 Comfile Technology, Inc CT1820 User's Manual 54 Of 93...
  • Page 55 Reads the state of a pin on the MD-DIDC8 module. The value read is stored in Variable. A = MPIn(2, 3) ' Read pin 3 of module 2 and store the results in A Comfile Technology, Inc CT1820 User's Manual 55 Of 93...
  • Page 56 25.4°C. Negative temperatures are indicated with a most significant bit of 1 (Note that this is not 2's complement). Please see the MD-THRT4's documentation for more information. A = MPThIn(2, 1) ' Read temperature from module 2, channel 1 and store in A Comfile Technology, Inc CT1820 User's Manual 56 Of 93...
  • Page 57 222,222 is returned if value is greater than 5V. Values falling within the 1~5V rage will return a value between 0 and 100,000 (13.3 bit resolution). A = MPHADIn(2, 3) ' Read from module 2, channel 3 and store value in A Comfile Technology, Inc CT1820 User's Manual 57 Of 93...
  • Page 58 OutputValue : Integer value representing the current to output (0~60000) Outputs a current on one of the channels of a MD-DAOUT2 module. MPDAOutA 1, 2, B ' Outputs current B on module 1, channel 2 Comfile Technology, Inc CT1820 User's Manual 58 Of 93...

  • Page 59: Modport Test Program

    Print "7 6 5 4 3 2 1 0" Locate 3,4 Print "===============" Locate 2,5 Print hex2 MPin(1,7),hex2 MPin(1,6),hex2 MPin(1,5),hex2 MPin(1,4),hex2 MPin(1,3),hex2 MPin(1,2),hex2 MPin(1,1),hex2 MPin(1,0) MPsource 2,0,MPin(1,0) MPsource 2,1,MPin(1,1) MPsource 2,2,MPin(1,2) MPsource 2,3,MPin(1,3) MPsource 2,4,MPin(1,4) MPsource 2,5,MPin(1,5) Comfile Technology, Inc CT1820 User's Manual 59 Of 93...
  • Page 60 TY1 = Sys(11) Pset TX1,TY1 Ct18beep 10 Return Comfile Technology's input simulator is used in this example to make it easy to toggle and test inputs. The input simulator can be purchased from http://www.comfiletech.com/inputsimulatoer.aspx. Comfile Technology, Inc CT1820 User's Manual...

  • Page 61: Chapter 6 Sample Programs

    Chapter 6 Sample Programs Comfile Technology, Inc CT1820 User's Manual 61 Of 93...

  • Page 62: Sample 1

    Simply cut and past this code into Cubloc Studio to give it a try. #include "CT18XX" Dim I As Integer Ct18contrast 150 ' LCD contrast setting Locate 15, 6 Print DEC5 I Incr I Delay 200 Loop Comfile Technology, Inc CT1820 User's Manual 62 Of 93...

  • Page 63: Sample 2

    End If Return Set Pad is used to configure the dedicated kepad/touchpad port. On Pad is used to assign an interrupt service routine to jump to when a touch event occurs. Comfile Technology, Inc CT1820 User's Manual 63 Of 93...

  • Page 64: Sample 3

    Dim I As Integer Dim TX1 As Integer, TY1 As Integer Ct18contrast 150 On Pad Gosub GETTOUCH Loop GETTOUCH: TX1 = Sys(10) TY1 = Sys(11) Circlefill TX1,TY1,2 CT18beep 20 ' Audio feedback Return Comfile Technology, Inc CT1820 User's Manual 64 Of 93...

  • Page 65: Sample 4: Numeric Input

    Menuset 7,2,205,120,235,145 Menutitle 7,11,4,"8" Menuset 8,2,245,120,275,145 Menutitle 8,11,4,"9" Menuset 9,2,165,155,195,180 Menutitle 9,11,4,"0" Menuset 10,2,205,155,275,180 Menutitle 10,17,4,"ENTER" I =0 Loop GETTOUCH: TX1 = Sys(10) TY1 = Sys(11) If Menucheck(0,TX1,TY1) = 1 Then Comfile Technology, Inc CT1820 User's Manual 65 Of 93...
  • Page 66 End If Locate 3,3 Print HEX4 I Return The final result is stored as binary coded decimal (BCD), so the BCD2Bin command is used to convert the value to binary format. Comfile Technology, Inc CT1820 User's Manual 66 Of 93...

  • Page 67: Sample 5: Cucanvas

    Sample 5: CuCanvas It can be quite inconvenient to compute coordinates and layout a user interface in code, so Comfile Technology created the CuCanvas WYSIWYG utility to make it easier for users to layout a user interface and generate the necessary BASIC code. CuCanvas is a free download from Comfile Technology's website.
  • Page 68 The menu button index (ID) will be displayed in the top left corner. Enter text in the "Title" textbox to change the button's caption. Add additional buttons to create the numpad as shown below. Comfile Technology, Inc CT1820 User's Manual 68 Of 93...
  • Page 69 Click the "To Clipboard" button to copy the code and paste it in "Cubloc Studio". The code can also be saved as a Cubloc Studio include file by choosing the "Save to File.." button. Comfile Technology, Inc CT1820 User's Manual...
  • Page 70 I = I + 9 CT18beep 20 Elseif Menucheck(9,TX1,TY1) = 1 Then I = I << 4 CT18beep 20 Elseif Menucheck(10,TX1,TY1) = 1 Then I = 0 CT18beep 20 End If Comfile Technology, Inc CT1820 User's Manual 70 Of 93...
  • Page 71 We must place the #include directive at the end of the code, as the generated code is in the form of a subroutine, which must come after the End statement in the main program. Comfile Technology, Inc CT1820 User's Manual...

  • Page 72: Sample 6: Multi-Page Menu Implementation

    MenuCheck tests should be run for a particular screen. Subroutines are very useful for compartmentalizing the code. The following code can be cut an pasted into Cubloc Studio. Comfile Technology, Inc CT1820 User's Manual 72 Of 93...
  • Page 73 Case _SUBMENU3 ProcessSubMenu3 Case _SUBMENU4 ProcessSubMenu4 End Select Return Sub ProcessMainMenu() If Menucheck(0,TX1,TY1) = 1 Then FlashMenu 0 CurrentScreen = _SUBMENU1 SUBMENU1 Elseif Menucheck(1,TX1,TY1) = 1 Then FlashMenu 1 CurrentScreen = _SUBMENU2 Comfile Technology, Inc CT1820 User's Manual 73 Of 93...
  • Page 74 FlashMenu 1 CurrentScreen = _MAINMENU MAIN Endif End Sub Sub ProcessSubMenu4() If Menucheck(0,TX1,TY1) = 1 Then FlashMenu 0 Beeper 4 Elseif Menucheck(1,TX1,TY1) = 1 Then FlashMenu 1 CurrentScreen = _MAINMENU MAIN Endif Comfile Technology, Inc CT1820 User's Manual 74 Of 93...
  • Page 75 Font 6,1 Style 0,0,0 Glocate 96,24 Gprint "Submenu 1" Linestyle 0 Dotsize 0,0 Color 1 Box 80,16,232,56 Font 2,1 Menuset 0,2,88,88,224,120 Menutitle 0,22,8,"Beep 1 time" Menuset 1,2,0,208,72,239 Menutitle 1,10,7,"<BACK" Font 4,0 Comfile Technology, Inc CT1820 User's Manual 75 Of 93...
  • Page 76 The CurrentScreen variable is used to keep track of the active page being displayed. This variable is checked in the touch interrupt service routine to determine which set of MenuChecks to perform. Comfile Technology, Inc CT1820 User's Manual 76 Of 93...

  • Page 77: Sample 7: Contrast Adjustment

    _TouchPosy = Sys(11) If _TouchPosy > 120 Then CT18_cont_value = CT18_cont_value - 1 Ct18contrast CT18_cont_value Eewrite &hfff,CT18_cont_value,1 Else CT18_cont_value = CT18_cont_value + 1 Ct18contrast CT18_cont_value Eewrite &hfff,CT18_cont_value,1 Endif Ct18beep 30 Return Comfile Technology, Inc CT1820 User's Manual 77 Of 93...
  • Page 78 The date and time are displayed on the top of the screen as read from the RTC. Displays Increase the current screen date and contrast time Decrease the screen contrast Comfile Technology, Inc CT1820 User's Manual 78 Of 93...

  • Page 79: Sample 8: Rtc Adjustment

    Sample 8: RTC Adjustment This sample program can be used to adjust the RTC's date and time. The user interface layout is created with CuCanvas. Comfile Technology, Inc CT1820 User's Manual 79 Of 93...
  • Page 80 If Menucheck(8,TX1,TY1) = 1 Then ' Min EffectFlash 8 VaIncr 1,59 Elseif Menucheck(9,TX1,TY1) = 1 Then EffectFlash 9 VaDecr 1,0 Endif If Menucheck(10,TX1,TY1) = 1 Then ' Sec EffectFlash 10 VaIncr 0,59 Comfile Technology, Inc CT1820 User's Manual 80 Of 93...
  • Page 81 Menutitle 1,11,2,"-" Menuset 2,2,65,40,95,60 Menutitle 2,11,2,"+" Font 0,0 Menuset 3,2,65,125,95,145 Menutitle 3,11,2,"-" Font 3,0 Menuset 4,2,115,40,145,60 Menutitle 4,11,2,"+" Menuset 5,2,115,125,145,145 Menutitle 5,11,2,"-" Menuset 6,2,175,40,205,60 Menutitle 6,11,2,"+" Menuset 7,2,175,125,205,145 Menutitle 7,11,2,"-" Menuset 8,2,225,40,255,60 Comfile Technology, Inc CT1820 User's Manual 81 Of 93...
  • Page 82 Color 1 Box 5,20,155,165 Box 165,20,315,165 Font 0,1 Glocate 15,175 Gprint "Year Month Date " Glocate 175,175 Gprint "Hour Sec" Font 6,1 Glocate 90,195 Gprint "RTC Setting" Font 4,0 End Sub Comfile Technology, Inc CT1820 User's Manual 82 Of 93...

  • Page 83: Sample 9: Input Status Monitor

    Locate 2,7 Print hex3 In(8),hex3 In(9),hex3 In(10),hex3 In(11) Print hex3 In(12),hex3 In(13),hex3 In(14),hex3 In(15) Locate 2,10 Print hex3 In(16),hex3 In(17),hex3 In(18),hex3 In(19) Print hex3 In(20),hex3 In(21),hex3 In(22),hex3 In(23) Wait 500 Loop Comfile Technology, Inc CT1820 User's Manual 83 Of 93...

  • Page 84: Sample 10: Digital Output Control

    Elseif Menucheck(8,TX1,TY1) = 1 Then Menureverse2 8,1 Reverse 44 Elseif Menucheck(9,TX1,TY1) = 1 Then Menureverse2 9,1 Reverse 45 Elseif Menucheck(10,TX1,TY1) = 1 Then Menureverse2 10,1 Reverse 46 Elseif Menucheck(11,TX1,TY1) = 1 Then Menureverse2 11,1 Comfile Technology, Inc CT1820 User's Manual 84 Of 93...
  • Page 85 Menuset2 6,1,85,115,120,135 Menutitle 6,10,4,"42" Menuset2 7,1,125,115,160,135 Menutitle 7,10,4,"43" Menuset2 8,1,165,115,200,135 Menutitle 8,10,4,"44" Menuset2 9,1,205,115,240,135 Menutitle 9,10,4,"45" Menuset2 10,1,245,115,280,135 Menutitle 10,10,4,"46" Menuset2 11,1,285,115,319,135 Menutitle 11,9,4,"47" Menuset2 12,1,5,150,40,170 Menutitle 12,10,4,"48" Menuset2 13,1,45,150,80,170 Menutitle 13,10,4,"49" Comfile Technology, Inc CT1820 User's Manual 85 Of 93...
  • Page 86 Menuset2 15,1,125,150,160,170 Menutitle 15,10,4,"51" Menuset2 16,1,165,150,200,170 Menutitle 16,10,4,"52" Menuset2 17,1,205,150,240,170 Menutitle 17,10,4,"53" Menuset2 18,1,245,150,280,170 Menutitle 18,10,4,"54" Menuset2 19,1,285,150,319,170 Menutitle 19,9,4,"55" Font 6,1 Glocate 50,25 Gprint "OUT PORT CHECK" Font 4,0 End Sub Comfile Technology, Inc CT1820 User's Manual 86 Of 93...

  • Page 87: Chapter 7 Panel Mounting

    Chapter 7 Panel Mounting Comfile Technology, Inc CT1820 User's Manual 87 Of 93...

  • Page 88: Dimensions

    Dimensions Comfile Technology, Inc CT1820 User's Manual 88 Of 93...
  • Page 89 Comfile Technology, Inc CT1820 User's Manual 89 Of 93...

  • Page 90: Panel Cutout

    Panel Cutout Comfile Technology, Inc CT1820 User's Manual 90 Of 93...

  • Page 91: Panel Mounting Procedure

    (Preparation: Insert the bolt into the mounting bracket as shown in the image below Insert the unit into a properly prepared panel cutout per the previously described panel cutout dimensions. (Panel thickness can be between 1 and 6 mm.) Comfile Technology, Inc CT1820 User's Manual 91 Of 93...
  • Page 92 Insert the mounting brackets into the groove on the side of the unit, pull the bracket towards the rear of the unit. Slide the bracket laterally to secure in place. Comfile Technology, Inc CT1820 User's Manual 92 Of 93...
  • Page 93 (Caution: Be careful not to tighten the bolts excessively to avoid damaging to the unit and/or the panel) 5. Repeat steps 2~4 for each remaining mounting bracket. - A look at the CT1820 after properly mounted – Comfile Technology, Inc CT1820 User's Manual 93 Of 93...
