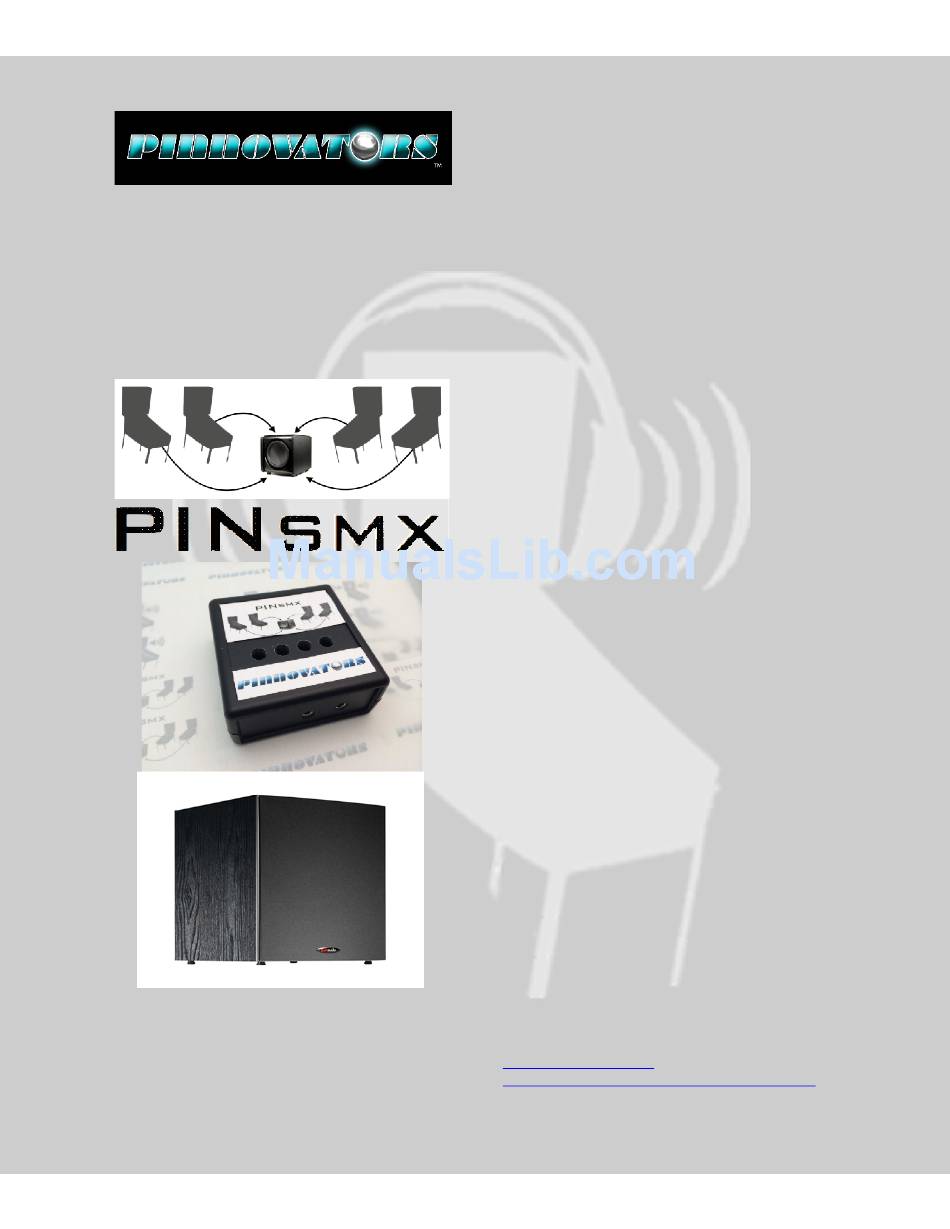

PINsmx Installation
Manual
Version 1.1 May 11, 2014
1
Contents
1.
Warnings and Agreements ....................... 1
2.
Welcome! ................................................ 2
3.
What's included in the Kits ....................... 2
4.
Requirements:.......................................... 2
5.
Control Box Installation ............................ 3
6.
Connecting a Subwoofer .......................... 4
7.
Final Checkout.......................................... 4
8.
PIN-SMX ................................................... 4
1. Warnings and Agreements
Welcome! As with any Pinball Machine
modification and add on kit, there is a required level
of expertise for the installation. If you are not
proficient in basic pinball parts installation we
recommend having our kit installed by someone who
is proficient with the basics of pinball repair.
Pinnovators requires our kit be installed by an
experienced Pinball service technician with basic
electrical skills. As with any electrical piece of
equipment a danger does exist and you must agree
to not hold Pinnovators responsible for any injury,
damages, etc. before continuing.
Sound Levels: Pinnovators recommends running
your headphone and subwoofer sound levels at a
safe level to prevent long term hearing loss. For a
good example of recommend sound levels, we
recommend following suggestions given by major
audio equipment manufacturers such as Apple and
their Ipod.
