Lowrance Electronics GlobalMap 4800M Operation Instructions Manual

Mapping gps receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

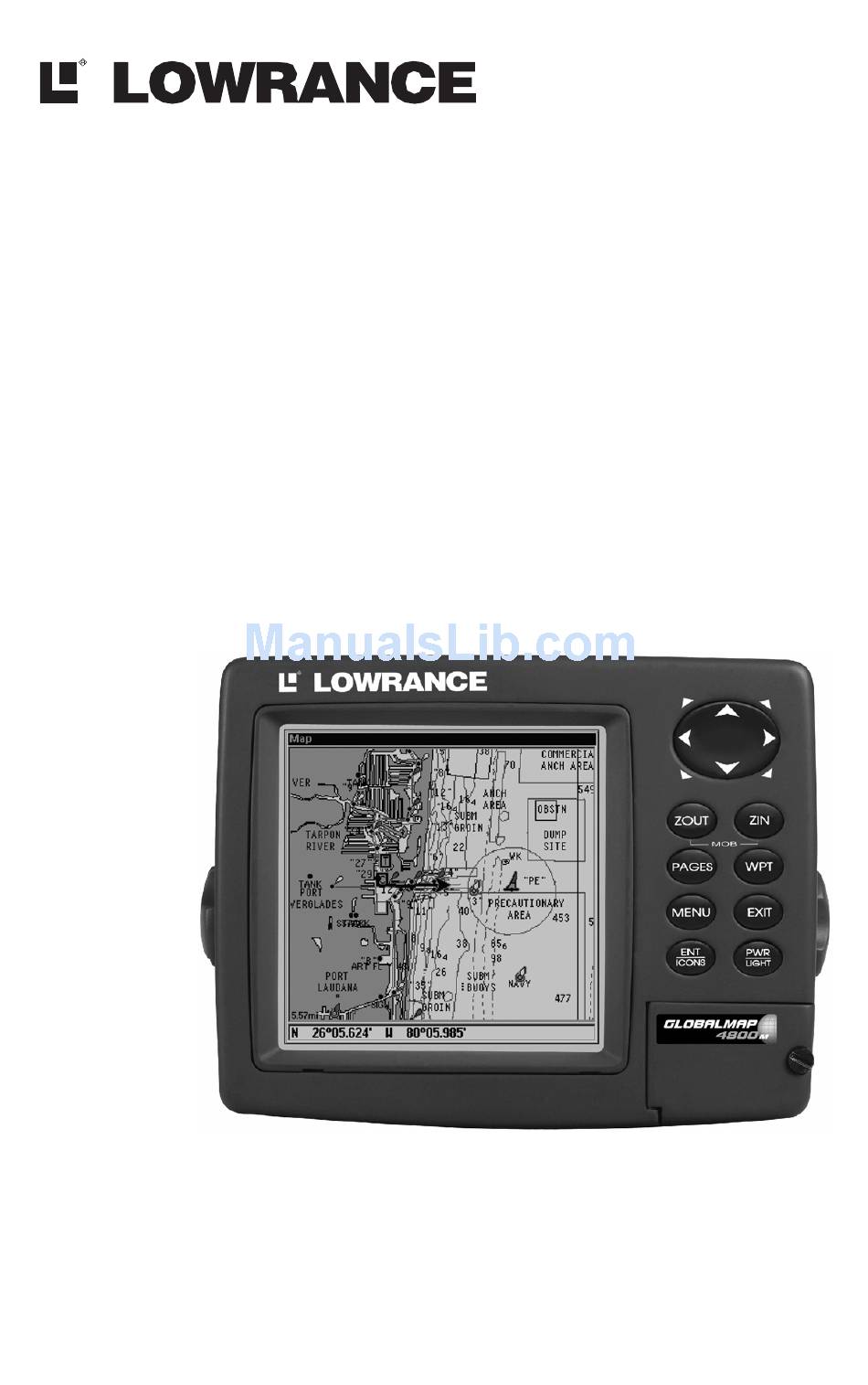

Pub. 988-0151-191
www.lowrance.com
GlobalMap 4800M
®
Mapping GPS Receiver

Operation Instructions

www.Busse-Yachtshop.de
email: info@busse-yachtshop.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GlobalMap 4800M and is the answer not in the manual?

Questions and answers

Summary of Contents for Lowrance Electronics GlobalMap 4800M

  • Page 1: Operation Instructions

    Pub. 988-0151-191 www.lowrance.com GlobalMap 4800M ® Mapping GPS Receiver Operation Instructions www.Busse-Yachtshop.de email: info@busse-yachtshop.de...
  • Page 2 Ltd. Exit Authority and eXitSource are trademarks of Zenrin Co. Ltd. Lowrance Electronics may find it necessary to change or end our policies, regulations and special offers at any time. We reserve the right to do so without notice. All features and specifications subject to change without notice.

  • Page 3: Table Of Contents

    Table of Contents Section 1: Read Me First! ............1 ® Capabilities and Specifications: GlobalMap 4800 ..... 2 How Lowrance GPS Works ............4 Introduction to GPS and WAAS........... 6 How to use this manual: typographical conventions ....8 Section 2: Installation & Accessories........11 Preparations................
  • Page 4 Navigate a Back Trail (backtrack, or reverse)....... 49 Transfer Custom Maps and GPS Data Files ......50 Cancel Navigation............... 52 Section 4: Advanced GPS Operations ......... 53 Find Distance From Current Position To Another Location ..53 Find Distance From Point to Point ..........53 Icons.....................
  • Page 5 Configure NMEA ................ 71 Coordinate System Selection............71 To setup Loran TD: ..............72 Map Fix ..................73 Customize Page Displays ............74 Customize Satellite Status Page ..........74 Customize Navigation Page ........... 74 Customize Map Page .............. 75 DGPS Status ................75 GPS Simulator ................
  • Page 6 Trail Update Rate (Time, Distance) ........94 Delete Trail ................95 New Trail................. 95 Trail Visible/Invisible and Other Trail Options ....95 Units of Measure................. 95 Section 6: Searching ............... 97 Find Addresses................97 Find Any Item Selected by Map Cursor ........100 Find Interstate Highway Exits ..........

  • Page 7: Section 1: Read Me First

    Section 1: Read Me First! How this manual can get you out on the road, fast! Welcome to the exciting world of digital GPS! We know you're anxious to begin navigating, but we have a favor to ask. Before you grab the ...

  • Page 8: Capabilities And Specifications: Globalmap ® 4800

    Section 3 contains short, easy-to-scan GPS lessons that follow one an- other in chronological order. They're all you'll need to know to find your way on the water or in the wilderness quickly. After you've learned the basics (or if you already have some GPS expe- rience), you may want to try out some of the GlobalMap 4800's many advanced navigation features.
  • Page 9 Input power:....10 to 15 volts DC. Case size:......5.4" H x 6.9" W x 3.4" D (13.8 x 17.6 x 8.6 cm); sealed and waterproof; suitable for saltwater use. MMC slots: ...... One with waterproof door (SD card compati- ble).

  • Page 10: How Lowrance Gps Works

    Plot Trails: ...... 10 savable; up to 9,999 points per trail. Zoom range:....39 ranges; 0.02 to 4,000 miles. NOTE: The above memory capacities refer only to the GlobalMap 4800's on- board memory. The amount of GPS data you can record and save for recall later is only limited by the number of MMC cards you have.
  • Page 11 The background map is suitable for many navigation chores, but for maximum accuracy and much more detail, you need our optional map- making software, MapCreate 6. Some unit features — such as searching for businesses and addresses — won't work without a custom MapCreate map.

  • Page 12: Introduction To Gps And Waas

    Introduction to GPS and WAAS Well, now you know the basics of how the unit does its work. You might be ready to jump ahead to Section 2, Installation & Accessories, on page 11, so you can mount your GlobalMap 4800 and plug in the power. Or you might want to see how our text formatting makes the manual tuto- rials easy to skim.
  • Page 13 The system requires signal reception from three satellites in order to determine a position. This is called a 2D fix. It takes four satellites to determine both position and elevation (your height above sea level — also called altitude). This is called a 3D fix. Remember, the unit must have a clear view of the satellites in order to receive their signals.

  • Page 14: How To Use This Manual: Typographical Conventions

    receiver is only a tool. Always have another method of navigation avail- able, such as a map or chart and a compass. Also remember that this unit will always show navigation information in the shortest line from your present position to a waypoint, regardless of terrain! It only calculates position, it can’t know what’s between you and your destination, for example.
  • Page 15 For example, instructions for navigating a trail would look like this: ↓ 1. From the Map Page, press MENU MENU RAILS 2. Press ↓ to Trail 1| |→|↓ to AVIGATE 3. You are asked to wait while it converts the trail into a route. 4.
  • Page 16 Notes www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 17: Section 2: Installation & Accessories

    Section 2: Installation & Accessories Preparations You can install the GPS system in some other order if you prefer, but we recommend this installation sequence: Caution: You should read over this entire installation section before drill- ing any holes in your vehicle or vessel! 1.

  • Page 18: Power Connections

    You need to select an antenna installation location that has a clear, un- obstructed view of the sky. After the module is installed, connect it to the end of the Y-adapter extension cable as shown in the following dia- gram. To connect it to the unit, insert the cable's splitter plug into the Network socket on the back of the unit and your system is ready to use.
  • Page 19 Power Supply wires: red, black and white To unit NMEA-2000 Power wires: red, black and shield Data Cable wires: blue, yellow, orange and shield The Power/Data cable for this unit. Depending on your configuration, you may not use all of these wires. (For example, many units cannot operate an optional external speaker, so the white wire on the Power Supply cable isn't functional.) The fol- lowing segments include instructions for installing all the wires that...
  • Page 20 3 amp fuse NMEA-2000 buss, also connect NMEA-2000 Power cable Optional power off to the boat's switch for salt- 12 volt battery. water installations battery Data Cable NMEA-2000 Power Cable Power connections for the GlobalMap 4800M GPS unit. www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 21: Nmea 0183/Dgps Cable Connections

    The most popular DGPS system relies on a grid of ground-based trans- mitters that send correction signals to DGPS receivers. These in turn, connect to the GPS receiver (such as the GlobalMap 4800M). Lowrance offers an optional DGPS receiver for your unit.

  • Page 22: Nmea/Dgps Wiring

    NMEA/DGPS Wiring (Data cable) To exchange NMEA 0183 or DGPS data, the GlobalMap 4800M has one NMEA 0183 version 2.0 communication port. Com port one (Com-1) can be used to receive NMEA format GPS data or DGPS data. The com port can also transmit NMEA format GPS data to another device.
  • Page 23 If you use the supplied bracket, you may be interested in the optional  R-A-M bracket mounting system. This converts the unit's gimbal bracket to a swivel mount, which can be used on the dash or overhead mounting positions. Optional R-A-M mounting system. Bracket Installation Mount the GlobalMap 4800 in any convenient location, provided there is clearance behind the unit when it's tilted for the best viewing angle.
  • Page 24 Drill a 1-inch (25.4 mm) hole in the dash for the power and antenna cables. The best location for this hole is immediately under the gimbal bracket location. This way, the bracket can be installed so that it covers the hole, holds the cables in position and results in a neat installation. Some customers, however, prefer to mount the bracket to the side of the cable hole —...
  • Page 25 In-Dash Installation You can mount the GlobalMap 4800 in the dash with an optional FM-5 In-Dash Adapter Kit. The kit includes mounting hardware, a template for cutting the hole and an instruction sheet, part 988-0147-43. 146.5 [5.76] R 7.9 [0.31] In-Dash 113.5 Template...

  • Page 26: Mmc Or Sd Card Memory Card Installation

    "D" cell battery Install batteries in power pack battery adapter. MMC or SD Card Memory Card Installation Your GlobalMap 4800 uses a MultiMedia Card to store information, such as custom maps, waypoints, trails and other GPS data. The unit can also use Secure Digital Cards (SD card) to store data. NOTE: Throughout this manual, we will use the term MMC, but just re- member that your unit can use an MMC or SD card to store data.

  • Page 27: Other Accessories

    Thumb screw Insert card face up, this way Memory card compartment with a 16 MB MMC card installed. To remove an MMC 1. Open the card compartment door by unscrewing the thumb screw. The screw should only be finger tight. If it was over-tightened, use a thumbnail, a coin or a screwdriver to open the door.

  • Page 28: Face Cover

    MapCreate™ 6 CD-ROM, left; MMC card reader for USB ports, right. Now that you have your GlobalMap 4800 installed, move on to Section 3, Basic GPS Operations. There, we'll present a series of step-by-step tutorials to teach you the basics of GPS navigation. Face Cover Your unit comes with a white protective cover that snaps on and off the front of the unit.

  • Page 29: Section 3: Basic Gps Operations

    Quick Reference on page 35. Keyboard MMC slot access door GlobalMap 4800M GPS unit, front view, showing Map Page, keyboard and access door for the MMC slot. 1. PWR/LIGHT (Power & Light) – The PWR key turns the unit on and off and activates the backlight.

  • Page 30: Power/Lights On And Off

    3. MENU – Press this key to show the menus and submenus, which allow you to select a command or adjust a feature. This also accesses search functions for streets, intersections, addresses and highway exits. 4. ARROW KEYS – These keys are used to navigate through the menus, make menu selections, move the map cursor and enter data.
  • Page 31 Main Menu. The Main Menu commands and their functions are: Screen command: changes the contrast or brightness of the display screen. Sounds command: enables or disables the sounds for key strokes and alarms and sets the alarm style. Alarms command: turns GPS alarms on or off and changes alarm thresholds.

  • Page 32: Satellite Status Page

    key, then using → or ← to Page. They are accessed by pressing the PAGES select a Page. (Clear the Pages Menu by pressing EXIT Pages Menu, showing some Map display options. Satellite Status Page The Satellite Status Page, shown, provides detailed information on the status of the unit's satellite lock-on and position acquisition.

  • Page 33: Navigation Page

    This screen shows a graphical view of the satellites that are in view. Each satellite is shown on the circular chart relative to your position. The point in the center of the chart is directly overhead. The small inner ring represents 45°...
  • Page 34 Track or compass heading indicator, showing direction of travel Navigation Compass information rose displays in customizable data boxes Present position arrow Trail line Navigation Page, recording a trail, traveling southwest. Page looks like this when the unit is not navigating to a waypoint, following a route, or backtracking a trail.
  • Page 35 The Off Course window shows the current cross track error. This shows the distance you are off-course to the side of the desired course line. The course line is an imaginary line drawn from your position when you started navigating to the destination waypoint. The course line is shown on the Navigation Page screen (and the Map Page screen) as a dotted line.

  • Page 36: Map Page

    In the preceding example figure, the driver is headed west (a 265º track) toward a waypoint 265º (bearing) away. The cross track error range (white corridor) is 0.20 miles either side of the course. The driver is headed toward trail waypoint 4, which is 0.3 miles away. The vehicle is right on course.

  • Page 37: Background Map Vs. Mapcreate Map Content

    Far left, Map Page opening screen. Center, zoomed to 100 miles and right, zoomed to 10 miles. Over Zoomed means you have reached the detail limits in an area covered only by the basic background map. Zooming in any closer will reveal no more map details because a high- detail custom map has not been loaded on the MMC for this area.
  • Page 38 national forests and parks); some major city streets; Interstate, U.S. and state highways; Interstate highway exits and exit services informa- tion; large- and medium-sized lakes and streams; and more than 60,000 navigation aids and 10,000 wrecks and obstructions in U.S. coastal and Great Lakes waters MapCreate custom maps include massive amounts of information not found in the background map.
  • Page 39 Tip: In some urban areas, businesses are so close to one another that their POI icons crowd each other on the screen. You can reduce screen clutter and make streets and other map features easier to see by simply turning off the display of POIs you're not watching for.
  • Page 40 Pages Menu with Two Map option selected, left. Map Page with two map windows, at right. The left map is active. Resize Window is another extremely handy feature for pages that have two major windows. You can change the horizontal size of the windows to suit your viewing preference.

  • Page 41: Basic Gps Quick Reference

    Basic GPS Quick Reference Start outdoors, with a clear view of the open sky. As you practice, try navigating to a location at least a few blocks away. While you're learning, navigation in too small an area will constantly trigger arrival alarms. 1.

  • Page 42: Find Your Current Position

    Find Your Current Position Finding your current position is as simple as turning the unit on. Un- der clear sky conditions, the unit automatically searches for satellites and calculates its position in approximately one minute or less. NOTE: "Clear sky" means open sky, unobstructed by terrain, dense foliage or structures.

  • Page 43: Selecting Any Map Item With The Cursor

    Cursor line Cursor line Selected airport POI pop-up data box Distance measured by cursor The selected airport to the northwest is 4.2 miles away. Selecting Any Map Item With the Cursor 1. Use the zoom keys and the arrow keys to move around the map and find the item you wish to select.
  • Page 44 2. You could search the entire restaurant category, but in this example we will narrow our search. Press → to column|↓ to UBCATEGORY |↓ to HAINS EAREST 3. The unit says it is calculating, then a list of restaurants appears, with the closest at the top of the list, and the farthest at the bottom of the list.

  • Page 45: Set A Waypoint

    6. The unit's map appears, with the cross-hair cursor highlighting the restaurant' s POI symbol. A pop-up data box shows the POI's name, distance and bearing. A data box at the bottom of the screen continues to display the location's latitude and longitude. Map screen showing Finding Waypoint, the result of a restaurant search.

  • Page 46: Create Waypoint At Current Position

    Create Waypoint at Current Position While you are traveling, press . The waypoint is saved and automatically given a name with a sequential number, such as "way- point 003." The waypoint symbol and number appear on the map. Step 1. Step 2.

  • Page 47: Create Waypoint On Map

    Create Waypoint on Map 1. Use the arrow keys to move the cursor to the place where you want to make a waypoint. 2. Press . The waypoint is saved and automatically given a name with a sequential number, such as "waypoint 001." The waypoint symbol and number appear on the map.

  • Page 48: Set Man Overboard (Mob) Waypoint

    Waypoint Course line (dotted) Trail line Off course (solid) range, set at Destination 0.20 mile name Navigation Page, navigating toward waypoint 004 and leaving a trail. Set Man Overboard (MOB) Waypoint One of boating's most terrifying events is having a friend or family member fall overboard.

  • Page 49: Navigate To Cursor Position On Map

    Navigating to Man Overboard: Man Overboard Activated message, left, Navigation Page, center, Map Page, right. The victim is to the starboard of the vessel; the GPS shows which direction to steer to for the rescue. The man overboard position is also stored in the waypoint list for future reference.

  • Page 50: Navigate To A Point Of Interest

    3. Press and the unit will begin navigating to the cursor lo- MENU cation. The Map Page will display a dotted line from your current position to the cursor position. The Navigation Page displays a compass rose showing navigation information to your destination. See the following examples. The 15-mile zoom figure at left clearly shows the dotted course line connecting your current position to your destination.
  • Page 51 particularly handy when you are trying to retrace your trip and go back the way you came. On the screen, trails are represented by a solid line extending from the back of the current position arrow. The unit is set at the factory to automatically create and record a trail while the unit is turned on.

  • Page 52: Displaying A Saved Trail

    New trail, named "Trail 15," is created when Trail 14 is made inactive. Any new travel will be recorded in this trail, which is active and visi- ble. Trails do not need to be visible in order to be active. You can save and recall up to 10 different plot trails, which can also be copied to your MMC for archiving or for transfer to your MapCreate software.

  • Page 53: Navigating Trails

    To turn on trail display: 1. Press |↓ to MENU MENU RAILS 2. Press ↓|↓ to enter the Saved Trail list, then use ↑ or ↓ to select the desired Trail Name| 3. Press ↓ to |→ to . To return to the previous page, CTIVE ISIBLE press...
  • Page 54 3. Press → to |↓ to ELETE RAIL AVIGATE 4. Press ↓ to . The unit begins showing navigation infor- AVIGATE mation along the trail. NOTE: If you are already located at or near the beginning of your trail, the arrival alarm will go off as soon as you hit Enter.

  • Page 55: Navigate A Back Trail (Backtrack, Or Reverse)

    North Present position arrow Trail dotted line Trail point Navigate trail, map views: at left driver is northbound heading straight toward trail point 6. At right, northbound driver has reached point 6 and has turned west to follow trail. Track or compass heading indicator Trail Cross track waypoint...

  • Page 56: Transfer Custom Maps And Gps Data Files

    NOTE: If you are already located at or near the end of your trail, the arri- val alarm will go off as soon as you hit Enter. Just press EXIT clear the alarm and proceed. 5. Now, begin moving and follow your unit. 6.
  • Page 57 The Transfer My Data submenu asks if you want to save data to the MMC or load data from the MMC into the unit's memory. 2. The Transfer My Data menu includes a message which tells you if an MMC is present or not. If no MMC is present, you must first insert a card into the unit in order to activate the Load or Save commands.

  • Page 58: Cancel Navigation

    4. Loading to unit memory: There may be more than one GPS Data File (*.USR) on the card. To select a file, press to activate the selec- tion box, use ↓ or ↑ to highlight the file, then press to accept the selection.

  • Page 59: Section 4: Advanced Gps Operations

    Section 4: Advanced GPS Operations Find Distance From Current Position To Another Location 1. While on the Map Page press: |↓ to MENU ISTANCE 2. Center your cursor over the position you want to find the distance to. A rubber band line appears, connecting your current position to the cursor's location.

  • Page 60: Icons

    Icons Icons are graphic symbols used to mark some location, personal point of interest or event. They can be placed on the map screen, saved and re- called later for navigation purposes. These are sometimes referred to as event marker icons. This unit has 42 different symbols you can pick from when creating an icon.

  • Page 61: Navigate To An Icon

    1. Press |↓ to MENU ELETE CONS 2. Press ↓ to , or ELETE CONS ELETE YMBOL ELETE press Delete icons menu. The Delete All Icons command will ask if you are sure. Press ← to . All icons will be deleted from the map. The Delete by Symbol command will launch the Select Symbol menu.

  • Page 62: Create And Save A Route

    A route provides the automatic capability to navigate through several waypoints without having to reprogram the unit after arriving at each waypoint. Once programmed into the GPS unit, a route provides the option of navigating forward through the route waypoints or in reverse order (you can even begin navigating in the middle of a route!) Create and Save a Route You have the option of creating and editing a route in the unit, or you...
  • Page 63 2. Press ↓ to |↓ to . The Map Page ND OF OUTE appears with the cursor showing. Edit Route menu, left. Edit Route Waypoints menu, right, with Add From Map command selected. 3. Use the Zoom keys and arrow keys to move the map and cursor until the cursor is centered on the spot where you want your route to begin.

  • Page 64: Delete A Route

    Route creation sequence, continued: Fig. 4. Point (3) set at on-ramp turn. Fig. 5. Waypoint (4) set at highway exit to frontage road leading to river. Waypoint (5) ends the route at a tree stand in the hunting area. Fig. 6. Press EXIT to save the route and you return to this screen. 5.

  • Page 65: Edit A Route Name

    Edit a Route Name You can edit the route name if you wish. 1. From the , press or from the MENU AVIGATION press |↓ to MENU MENU OUTE LANNING 2. Press ↓ to route name| 3. Press ↑ or ↓ to change the first character, then press → to move the cursor to the next character and repeat until the name is correct, then press Return...

  • Page 66: Navigate A Route

    NOTE: When adding waypoints to a route, the inserted waypoints will ap- pear in the route in front of the waypoint you have selected. To in- sert waypoints at the end of the route, make sure to select "(End of route)"...

  • Page 67: Trails

    Figure 1. Figure 2. Figure 3. Figure 4. Navigating along a route: Fig. 1 shows the Navigation Page at the start of a route, heading straight for the first waypoint (Wpt 1). In Fig. 2, the traveler has arrived at Wpt 1; the arrival alarm has been triggered and the bearing arrow on the compass rose has turned to point toward Wpt 2, off to the east.

  • Page 68: Edit A Trail Name

    Edit a Trail Name To edit a trail name: press |↓ to |↓ to trail MENU MENU RAILS . Press ↑ or ↓ to change the first character, then press name| → to the next character and repeat until the name is correct. Press then to return to the previous page display.

  • Page 69: Utilities

    At left, Edit Trail Menu with Pattern option selected. At right, edited trail with dotted line pattern. Utilities Utilities are useful tools for traveling or for outdoor activities. Alarm Clock To get to the alarm clock menu: press |↓ to |↓...

  • Page 70: Edit A Waypoint (Name, Symbol And Position)

    To delete a waypoint from the map: 1. Use the arrow keys to select the waypoint with the cursor. 2. Press |→ to |← to . To return to ELETE AYPOINT the previous page and clear the cursor, press EXIT To delete all waypoints at one time: press |↓...

  • Page 71: Set A Waypoint By Average Position

    Set a Waypoint by Average Position This feature sets a waypoint at the current position after taking several position readings and averaging them. This boosts waypoint position accuracy by helping to eliminate errors caused by atmospheric condi- tions and other factors. 1.
  • Page 72 Notes www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 73: Section 5: System & Gps Setup Options

    Section 5: System & GPS Setup Options Alarms This unit has several GPS alarms. The factory default setting has all of these but the anchor alarm turned on. You can turn the alarms off and on and change their distance settings. You can set an arrival alarm to flash a warning message and sound a tone when you cross a preset distance from a waypoint.

  • Page 74: Auto Satellite Search

    ↓ ↑ 3. To change distance settings, scroll to select the desired cate- gory, then press → | to activate the distance dialog box. Press ↑ or ↓ to change the first character, then press → to the next character and repeat until the name is correct.

  • Page 75: Check Mmc Files And Storage Space

    GPS Auto Search on the Satellite Status Menu. You can force the unit to immediately kick into auto search mode. Here's how: ← From the Satellite Status page, |↓ to MENU GPS A EARCH Check MMC Files and Storage Space To check MMC Files: Press |↓...

  • Page 76: Configure Dgps

    Menus for changing Com Port settings. For connectors and wiring information for another device, see page 16. For assistance in configuring the unit to communicate with another device, consult the factory; customer service phone numbers are in the back of this manual. Also see the entries below for Configure DGPS and Configure NMEA.

  • Page 77: Configure Nmea

    • GGA transmits time, position, and fix related data. • GSA and GSV transmits fix mode, DOP values, and satellites in view information. , then use ↑ ↓ → ← to enter the station frequency, then 4. Press press 5. Press → to then use ↑...

  • Page 78: To Setup Loran Td

    To get to Coordinate System Selection: 1. Press |↓ to MENU MENU GPS S ETUP 2. Press ↓ to OORDINATE YSTEM This unit can show a position in degrees (36.14952°); degrees, minutes and thousandths of a minute (36° 28.700'); or degrees, minutes, seconds and tenths of a second (36°...

  • Page 79: Map Fix

    Configure Loran TD menu. Map Fix Map Fix is used with charts or maps. This system asks for a reference position in latitude/longitude, which you take from a marked location on the map. It then shows the present position as distance on the map from that reference point.

  • Page 80: Customize Page Displays

    It's shown as a ratio, for example 1:24000. Press and the unit re- EXIT turns to the Configure Map Fix screen. Configure a map fix so the unit can find your position on a printed chart or topographical map. Press → to to bring up the waypoint list.

  • Page 81: Customize Map Page

    Customize Map Page |↓ or ↑ to select Option While on the Map Page, press PAGES Name| DGPS Status The DGPS Status screen shows whether DGPS is off or on, and it de- scribes the quality of the DGPS signal. This screen is useful if you have to diagnose a DGPS problem.

  • Page 82: Simulating Trail Or Route Navigation

    to erase this menu. A message and tone appear periodically, warning you that the simulator is on. To turn the simulator off, repeat the above steps or turn the unit off. While in simulator mode, you can press to clear the steering and EXIT speed boxes from the screen while continuing the simulation.

  • Page 83: Map Auto Zoom

    1. Press |↓ to MENU MENU GPS S ETUP 2. A message appears, telling you to move the cursor near the desired location and press . When the message automatically clears, follow the message instructions. 3. In a moment, your present position marker arrow appears on the map in the location you selected with the cursor.

  • Page 84: Show Map Data

    Map Menu, left, Map Data Menu, right. Show Map Data From the Map Page, press |↓ to . Press to enter MENU selection list, and choose how much detail you ARTH ETAIL want, from Off (so the unit operates like a GPS plotter) to High. After the option is set, press repeatedly to return to the page display..

  • Page 85: Map Datum Selection

    100 mile zoom, the screen will show two rings with your current position in the center. The large ring touching the left and right sides of the screen is 100 miles in diameter (same as the zoom range). The second smaller ring is 50 miles in diameter (always 1/2 the zoom range).

  • Page 86: Map Detail Category Selection

    GPS Setup Menu, left, Map Datum Menu, right. Map Detail Category Selection This menu determines which of the mapping features are shown on the screen. This includes, waypoints, trails, icons, cities, highways, etc. You can selectively turn on or off any of these items, customizing the map to your needs.
  • Page 87 In Track Up mode, map shows "N" and arrow to indicate north. Map orientation at left is shown in north up and at right, track up. This is fine if you're always traveling due north. What you see to your left corresponds to the left side of the map, to your right is shown on the right side of the map, and so on.

  • Page 88: Navionics  Charts

    NOTE: In North Up and Course Up, the present position arrow appears in the center of the map page. In Track Up, the position arrow appears centered in the lower third of the page.  Navionics Charts  Your unit can display Navionics electronic charts on MMCs.

  • Page 89: Port Information

    3. To turn off a Navionics chart, From the Map Page, press |↓ to MENU . Use ↑ or ↓ to select |↓ to AVIONICS HOICE , then press EXIT EXIT OWRANCE Port Information Navionics charts contain Port Services information, represented by anchor icons on the map display.

  • Page 90: Tidal Current Information

    Port Services information screens. Tidal Current Information Navionics charts contain Tidal Current information, represented at large zoom ranges by a box icon with the letter "C." The icon stands for a Tidal Current Station location. An example is displayed at right. When you zoom in to a sufficiently small zoom range, the icon itself be- comes an animated arrow showing tidal current velocity and direction for the selected tidal station at the present time.

  • Page 91: Tide Information

    Current Information screen. The Tidal Current Information screen displays daily tidal current data for this station on this date at the present time. The graph at the top of the screen is an approximate view of the flood and ebb pattern for the day, from midnight (MN), to noon (NN) to midnight (MN).
  • Page 92 To view tide information: 1. Select a Tide Station icon: use the arrow keys to move the cursor over an icon. When it is selected, a pop-up name box appears. 2. After selecting the Tide Station icon, press to display the Tide Information screen.

  • Page 93: Pop-Up Help

    approximate view of the tidal range pattern for the day, from midnight (MN), to noon (NN) to midnight (MN). The dotted line across the graph is the Mean Lower Low Water line (MLLW). The height scale on the top right side of the graph changes, based upon the maximum range of the tide for that day.

  • Page 94: Reset Options

    The Position Pinning feature was developed so that when you stopped, the unit locked the present position on the GPS plotter until you moved a short distance or exceeded a very slow speed. The command remains available in the unit's software, but we recom- mend that you leave it in the default off (unchecked) mode.

  • Page 95: Screen Contrast And Brightness

    3. You can return to this command and press again to turn the fea- ture off. GPS Setup command, left; Require DGPS command on the GPS Setup Menu, right. Screen Contrast and Brightness To access the Screen menu, press MENU MENU Once in the Screen menu: To adjust the display's contrast:...

  • Page 96: Set Language

    To adjust the screen's display mode: Press ↓ to or ↓ to select mode| ↑ |press EXIT ISPLAY Display Mode menu. Set Language This unit's menus are available in 10 languages: English, French, Ger- man, Spanish, Italian, Danish, Swedish, Russian, Dutch and Finnish. To select a different language: 1.

  • Page 97: Show Waas Alarm

    To set the Month: Press ↓ to . Press ↑ or ↓ to select the ONTH month, then press To set the Day: Press → to . Press ↑ or ↓ to select the day, then press To set the Year: Press → to .

  • Page 98: Sounds And Alarm Sound Styles

    System Setup command left; Software Information command, center. At right, the Software Information screen. 1. Press |↓ to |↓ to MENU MENU YSTEM ETUP OFTWARE 2. Read the information displayed on the screen. 3. To return to the last page displayed, press EXIT EXIT EXIT...

  • Page 99: Track Smoothing

    Track Smoothing This is a factory setting on the GPS Setup menu that should always be left on. When stopped or traveling at slow speeds (such as walking or trolling), Track Smoothing prevents wandering of trails, the steering arrow, compass rose and a map in track-up mode. Track Smoothing option, turned on.

  • Page 100: Update Trail Option

    Update Trail Option This menu lets you change the way the trail updates occur. WARNING: If you uncheck the Update Trail option, automatic trail creation and recording will be turned off. You must turn it back on to record trails. The default setting is on. From the Trails Menu, press →...

  • Page 101: Delete Trail

    Specific Trail Options Delete Trail To delete a specific trail: From the Trails Menu, press ↓ to Trail Name| . The Edit Trail menu appears as seen in the following fig- ure. Press → to |← to ELETE RAIL Edit Trail menu. New Trail To manually start a new trail, in the Trails Menu, make sure RAIL...
  • Page 102 System Setup Menu, left, Units of Measure Menu, right. To set Speed/Distance Unit of Measure: Press ↑ or ↓ to change the Speed/Distance, then press . After the option is set, press to return to the page display. EXIT EXIT EXIT To set Heading: Press ↑...

  • Page 103: Section 6: Searching

    Section 6: Searching NOTE: The background map loaded in your unit lets you to search for U.S. Interstate Highway exits and exit services, as well as some land features, including cities and lakes. For a full set of searchable land features, including landmarks, streets, addresses and Points of In- terest, you must load your own high-detail custom map produced with our MapCreate 6 software.
  • Page 104 2. Press to search in the Address field. 3. To enter an address number, press ↑ or ↓ to change the first number, then press → to move the cursor to the next number and re- peat until the number is correct, then press Find Address Menu.
  • Page 105 If you select yes, there are two options: A. You can spell out the city name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press .

  • Page 106: Find Any Item Selected By Map Cursor

    Address search result list, left. At center, Map Page showing location of the address on the map, highlighted by cursor. At right, after the address is located, you can navigate to it ("D" symbol for destination). 8. To navigate to the address, press and the unit will MENU EXIT...

  • Page 107: Find Interstate Highway Exits

    A POI selected by the cursor, left, POI information screen, right. NOTE: Since the Go To Waypoint command is highlighted, you can navi- gate to the selected POI by pressing while in the POI EXIT Waypoint Information screen. Find Interstate Highway Exits 1.
  • Page 108 Find By Name menu. 3. Once you have selected a highway name you can then select an exit. Press ↓ to switch to the Exit List, then press ↓ or ↑ until you highlight the exit, then press ENT. Find Exit menu, with an exit selected in the Exit List. 4.

  • Page 109: Find Map Places Or Points Of Interest (Poi)

    Tip: You can also look up some additional information on the Exit Serv- ices located near this exit. Press ↓ to |press ↓ or ↑ to select ERVICES Service Name| Exit Information screen, left; general location and amenities information, at right. Find Map Places or Points of Interest (POI) ↓...
  • Page 110 appear. Press ↓ or ↑ to the selected POI and press to call up the POI's Waypoint Information screen. Find by Nearest option, left, Calculating screen, center, POI list, right. 3. Search by name of POI. Press . There are two options: A. You can spell out the POI in the top selection box.

  • Page 111: Find Streets Or Intersections

    "Go To" POI option, left, "Find on Map" POI option, right. Find Streets or Intersections Find a Street 1. From the Map Page, press |↓ to and the Find MENU TREETS Streets Menu appears. Find Streets command, left, Find Streets menu, right. 2.
  • Page 112 Find Street By Name menu. Spell out name in the top box, or select from the list in the lower box. 3. The Find Streets menu reappears with the street you're searching for in the First Street box. (In this example, it's 80th Street.) To search for that street, press ↓...
  • Page 113 Map Page showing results of a street search. The cursor points to the located street. If you want to navigate to the found street at the cursor location, just press MENU EXIT Find an Intersection You must enter one street in the First Street dialog box and enter the next street in the Second Street dialog box.
  • Page 114 5. The Find Streets menu reappears with the first and second street dialog boxes filled in. In this example, we selected 71st Avenue as our second street. You could now use similar techniques to select a city or Zip code, but your search will probably be faster if you leave those boxes blank.

  • Page 115: Find Waypoints

    If you want to navigate to the found intersection, just press MENU EXIT Find Waypoints 1. Press 2. If searching for the waypoint By Name, press . If searching for the Nearest waypoint, press ↓ to . (To search by name, |ENT EAREST jump to step 5.)
  • Page 116 Waypoint Information screens with the Go To Waypoint command se- lected, left, and the Find on Map command selected, right. To clear these menus and return to the previous page, press EXIT peatedly. 5. If you're looking by name, there are two options: A. You can spell out the name in the top selection box.

  • Page 117: Section 7: Supplemental Material

    Section 7: Supplemental Material Datums Used by This Unit WGS 1984 Zaire, Zambia and Australian Geodetic Default Zimbabwe 1984 - Australia & Tasmania Adindan Arc 1950 - Botswana Mean for Ethiopia, Ayabelle Lighthouse - Sudan Arc 1950 - Burundi Djibouti Adindan Arc 1950 - Lesotho Bellevue (IGN) -...
  • Page 118 European 1950 L.C. 5 Astro 1961 Chua Astro England, Channel Cayman Brac Island Paraguay Islands, Ireland, Scotland, Shetland Leigon Corrego Alegre Islands Ghana Brazil European 1950 Liberia 1964 Dabola Finland, Norway Liberia Guinea European 1950 Luzon Djakarta (Batavia) Greece Philippines (Exclud- Indonesia (Sumatra) ing Mindanao) European 1950...
  • Page 119 Naparima BWI North American 1927 Old Hawaiian Trinidad & Tobago Canada (Alberta, Mean for Hawaii, British Columbia) Kauai, Maui, Oahu North American 1927 Mean for Antigua, North American 1927 Old Hawaiian Barbados, Barbuda, Canada (Manitoba, Hawaii Caicos Islands, Ontario) Cuba, Dominican Old Hawaiian Republic, Grand North American 1927...
  • Page 120 Point 58 Tokyo South American 1969 Mean for Japan, Ko- Sweden Chile rea, Okinawa Santo (DOS) South American 1969 Tokyo 1965 Espirito Santo Colombia Japan Island South American 1969 Tokyo Sao Braz Ecuador Korea Azores (Sao Miguel, Santa Maria Islands) South American 1969 Tokyo Ecuador (Baltra, Ga-...

  • Page 121: Fcc Compliance

    FCC Compliance This device complies with Part 15 of the U.S. Federal Communi- cations Commission (FCC) Rules. Operation is subject to the fol- lowing two conditions: (1) this device may not cause harmful in- terference, and (2) this device must accept any interference re- ceived, including interference that may cause undesired opera- tion.
  • Page 122 Notes www.Busse-Yachtshop.de email: info@busse-yachtshop.de...

  • Page 123: Index

    Index Accessories, 1, 3, 4, 6, 11, 16, 17, 21, Icons, 3, 5, 8, 24, 31, 32, 33, 50, 54, 55, 32, 50, 97 80, 83, 84, 85, 86, 88 Sec. 2, Installation & Accessories, 11 Creating, 54 Alarm Clock, 63 Deleting, 54 Alarms, 25, 35, 48, 50, 61, 67, 68, 76 Navigate, 55...
  • Page 124 49, 55, 58, 60, 68 A Route, 60 Satellite Search, 68 A Trail, 47 Searching, 2, 36, 37, 38, 40, 41, 42, 44, Cancel, 25, 35, 43, 44, 48, 50, 52, 60 53, 97, 98, 99, 100, 101, 102, 103, To Cursor Position, 43 104, 105, 106, 107, 108, 109, 110 To Icon, 55...
  • Page 125 101, 103, 104, 109, 110 Delete, 63 Zooming, 4, 24, 29, 30, 35, 36, 47, 57, Edit, 64 Search, 109 Auto Zoom, 77 Select, 64 www.Busse-Yachtshop.de email: info@busse-yachtshop.de...
  • Page 126 Notes www.Busse-Yachtshop.de email: info@busse-yachtshop.de...
  • Page 127 THIS IS A LEGAL AGREEMENT BETWEEN THE END-USER WHO FIRST PURCHASES THIS PRODUCT AS A CONSUMER ITEM FOR PERSONAL, FAMILY, OR HOUSEHOLD USE ("YOU") AND LOWRANCE ELECTRONICS, INC., THE MANUFACTURER OF THIS PRODUCT ("WE", "OUR", OR "US"). USING THE PRODUCT ACCOMPANIED BY THIS LICENSE AGREEMENT CONSTITUTES ACCEPTANCE OF THESE TERMS AND CONDITIONS.

  • Page 128: Databases Limited Warranty

    DATABASES LIMITED WARRANTY "We", "our", or "us" refers to Lowrance Electronics, Inc., the manufacturer of this product. "You" or "your" refers to the first person who purchases the prod- uct as a consumer item for personal, family, or household use. The Databases Limited Warranty applies to the one or more databases that your product may contain.
  • Page 129 LOWRANCE ELECTRONICS FULL ONE-YEAR WARRANTY "We," "our," or "us" refers to LOWRANCE ELECTRONICS, INC., the manufacturer of this product. "You" or "your" refers to the first person who purchases this product as a consumer item for personal, family or household use.

  • Page 130: How To Obtain Service

    800-324-1356 8 a.m. to 5 p.m. Central Standard Time, M-F Lowrance Electronics may find it necessary to change or end our ship- ping policies, regulations, and special offers at any time. We reserve the right to do so without notice.
  • Page 131 Accessory Ordering Information for all countries To order Lowrance GPS accessories such as computer cables or MMC cards, please contact: 1) Your local marine dealer or consumer electronics store. Most quality dealers that handle marine electronic equipment or other consumer electronics should be able to assist you with these items.

  • Page 132: Visit Our Web Site

    Visit our web site: Lowrance Pub. 988-0151-191 © Copyright 2003 All Rights Reserved Printed in USA 121903 Lowrance Electronics, Inc. www.Busse-Yachtshop.de email: info@busse-yachtshop.de...
