Summary of Contents for Accusys ExaSAN A12S2-PS

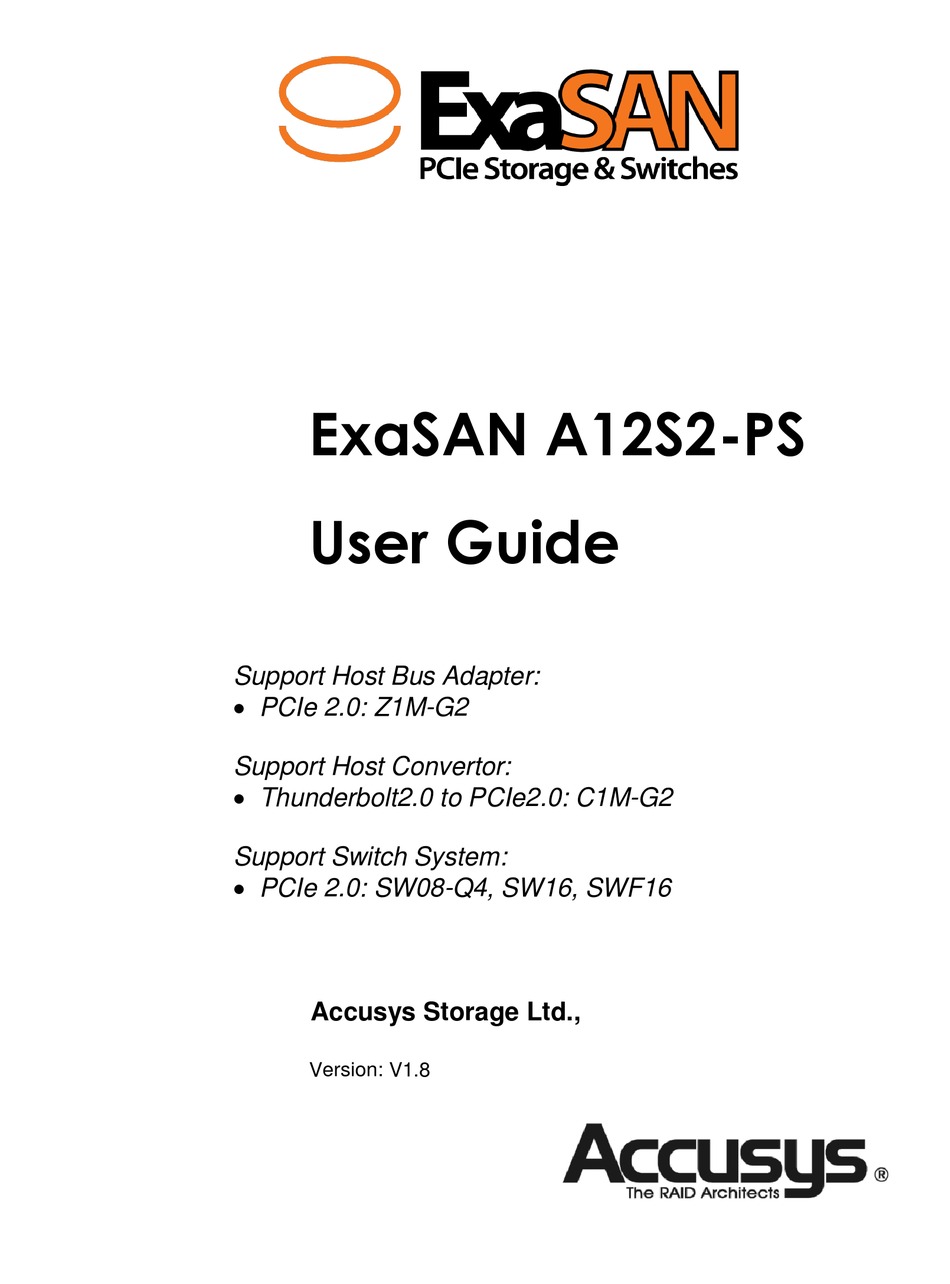

  • Page 1 ExaSAN A12S2-PS User Guide Support Host Bus Adapter:  PCIe 2.0: Z1M-G2 Support Host Convertor:  Thunderbolt2.0 to PCIe2.0: C1M-G2 Support Switch System:  PCIe 2.0: SW08-Q4, SW16, SWF16 Accusys Storage Ltd., Version: V1.8...
  • Page 2 Revision Sheet Revision Sheet Release Date Revision Description V1.0 07/30/2011 Initial release on CD. V1.1 08/13/2012 Modify some wording and contents V1.2 09/13/2012 Add a half-high bracket picture in the packing list and modify the wording on the section 1.3.2 V1.3 12/19/2012 Modify page1-14, item 6 PCIe port expansion.
  • Page 3: Notice

    This guide contains instructions for installing and using the ExaSAN A12S2-PS system and RAID (Redundant Array of Independent Disks) technologies and RAIDGuard X (ExaSAN’s RAID management software).
  • Page 4: Trademarks

    All contents of this manual are copyrighted by Accusys, Inc. The information contained herein is the exclusive property of Accusys, Inc. and shall not be copied, transferred, photocopied, translated on paper, film, electronic media, or computer-readable form, or otherwise reproduced in any way, without the express written permission of Accusys Inc.
  • Page 5: Table Of Contents

    Introducing ExaSAN PCIe 2.0 Storage System ..............1-1 System Overview ......................... 1-1 1.1.1 What is the ExaSAN Solution .......................1-1 1.1.2 What is the ExaSAN A12S2-PS Solution ..................1-2 1.1.3 ExaSAN A12S2-PS Components and Accessories ..............1-3 1.1.3.1 ExaSAN PCIe RAID Disk System ..................1-3 1.1.3.2...
  • Page 6 Operating Environment ...................... 2-2 Security ........................... 2-2 Installing the ExaSAN A12S2-PS ....................3-1 Installing the System ......................3-1 3.1.1 Installing Disk Drives ........................3-1 3.1.2 Installing the HBA Card ........................3-2 3.1.3 Connecting the HBA to the A12S2-PS System................3-4 3.1.4 Installing the rail on A12S2-PS System ..................3-5 Powering the System On and Off ..................
  • Page 7 4.1.7.6 Health Center ........................4-28 4.1.7.7 Unlock Drives ........................4-29 4.1.8 Updating the ExaSAN RAID system Firmware ..............4-31 4.1.8.1 Preparing the Firmware Update Files................4-31 4.1.8.2 Installing the Firmware Update Files ................4-31 RAID Overview ..........................5-1 How RAID Works ........................5-1 Data Storage Methods ....................... 5-1 5.2.1 Data Striping ...........................5-1 5.2.2...
  • Page 8: Introducing Exasan Pcie 2.0 Storage System

    1. Introduction Introducing ExaSAN PCIe 2.0 Storage System User Guide...
  • Page 9: System Overview

    ExaSAN is a complete solution that includes the PCIe RAID system, cable and HBA card. Figure 1 below depicts the ExaSAN A12S2-PS system solution architecture. Note that it can be expanded from one RAID system to three systems (daisy-chaining from 1x RAID controller).
  • Page 10: What Is The Exasan A12S2-Ps Solution

    1.1.2 What is the ExaSAN A12S2-PS Solution The ExaSAN A12S2-PS is a 2U12Bay disk array system designed for all high-end post production storage usage, with the latest interface technology PCIe 2.0 and innovative green design, supports RAID level 0, 1, 5, 6, 0+1, high speed 6Gb SAS drives, and high capacity SATA II drives.
  • Page 11: Exasan A12S2-Ps Components And Accessories

    Note that the PCIe slots on some motherboards are for graphics cards only. Check your motherboard documentation or verify with the motherboard vendor for compatibility with the Accusys-supplied HBA. Also note that some PCIe x4 or x8 slots only User Guide...
  • Page 12: Qsfp (Quad Small Form-Factor Pluggable) Pcie Copper Or Optical Cables

    1.1.3.4 QSFP (Quad Small Form-factor Pluggable) PCIe Copper or Optical Cables A 2m QSFP Copper Cable is included in your Accusys RAID disk system package. It is used to connect the host systems to the storage system. Use the copper cable for distances up to 5 meters.
  • Page 13: Power Cord & Power Convertors

    1. Introduction 1.1.3.5 Power Cord & Power convertors Two AC Power Cords are included in the SWF16 package. We also provide three types of power convertors – EK, AU, EU, in addition to the US standard power cord. 1.1.3.6 Rail and Rail Extender This accessory is included in your RAID system package.
  • Page 14 1. Introduction  Variable stripe sizes: 8, 16, 32, 64, 128, 256 (KB)  Selective initialization method with background initialization  Online RAID set expansion and level migration  Controller and Disk Cache Control to optimize read/write performance  Support write-back and write-through caching ...
  • Page 15: Unpacking The System

    Optical cable support Length: 10M, 30M, 50M, 100M 1.2 Unpacking the System Your ExaSAN A12S2-PS is shipped in special packaging to provide protection during transportation, as well as to facilitate simple and safe removal from the carton(s). Note that different components may be shipped in separate cartons.
  • Page 16: What's In The Box

    You should have the items as described in the sections below. Contact your Accusys System Integrator/Value Added Reseller or Accusys Customer Service (see Appendix C “Customer Service and Technical Support” for more information) to report any missing item.
  • Page 17: Exasan Accessories

    1. Introduction 1.3.2 ExaSAN Accessories The Accessories package includes the following items. These items can also be ordered, packaged, and shipped separately from Accusys. 1. QSFP Host Bus Adapter (x1) 2. Half-high bracket (x1) for full-high bracket replacement 3. 2M QSFP copper cable (x1) 4.
  • Page 18 1. Introduction Item Name Description Steady Blue indicates the controller A is working normally. Flashing Blue indicates the host is accessing. Controller A Status Steady Red indicates the controller A has failed. Flashing Red Other error. System Fan Steady Blue indicates the fan modules User Guide Page 1-10...
  • Page 19: Beeper Codes

    1. Introduction are working normally. Steady Red indicates one or more of the fan modules failed. Steady Blue indicates the system temperature is under the preset value. System Temperature Steady Red indicates the system temperature is over the preset value. Steady Blue indicates the subsystem power supplies are working normally.
  • Page 20: Disk Mapping

    1. Introduction etc. Create array successfully One short beep Open the Beeper setting Two short beeps Memory test error Regularly repeating three rapid short beeps 1.5.1.3 Disk Mapping Disk 1 Disk 4 Disk 7 Disk 10 Disk 2 Disk 5 Disk 8 Disk 11 Disk 3...
  • Page 21: A12S2-Ps Rear Panel

    1. Introduction Original Drives: Steady Green Migrating Drives > Original Drives  Migrating Drives: Rotating Green & Red  Original Drives: Steady Green Migrating Drives < Original Drives  Migrating Drives: Disk Migration Flashing Blue Rotating Green & Red  Original Drives: Steady Green Migrating Drives = Original Drives...
  • Page 22 1. Introduction Name Description Connects to a power cable and power Power Supply AC In source. Removable redundant power supply 1  Steady Green LED indicates the Power supply 1 power supply is working normally.  Steady Red LED indicates the power supply has failed.
  • Page 23: A12S2-Ps Sas Jbod Rear Panel

    1. Introduction Flashing Blue indicates controller accessing is in progress Controller Provides access to the hard disk drives. Prevents the disk array from Cooling fan 2 overheating. Removable redundant power supply 2  Steady Green LED indicates the Power supply 2 power supply is working normally.
  • Page 24 1. Introduction Prevents the disk array from overheating.  Steady Green LED indicates the Cooling fan 1 fan modules are working normally.  Steady Red LED indicates that a fan module has failed. Indicates the controller status  Flashing Green indicates the Heartbeat LED controller is active ...
  • Page 25: How To Connect Multiple Jbod

    1. Introduction 1.5.1.7 How to Connect Multiple JBOD Please note the follow diagram when connecting up to 3JBOD to a single RAID system. Insure that the mini SAS cable is on the expansion port - “EXP” port on the RAID storage when connecting to the right SAS port on the JBOD From the JBOD, connect on the “EXP”...
  • Page 26: Exasan Qsfp Host Bus Adapter (Hba)

    Off (no light at all) indicates the jumper pin in question is set to “On” position. In this state, the card is ready for DAS direct connection with the ExaSAN A12S2-PS.  Solid amber indicates the jumper pin in question is set to “1” position. In this state, the HBA card is ready for a SAN connection.
  • Page 27 1. Introduction indicates a link with trouble. Flashing blue while there are data Access LED Indicator access activities with the connected device. User Guide Page 1-19...
  • Page 28: Preparing To Install Exasan A12S2-Ps

    2. Preparation Preparing to Install ExaSAN A12S2-PS User Guide...
  • Page 29: Precaution For Handling The System

    2. Preparation Preparing to Install ExaSAN A12S2-PS To ensure safe and smooth operation of your ExaSAN A12S2-PS, it is essential that you choose an appropriate location for the system, and provide an appropriate operating environment and adequate power for all components of the system. As you plan for installation, follow the guidelines below to ensure that the system and its environment are safely and appropriately positioned for efficient operation and service.
  • Page 30: Operating Environment

    Operating humidity: 5-85%, non-condensing d. Storage humidity: 0-95%, non-condensing 2.5 Security To ensure the security of the ExaSAN A12S2-PS, make certain that the chosen location is secure and that only authorized staff members or technicians can gain access to this location.
  • Page 31: Installing The Exasan A12S2-Ps

    3. Installation Installing the ExaSAN A12S2-PS User Guide...
  • Page 32: Installing The System

    3. Installation Installing the ExaSAN A12S2-PS Follow the steps in this chapter to prepare your ExaSAN A12S2-PS system for installation. 3.1 Installing the System Follow the instructions in this section to hook up all your hardware components of the ExaSAN A12S2-PS system. Do not turn the power of any individual component on until instructed.
  • Page 33: Installing The Hba Card

    3.1.2 Installing the HBA Card Before the ExaSAN A12S2-PS is ready to be connected and powered on, you must install the HBA card in the workgroup client system. The HBA card is compatible with PCIe x4, x8, and x16 slots. If a choice is given, use the fastest PCIe slot available. Although the HBA card is compatible with both PCIe 1.1 and 2.0 standards, only the latter is...
  • Page 34 3. Installation 4. Locate the available PCIe slot; remove the blank plate if one is present, save the screw for later use. 5. Position the connector of the card over the slot, insert the connector into the slot, press gently but firmly until it is securely seated. User Guide Page 3-3...
  • Page 35: Connecting The Hba To The A12S2-Ps System

    3.1.3 Connecting the HBA to the A12S2-PS System 1. Connect the HBA to the ExaSAN A12S2-PS with a QSFP PCIe cable. Insert one end of the QSFP cable into one of the host module ports on the rear panel of A12S2-PS.
  • Page 36: Installing The Rail On A12S2-Ps System

    Your disk array is designed to be mounted in 2U slot on a standard 19-inch rack. The ExaSAN A12S2-PS is shipped with the controller installed, and ready to be mounted. It is recommended to mount the disk array before installing the hard disk drives.
  • Page 37 3. Installation 2. Slide the disk array into the rack and secure into place with the fixing screws. To mount the disk array in a rack: 1. Attach eight rack nuts into the rack, making sure that they correspond with the mounting points on the rails.
  • Page 38: Powering The System On And Off

    Before powering on, make sure that all cables and cords are properly installed and connected. 1. If you have not yet done so, plug the power cords for ExaSAN A12S2-PS Storage System to a power source. 2. Turn power on for the ExaSAN A12S2-PS by switching on the Power button. Wait for the Controller A status (refer to Section 1.5.1.1, “A12S2-PS Front Panel”) to turn into a...
  • Page 39: Install Driver And Gui

    (http://www.accusys.com.tw/support/download.html). If you need more info or tech support, please contact reseller of ExaSAN product or Accusys FAE Dept. (see Appendix C “Customer Service and Technical Support” for more information) Note ...
  • Page 40: Installing Driver And Gui On Linux

    3. Installation 3.3.1.2 Installing driver and GUI on Linux Following procedures contain 2 procedures;  Driver installation  GUI RAIDGuardX installation Driver Installation You must have your Linux system with developmental environment and kernel source, in other words you should select the adequate packages on the menu list during installation. Check “Development Tools”...
  • Page 41 3. Installation The driver (ACS6x) should be now loaded in Linux driver module list. Note: 1. Login as root, install driver will need root permission. 2. If you want to start the driver automatically, please put the compiled driver (ACS6x.ko) to directory as follows: #cp ACS6x.ko /lib/modules/ “uname –r”/kernel/drivers/scsi [For RHEL, CentOS, etc]...
  • Page 42 Accusys website: http://www.accusys.com.tw/support/download.html. GS location: /{ExaSAN model}/GUI/Server/Linux.zip GC location: /{ExaSAN model}/GUI/Client/x.x.x.zip 2. Create folder “Accusys”, and unzip GS/GC files to subfolder GS and GC. 3. Perform GS, open a terminal console, and enter the following commands: # cd /Accusys/GS/Linux/X.X.X # chmod -R 777 SourceCode # cd /Accusys/GS/Linux/X.X.X/SourceCode/...
  • Page 43 If your Java version is earlier than 1.6, please go to www.java.com to upgrade. If version is ok, please enter the following commands: # cd /Accusys/GC/x.x.x./x.x.x/ # java –jar RAIDGuardX.jar Now you can add controller to config and manage ExaSAN system. User Guide...
  • Page 44: Confirm The Exasan Raid System Driver On Os

    3. Installation 3.3.2 Confirm the ExaSAN RAID system driver on OS 3.3.2.1 Confirming the ExaSAN RAID system driver on Mac After installing the ExaSAN RAID system HBA driver on the Mac host server, confirm the driver has been properly installed with the following steps. 1.
  • Page 45: Confirming The Exasan Raid System Driver In Windows

    3. Installation 3.3.2.2 Confirming the ExaSAN RAID system driver in Windows After installing the ExaSAN RAID system HBA driver on a Windows based host server, confirm the driver has been properly installed. Go to Control Panel -> System Properties -> Hardware -> Device Manager (depending on the version of Windows, the path may vary).
  • Page 46: Create Array

    3. Installation 3.4 Create Array Array can be easily created by RAIDGuard X (refer to Section: Creating an Array). Make sure LUN mapping (refer to Section: LUN mapping) is setup, and then volume should be appeared on OS, now, enjoy the high speed access to new ExaSAN Volume. 3.4.1 Check on new Volume in Disk Utility of MacOS 3.4.2 Check on new volume in Disk Management of Windows 3.4.3 Check on new volume by fdisk command on Linux...
  • Page 47 4. How to Use Using RAIDGuard X User Guide...
  • Page 48: Using Raidguardx Gui

    4. How to Use Using RAIDGuardX GUI 4.1 RAIDGuardX Overview RAIDGuardX is a powerful GUI management tool, which support local and remote monitoring of multiple controllers that are connected to the same network. RAIDGuardX have to work with 2 components: RAIDGuardX-Server and RAIDGuardX-Client. RAIDGuardX-Server: Communicates with RAIDGuardX-Client and RAID controller, it MUST be installed on which host directly connected to RAID system.
  • Page 49: Raidguardx At A Glance

    MacOS: save in /Applications/RAIDGuard X/Log Windows: save in /program file/accusys/exasan/log Linux: save in /{RAIDGuard X install folder}/log Please send the log file to your vendor or Accusys tech support team to analyze. support@accusys.com.tw User Guide...
  • Page 50: Raidguard X Main Console

    4. How to Use 4.1.1.2 RAIDGuard X main console Function Description Add controller into RAIDGuard X (for DAS only) Monitoring Buttons Remove controller from RAIDGuard X Create array in the RAID system Delete array in the RAID system Email to set email notification Drive Lag Proof Enable/ Disable NCQ mode Enable/ Disable SMART Mode Enable/ Disable...
  • Page 51: Adding Controller

    4. How to Use 4.1.2 Adding Controller RAIDGuardX can manage the RAID controller locally or remotely via intranet access. Two configurations to add RAID controller into RAIDGuardX Client. 1) DAS - Click icon Add Controller in the main page of RAIDGuardX Client locally. 2) SAN - Clicking Manually Add Controller in controller tab to add remotely.
  • Page 52: San - Add Controller Remotely

    4. How to Use (2) SAN – add controller remotely In a SAN connection, you can manually add controller via network. 1. Click on Controller on the menu bar and select Manual Add controller. 2. Enter the Server or Switch IP. 3.
  • Page 53 4. How to Use efficient array type but offers no fault-tolerance RAID 1 Mirroring, All disks have the same Total of one drive data RAID 5 Block-level striping with distributed Total of all drives minus one parity, one disk fault tolerant drive RAID 6 Block-level striping with double...
  • Page 54: Creating An Array

    4. How to Use 4.1.4 Creating an Array When the RAID controller is first configured, an array needs to be set up. This array tells the controller how many disks to use and what their function should be. Follow the steps below to create an array: 1.
  • Page 55 4. How to Use and over 2 Terabyte function is used. For other OSs, please select 512 bytes (default). 4. Click on the drives to be added to the array. You can also click on Select all spare drivers. Note Unselected drives will be set to Hot (Global) spare drive.
  • Page 56 4. How to Use Optional: From the drop down menu, select either On-the-fly initialization or Performance evaluation. On-the-fly initialization – ExaSAN RAID systems record the initialized sectors in the bitmap. All sectors are initialized only once. The entire initialization process will be completed faster and the performance will be better during the initialization.
  • Page 57 4. How to Use Array initializing percentage After the array has been created, the Main screen displays the newly created array with an array number. The array initialization progress is also displayed. Arrays are assigned numbers in the order they are created. For example, the first array created is labeled with the “1”...
  • Page 58: Email Notification

    4. How to Use Caution When you delete an array, all data on the hard disk drives will be lost. 4.1.5 Email Notification It may be necessary for network administrators to receive e-mails in the event of errors, alerts, and changes to the RAID array. These alerts can be e-mailed to a maximum of 20 e-mail addresses.
  • Page 59: Preference

    4. How to Use 4.1.6 Preference 4.1.6.1 Disk Lag Proof Mode This feature ensures the stability and continuity of the RAID performance. In RAID 5 and RAID 6, DLP prevents the aging or slow responds of a single hard disk from influencing the overall performance.
  • Page 60: Ncq

    4. How to Use 4.1.6.2 NCQ NCQ (Native Command Queuing) – This mode is designed for increasing disk drive access on SCSI and SATA disk drives. It can do this under certain situations by allowing the individual hard disk to internally optimize the order in which it executes the read and write requests it receives.
  • Page 61: Beeper

    4. How to Use Different hard disk models and brands will have different attributes in the reporting of S.M.A.R.T. Event message will show all messages generated by the hard disk. The option of time to check disk’s S.M.A.R.T are 1,15,30,60 minutes and 2,4,8 hours. We strongly suggest set to 8 hours.
  • Page 62: Cache

    4. How to Use 4.1.6.6 Cache Controller Cache – Check this box to enable the controller cache. This speeds up the data transfer to and from the disks. Caution Data in cache may be erased if power down unexpected. Suggest using a UPS (uninterruptible power supply) to prevent this scenario.
  • Page 63: Misc

    Note: Do not lose your password. If it is lost, you will have to contact your agent or the Accusys Support Team. SNMP Notification – Select SNMPv1 or SNMPv2 to send notifications for error conditions and possible problems to the SNMP servers. SNMP stands for Simple Network Management Protocol.
  • Page 64: Slicing

    4. How to Use 4.1.7 Option The Options menu provides the methods for managing array. Click on the radio button for the required option, and then click Next to proceed. 4.1.7.1 Slicing ExaSAN RAID slicing overcomes the inherent design of how data is stored on an HDD or RAID system by subdividing a RAID array into segments, or slices.
  • Page 65 4. How to Use Note You can create up to 16 slices per array and 64 LUNs on the controller. The total number of unique arrays’ slices cannot exceed 16. Follow the steps below to select an array to slice or merge. 1.
  • Page 66 4. How to Use 3. Click on the slice to create, and use the slider bar or buttons to adjust the size. Click OK to confirm. 4. Check the Confirm box and click OK. Note Slices must be adjusted in order; for example - Slice 0, 1, 2, etc. User Guide Page 4-19...
  • Page 67: Lun Map

    4. How to Use 4.1.7.2 LUN Map LUN, which stands for Logical Unit Number, is used to identify a logical unit in computer storage. When creating an array, you may select Assign LUN automatically to automatically assign a LUN to the new array. If Assign LUN automatically is not selected, you need to assign the LUN manually using LUN map.
  • Page 68: Expansion

    4. How to Use 4.1.7.3 Expansion Expansion adds spare disks or new hard drives to an existing array. This is no need to create a new array or stop an array; you may add new disks online while the array is in use.
  • Page 69 4. How to Use 3. The Main array information screen will indicate that the array is currently under expansion. User Guide Page 4-22...
  • Page 70: Migrations

    4. How to Use 4.1.7.4 Migrations Different from Expansion, which enlarges an array by adding hard drives to a fixed RAID level, Migration changes the RAID level of an array. It allows live changes to the RAID without the need to delete the array and rebuild. This can be useful when new drives have been added, and a new array type needs to be created.
  • Page 71 4. How to Use 2. Check the Confirm box and click Migrate. 3. The main array information screen will indicate that the array is currently migrating. User Guide Page 4-24...
  • Page 72: Snapshot

    4. How to Use 4.1.7.5 Snapshot A snapshot is initialized with a data duplicate from a source to a target. The mirror snapshot is offered by the ExaSAN RAID controller. Note The source and target volume of the snapshot must be identical. Before setting a snapshot, you need to set the slice in the array.
  • Page 73 4. How to Use Delete Shot Delete the selected shot. 1. Select the Delete Shot function from the drop down menu. 2. Select the required shot by clicking on the Shot No. radio button. From the respective drop down menus, select the source volume and destination volume. Unavailable shots are grayed out.
  • Page 74 4. How to Use Resynchronize Shot Resynchronize the selected shot. This function can speed up mirroring for previous snapshots. 1. Select the Resynchronize shot function from the drop down menu. 2. Select the required shot by clicking on the Shot No. radio button. You can only select split shot for resynchronization.
  • Page 75: Health Center

    4. How to Use 4.1.7.6 Health Center To ensure the accuracy of the RAID parity data, ExaSAN RAID controller offers Background checking and “Rebuild parity data”. During checking or rebuilding parity, the performance of the array will be affected. You may check the progress of in the Main view or in the Health Center.
  • Page 76: Unlock Drives

    4. How to Use 4.1.7.7 Unlock Drives The RAID controller may lock abnormal drives in an array. You may unlock these drives and rejoin them in an array. Drives may be locked with one of two conditions: 1. If a drive returns data too slowly, the controller determines the drive is experiencing a fault and executes Drive Drop.
  • Page 77 4. How to Use 2. Check the Confirm box and click Unlock Drive. User Guide Page 4-30...
  • Page 78: Updating The Exasan Raid System Firmware

    ExaSAN RAID system. These can be viewed in the Main menu firmware tab. 2. Visit the website below: 3. http://www.accusys.com.tw/support/download.htm, Under the “Download” link, you can click the folder to look for your ExaSAN system model 4. Proceed to the next section to update the firmware files.
  • Page 79: Raid Overview

    5. RAID RAID Overview User Guide...
  • Page 80: How Raid Works

    RAID RAID Overview This chapter gives an overview of RAID storage system within the context of recommended setting of ExaSAN based SAN environment to provide fast, shared storage to client computers. 5.1 How RAID Works RAID, or Redundant Array of Independent Disks, is a data-storage technology that spreads data across multiple drives.
  • Page 81: Data Parity

    RAID synchronized; that is, anything written to one disk is also written to the other. Mirrored data is very secure because if one disk fails, the data is available from the other disk. 5.2.3 Data Parity The controller can generate “parity” for the ability to protect and rebuild data. Parity protects stored information without requiring data mirroring.
  • Page 82: Raid 0+1: Striped Set With Mirroring

    RAID RAID 6 is no more space inefficient than RAID 5 with a hot spare drive when used with a small number of drives, but as arrays become bigger and have more drives the loss in storage capacity becomes less important and the probability of data loss is greater. RAID 6 provides protection against data loss during an array rebuild, when a second drive is lost, a bad block read is encountered, or when a human operator accidentally removes and replaces the wrong disk drive when attempting to replace a failed drive.
  • Page 83 Appendices Appendices User Guide Page 1...
  • Page 84 Appendices Appendix A: FAQs 1. Q: Why is my disk LED status RED? A: This is likely caused by a faulty hard drive. Replace the faulty drive as soon as possible to protect your data. 2. Q: After an array has been created in RAIDGuard X, but the host does not find the array volume.
  • Page 85 10. Q: When inserting the HDD into my A12S2-PS, why does RAIDGuard X show the HDD mode as Lock? A: The lock indicates that the HDD has been previous used in Accusys products and that it contains a portion of a RAID data. If the data can be deleted, you can unlock the HDD.
  • Page 86 Please check if the installer and the driver have been installed correctly. If the installation has completed and the error still persists, it may be a compatibility issue. Send an email to support@accusys.com.tw and briefly describe the problem. Be sure to include the driver error code, the motherboard (or host) model name and the OS.
  • Page 87 Appendices Appendix B: Icons ICON Description Main Menu Icons RAIDGuard X Server icon – The icon that is on the desktop and notification area Add / Delete a controller – Select the controller to administer Create / Delete an array – Change the arrays within the RAID system.
  • Page 88 Go to the ExaSAN switch GUI, select the “Event Management” icon. Follow instructions there to download the log file. Contact Us For customer services and technical support, locate an Accusys office near you from the link below: http://www.accusys.com.tw/about/contact.htm Or, you may email us at support@accusys.com.tw...
  • Page 89 Appendices CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS User Guide Page 7...
