Model: HDC221

Digital Day/Night HD-SDI 2.1MP

Bodied Camera

User Guide

Table of Contents

Need help?

Do you have a question about the HDC221 and is the answer not in the manual?

Questions and answers

Summary of Contents for Genie CCTV HDC221

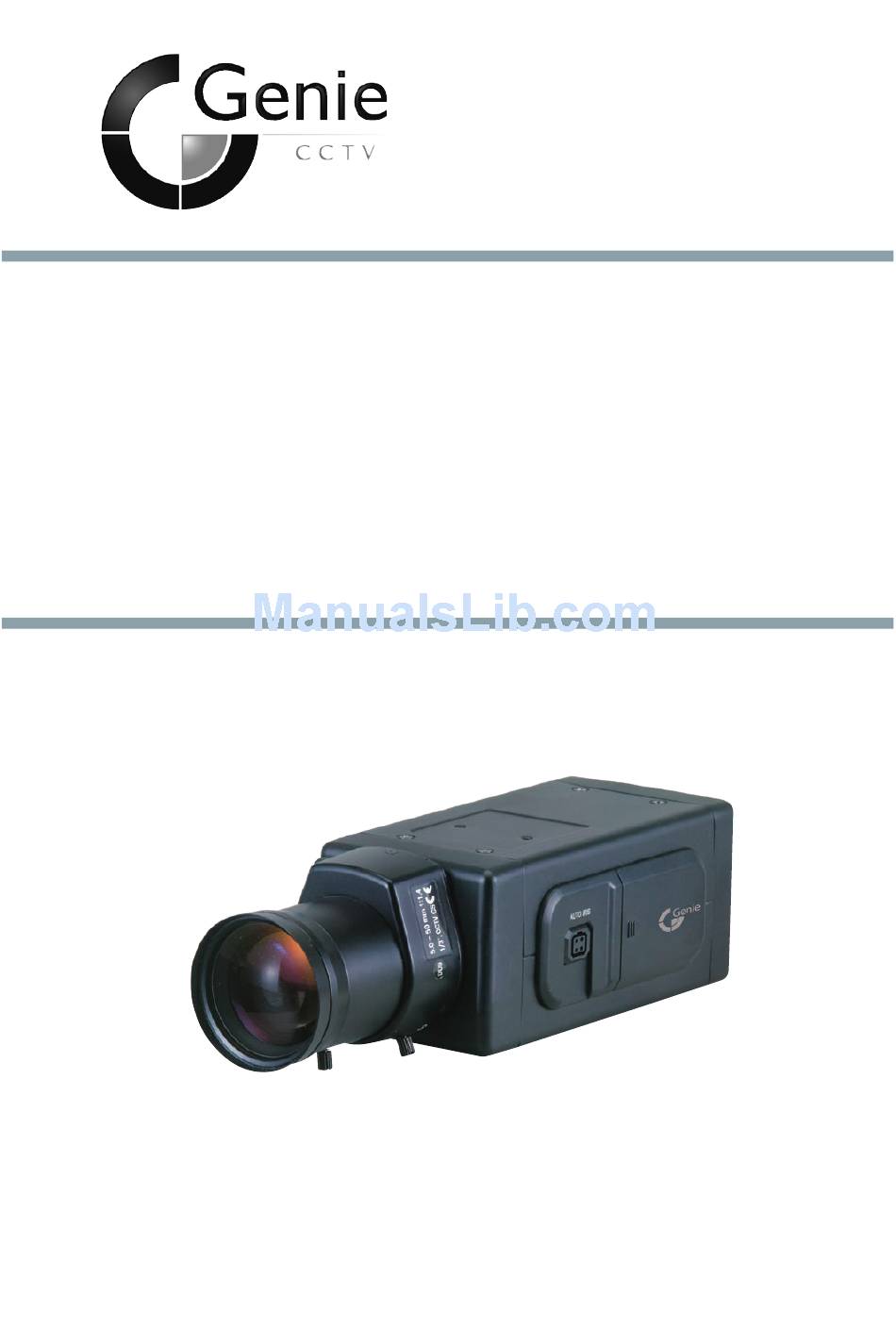

Page 1 Model: HDC221 Digital Day/Night HD-SDI 2.1MP Bodied Camera User Guide...
Page 3 CAUTION RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN CAUTION RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE.
Page 4: Table Of Contents
Contents Dimensions Package Contents General Features Precautions Safety Instructions Menu Set Up • Set Up Menu • Menu Set Up • Lens • Exposure • Back Light Compensation • Day & Night • White Balance • DNR • Image • Motion Detection • System • Exit Specification...
Page 5: Dimensions
Camera Dimensions 58mm 123mm 40mm 75mm Package Contents INSTRUCTION MANUAL 1EA IRIS JACK 1EA - 3 - Digital Day/Night HD-SDI 2.1MP Bodied Camera...
Page 6: General Features
3D-DNR General Features 3D-DNR DNR (Digital Noise Reduction) 3D-DNR Digital Noise Reduction DNR technology utilises both an adaptive 2D filter which reduces noise in the brightness of the image 3D-DNR and an adaptive 3D filter which reduces noise caused by movement. The result is that the HD-SDI Digital Noise Reduction...
Page 7: Precautions
Precautions Do not install the camera in Do not install or use the camera in an Do not install the camera under extreme temperature conditions. environment where the humidity is high. unstable lighting conditions. Do not install or use the camera in an Only use the camera under conditions Severe lighting which changes or flickers environment where the humidity is high.
Page 8: Safety Instructions
Safety Instructions Precautions for use This camera should be installed by a qualified person only. There are no user serviceable parts inside. Do not disassemble this camera other than to make initial adjustments. Only use a CE approved regulated DC12V, or AC24V power supply. Use appropriate low voltage power cable to prevent fire or electrical shock. Please ensure that your installation area can support the weight of the camera. Please handle this camera carefully Do not use strong or abrasive detergents when cleaning the camera.
Page 9: Menu Set Up
How to Set Up the Camera Menu Setup Menu SET UP MENU DEFAULT SET MENU INDOOR MODE OUTDOOR LENS RETURN MANUAL 0~20 Level Selectable BRIGHTNESS AUTO SHUTTER 1/25,1/30,1/60, 1/50, FLK , 1/240, 1/500, 1/1000, 1/2000, 1/4000, Manual 1/8000,1/16000, 1/30000, 1/60000 EXPOSURE x2 , x3, x4, x8, x16, x32, x64 Level Selectable SENS - UP...
Page 10 RETURN PUSHING PRESET 0 ~ 20 Level Selectable R - GAIN WHITE BAL MANUAL B - GAIN 0 ~ 20 Level Selectable RETURN LOW / MIDDLE / HIGH Level Selectable SHARPNESS 0 ~ 10 Level Selectable O.45, 0.5, 0.55, 0.6, 0.65 Level Selectable GAMMA COLOUR GAIN 0 ~ 20 Level Selectable...
Page 11: Menu Set Up
Menu Set Up Menu items can be selected by using the camera OSD buttons. 1. Press the Set Up button. The Set Up menu will be displayed on the monitor. SETUP LENS EXPOSURE BACKLIGHT DAY&NIGHT COLOR WHITE BAL MIDDLE IMAGE MOTION SYSTEM EXIT...
Page 12: Lens
3. Change menu settings using the Left or Right buttons. Available values or status's are displayed by pressing the Left or Right buttons. Press the button until desired value / status is displayed. 4. After changing the setting, move the arrow indicator to EXIT and press the SET button to EXIT.
Page 13: Exposure
Exposure This function is used to select Automatic or Manual shutter speed control. 1. On the Set Up menu screen, select EXPOSURE by using the Up or Down buttons. SETUP LENS EXPOSURE BACKLIGHT DAY&NIGHT COLOR WHITE BAL MIDDLE IMAGE MOTION SYSTEM EXIT 2.
Page 14 4. Select the desired shutter mode by pressing the Left or Right buttons. EXPOSURE BRIGHTNESS SHUTTER AUTO SENS-UP RETURN NOTE *Shutter: Select Shutter using the Left or Right buttons, you can adjust the shutter speed from AUTO to MANUAL (1/25,1/50,FLK,1/240,1/500,1/1000,1/2000,1/4000,1/8000,1/16000, 1/30000,1/60000) 5.
Page 15: Back Light Compensation
Back Light Compensation (BLC) This camera uses DSP to provide intelligent light level control to overcome even strong backlight conditions. 1. On the Set Up menu screen, select BACKLIGHT by using the Up or Down buttons. SETUP LENS EXPOSURE BACKLIGHT DAY&NIGHT COLOR WHITE BAL...
Page 16: White Balance
SETUP LENS EXPOSURE BACKLIGHT DAY&NIGHT COLOR WHITE BAL MIDDLE IMAGE MOTION SYSTEM EXIT 2. Select the desired mode using the Left and Right buttons. COLOUR: The picture is always displayed in colour. BW: This picture is always displayed in black and white. AUTO: The mode will automatically switch to COLOUR in normal condition and switch to BW mode when ambient illumination is low.
Page 17: Dnr
Three user selectable White Balance settings are available. ATW: (Auto Tracking White Balance) Normal setting; when the colour temperature range is from 1,800˚K to 10,500˚K. (Ex: a fluorescent lamp or outdoors) AWB: The White Balance is automatically adjusted in a specific environment. PRESET: To obtain the best results, press the SET button while the camera is focused onto white paper. If the environment, and/or light source change, the White Balance will require re-adjustment.
Page 18: Image
IMAGE 1. Move the arrow indicator to IMAGE by using the Up and Down buttons. SETUP LENS EXPOSURE BACKLIGHT DAY&NIGHT COLOUR WHITE BAL MIDDLE IMAGE MOTION SYSTEM EXIT 2. Select the desired sharpness mode by pressing the Left or Right buttons. IMAGE SHARPNESS GAMMA...
Page 19 D-ZOOM: Up to x8 bi-cubic linear digital zoom and PIP using anti-aliasing down scaling. D-WDR: This camera uses DSP to provide intelligent light level control to overcome even strong backlight conditions. OFF: D-WDR function does not operate. When there are simultaneous bright & dark image areas, WDR makes them both distinct and can be selected as OUTDOOR and INDOOR.
Page 20: Motion Detection
③Move the arrow indicator to the H-POS to select the desired area positon by using the LEFT or RIGHT buttons between the level 0 ~ 60. ④Move the arrow indicator to the V-POS to select the desired area positon by using the TOP or BOTTOM buttons between the level 0 ~ 40.
Page 21 MOTION SENSITIVITY DET H-POS DET V-POS DET H-SIZE DET V-SIZE MOTION OSD ALARM RETURN POSITION SIZE PICTURE 1 PICTURE 2 1. When the menu screen is displayed, use the Up or Down buttons to access the MOTION menu. AREA SELECT: You can select from 1~4 positions. AREA DISPLAY: Display the motion detected area on the screen.
Page 22: System
SYSTEM 1. Move the arrow indicator to SYSTEM by using the Up and Down buttons. SETUP LENS EXPOSURE BACKLIGHT DAY&NIGHT COLOR WHITE BAL MIDDLE IMAGE MOTION SYSTEM EXIT SYSTEM COLOUR SPACE FRAME RATE 25 / 30 FPS CVBS PAL / NTSC RESET RETURN COM: RS485 function to set up the camera communication status when controlling the camera through an...
Page 23: Exit
CAM ID BAUDRATE 9600 ID DISPLAY RETURN CAM ID: 0~20 Level Selectable BAUDRATE: 2400 / 4800 / 9600 / 57600 / 115200 Selectable ID DISPLAY: ON / OFF Selectable RETURN: Move the arrow indicator to RETURN after completing the setup to return to the SYSTEM menu. Exit Press the SET button in the EXIT menu to save the current settings and exit.
Page 24: Specification
Specification MODEL HDC221 Sensor 1/3" PANASONIC 2.1MP CMOS Sensor Total Pixels 2010 (H) X 1092 (V) - 2.22MP Effective Pixels 1944 (H) X 1092 (V) - 2.12MP Resolution 1920 X 1080 (1080P / 25fps) Scanning System Progressive Scan Minimum Illumination 0.5 Lux @ F1.2 , 0.01 Lux...
Page 25: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE Check the power cable, power supply output and video Nothing appears on connection between camera and monitor. the screen. Is the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. Adjust the monitor controls, as required.
Page 26 - MEMO - - 24 - Digital Day/Night HD-SDI 2.1MP Bodied Camera...
