COMMERCIAL CLEANING EQUIPMENT
www.tomcatequip.com
1711 South Street
Racine, WI 53404 (USA)
(800) 450-9824 | (+001) 262-681-6470
© 2015 RPS Corporation
Scan With Phone for more Information

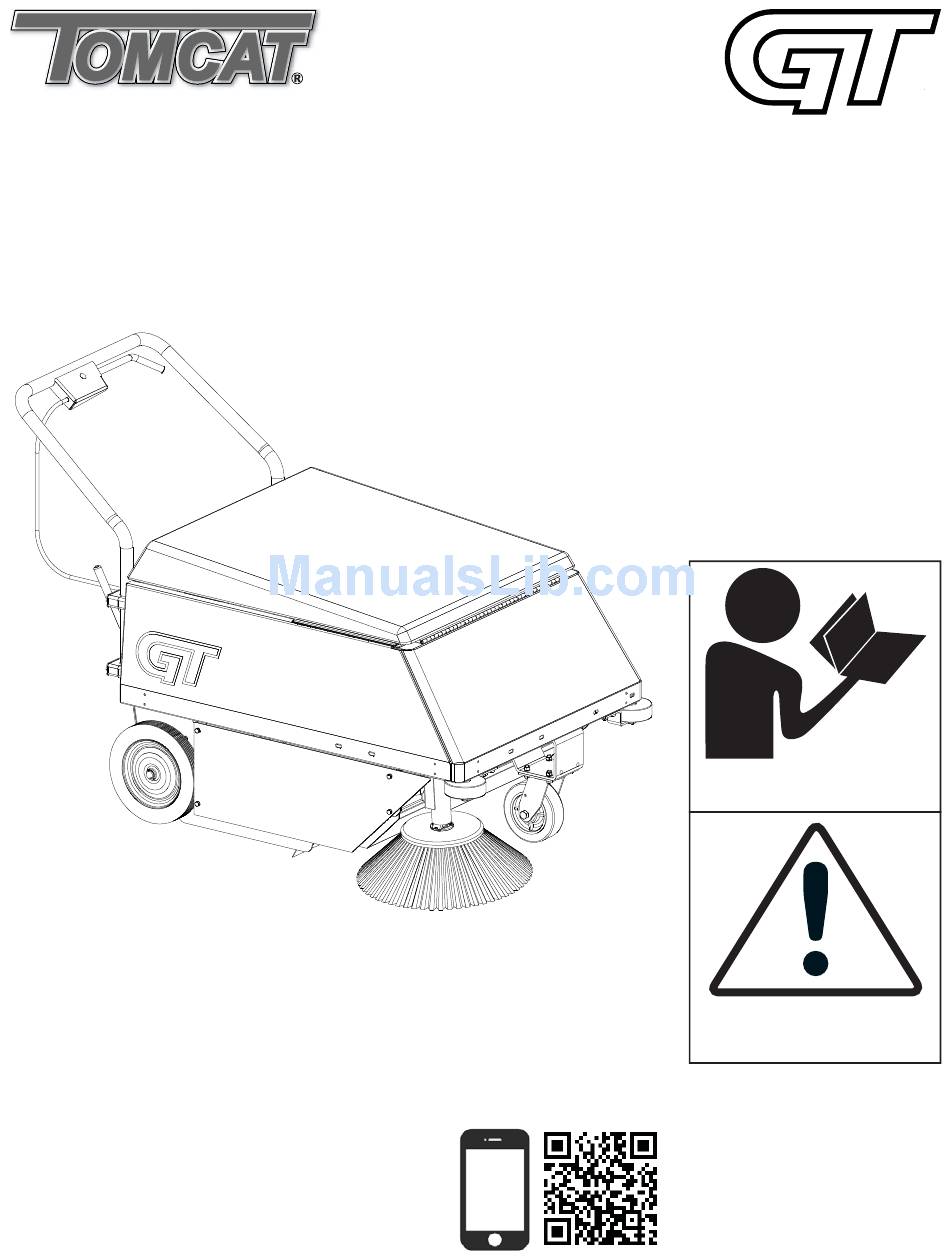

Operating Instructions (EN)
Read these Instructions before
using the machine.
Read these Safety Messages
before using the machine.
VERSION 15.167
GT-OP-EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tomcat GT
Summary of Contents for Tomcat GT
- Page 1 Read these Instructions before using the machine. Read these Safety Messages before using the machine. Scan With Phone for more Information www.tomcatequip.com 1711 South Street Racine, WI 53404 (USA) (800) 450-9824 | (+001) 262-681-6470 VERSION 15.167 © 2015 RPS Corporation GT-OP-EN...
-
Page 2: Introduction
NOTE: The serial number of your machine is located on the lower half of the control panel of the machine. SERIAL NUMBER AS OUR POLICY IS ONE OF CONSTANT IMPROVEMENT - ALL INFORMATION AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. - 2 - GT-OP-EN... -
Page 3: Table Of Contents
Weekly Maintenance: Monthly Maintenance: Operation Controls Yearly Maintenance: Storing Machine: Operation Controls Checking Battery Specifi c Gravity: Machine Components GT PM Records Machine Setup Trouble-shooting Un-Crating Machine: Machine Specs Connecting Batteries: Installing Main Broom: Common Wear Parts Installing Side Brooms:... -
Page 4: Safety Messages
Explosive hydrogen gas forms when Batteries are charging. An open fl ame or spark can cause this gas to explode. Serious personal injury or property damage could occur. Only charge the Batteries in this machine in a well ventilated area. - 4 - GT-OP-EN... - Page 5 It is designed to charge the Batter- ies at the appropriate rate. If you must use a different charger, disconnect the Batteries before charging to avoid damage to the electronic speed controller. GT-OP-EN - 5 -...
-
Page 6: Safety Label Locations
Read and obey all Safety Labels on your GT Floor Sweeper. If you have questions about these labels, ask your supervisor. These images indicate where on the GT Safety Labels are located. If ever the labels become illegible, worn off, or torn, promptly report it to your supervisor and replace it. -
Page 7: Operation Controls
SIDE BROOM POSITION LEVER: Contols whether the Side Broom is UP (Lever to the right) or Side Broom is DOWN (Lever o the left) FILTER SHAKER CRANK: Turn the Filter Crank to clean out the fi lter before emptying the Hopper - Crank must be vertical before reomoving or replacing the Hopper GT-OP-EN - 7 -... -
Page 8: Operation Controls
SIDE BROOM ADJUSTMENT KNOB: Adjust Knob in the right direction to elevate the Down position of the Side Broom - likewise adjust knob left to lower the Down position of the Side Broom BATTERY ANDERSEN CONNECTOR: Disconnect batteries easily and quickly with the quick disconnect Andersen Connector on the battery - 8 - GT-OP-EN... -
Page 9: Machine Components
HD BUMPER (OPTIONAL): For extra protection for the Side Broom system against Walls and other objects FRONT CASTER: 180° Swivel Front caster allows easy maneuverability of the machine HOPPER: Stores all dust and debris from sweeping - To empty, release latch and pull out from under machine GT-OP-EN - 9 -... -
Page 10: Machine Setup
(SEE BATTERY CHARGING). For correct Main Broom application - Contact your Local Servicing Dealer. DRIVER ALIGNED NOT ALIGNED 12 VOLTS NOTICE Batteries are a possible environmental hazard. Consult your Battery supplier for safe disposal methods. - 10 - GT-OP-EN... -
Page 11: Installing Side Brooms
6. When you are ready to stop, raise the Side Brooms, raise the Main Broom, turn OFF the Side Broom Switch and drive the machine back to the charging area. Be sure to clean the Hopper thoroughly before storing the machine. GT-OP-EN - 11 -... - Page 12 8. To stop the machine, move the Clutch Lever all the way forward to activate the brake (E). Always raise the Brooms before stopping to prevent fl attening of the Broom bristles. - 12 - GT-OP-EN...
- Page 13 3. Relase the Hopper Access Latch (E) and remove the Hopper (F). Always ensure that Beater Bar is in the upright position before removing Hopper. Damage can occur if Hopper removed incorrectly. 4. Clean Hopper thoroughly before sliding back in machine. GT-OP-EN - 13 -...
-
Page 14: On-Board Charger
If needed, add enough distilled water to just slightly cover the plates. Be careful not to over fi ll. Batteries can overfl ow during charging. Replace caps before charging. - 14 - GT-OP-EN... -
Page 15: Battery Charging
Be careful not to over fi ll. Batteries can overfl ow during charging. Replace caps before charging. 4. First, disconnect the batteries by unplugging the yellow 50 Charger plug. Connect the yellow 50 Charger plug GT-OP-EN - 15 -... -
Page 16: Battery Maintenance Guide
• Never store discharged Batteries • Store Batteries in a cool, dry place but never below freezing - Recharge in storage a minimum of every 30 days • Recharge Batteries before putting them back into service - 16 - GT-OP-EN... -
Page 17: Maintenance
4. Check to see if Battery cables are tightened. Tighten, if needed, 8-10 ft/lb MAX. 5. Inspect all Cables and Springs. 6. Inspect all Nuts, Bolts, and Fasteners. YEARLY MAINTENANCE: Call your local dealer for yearly maintenance. GT-OP-EN - 17 -... -
Page 18: Gt Pm Records
GT PM RECORDS CUSTOMER INFORMATION CUSTOMER EMAIL ADDRESS PHONE CITY STATE CONTACT MACHINE INFORMATION MODEL #: SERIAL #: WORK ORDER#: HOUR METER (Key): CHASSIS HOUR METER: HOUR METER (Traction): RE-CHARGE COUNTER: HOUR METER (Scrub): BATTERY CONDITION CELL 1 CELL 2... - Page 19 INNER SIDE CURTAIN VACUUM HOSE FRONT CASTER CONDITION REAR WHEELS CONDITION COMMENTS SERVICING DISTRIBUTOR: ____________________________________ TECHNICIAN’S NAME: _______________________ DATE: ____________ SIGNATURE: ____________________ CUSTOMER’S NAME: ________________________ DATE: ____________ SIGNATURE: ____________________ GT-OP-EN - 19 -...
-
Page 20: Trouble-Shooting
Worn Front Drive Tire Contact Local Servicing Dealer Low run time Batteries run down Contact Local Servicing Dealer Batteries still down Contact Local Servicing Dealer Batteries low on Water See Battery Maintenance Batteries over cycled Contact Local Servicing Dealer - 20 - GT-OP-EN... -
Page 21: Machine Specs
0-3 mph PRODUCTIVITY Cleaning Width: 34'' Cleaning Rate: 30,000 sq.ft/hr GENERAL Sound Level: 70 dBA Standard Equipment: Low Battery Indicator, Hour Meter, Recharge Meter Optional Equipment: HD Bumper, Artifi cal Turf Package, Strobe Light, Key Switch, Horn GT-OP-EN - 21 -... -
Page 22: Common Wear Parts
(Includes Tape Seal Kit, Grill, and Filter) Standard Filter Kit 4-502D (Includes Tape Seal Kit and Filter) 1 Micron Filter 4-502 0.2 Micron Filter 4-502F Nomex Filter 4-502N Filter Tape Seal Kit 4-502K SEAL KITS: SEAL KIT PART#'S Neoprene Seal Set 4-550 - 22 - GT-OP-EN... -
Page 23: Standard Warranty Policy
• Rubber Floor Seals or Gaskets. • Vacuum motors with evidence of moisture or debris intrusion or > 400 hours. • Batteries (see below) NOT COVERED: Routine maintenance, adjustments or parts damaged from abuse, neglect, improper use of the machine, or lack of scheduled “daily, weekly, monthly”... -
Page 24: Machine Install / Warranty Registration
PM Sheets provided online or in manuals Installed By (print) Signature Buyers Representative (print) Signature Buyer agrees to pay for any repairs, adjustments, or secondary training that manufacturer determines is excluded from the warranty. Complete Online at www.rpscorporation.com - 24 - GT-OP-EN... - Page 25 BLANK THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 26 1711 South Street Racine, WI 53404 www.tomcatequip.com Tel. US: 800-450-9824 Tel. Int: (001) 262-681-6470 © RPS Corporation 2015...
