Leviton 5F100-xxx Specifications

COMPONENT SPECIFICATIONS
5F100-xxx
Opt-X Adapter Plates
®
APPLICATION
These plates fit perfectly onto Leviton's line of fiber
wall- or rack-mount Opt-X enclosures and Leviton's
multimedia adapter bracket. Opt-X Adapter Plates are
available in ST , SC, LC, MT-RJ, MTP, and
®
QuickPort ® snap-in connector styles.

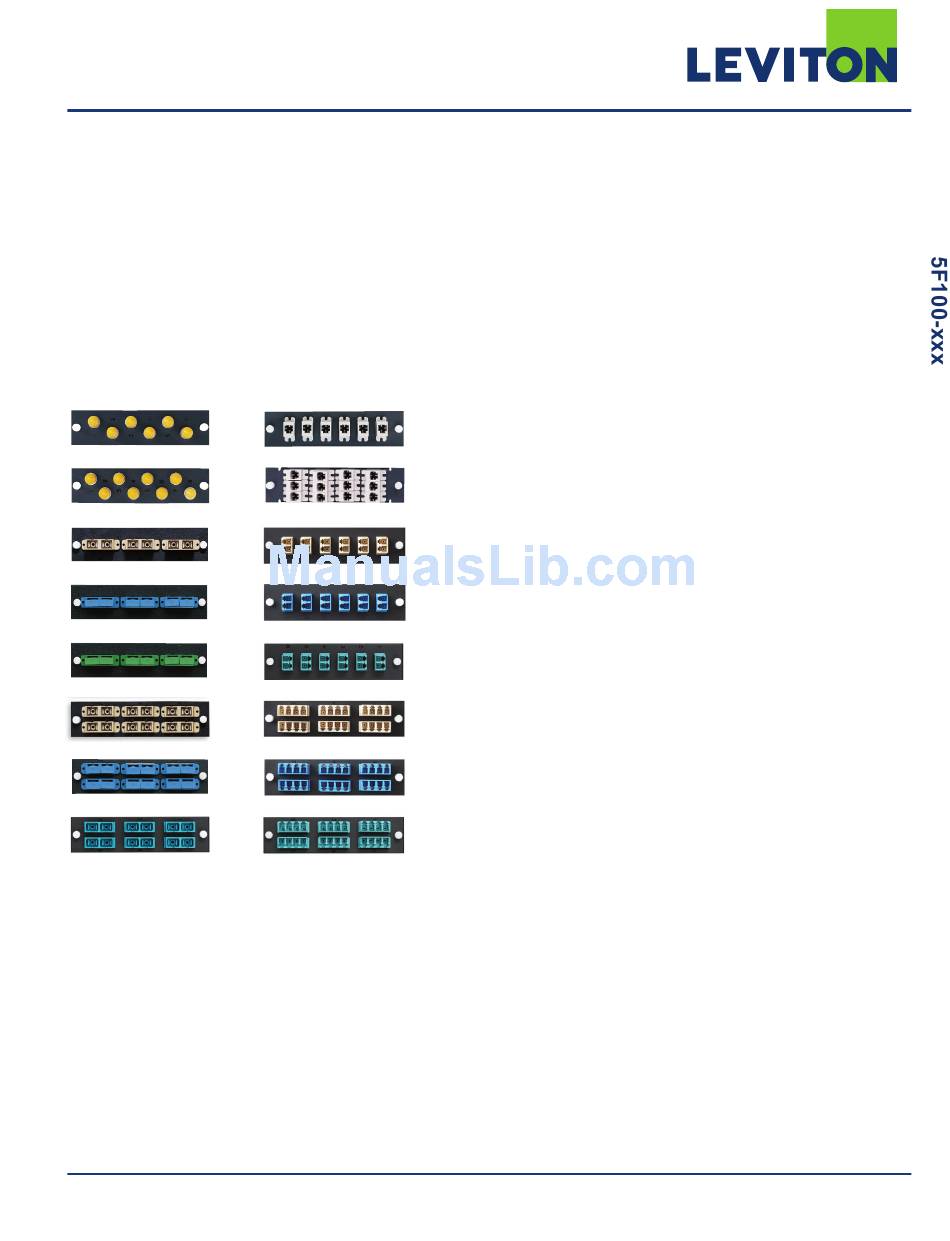

5F100-1ST
5F100-8ST
5F100-3BC
5F100-3SC
5F100-3CA
5F100-6BC
5F100-CSC
5F100-6AC
SPECIFICATION
The fiber optic rack-/wall-mount Opt-X adapter plate shall
provide 6, 8, 12, or 24 fibers for ST, SC, LC, MT-RJ, MTP,
and Quick-Port ® connectors. The adapter plates shall be
compliant with TIA/EIA-568-B. The Adapter Plates shall
accommodate SC, ST, LC, MT-RJ, MTP, and QuickPort
adapters. The metal mounting plates shall be made of 16
gauge steel, powder coated black.
Page 1 of 2
Leviton Network Solutions, a division of Leviton Mfg. Co., Inc.
2222 - 222nd St. SE Bothell, WA 98021 Tech Line: 1-800-722-2082 Fax: 1-425-485-9170 www.leviton.com
Copyright © 2008 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
FEATURES
• Offers flexibility in adding or changing connector style
•
•
•
•
5F100-6MC
DESIGN CONSIDERATIONS
• Arrange adapter plates to allow for future growth
5F100-12M
• Adapter plates available in ST, LC, SC, MT-RJ, MTP and
• Using Opt-X style adapter plates allows use of up to 12 plates
5F100-12P
• Phosphor bronze sleeve typically used on multimode applications
• Zirconia ceramic sleeve typically used on 50/125µm laser
5F100-12Z
STANDARDS COMPLIANCE
Meets all applicable standards. Compliant with TIA/EIA-568-B.
5F100-12A
PHYSICAL SPECIFICATIONS
Dimensions:
5F100-24P
Materials:
5F100-24Z
Couplings:
5F100-24A
WARRANTY INFORMATION
For a copy of Leviton product warranties, visit www.leviton.com.
Adapter Plates feature multiple style adapters
Captive push/pull fasteners allow for quick tool-less installation
3-, 6-, and 12-pack plates available
Adapter Plates are compatible with:
Opt-X Ultra
Opt-X 1000 (Wall & Rack-Mount)
Opt-X 500
Opt-X 250
QuickPort styles
(even Quad LCs) in a 3RU enclosure
optimized multimode and single-mode applications
1.25"H x 4.94"W x .06"D (empty)
Constructed of 16 gauge steel, powder
coated black. Blank adapter plates are
made of plastic or metal.
Supports ST, SC, LC, MT-RJ, and MTP adapters
and QuickPort snap-in connectors for F-type,
BNC, etc.
