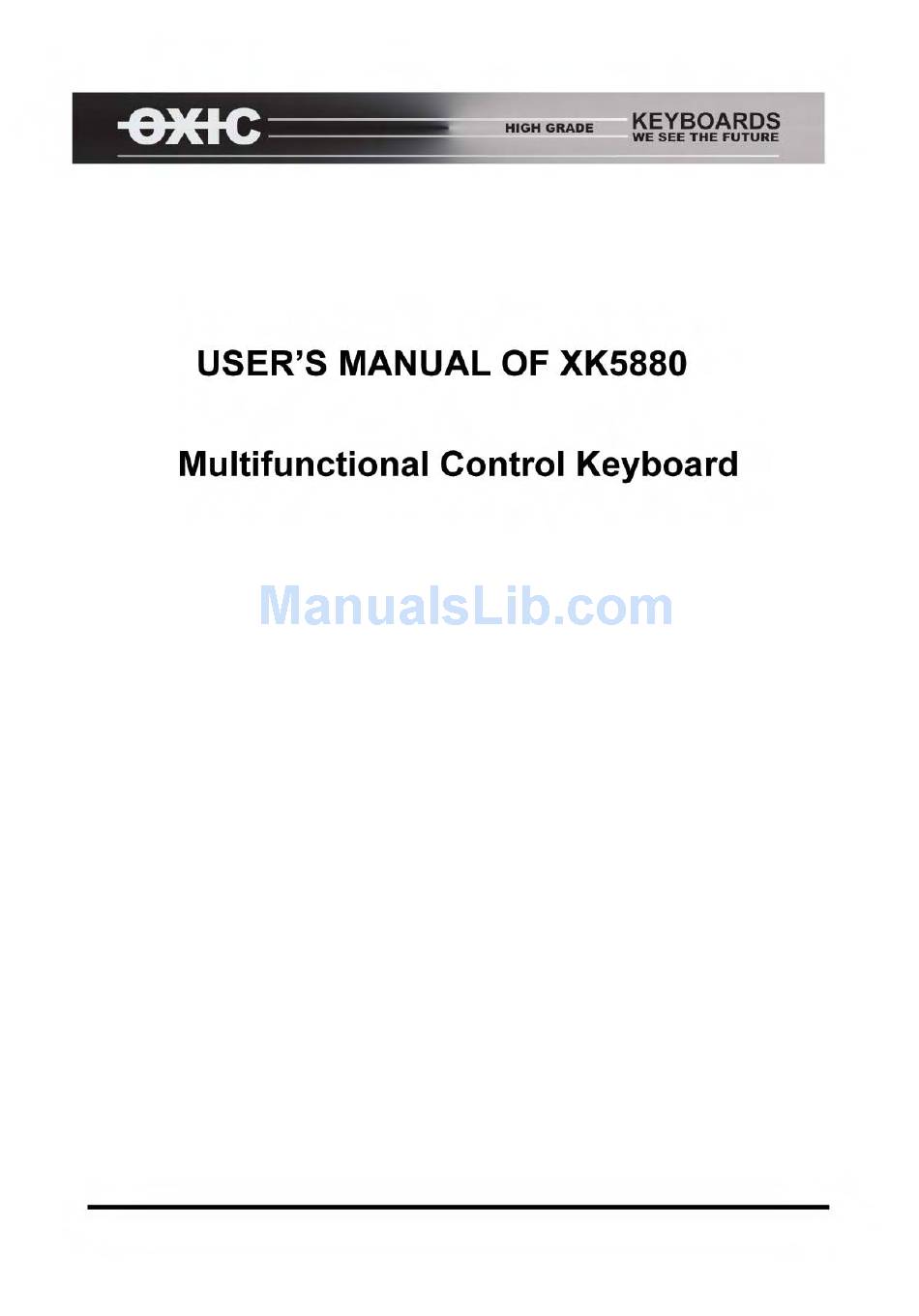

Summary of Contents for oxic XK5880
-
Page 2: Keyboard Layout
1. Instruction XK5880 multifunctional control keyboard is a particular design to control speed dome, PTZ camera, Matrix switcher and PC/Standalone DVR. It is a best choice of control site for a multiple CCTV system. Features： ● Password protection, support multiple user authority ●... - Page 3 Area A: LCD with blue back light Area B: The main buttons 【012……9】 ： Number and character input. 【ALM】 ： Switching the alarms 【MON】 ： Switching the monitors 【CAM】 ： Switching the cameras 【ESC】 ： Cancel 【ENTER】 ： Confirm 【MULTI】 ： Switching videos in DVR control mode 【LOCK】...
- Page 4 【PREV】 ： Press【PREV】to switch camera, monitor or alarm; Press【PREV】to select the item upward in the menu setting 【NEXT】 ： Press【NEXT】to switch camera, monitor or alarm; Press【NEXT】to select the item downward in the menu setting Area C: Area for DVR control： ①...
- Page 5 ：Matrix parameter setting ：Enter into PTZ control ：Call upon auto cruises,8 groups； ：Call upon pattern tours, 4 groups； ：Call upon auto scan, 8 groups ：Stop the current PTZ move. ：Aux switcher； ：Aux switcher； ：Aux switcher； ：Aux switcher； Area E: Area for Lens Control： Iris Open Focus In Iris Close...
- Page 6 Pressing【PREVIOUS】, move downward equal to Pressing【NEXT】. ① Power On ●Connect the keyboard with the power supply. ●Press【MODE】to select the control status among Matrix, DVR and PTZ.. Then press【PROG】to confirm. ● Press【PROG】to enter into keyboard settings ② Keyboard Login Login Interface: 2007-09-28 11:25:34 Device: Matrix Comm Port: Ethernet...
