SUPERCHILL 30B

Fitting Instructions and User Guide

Table of Contents

Need help?

Do you have a question about the SUPERCHILL 30B and is the answer not in the manual?

Questions and answers

Summary of Contents for Heatrea Sadia SUPERCHILL 30B

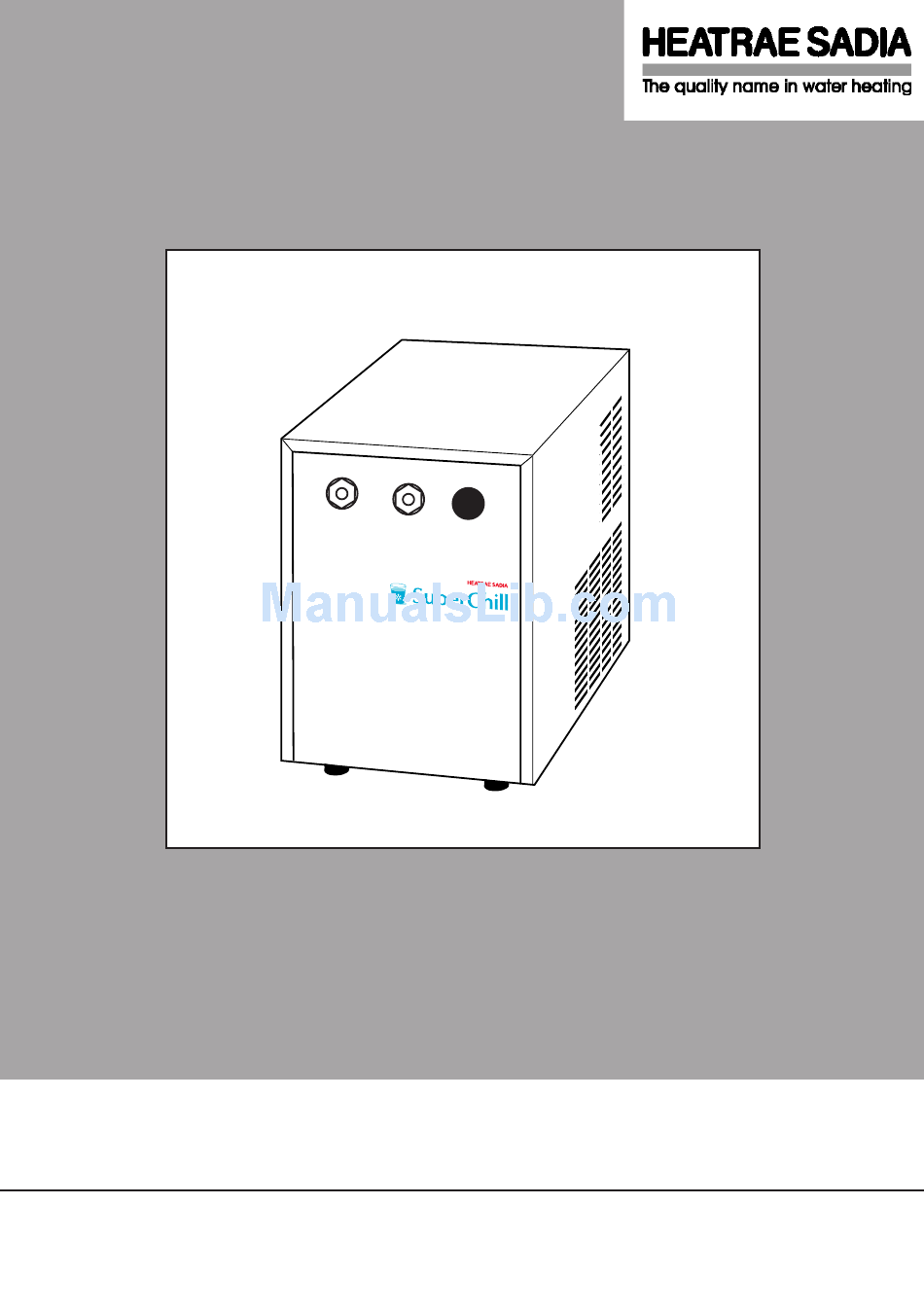

Page 1 SUPERCHILL 30B Fitting Instructions and User Guide...
Page 2: Pack Contents
Children should be supervised to ensure they do not play with the SuperChill unit. The SuperChill unit does not contain any substances harmful to health; it does not contain any asbestos. PACK CONTENTS • SuperChill 30B • Jug Filling Spout • 3pin Plug & 2m Cable •...
Page 3: Important Installation Points
1.0 IMPORTANT INSTALLATION POINTS 1.1 If the water chiller has been laid down or turned upside down during transit or installation it should be allowed to stand for 8 hours in an upright position before commissioning. The chiller must be fitted with the supplied 3.0 bar pressure reducing valve.
Page 4: Installation - General Requirements
2.0 INSTALLATION - GENERAL REQUIREMENTS National Wiring rules may contain restrictions concerning the installation of these units in bathrooms. The unit should be vertically mounted on a level surface. Four mounting feet are provided (make sure the unit is resting fully on all four supporting feet).
Page 5 FIGURE 2: SHEMATIC WIRING DIAGRAM COMPRESSOR THERMOSTAT FAN MOTOR 4.0 INSTALLATION - PLUMBING REQUIREMENTS The mains water supply pressure must be a minimum of 1.0 bar and the flow must be more than 2.0 l/min. The pressure reducing valve (supplied) must be fitted to the water supply to the chiller, to ensure that the water supply does not exceed 3.0 bar.
Page 6 5.0 COMMISSIONING DO NOT switch on the electrical supply until the unit and ice bank have been filled with water and checked for leaks. Fill ice bank as follows. Push the supllied 8mm tube (water supply) into connection marked “FILL ICE BANK” turn water supply on, this will let water enter in the ice container.
Page 7: Maintenance
5.10 Check the temperature of the dispensed chilled water. If necessary adjust the thermostat; clockwise for a cooler temperature, anti-clockwise for a warmer temperature. The optimum outlet temperature should be approximately 10°C. 6.0 MAINTENANCE Little maintenance is required, however the following actions should be periodically carried out to ensure efficient operation.
Page 8 6.2.3 Remove any dust or dirt using a vacuum cleaner. Particular attention should be paid to the inside of the louvre grills and the condensor fins. DO NOT use a metal brush to clean the condensor fins as they may be damaged. 6.3 DISINFECTING It is recommended that the chiller is disinfected on a regular basis to prevent the build up of contaminants.
Page 9: Fault Finding
7.0 FAULT FINDING The SuperChill unit should give trouble free operation, however should a problem occur, the tables below should enable most faults to be identified with ease. Fault finding should be carried out by a competent person and any replacement parts used should be authorised Heatrae spare parts.
Page 10: Spare Parts
8.0 SPARE PARTS The following comprehensive list of spare parts are available for your SuperChill water chiller. Please refer to the Rating Label on the side of your water chiller before ordering to ensure the correct spare part is obtained. DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY HEATRAE SADIA - THIS WILL INVALIDATE YOUR GUARANTEE AND MAY RENDER THE INSTALLATION DANGEROUS.
Page 11: Environmental Information
9.0 GUARANTEE The SuperChill water chiller is guaranteed for a period of two years from the date of purchase provided: The unit has been installed in accordance with these instructions and all necessary inlet controls have been fitted correctly. Any valves or controls are of Heatrae Sadia recommended type. The unit has not been tampered with and has been regularly maintained as detailed in these instructions.
Page 12: Spares Stockists
SPARES STOCKISTS Advanced Water Company Ltd. Unit D5 Enterprise way Vale park, Evesham Worcs, WR11 1GS Tel: 01386 760066 Fax: 01386 760077 Electric Water Heating Co. 2 Horsecroft Place, Pinnacles Harlow, Essex, CM19 5BT Tel: 0845 0553811 E-Mail: sales@ewh.co.uk Units 9 & 10 Hexagon Business Centre Springfield Road, Hayes Middlesex, UB40 0TY Tel: 020 8606 3567...
