Summary of Contents for UTC RETAIL 1170

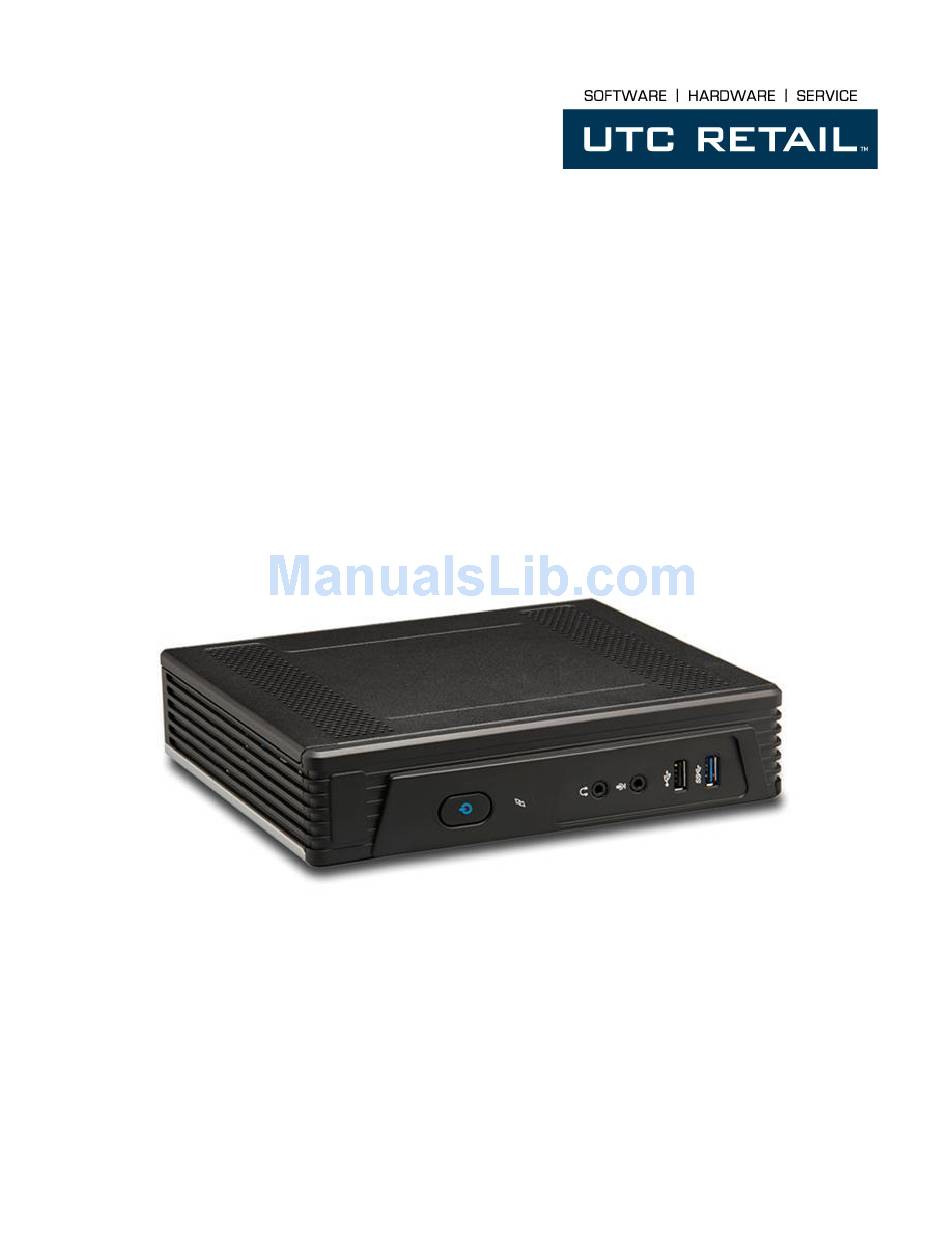

- Page 1 1170 USER GUIDE Thank you for selecting UTC RETAIL’s innovative Model 1170 Point of Sale solution! This guide is designed to acquaint you with the features and functionality of the 1170 Point of Sale System. © 2015 UTC RETAIL 11933016 Rev A...
-
Page 2: 1170 Pos System User Guide
UTC, its dealers, or affiliates, for damage resulting from the use of this information. If a unit needs to be shipped to UTC RETAIL for repairs, please return it in the original packaging material and shipping container. If you purchased the 1170 POS System through a dealer, and the dealer is unable to answer your questions, please call UTC RETAIL Technical Support at 1.800.349.0546. -
Page 3: Table Of Contents
CONTENTS 1170 POS System User Guide ............................2 Product Information ............................... 5 1170 POS System Components ..........................5 Peripheral Support ..............................5 1170 POS System Specifications ..........................6 1170 Input / Output Ports .............................. 7 Front I/O Panel ................................7 Power Switch ................................. - Page 4 ............................10 CMOS / BIOS Clear & Deep Sleep ......................... 11 Supported Peripheral Options Details.......................... 12 Power Requirements ..............................12 Expansion Options ............................... 12 System Installation Guide ............................12 11933016 Rev A © 2015 UTC RETAIL All rights reserved...
-
Page 5: Product Information
Note: Options that were purchased from UTC RETAIL such as a keyboard, customer display and printer may be shipped in separate boxes. Depending on the configuration you have purchased, the following optional items may also be installed in the 1170 POS: ... -
Page 6: 1170 Pos System Specifications
Standard PC with USB or PS/2 interface Cash Drawer Optional Dimensions (W x D x H) 8.6 x 7.5 x 2 ® ® ® Operating Systems Windows POSReady 7, Windows 7 Professional, Windows 8.1 Professional 11933016 Rev A © 2015 UTC RETAIL All rights reserved... -
Page 7: 1170 Input / Output Ports
Microphone Input USB 3.0 POWER SWITCH Press and release the switch (1) to boot the 1170 POS; the blue LED will glow when the system is turned on. The ® ® default response to a power switch press while in Windows is for Windows to close and the 1170 to shut itself off. -
Page 8: Usb 3.0
To prevent system problems and/or electronic damage, only use the 1170 POS AC adapter obtained from the product box or a replacement from UTC RETAIL. The unit’s warranty is voided if incorrect power is applied to it. Mate the adapter’s barrel plug with the power jack (2) above. -
Page 9: Serial Ports
NETWORK The two LAN jacks (10 & 13) accept standard RJ-45 plugs and are used to interface the 1170 with your network. The 4 USB ports (11, 12, 14 and 15) are USB 2.0 ports and may be used to interface with standard PC accessories and USB interface Point-Of-Service devices. -
Page 10: Hard Drive Access
RXD(TTL)(1-2) / CTS(3-4) / RXD(5-6) / TXD(7-8) / TXD(TTL)(7-8) 9 – SP6 RI (3-4) TXD(TTL)(1-2) / RI(3-4) / TXD(5-6) / RXD(7-8) / RXD(TTL)(7-8) Table 1 - COM2 Terminal Block MSATA AND MINI-PCIE 11933016 Rev A © 2015 UTC RETAIL All rights reserved... -
Page 11: Cmos / Bios Clear & Deep Sleep
Table 2, J4 and J6 CMOS / BIOS CLEAR & DEEP SLEEP CMOS Clear (J7) Deep Sleep (J26) Normal 1-2 (Default) Normal 1-X (Default) CMOS clear 2-3 Deep Sleep enable 1-2 11933016 Rev A © 2015 UTC RETAIL All rights reserved... -
Page 12: Supported Peripheral Options Details
Note: Consideration should be taken to ensure that none of the unit’s vents are blocked. Blocking the vents may cause damage to the unit. The 1170 POS has no internal cooling fans and relies on ambient air to provide system cooling.
