Summary of Contents for SHARE FL Series

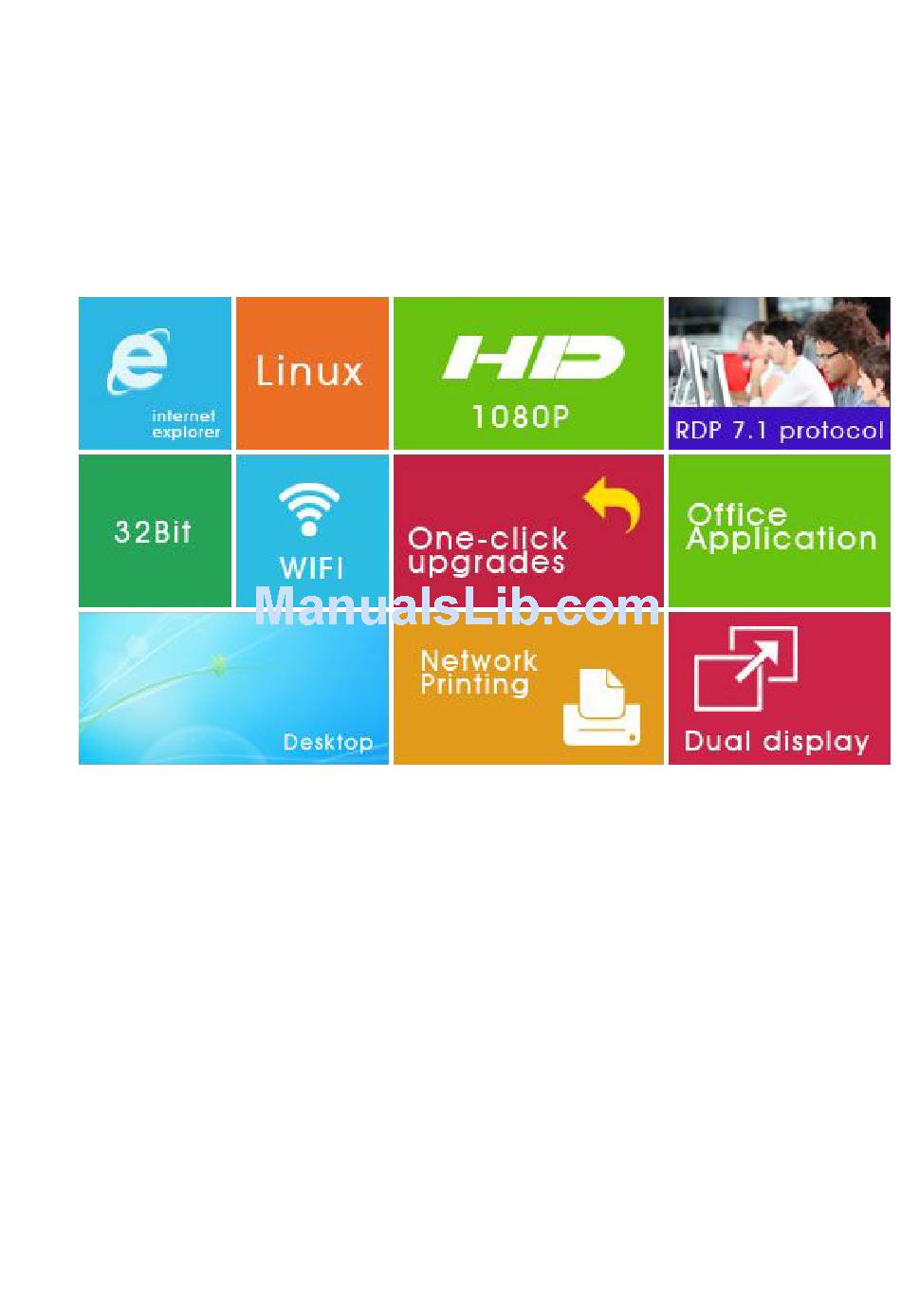

- Page 1 Cloud Computer FL Series ————User Manual 浏 览...
- Page 2 FL Series Cloud Computer 【Notice】 Thank you for purchasing cloud computer. In order to easily use this device, please read the manual before using. The product version may upgrade in ceaseless, this document is used only as a guide. All of representations, informations and advices within this document, does not constitute any express or implied warranty.
-
Page 3: Table Of Contents
FL Series Cloud Computer Catalogue 1 Component.......................... 4 2 Connection.......................... 6 2.1 Connect with Monitor.........................6 2.2 Connect with Lan Cable........................8 2.3 Connect with Mouse&Keyboard...................... 8 2.4 Connect with Mic&Speaker......................8 2.5 Connect with Power...........................8 3 Operating Instruction......................9 3.1 Remote Connection Settings......................9 3.1.1 Find A Host.......................... -
Page 4: Component
FL Series Cloud Computer Component Front Panel A：TF card port B：Non-opaque Bar C：On/Off button Back Panel D：RJ45Lan port E：Audio Output SPK Port F：Audio Input MIC Port - 4 -... - Page 5 FL Series Cloud Computer G：USB Port 1; USB Port 2 H:：HDMI Port I：VGA Port J：5V/2A Power Port Side Panel K: USB port*3 L：WIFI antenna port K: USB Port 3 L：WIFI port - 5 -...
-
Page 6: Connection
FL Series Cloud Computer Connection 2.1 Connect with Monitor HDMI Pls connect LCD signal wire with VGA port of cloud computer. Pls connect HDMI signal wire with HDMI port of cloud computer if HD display is requested,such as HDTV.Cloud computer FL300 can support dual-screen display. -
Page 7: Connect With Lan Cable
FL Series Cloud Computer 2.2 Connect with LAN Cable Pls connect LAN cable (10～100M ) with LAN port of cloud computer,and connect opposite end with switch or router. 2.3 Connect with mouse & keyboard Connect mouse & keyboard with cloud computer by USB 2.0 port. -
Page 8: Remote Connection Settings
FL Series Cloud Computer 3.1 Remote connection Settings Plug power adapter in, the device enter boots interface. Note: Pls set the resolution in control panel before remote connection,and choose the network settings according to actual network condition.Other functions setup according to personal requirements. -
Page 9: Configuration & Shortcut
FL Series Cloud Computer 3.1.2 Configuration & Shortcut To set the related shortcut of HOST login. Configuration：For example,HOST 1,once user input and save IP address,Host name,Password,Port & Domain info under Configuration,it can access to the HOST 1 by the shortcut with info above. - Page 10 FL Series Cloud Computer 3.1.3 Shutdown and Local IP Shutdown click this button,device will shutdown, restart and locked. After clicking this button , the indicating light will turn red ,the device goes into electricity-saving state. To wake up the device , you only need to push the standby or restart key .
-
Page 11: Control Panel
FL Series Cloud Computer Local IP : When linked to network, it will show the IP address of the device. 3.2 Control Panel Password of control panel : the default password is empty,do not need to input There are eight settings in total :Network display and sound,peripheral and... -
Page 12: Network
FL Series Cloud Computer 3.2.1 Network - 12 -... -
Page 13: Display & Sound
FL Series Cloud Computer This function is mainly used to set the network of the device ,when using static state , such as the subnet mask ,route , DNS must in accord with current network. Network test : Mainly used to test if the device and target host computer are connected . -
Page 14: Peripherals & Start
FL Series Cloud Computer 3.2.3 Peripheral and start Select access equipments used in “Remote” mode Forbid U-disk :The U-dish can’t use on remote mode after choosing this icon. If you want to use U disk in “ Remote ” mode , cancel the selection, then function of U disk will be opened .The default for this function is on state... -
Page 15: Date & Time
FL Series Cloud Computer Unsupported : printer, keyboard ,serial, set up of startup temporarily . 3.2.4 Date and time Used to check date and time in Control Panel . Click the left or right green icon in date column to adjust month ,use the cursor to click “month”... - Page 16 FL Series Cloud Computer 3.2.5 Password System default password is empty Change password : after changing password , exit Control Panel and enter again ,you need to input the new password Create password : when you change the password to empty , you can create a new password in this column.
- Page 17 FL Series Cloud Computer 3.2.6 Upgrade and restore This function is used to do the upgrade and restore to default of the device - 17 -...
- Page 18 FL Series Cloud Computer Local upgrade : Copy upgrade bag to U disk or SD card , then click local upgrade , the device will be upgraded to new version . Attention: Please wait patiently during the upgrading process , please do not move the device, do not draw out U disk , do not cut off electricity .
-
Page 19: Setup Of Player
FL Series Cloud Computer Select language displayed in Control Panel , the system now support Chinese and English . Choose one language then click “Save” to save the current selection , click “Return” to cancel selection . 3.2.8 Information of software and hardware 3.3Video play... -
Page 20: Button
FL Series Cloud Computer 2)Choose a video file ,click the right button of mouse and select “Using ShinePlayer to open it ” in menu list to use the player . 3.3.3 Button Feature Open single file Minimize player interface Exit player interface... - Page 21 FL Series Cloud Computer Click will switch to muted state Volume bar, drag the slider to adjust the video volume Note:Please adjust video volume on display menu panel when plug HDMI cable. Video progress bar, drag the slider directly to adjust fast forward and fast backward.
- Page 22 FL Series Cloud Computer Select one file and click then will delete the listed file records ,such as shown below is the interface for one deleted file from the list . Double-Click the selected file can be played. ,click will exit from the list ,back to play interface.
-
Page 23: Faq
FL Series Cloud Computer FAQ(Frequently Asked Questions) What is RDP? Remote Display Protocol (RDP) is a proprietary protocol developed by Microsoft, which based on multi-user windows and provides a user with a graphical interface to another computer over a network connection. Mainly used to connect Windows 2000 Server or Windows Server 2003 with a client service. - Page 24 FL Series Cloud Computer When the player installation appear code for 1001 wrong tip. Please input “cmd” on start->run, open the console, and input "sc delete Terminal Service", key Enter, exit console, and reinstall again. No sound on remote desktop mode Please exit remote interface, back to control panel in welcome page, check whether mute are selected in display and voice or not.
- Page 25 FL Series Cloud Computer Please long press standby or restart button, after reboot the display resolution will be automatically reset to default 720P, interface is normal display. Individual monitor cannot reach the best performance regardless of which resolution Open panel menu on display , select automatically adjust size.
- Page 26 FL Series Cloud Computer 2.Click ‘add’,display window "Select Group Policy Object’’,click“ finish”. 3.Add Group Policy Object successfully as shown - 26 -...
- Page 27 FL Series Cloud Computer 4.On left side "Local Computer Policy" choose "Computer Configuration>Administrative Templates>Windows Components>Terminal Services", as the picture: 5.double-click "maximum color depth limitation", display "maximum color depth limitation property" as picture shown, choose "24-bit", click confirm - 27 -...
- Page 28 FL Series Cloud Computer - 28 -...
- Page 29 FL Series Cloud Computer - 29 -...
