Epson Stylus C70 Plus Quick Manual

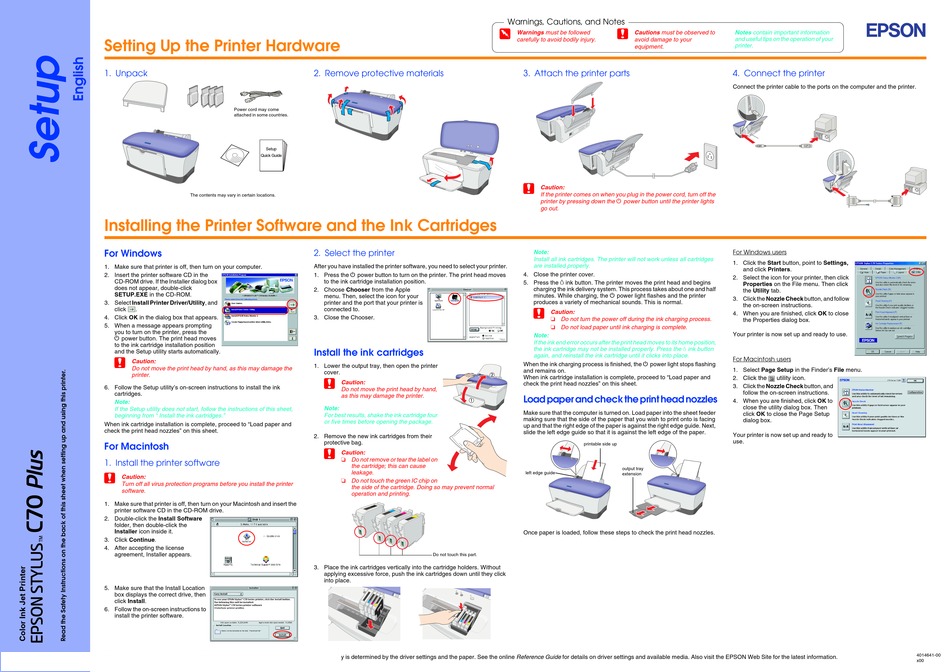

Setting Up the Printer Hardware

1. Unpack
Power cord may come
attached in some countries.
Setup
Quick Guide
The contents may vary in certain locations.
Installing the Printer Software and the Ink Cartridges
For Windows
1. Make sure that printer is off, then turn on your computer.
2. Insert the printer software CD in the
CD-ROM drive. If the Installer dialog box
does not appear, double-click
SETUP.EXE in the CD-ROM.
3. Select Install Printer Driver/Utility, and
click .
4. Click OK in the dialog box that appears.
5. When a message appears prompting
you to turn on the printer, press the
P power button. The print head moves
to the ink cartridge installation position
and the Setup utility starts automatically.
c
Caution:
Do not move the print head by hand, as this may damage the
printer.
6. Follow the Setup utility's on-screen instructions to install the ink
cartridges.
Note:
If the Setup utility does not start, follow the instructions of this sheet,
beginning from " Install the ink cartridges."
When ink cartridge installation is complete, proceed to "Load paper and
check the print head nozzles" on this sheet.
For Macintosh
1. Install the printer software
c
Caution:
Turn off all virus protection programs before you install the printer
software.
1. Make sure that printer is off, then turn on your Macintosh and insert the
printer software CD in the CD-ROM drive.
2. Double-click the Install Software
folder, then double-click the
Installer icon inside it.
3. Click Continue.
4. After accepting the license
agreement, Installer appears.
5. Make sure that the Install Location
box displays the correct drive, then
click Install.
6. Follow the on-screen instructions to
install the printer software.
Read this side first!
2. Remove protective materials
2. Select the printer
After you have installed the printer software, you need to select your printer.
1. Press the P power button to turn on the printer. The print head moves
to the ink cartridge installation position.
2. Choose Chooser from the Apple
menu. Then, select the icon for your
printer and the port that your printer is
connected to.
3. Close the Chooser.
Install the ink cartridges
1. Lower the output tray, then open the printer
cover.
c
Caution:
Do not move the print head by hand,
as this may damage the printer.
Note:
For best results, shake the ink cartridge four
or five times before opening the package.
2. Remove the new ink cartridges from their
protective bag.
c
Caution:
❏ Do not remove or tear the label on
the cartridge; this can cause
leakage.
❏ Do not touch the green IC chip on
the side of the cartridge. Doing so may prevent normal
operation and printing.
Do not touch this part.
3. Place the ink cartridges vertically into the cartridge holders. Without
applying excessive force, push the ink cartridges down until they click
into place.
Print quality is determined by the driver settings and the paper. See the online Reference Guide for details on driver settings and available media. Also visit the EPSON Web Site for the latest information.
Warnings, Cautions, and Notes
w c
Warnings must be followed Cautions must be observed to
carefully to avoid bodily injury. avoid damage to your
equipment.
3. Attach the printer parts
c
Caution:
If the printer comes on when you plug in the power cord, turn off the
printer by pressing down the P power button until the printer lights
go out.
Note:
Install all ink cartridges. The printer will not work unless all cartridges
are installed properly.
4. Close the printer cover.
H
5. Press the ink button. The printer moves the print head and begins
charging the ink delivery system. This process takes about one and half
minutes. While charging, the P power light flashes and the printer
produces a variety of mechanical sounds. This is normal.
c
Caution:
❏ Do not turn the power off during the ink charging process.
❏ Do not load paper until ink charging is complete.
Note:
If the ink end error occurs after the print head moves to its home position,
the ink cartridge may not be installed properly. Press the H ink button
again, and reinstall the ink cartridge until it clicks into place.
When the ink charging process is finished, the P power light stops flashing
and remains on.
When ink cartridge installation is complete, proceed to "Load paper and
check the print head nozzles" on this sheet.
Load paper and check the print head nozzles
Make sure that the computer is turned on. Load paper into the sheet feeder
making sure that the side of the paper that you wish to print onto is facing
up and that the right edge of the paper is against the right edge guide. Next,
slide the left edge guide so that it is against the left edge of the paper.
printable side up
output tray
left edge guide
extension
Once paper is loaded, follow these steps to check the print head nozzles.
Notes contain important information
and useful tips on the operation of your
printer.
4. Connect the printer
Connect the printer cable to the ports on the computer and the printer.
For Windows users
1. Click the Start button, point to Settings,
and click Printers.
2. Select the icon for your printer, then click
Properties on the File menu. Then click
the Utility tab.
3. Click the Nozzle Check button, and follow
the on-screen instructions.
4. When you are finished, click OK to close
the Properties dialog box.
Your printer is now set up and ready to use.
For Macintosh users
1. Select Page Setup in the Finder's File menu.
2. Click the utility icon.
3. Click the Nozzle Check button, and
follow the on-screen instructions.
4. When you are finished, click OK to
close the utility dialog box. Then
click OK to close the Page Setup
dialog box.
Your printer is now set up and ready to
use.
