Summary of Contents for Test Equipment Depot HD10C2
-

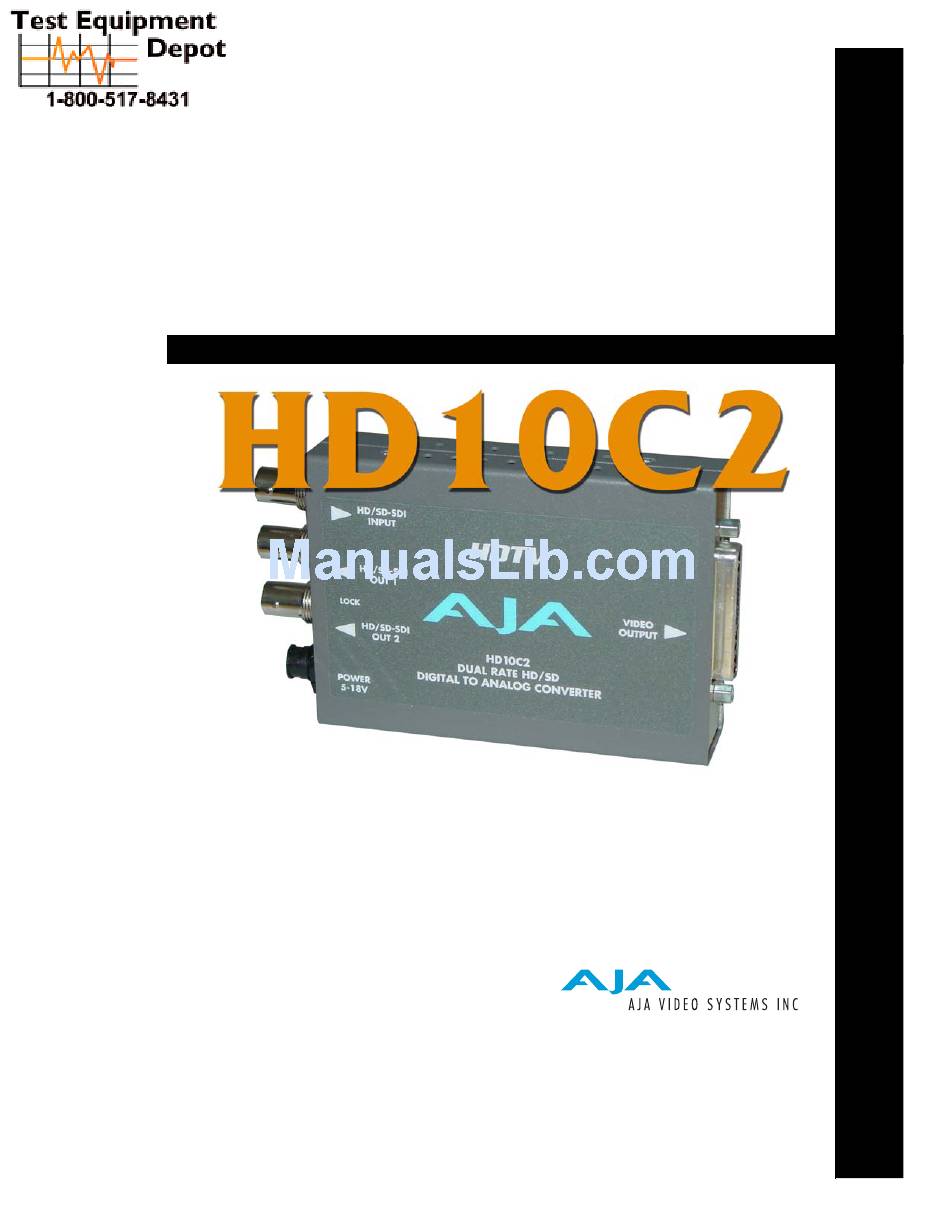

Page 1: User Manual
HD10C2 HDTV Serial Digital To Analog Converter User Manual August 15, 2005 P/N 101652-00 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - FAX 781.665.0780 - TestEquipmentDepot.com... -
Page 2: Block Diagram
SD outputs are supported. When connected to a multi- format monitor like the Sony 20L5, the HD10C2 will automatically provide an image from almost any HD or SD input format. The HD10C2 also features 2 equalized HD-SDI outputs. - Page 3 Output Connector for or YPbPr equipment VGA Video HD-RGB or YPbPr Video HD10C2 and Supplied Items: Component Video Cable and HD15 Adapter Video Output The video output connector is a 13W3 D-sub. The pinout is listed below: Connector Pinout Description...
-
Page 4: User Controls
AJA HD10C2 HDTV Serial Digital to Analog Converter User Manual — User Controls User Controls The user interface for the HD10C2 is an 8-switch DIP accessible through a cut-out in the bottom of the unit. Use the DIP switches to configure output formats, enable/disable video sync and graticule. - Page 5 • S7 = HD SYNC OFF (right)—Note: only certain monitors require no sync on video Internal Jumper— An internal jumper inside the HD10C2 case allows you to select between bi and tri level sync. To set the jumper, remove the four phillips screws securing the case cover (dipswitch Select Tri- or Bi- side) and locate the jumper in the middle of the circuit board (see illustration below).
-
Page 6: Specifications
Most VGA monitors are not compatible with an Horizontal scan rate below 30 Khz (including the SONY GDM-W900, a popular HD monitor). The Sony 20L5 and 14L5 are compatible with all formats supported on the HD10C2. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - FAX 781.665.0780 - TestEquipmentDepot.com...
