DISCLAIMER
Dear REDFOX User:
Thank you for purchasing and using our product. For future reference, please
read the product specifications as well as all the materials attached before using
the product. We shall not assume responsibility for damages or losses due to
failure to use the device according to this operational manual or to what is
implied by the product specifications.
The proprietary right to alter or change any of the content in the specifications
belongs to our company; no part of the specifications may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means without
prior written permission of the company. Trademarks and trade names
mentioned in the specifications belong to their respective owners. If the content
of the specifications doesn't conform to that of the actual product, the actual
product shall be binding.
If you have inquiries or objections about any content, article or clause in the
specifications, please forward a written objection within seven (7) days after
purchasing the unit. Otherwise, it shall be deemed that you have agreed to,
understood, and accepted all the content of the specifications.
On Software and Peripherals
This laptop computer can support several peripheral devices & hardware, such
as mouse, keyboard, printer, and scanner. The company also guarantees
functionality of software pre-installed in this unit before purchase. Customers
who purchase these products from third parties are bound to the terms and
equipment specifications attached with these items. The company recommends
the use of high-quality equipment and genuine software that are compatible
with the specifications of this laptop computer.
The company does not guarantee the compatibility and reliability of any
third-party peripheral equipment or software attached or installed onto the
computer. For compatibility issues with any of third-party items, please contact
the product's manufacturer. REDFOX may also provide technical support when
necessary.
Advertisement
Table of Contents
Related Manuals for Redfox WO143HI
Summary of Contents for Redfox WO143HI
- Page 1 The company does not guarantee the compatibility and reliability of any third-party peripheral equipment or software attached or installed onto the computer. For compatibility issues with any of third-party items, please contact the product’s manufacturer. REDFOX may also provide technical support when necessary.
- Page 2 AsianTech, a leading I.T. Company in the Philippines, became REDFOX Technologies’ regional distributor. 1998 REDFOX introduced the AMD K5 and K6 socket 7 main board in the region. In the same year, we were given the ISO 9001 certification. 2000 REDFOX became the Number 1 brand for AMD CPU based main board in the Philippines.
- Page 3 In the same year, we also introduced an all-in-one PC-CRT powered by the AMD Duron CPU. 2004 REDFOX launched Vengeance – the first gaming PC that utilized the AMD Athlon 64bit CPU, which was embraced by the gaming industry. 2005 REDFOX released its first line of laptops: the Navigator, renowned one of the lightest laptops weighing 1.95kg and the Duranote, which was tagged as the...
- Page 4 New Manila, Quezon City. 2011 REDFOX launched new products on the leading edge of technology: • REDFOX Optima 300IW, the latest product from the Optima line for mobile computing. • The Vengeance Intensity, the first gaming PC in the Philippines which gives users different views of their game through 3 different monitors.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Disclaimer 1.0 Quick Guide 1.1 Hints 1.2 Basic Product Care Tips 1.3 Instruction before Product Use 1.4 Battery 1.5 Power 1.6 Ergonomics 1.7 Instructions on safety 2.0 Product overview 2.1 Product Specifications 2.2 Introduction to parts & components 2.3 Unpacking and inspection 3. - Page 6 This laptop is a high-tech precision product that requires proper usage and maintenance. Please take note of the following basic care tips for using your REDFOX laptop: 1) Maintenance of LCD Do not place heavy objects on top of this laptop computer.
-
Page 7: Quick Guide
QUICK GUIDE 4）Please do not open the computer casing while the system is running. 5）Please back up your data in advance before formatting the hard drive, this process will delete all data stored previously in the system. 6） Power Supply The power supply should be stable and be free from interference. -
Page 8: Instruction Before Product Use
QUICK GUIDE 1.3 Instruction before product use Applicable group [Note] The computer is not suitable for independent operation by children seven years old and below. Adult supervision is advised. Working environment [Danger] For your safety, operate this device strictly in a working environment defined as follows: Conditions Value... -
Page 9: Battery
QUICK GUIDE Removal, Transportation and Storage [Note] When moving the computer, special care should be taken. The computer should be placed in the original packing box in case of transportation. You should pile and place the packing box according to the symbol and indication of packing &... - Page 10 The use of this function will help to save the battery power B. The brightness of LCD: Adjust down the display brightness of your REDFOX laptop computer to save on energy consumption. C. Software and peripheral: Executing programs and using peripherals on your REDFOX laptop computer consumes battery power.
- Page 11 You should do one complete discharging and charging at least every month or after every other 20 times of incomplete discharging. Warning The battery can only be used in this REDFOX laptop computer. Replace the battery properly to avoid danger of explosion. Only battery ...
-
Page 12: Power
[Note] Carefully examine the AC power line attached when purchasing the REDFOX laptop computer. In case of any problems, please contact your product distributor. 1.6 Ergonomics [Reminder] Computer users may experience discomfort such as back pain, eye strain or headache after prolonged use of the unit. -
Page 13: Instructions On Safety
QUICK GUIDE Posture Remove all items under your working area which restricts leg movement. Rest your legs comfortable on a surface such as the floor or a footstool. When using the keyboard, touch-pad, or control devices such as a mouse or game controller, lightly touch the keys or buttons and keep your hands and fingers relaxed. - Page 14 QUICK GUIDE 2) Do not place the product in places with easy access to water. 3) In case of installation, please place the product on a stable supporting foundation. This product may fall off due to unstable placement, which leads to serious damages.
-
Page 15: Product Overview

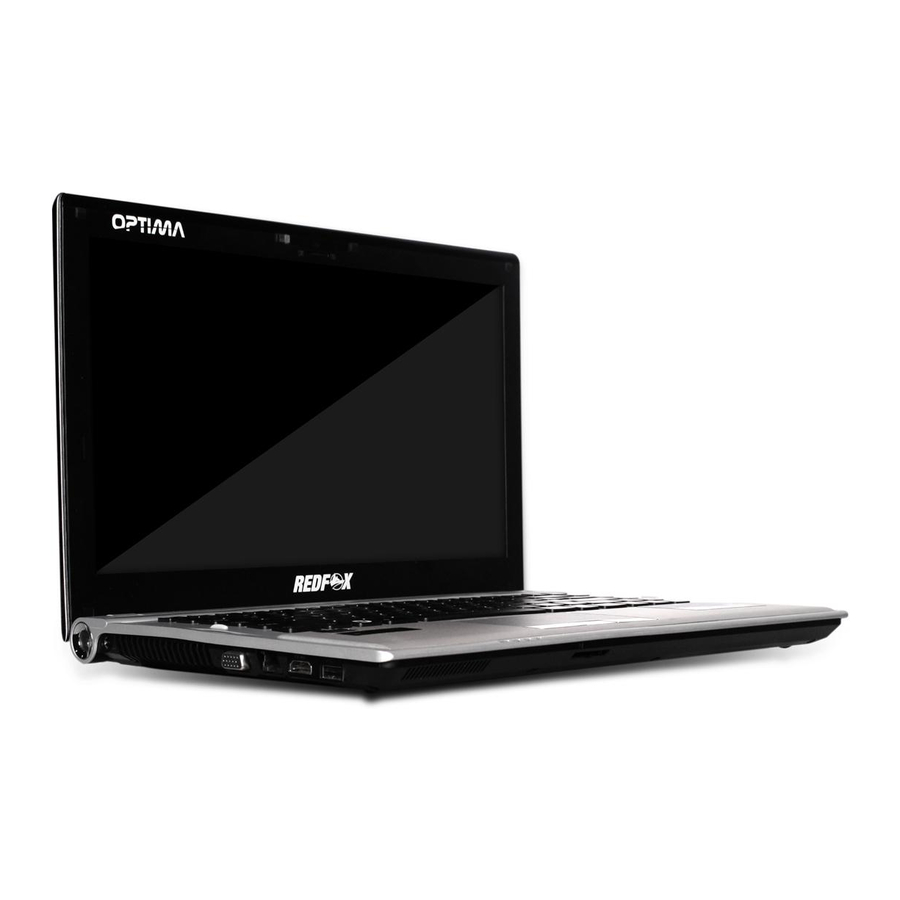

PRODUCT OVERVIEW 2.1 Product Specifications Product Name REDFOX Optima Powered by Intel® latest mobile technology Intel Sandy Bridge Processor Chipset Intel 6-Series Cougar Point Mobile Chipset System memory 2 x DDR3 SO-DIMM socket (upgradeable up to 8GB Maximum Capacity) Displaying memory... -
Page 16: Introduction To Parts & Components
PRODUCT OVERVIEW 2.2 Introduction to Parts & Components Note: Images may vary from the actual unit. For reference use only Description Description Description Internal Camera DC-IN socket Cardreader Display Vent USB port 3～5 Please refer to VGA Port Battery socket 14～17 page 15 for the LAN port... -
Page 17: Unpacking And Inspection
OPERATING YOUR COMPUTER 2.3 Unpacking and inspection Carefully unpack the computer and other accessories. If any of the items are found missing, please contact dealer immediately. Keep the original packing materials for storage and item replacement. The package should contain the following parts and components: 1.) Laptop computer 2.) Power adaptor 3.) User’s manual... -
Page 18: Turning The Computer Off
OPERATING YOUR COMPUTER 3.2 Turning the computer off When you finish working on your computer, you may shut down the system or choose to go to the standby mode or hibernation. Mode of Method Method on re-starting Stopping or usage Please follow the program for shutting the operating system.. -
Page 19: Touch Pad
OPERATING YOUR COMPUTER Numeric Keypad You can activate the numerical keypad by pressing Fn + Numlock. The numeric is displayed at the right lower corner of keys. This contains keys for the basic calculation, i. e . plus, minus , times and divide. Press the Fn + Numlock once again to resume original keyboard function. -
Page 20: Network Card
SETUP OF BIOS (BASIC INPUT & OUTPUT SYSTEM) 3.6 Network card The laptop computer is equipped with a built-in Ethernet network card conforming to 10/100Base-TX standard. Insert one end of the LAN line into RJ-45 provision at the right side of your computer. This allows data transfer through the internet. -
Page 21: Main (Main Setup)
SETUP OF BIOS (BASIC INPUT & OUTPUT SYSTEM) 4.2 Main (main setup) System Date: setup of the system data System Time: setup of the system time System Information: System Information Display 4.3 Advanced HDD Mode: Select the hard disk mode Diagnostic Summary screen: System hardware configuration display Diagnostic Splash Screen: POST display... -
Page 22: Security
SETUP OF BIOS (BASIC INPUT & OUTPUT SYSTEM) 4.4 Security Set User Password: Set User Password Set Supervisor Password: Set Supervisor Password 4.5 Boot Set the boot device boot sequence Use <+ > and < -> adjust the boot sequence All specifications and information are subject to changes without further notice... -
Page 23: Installation Of Driver Program
6. 0 Basic Troubleshooting REDFOX Laptop computers go through a complete system test and quality control before being available in the market. However, in some cases, you may encounter some problems on your computer hardware or software due to incorrect operation or negligence, which needs to be addressed immediately. -
Page 24: Basic Troubleshooting
BASIC TROUBLESHOOTING Unable to record sound For Windows users, double-click the loudspeaker icon at the lower right corner of the taskbar. 1. Press the Option and select Property. 2. Select Recording and press the Enter button. 3. After the Enter button is pressed, the control console for recording volume will pop out. -
Page 25: Display Problems
Please make sure that the laptop computer is not in hibernation or standby mode. While the REDFOX Laptop Computer is in these modes, the display will be shut off. Press the functional key Fn+F6 to increase the brightness of screen. -
Page 26: Annex A Product Specifications
ANNEX A PRODUCT SPECIFICATIONS Product Name REDFOX Optima Powered by Intel® latest mobile technology Intel Sandy Bridge Processor Chipset Intel 6-Series Cougar Point Mobile Chipset System memory 2 x DDR3 SO-DIMM socket (upgradeable up to 8GB Maximum Capacity) Displaying memory...
