Summary of Contents for Minar LEE-1001DMX

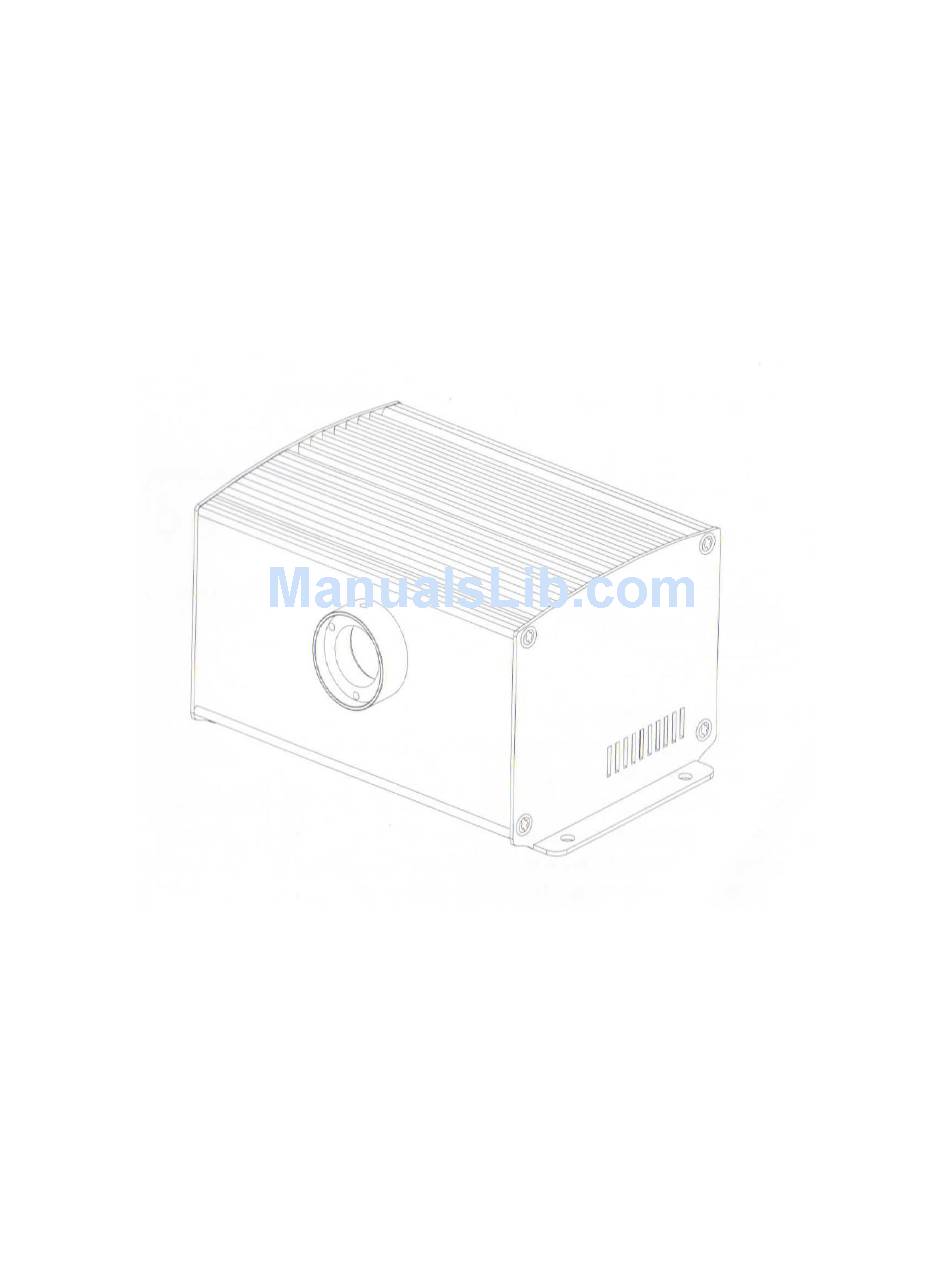

- Page 1 LED LIGHT ENGINE INSTRUCTION MANUAL 10W LED DMX Illuminator MODEL: LEE-1001DMX...
- Page 2 A. INSTRUCTION FOR LED LIGHT ENGINE Voltage: 12DC Avoid use in high temperature areas. (Below 104 Degrees) Color: White Light Source: 10W LED Power Consumption: 15W LED Life: 50,000 hours Max. Quantity for Fiber Connection: 400 X 0.75mm fiber optic per port Wheels: 1 Twinkle and 1 Color B.
- Page 3 C. Light Engine Setting 1. DIP address setting: No. 1-9 as DIP address or program number. No. 10 and 11 as Remote Control must be in ON position for remote to work. No. 11 is Master/Slave No. 12 is optional 2.
- Page 4 6. Remote Control: DIP 10 and 11 must be in the ON position. DIP 1-9 and 12 must be in OFF position. Press the Clear or Cancel key to clear any previous programs. Choose program from chart and press corresponding number, then press enter key. Program number is larger than keys on remote: Example: You want program 7.
