- Page 1 300M Wireless-N USB Adapter Model No. iB-WUA300N User Guide Rev.: 1.0.0 1910020452...
- Page 2 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. iBall Baton is a registered trademark of Best IT World (India) Pvt. Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Best IT World (India) Pvt.
-
Page 3: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Table Of Contents
CONTENTS Package Contents ....................1 Chapter 1 Introduction ..................2 Overview of the Product ..................2 Features ........................ 2 LED Status ......................3 Chapter 2 Installation Guide ................4 Hardware Installation..................... 4 Software Installation ....................4 2.2.1 Overview ....................4 2.2.2 Software Installation for Windows XP ............ -
Page 5: Package Contents

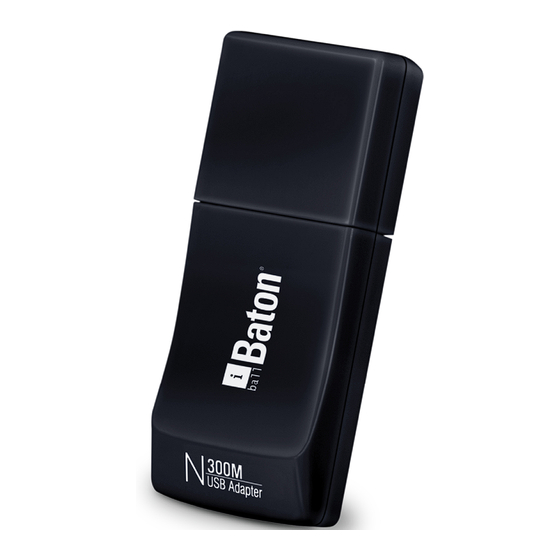

Make sure that the package contains the above items. If any of the listed items is damaged or missing, please contact with your distributor. Conventions: The ‘Adapter’ mentioned in this User Guide stands for iB-WUA300N 300M Wireless-N USB Adapter without any explanations. -
Page 6: Chapter 1 Introduction
WEP, WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed. With unmatched wireless performance, reception, and security protection, the iB-WUA300N is the best choice for easily adding or upgrading wireless connectivity. 1.2 Features Complies with IEEE802.11n, IEEE802.11g, IEEE802.11b standards... -
Page 7: Led Status
300M Wireless-N USB Adapter 1.3 LED Status Status Working Status The driver has not been installed. The driver has been installed but there is no data being transmitted Flashing Slowly or received. Flashing Quickly There is data being transmitted or received. -
Page 8: Chapter 2 Installation Guide
300M Wireless-N USB Adapter Chapter 2 Installation Guide 2.1 Hardware Installation There are two ways to install the Adapter: 1. Plug the Adapter directly to the USB port on your computer. 2. Connect the Adapter and your computer through the USB cable attached in package. - Page 9 300M Wireless-N USB Adapter Figure 2-1 Step 2: Click Next in the screen below (shown in Figure 2-2) to continue, you can click Cancel to end the installation. Figure 2-2 Step 3: After that, the next screen will appear. Select Install to continue.
- Page 10 300M Wireless-N USB Adapter Figure 2-3 Step 4: In the next screen, the files will be copied as the next screen shows (shown in Figure 2-4). To end the Installation, click Cancel. Figure 2-4 Note: During the installation, the system will warn about Windows Logo testing, please click Continue...
-
Page 11: Software Installation For Windows Vista/7
300M Wireless-N USB Adapter Figure 2-5 Step 5: Click the Finish button to complete the installation. Figure 2-6 2.2.3 Software Installation for Windows Vista/7 The Setup steps for Windows Vista and Windows 7 are very similar. The User Guide takes Windows Vista for example to explain the installation. - Page 12 300M Wireless-N USB Adapter system to start the installation. And then Figure 2-7 will appear. You can click Cancel to end the installation in the screen. Otherwise, the installation will continue. Figure 2-7 Click Next in the screen below to continue, you can click Cancel to end the installation.
- Page 13 300M Wireless-N USB Adapter Figure 2-9 After that, the files will be copied as the next screen shown (shown in Figure 2-10). To end the Installation, click Cancel. Figure 2-10 Note: During the installation, the system will warn about Windows Security testing, please click “Install...
- Page 14 300M Wireless-N USB Adapter Figure 2-11 Click the Finish button to complete the installation. Figure 2-12...
-
Page 15: Chapter 3 Configuration
300M Wireless-N USB Adapter Chapter 3 Configuration 300M Wireless-N USB Adapter iB-WUA300N can be configured by Wireless Utility. This chapter describes how to configure your 300M Wireless-N USB Adapter for wireless connectivity on your Wireless Local Area Network (WLAN) and use the data security encryption features. -
Page 16: Profile Management
300M Wireless-N USB Adapter Figure 3-1 Signal Strength - This shows the strength of the wireless signal. Link Quality - This shows the quality of the wireless connection. ReNew IP - Click the button to get the IP address from the AP. -
Page 17: Add Or Edit A Configuration Profile
300M Wireless-N USB Adapter Figure 3-2 3.2.1 Add or Edit a Configuration Profile Click the button Add or Edit (you should select an existed profile first to edit it) on the screen above, and you can configure the profile as shown in Figure 3-3. - Page 18 300M Wireless-N USB Adapter Network Name (SSID) - Please enter the IEEE 802.11 wireless network name. This field has a maximum limit of 32 characters. Note: The Profile Name and Network Name are necessary for the profile, you must configure it.
- Page 19 300M Wireless-N USB Adapter • Certificate - Select the certificate you apply. Open System authentication When you select the Open System as the authentication, the Disabled and WEP can be available for the data encryption. If you select Disabled, you don’t need to configure any passwords.
- Page 20 300M Wireless-N USB Adapter WPA-PSK authentication When you select the WPA-PSK as the authentication, the available data encryptions are TKIP and AES. Please select the one according your need. For example: If the wireless network takes WPA-PSK authentication, TKIP data encryption, the network key is 0123456789.
- Page 21 300M Wireless-N USB Adapter Figure 3-6 Note: Select different EAP types, the configuration are different. WPA2 802.1x When you select the WPA2 802.1x as the authentication, the available data encryptions are TKIP and AES. For the authentication, you should configure the 802.1x security.
-
Page 22: Remove A Configuration Profile
300M Wireless-N USB Adapter Figure 3-7 3.2.3 Duplicate a configuration file Follow the steps below to change the name of a configuration profile. Step 1: Go to the Profile tab (shown in Figure 3-7). Step 2: Select the profile name in the Profiles List. -
Page 23: Status
300M Wireless-N USB Adapter Figure 3-8 Step 1: Click Refresh to refresh the list at any time. Step 2: Highlight a network name and click Add to Profile to connect to an available network. Fill in the Profile name and click OK to create the new configuration profile for that network. -
Page 24: Statistics
300M Wireless-N USB Adapter Figure 3-9 3.5 Statistics Click the tab Statistics as shown in Figure 3-10 to view the traffic statistics about the connection. Click the Reset to refresh the information. Figure 3-10... -
Page 25: Wps
300M Wireless-N USB Adapter 3.6 WPS Click the tab WPS as shown in Figure 3-11, select different ways to configure the adapter for Wi-Fi network. Figure 3-11 Note: The WPS function takes effect only when the adapter and the AP (the adapter wants to connect) support the Wi-Fi function first. -
Page 26: Pbc Method
300M Wireless-N USB Adapter Figure 3-12 Step 3: After that, the PIN Code displays on the screen (shown in Figure 3-13). Now, you should enter the PIN code into your AP. Figure 3-13 Step 4: Finally, the adapter will create the profile and connect to the AP automatically. This is a new connection for Wi-Fi network. - Page 27 300M Wireless-N USB Adapter Figure 3-14 Step 2: Push the physical button on the AP. Step 3: Finally, the adapter will create the profile and connect to the AP automatically.
-
Page 28: Appendix A: Specifications
300M Wireless-N USB Adapter Appendix A: Specifications Normal Interface USB 2.0 Interface Standards IEEE802.11n; IEEE802.11g; IEEE802.11b Operating System Windows XP, Windows Vista, Windows 7 11b：1/2/5.5/11Mbps Radio Data Rate 11g：6/9/12/18/24/36/48/54Mbps 11n：Up to 300Mbps for receiver 11b:CCK,QPSK,BPSK; Modulation 11g:OFDM; 11n: QPSK,BPSK,16-QAM,64-QAM... -
Page 29: Appendix B: Glossary
300M Wireless-N USB Adapter Appendix B: Glossary 802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks. - Page 30 300M Wireless-N USB Adapter Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other...
-
Page 31: Appendix C: Contact Information
300M Wireless-N USB Adapter Appendix C: Contact Information For any help on iBall products, please contact support@iballbaton.com. www.iBallBaton.com...
