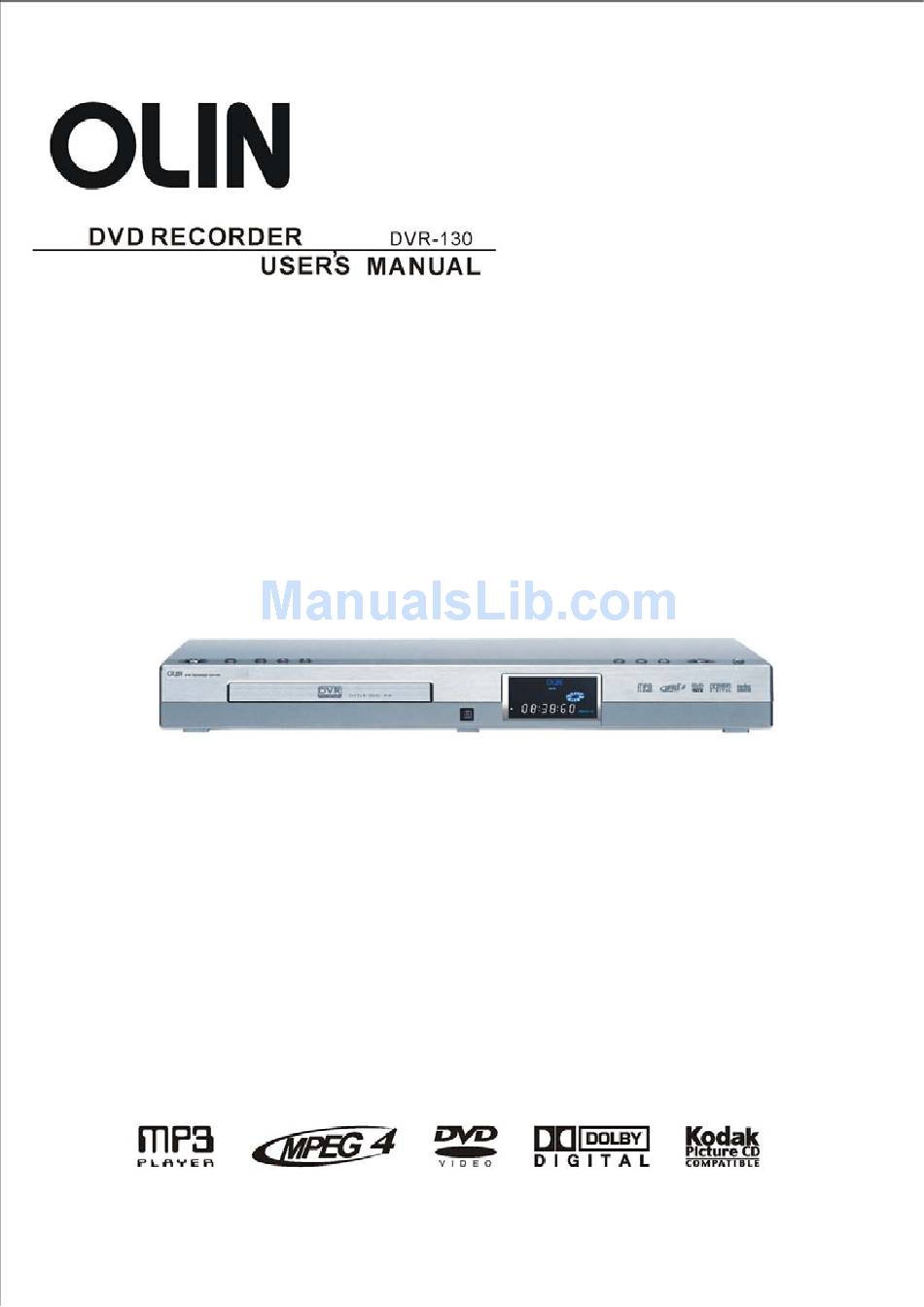

Olin DVR-130 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR-130 and is the answer not in the manual?

Questions and answers

Related Manuals for Olin DVR-130

Summary of Contents for Olin DVR-130

  • Page 2: Table Of Contents

    CONTENTS Safety Warning ---------------------------------------------------------------------------------- 2 Product Features -------------------------------------------------------------------------------- 3 Discs Information ------------------------------------------------------------------------------ 4 Parts Introduction -------------------------------------------------------------------------------- 5 System Connection ---------------------------------------------------------------------------- 8 Function Operations -------------------------------------------------------------------- 12 Disc Recording ------------------------------------------------------------ 16 System Setup ------------------------------------------------------------------------------------ 21 Trouble Shooting ----------------------------------------------------------------------------- 38 Specifications ------------------------------------------------------------------------------------ 39...

  • Page 3: Safety Warning

    SAFETY WARNING WARNING: To reduce the risk of fire or electric shock , DO NOT expose this product to rain or moisture ! The lighting Flash with arrowhead symbol within a triangle, Alerts the user to “dangerous Voltage” which could cause electric shock. The exclamation point within a triangle indicates to the user to read important operating and maintenance instructions in the manual IMPORTANT FOR LASER PRODUCTS...

  • Page 4: Product Features

    PRODUCT FEATURES Main features of product : Fully compatible with DVD/VCD/CD/MP3/ PICTURE-CD/CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/ DVD+RW/HDCD Compatible with MPEG4/DivX3.11/ DivX4/DivX5 and Xvid, Build-in Dolby AC-3 decoder Advanced MDDi Progressive scan output Full function remote control Automatic screen protection PAL/AUTO/NTSC optional Universal power supply:AC110-240V 50/60HZ Operation Functions: Up to 32 language subtitles and 8 different sound languages Memory stopping, A-B play function...

  • Page 5: Discs Information

    DISCS INFORMATION DISC FORMATS SUPPORTED BY THIS PLAYER Disc Sort Disc Logo Disc Contents Disc Size Video 12cm (Active Picture) 12cm Audio 12cm Audio Video JPEG 12cm (Static Picture) SVCD 12cm Audio+Video MPEG4 12cm Audio+Video DVD+R 12cm Can use just once DVD+RW 12cm Can repeated use...

  • Page 6: Parts Introduction

    Parts Introduction Front panel drawing Function Key introduction: Power: Press to turn on/off power. Display Screen. Eject: Press to open/close the disc tray. DV Signal Input Jack Play: Press to play the disc. 10 Video Input Jack Pause: Press to pause playback. 11 Audio Input Jack Stop: Press to stop playback.
  • Page 7 Parts Introduction Rear panel drawing 1. Cable TV or Antenna signal Input Jack 8. VGA Output Jack 2. Cable TV Signal Output Jack 9. Power Cord 3. YUV Output Jacks 10. Power Switch 4. S-video Output Jack 11. 5.1CH Audio Output Jacks 5.
  • Page 8 Parts Introduction Remote control function key introduction 11. SUBTITLE-When playing DVD disc, press to select a subtitle language. 12. ANGLE -Press to access various camera angles. 13. PROG -Press to set the Disc in programming play mode. 14. Volume +/- -Press to increase or decrease the DVD volume level slightly.

  • Page 9: System Connection

    System Connections Precaution: Do not turn on the power of the player before all connections have been correctly done. Important Remark: The pictures maybe different from your DVD PLAYER ,the connections only for your reference. Connecting to TV The video output connector of the player include: Video output, S-video output, and component output, VGA output, you can select any one of them to connect refer to your connecting apparatus correspondingly.
  • Page 10 System Setup Connecting to an Amplifier with 5.1CH Audio Output Connect the player’s 5.1CH output to the 5.1CH amplifier’s 5.1CH input connector with Audio cable, as shown in below figure. Set the player’s Audio output mode as the “DOWNMIX” to “5.1CH” in “Audio/Video” menu. The default audio output set is Stereo, then you can enjoy the 5.1CH home theatre system sound effect.

  • Page 11: System Connections

    System Connections Exterior Recording Signal Input The front panel of the player with Audio/Video input jacks and the DV input jack, rear panel with S-Video, Audio/Video input jacks. Cable TV input jack ,you can connect the relevant jack as your need of recording. Connecting with exterior Audio/Video Input Signal or S-Video Input Signal Connecting With Cable TV:...
  • Page 12 System Connections Connecting With Antenna Connecting With DV...

  • Page 13: Function Operations

    FUNCTION OPERATIONS Load Discs After correctly connect the Player to other apparatus, turn on the player, then follow below steps. 3. Load the disc 1. Turn on the player Press the POWER button. then the player will Put the disc in the tray as shown in the right search for the disc automatically.
  • Page 14 FUNCTION OPERATIONS VOLUME During playback, press the VOL button to turn up, press the VOL button to turn down. FAST FORWARD & REVERSE Press the buttons to activate fast reverse or forward function, Continually press to select different times fast reverse or forward function. SLOW FORWARD &...
  • Page 15 FUNCTION OPERATIONS DVD PLAYBACK MENU When playing DVD disc, Generally it will appear a menu for further selection, you can use the direction buttons to highlight the item you would like and press the ENTER button to confirm. TITLE & CHAPTER Generally there are several titles in a DVD disc, and several chapters under a title.
  • Page 16 FUNCTION OPERATIONS MP3 PLAYBACK MP3 is the third audio compression format of international standard MPEG. The audio signal is compressed at the rate of 12:1. using MP3 format, one disc can record more than 600 minutes music, the timbre of which is similar with that of CD discs. There are many different formats for storing MP3 songs.

  • Page 17: Disc Recording

    DISC RECORDING RECORD OPERATION 1. Connect whit exterior input source According to the system connection you can connect the player with exterior input signal, you can connect the cable TV output signal with the player directly. 2. Turn on the power Start the player at the first time, press the power switch on the rear panel, if the player at stand by mode, press the “POWER”...
  • Page 18 DISC RECORDING Stop recording Stop recording mode Input source The DVD recorder with 5 group input jack: front AV rear AV rear S-Video digital camera One key recording While recording you can choose record time, press “RECORD” button each time it can record 30 minutes, if the recording time over 30 minutes, you can decide the press times according to the recording time, if the record program time is longer than the preset time, you can press the “RECORD”...
  • Page 19 DISC RECORDING DISC EDIT Only the disc recorded by the player can be edit. Erase Playing the recorded DVD+RW discs, select the title which is need to be deleted, move cursor to “Erase”, DVD+RW press “ENTER” button to delete the title. Note: The deleted program will not come back again.
  • Page 20 DISC RECORDING Chapter edit You can increase delete hide edit the content of DVD+R/RW disc. Index Playing recorded DVD+R or DVD+RW discs, select the title which is need to index, move the cursor to “Index”, DVD+R or DVD+RW press “ENTER” button to enter index image mode, press “REC” button to setup index image, press “STOP” button to exit index image mode.
  • Page 21 DISC RECORDING Disc info n disc operation menu, move the cursor to “Disc info”, it will show the disc information(Label, Title No, Remainder, Media, Status ) Protect In disc operation menu, move the cursor to “Protect”, press “ENTER” button to protect the disc, after protect operation, the disc can’t be edit, select the “unprotect”...

  • Page 22: System Setup

    System Setup SYSTEM SETUP Press the “SETUP” button on the remote control, it displays a setup menu on the screen as below: Press “SETUP” button to exit. RECORDING SETTING PAGE Use the direction button on the remote control to select “Recording”, press “ENTER” button to enter submenu, press direction button to return to higher level menu, press “SETUP”...
  • Page 23 System Setup Chapter marker setting Choose “Chapter marker” selection, setup menu displays as below: If you select “off” selection then the recording content have no chapter mark, the other selections is the interval time for chapter mark. Timer recording setting Choose “Timer recording”...
  • Page 24 System Setup Overwrite setting Setting Overwrite to be “ON”, when the content of the disc is full, it will overwrite the disc automatically. Setting Overwrite to be “OFF”, it without overwrite function, you have to manual erase the content, then recording. Note: The option only effective with DVD+RW discs.
  • Page 25 System Setup...
  • Page 26 System Setup Speakers setup instruction NAME OPTION OPERATION “OFF” means select 5.1CH output LT/RT “Stereo” means select left and right channel audio output Dowminx Stereo If the amplifier allows 2CH input then you can choose the “LT/RT” mode to output 2CH audio to amplifier processing background.
  • Page 27 System Setup SPDIF Setting Choose “SPDIF put” option, setup menu show as below: SPDIF/RAW: The non-decoded discs digital signal output. SPDIF/PCM: Decoded discs PCM digital signal output. Post DRC Setting Dynamic compress output can lower volumes processing sound effect under the conditions of within speakers max output.
  • Page 28 System Setup Quality Setting In Quality Setting option you can setup the “Brightness, Contrast, Hue, Saturation ” as you wish. TV Display Setting You can setup the TV Display output as “PS”, “LB”, “Wide:16:9”. Note: The TV Display also relate with the disc recording mode and TV set.
  • Page 29 System Setup Component Setting YUV, VGA are different video output mode, if choosing “OFF” then it have no Component video output signal. DISC SETTING PAGE direction button to select “Disc” setup menu. Press “ENTER” or direction button to enter. direction button to select the items ;...
  • Page 30 System Setup Change Password Select the “Change Password” option: Press “ENTER” key to enter Change Password setup menu: Enter old password in the first row. Enter new password in the first row. Enter new password again in the third row. Select “OK”...
  • Page 31 System Setup Angle Mark Setting Playing multi-angle discs, set it to be “ON”, the screen will display angle mark, if set it to be “OFF” then the screen will not display angle mark. Last Memory Setting Set “Last Memory” to be “ON”, While playing a disc, you open the tray or enter stand-by mode the player will remember the...
  • Page 32 System Setup GENERAL SETTING PAGE direction button to select “General”. Press “ENTER” or direction button to enter into general setup menu. direction button to select the items ; Press “ENTER” or direction button to confirm and enter . direction button to return to the higher level menu;...
  • Page 33 System Setup Audio Setting The option used to set the audio’s language. This function requires support of the discs. Different language can be selected such as: English, French, Spanish, Chinese, Japanese, Korean, Russian ,Thai and others. The default language is English. Subtitle Setting This function...
  • Page 34 System Setup Clock Setting Press “ENTER” button to enter the menu as below: Press direction button to select. Press direction button to change the value. Press “ENTER” button to ensure and then exit this menu. Time System Setting...
  • Page 35 System Setup Screen Saver Setting Set the Screen saver to be “ON” when the player at “NO DISC” “STOP” status ,a few minutes later the player start the screen saver automatically. Auto goto DV Setting Set Auto goto DV to be “ON”, when the 1394 line connect to the player, it will detect the DV automatically, Set “OFF”,...
  • Page 36 System Setup TV SETTING PAGE Edit Channel List Setting Press “ENTER” to enter Edit Channel List setup menu: direction button to select the TV program, press “ENTER” button to ensure Select“ ” or “ ” option, use “ENTER” button to set the order. Select “SKIP”...
  • Page 37 System Setup Automatic Search Setting Press “ENTER” button to enter “Automatic Search” menu: The player scan all the channels, store the channels with signal and order them; The number in the first row shows the rate of scan progress, the number in the second row show the found channels.
  • Page 38 System Setup Press “ENTER” key to enter “Manual Search” setup menu: direction key to select. or “NUMBER” keys to setup. Press “ENTER” key to save the setting and exit. If the searched broadcasting station have no sound, please adjust the Secam-L Secam-BG Secam-DKor PAL-I...

  • Page 39: Trouble Shooting

    TROUBLE SHOOTING Symptom What to check -If disc is loaded in. -If disc is loaded upside down. The player cannot play. -If disc is dirty or warped. -If the player’s region code is the same as region code of DVD disc. -If water condensation has occurred.

  • Page 40: Specifications

    SPECIFICATIONS Laser Wavelength Wavelength: 780/650nm Video System PAL/AUTO/NTSC Frequency Response 20Hz 20kHz ±2.5 dB Audio Signal-to-noise Rate •85dB Audio distortion + noise ”-70dB 1kHz Channel Separation •70dB 1kHz Dynamic Range •80dB 1kHz Analog Audio Out Out Level: 2V± Load: 10k Audio Out Coaxial: Out Level 0.5V ,Load: 75...
