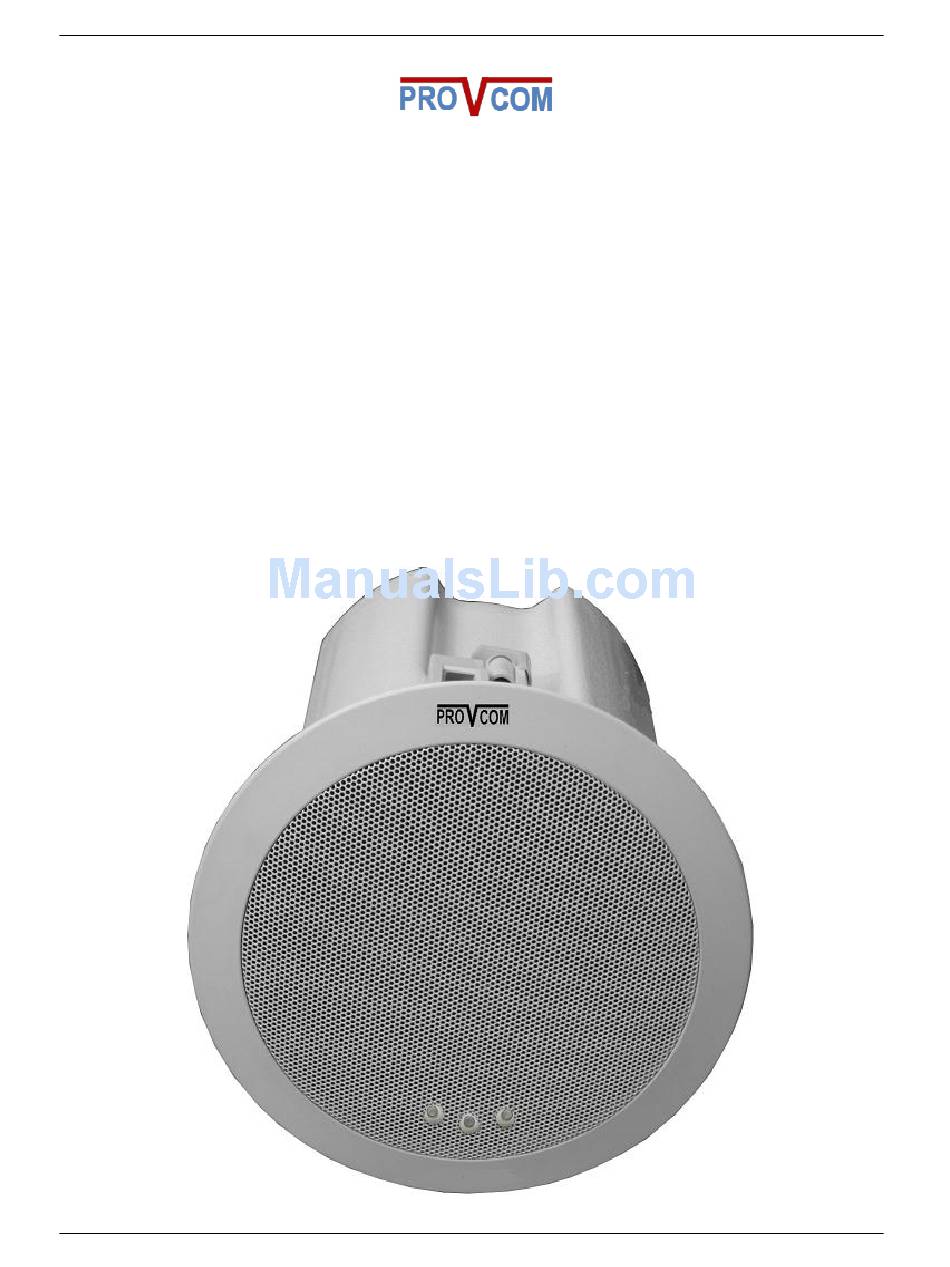

- Page 1 PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual PROVCOM IP SPEAKER PROV-H-320-P User’s Manual...
- Page 2 PROVCOM. This manual provides guidelines only on how to use the system, PROVCOM is not responsible for any damage or errors caused by omission, wrong execution or outdated information mentioned on this manual.
-
Page 3: Table Of Contents
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual Table of Contents Copyright and Disclaimer…………………………………………………………….. II System Requirements………………………………………………………………….. 1 Getting Started…………………………………………………………………….…. 2 About PROVCOM IP SPEAKERS……………………………………………………… Before you Start ………………………………………………………………………..3 Features………………………………………………………………………………………… 3 Technical Information……………………………………………………………………. 4 2 Speaker Installation………………………………………………………………… 5 Creating Hole on Ceiling………………………………………………………………… 6 Install Speaker on Hole………………………………………………………………….. - Page 4 PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual...
-
Page 5: Getting Started
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 1. Getting Started... -
Page 6: About Provcom Ip Speakers
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 1.1 About PROVCOM IP Speakers: PROVCOM IP Speakers are new generation of IP speakers that will make paging process easier than ever, it comes with the set of tools and features that will make paging environment easier to manage, announce, expand, and to be monitored. -
Page 7: Technical Information
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 1.4 Technical Information: Specifications Dimensions Height: 155 mm, Width (front: 215mm) (Back: 160mm ) Speaker Output Up to 13 Watts Microphone Front: built-in high sensitivity microphone Back: 3.5 mm JACK Working Environment Temperature: 0 ~ 60 degrees... -
Page 8: Speaker Installation
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 2. Speaker Installation... -
Page 9: Creating Hole On Ceiling
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual PROVCOM IP speakers are easy to install, it can be installed on the ceiling by following these easy steps: 2.1 Creating hole on the Ceiling: First you will need to create a hole on the ceiling; it should be circle with diameter equal to (180 mm). -
Page 10: Finishing Installation (Fixing Screws)
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 2.3 Finishing installation (Fixing Screws): After fixing the screws and installing the speaker, return the net back to the front of the speaker, if the speaker connected to PoE or power adapter, it should boot up and the LEDs should blink. -
Page 11: Speaker Configuration
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3. Speaker Configuration... -
Page 12: Login
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual Before you start to configure the speaker, you need to know the IP address of the speaker, below are the ways you can learn the speaker IP address. IP address will be obtained from DHCP, you can learn the IP address by pressing the first button from the left, it will announce the speaker IP. -
Page 13: Network
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual The sections that follow will describe each option and how to configure its parameters. 3.2 Network This tab is used to set network settings, please note that, if you have wireless speaker, you can set LAN and VPN Settings. -
Page 14: Vpn Settings
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.2.2 VPN Settings If your speaker part of VPN network, you need to configure the VPN settings from this tab. Figure 3-4: Configure VPN Settings... -
Page 15: Sip Accounts
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.3 SIP Accounts PROVCOM IP speakers can join up to 3 SIP accounts, information needed on this tab is SIP server IP, port number, account code and password, if all information inserted are valid and correct, the speaker will attempt to register with the SIP server. -
Page 16: Paging Settings
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.4 Paging Settings PROVCOM IP speakers can join up to 20 multicast zones, you can add them manually from this tab by inserting the multicast IP and port number for each zone. Figure 3-6: Configure Paging Settings... -
Page 17: Audio
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.5 Audio To manage speaker volume level and microphone level, you need to use this tab, please note that for most cases, if you enable microphone, keep it on level 7, for speaker sound, it is recommended not to use more than level 4 unless you are sure your covered area is crowded and noise level is high. -
Page 18: Speaker Maintenance
As known for most systems, log file will serve you when the speaker behavior is changed due to some reason, log file contains information you need to investigate the issue, it is recommended to submit log file to PROVCOM support if you need assistance from them. Figure 3-8: Configure Log Settings... -
Page 19: Speaker Settings
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.6.2 Speaker Settings This tab is reserved for future use, you can just set the date and time from this tab and all other options will be ignored. Figure 3-9: Configure Speaker Settings... -
Page 20: Vlan Settings
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.6.3 VLAN Settings If your speakers will operate in vlan, you will need to configure vlan options from this tab, otherwise, your speaker may not operate or play any announcement. Figure 3-10: Configure VLAN Settings 3.6.4 Password... -
Page 21: Default Set
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.6.5 Default Set (Reset) If you need to restore the factory settings for the speaker, you will need to use this tab, please note that restoring the factory settings will erase all configuration that been made on the targeted speaker, be careful with it. -
Page 22: Auto Provision
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.6.6 Auto Provision Auto provision is used to let the speaker read its configuration from server instead of manually configuring it, this tab will require information such as server name or IP address, username and password (optional), frequency to check, check on reboot. -
Page 23: Tftp Upgrade
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.6.8 TFTP Upgrade If you choose to upgrade speakers using TFTP, configure its parameters from this tab. Figure 3-15: Configure TFTP Settings 3.6.9 HTTP Upgrade If you choose to upgrade speaker’s software using HTTP, configure its parameters from this tab. -
Page 24: Reboot
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 3.6.10 Reboot For rebooting the speaker, please use this tab, please note that you don’t have to reboot the speaker unless it is necessary, like it is hanging or not responding which is rarely happens. -
Page 25: Troubleshooting
PROVCOM IP SPEAKERS PROV-H-320-P User’s Manual 4. Troubleshooting... - Page 26 Q: I configured the speaker properly, but when it plays any sound, it automatically reboots what should I do? To use PROVCOM IP speakers properly, you need to make sure that the switch connecting the speakers is PoE switch and it’s producing 15.5 WATTS...
