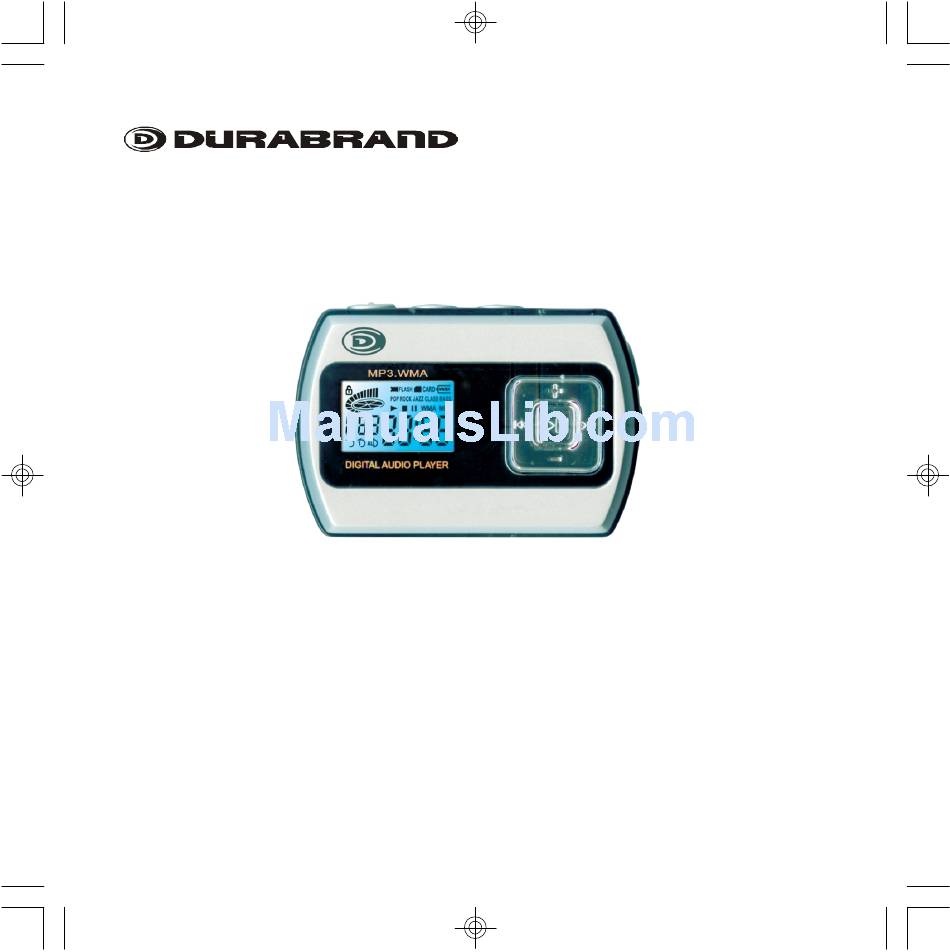

Mp3 / wma player

Advertisement

Quick Links

MP3 and WMA compatible
Card slot for up to 512M SD/MMC
memory card for extra storage
Deluxe stereo earphones with neck strap
Preset 6 position selectable equalizer
512M built-in total storage space
Lock button prevents accidental usage
Includes USB cable and software disc
Note: WMA Music with DRM Protection can not be supported by this audio player.
MP3 / WMA Player

Operating Instructions

Model: MP-400
Operates with one AAA alkaline battery
Can also be used to record and transfer
files as a portable media device
Track, Song time, Battery, Volume and
Play mode indicators
Requires Windows 98SE/Me/2000/XP/
Mac OS X 10.2.6 or above
2 Demo songs are included
IB-MP400-WC-E-061005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Durabrand MP-400

  • Page 1: Operating Instructions

    Lock button prevents accidental usage • Includes USB cable and software disc Note: WMA Music with DRM Protection can not be supported by this audio player. Model: MP-400 • Operates with one AAA alkaline battery • Can also be used to record and transfer files as a portable media device •...
  • Page 2: Table Of Contents

    Adjusting Equalizer and Play Modes………………………………………………………15 Using an External SD / MMC Memory Card…………………………………………………………16 Deleting Files or Music from Your Player…………………………………………………………16 Transferring Files and Music from Your Computer to the MP-400……………………………17 3-10 Storage Information of the Player………………………………………………………………………18 Using Microsoft’s Windows Media Player Basic Information………………………………………………………………………………………19...
  • Page 3: Start To Use Preface

    If you have a newer operating system, such as Windows Me or XP, you don’t need to install any software. This MP-400 is “plug and play” and ready to use when you connect the USB cable to the MP-400 and your computer (your computer must have a USB port).
  • Page 4: Features

    1-2. Features • Built-in 512MB flash memory (total space, including operating system files). • Expansion SD/MMC card slot. Accepts up to 512MB SD (Secure Digital) / MMC (MultiMedia Card) card (not included) for extra storage. • Plays MP3, WMA music format files and can store any digital file. •...
  • Page 5: Device Overview

    1-3. Device Overview Fig. 1-3-1 Device Overview 1 EARPHONES jack - Connect earphones or a home theater etc. with a 3.5mm stereo plug. 2 LCD screen - Displays current status of the player, details on page 6. 3 Lock button - Locks controls to prevent accidental operation.
  • Page 6 5 Memory selection / Play mode selection button hold to select between internal flash memory and external SD/MMC card (if card is inserted inside the set). Press a short time to select the 4-mode playback: normal, repeat 1, repeat all, random (details on page 15). 6 Mini-USB port - Lift the cover and connect the player to your computer using the supplied USB cable.
  • Page 7: Lcd Display Overview

    1-4. LCD Display Overview Fig. 1-4-1 LCD Display Overview Indicators: 1. Playing Time - Shows song’s playing time (12 minutes and 23 seconds) also displays Power ON/OFF, PC connection, 2. Number - Shows current track number 19 or total number of tracks. 3.
  • Page 8: Battery Installation

    1-5. Battery Installation 1 Slide the battery cover off as shown. 2 Insert one AAA battery, beware of correct polarities (+ and -). 3 Put the cover back. Battery Safety Do not dispose of any battery in fire! ä Do not put the battery in a damp place! ä...
  • Page 9 Adobe PDF Reader (In case you don’t have this, it can be installed from the disc.) 6 Installation is complete! You are now ready to connect the Audio Player to your computer. To Uninstall the Win98SE Driver, run “1. Start 3. Uninstall”. 2. MP-400 MP3 Audio Player IB-MP400-WC-E-061005...
  • Page 10: Connecting The Audio Player And Computer

    2-3. Connecting the Audio Player and Computer Both PC or Mac users must use the USB cable to connect the player and computer before you can download or upload music files to the computer. 1 Connect the smaller plug of the USB cable to the mini-USB port on the player as shown. Plug only fits one way, if the plug does not match the mini-USB port, don’t force it, just reverse it and try again.
  • Page 11: Using The Audio Player As A Removable Drive (Usb Disk)

    You can drag and drop files into the player. (Up to the limit of about 512 MB for internal memory or external card.) 1 Connect the USB cable to the computer and MP-400. 2 Click “My Computer” icon on your Windows desktop, and it will show up as a “Removable Disk”...
  • Page 12: Disconnecting The Audio Player From Your Computer

    Fig. 2-4-2 Using the Player as a Removable Drive 4. Select the folders or songs or files you want to copy to your MP-400. 5. After you have highlighted the files you want to copy, click on “edit” (next to file on top), click on “copy to folder”...
  • Page 13: Basic Operation Of The Audio Player

    Click on this icon to disconnect the USB cable safely. NOTE: Usually a small icon will appear, clicking this icon will show the “safely remove hardware” screen. Fig. 2-5-1 Safely Disconnecting the Player 3 - Basic Operation of the Audio Player 3-1.
  • Page 14: Player Power On/Off

    3-2. Player Power On/Off To turn on the player, press and hold the POWER set will start to play. To turn the player off, press and hold the POWER again. Shows when you press and hold the Power ON/ OFF button To turn on the player.
  • Page 15: Adjusting The Volume

    NOTE: The Player has an Auto-Power Off function to economize STOP It will display the “NO SO” (NO SONG) if the Flash memory or SD/ MMC card has no music files, simply transfer files into your player. Fig. 3-3-1 Music Playback NOTE: Your player comes with a few demo songs, you may keep these or delete them.
  • Page 16: Adjusting Equalizer And Play Modes

    3-6. Adjusting Equalizer and Play Modes The 6-band equalizer can let you personalize your favorite sound effect of the player during play. When you play the music: 1. Press the Equalizer button pop, rock, jazz, classic, bass EQ SET Fig. 3-6-1 Pressing the EQ-button to select from the 6-band EQ 2.
  • Page 17: Using An External Sd/Mmc Memory Card

    2. Click ok on your computer’s mouse and Windows explorer will open (or manually open Windows explorer). 3. A listing of files on your MP-400 (usually drive E:\ or F:\ or G:\ ) will be shown. (Optional - not included)
  • Page 18: Transferring Files And Music From Your Computer To The Mp-400

    3-9 Transferring files and Music from your Computer to the MP-400 If you also want to download new files or music into your MP-400 player after step 3-8, please do the following: 1.
  • Page 19: Storage Information Of The Player

    To check the storage of the player, first connect the player to the computer. Two “Removable Disk” icons will show up in Windows Desktop. MP-400 is the internal flash memory disk, Removable Disk is the SD/MMC disk. Highlight the disc you want to check. Right click on the mouse (press the mouse right button) and then click on “Properties”, then you can...
  • Page 20: Using Microsoft's Windows Media Player Basic Information

    4 - Using Microsoft’s Windows Media Player 4-1. Basic Information You can install Windows Media Player 9.0 from the supplied Driver Setup disc (or it may already be on you computer). Details of the Taskbar of Windows Media Player as below: Fig.
  • Page 21: Ripping Tracks From Music Cds

    Windows Media Player can also help you to build up a media library, by converting your Audio CDs to WMA format so that you can transfer them to your MP-400 player. WMA format condenses the files to a smaller space so that more songs can fit into your MP3 player.
  • Page 22 3. Click “Copy from CD”. A list of contents of the CD will come out. 4. Click the “Check Box” next to the track you want to select (for example #2, #3, #4, and #5) for ripping into WMA format. 5.
  • Page 23: Copying Cd Tracks From Computer To The Player

    4-3. Copying CD Tracks from Computer to the Player To copy music (such as *.WMA) from your computer to the player : 1. Connect the player and your computer by using the supplied USB cable. 2. Click “Copy to CD or Device”. 3.
  • Page 24: Helpful Information Troubleshooting

    Battery is dead. No display shows. Only 490 MB shows as The MP 3 o p er ati ng syste m available in MP-400. occupies about 22 MB of space. Your computer takes a MP3 player is plugged into the long time to boot up.
  • Page 25: Technical Specifications

    5-2.Technical Specifications MP3 Decoding Format ... Constant or Variable bit rate (8~320kbps) Sampling frequencies 8-48 kHz WMA Decoding Format ... Constant bit rate (5~192kbps), Sampling frequencies 8-48 kHz Internal Flash Memory... 512MB NOTE: Some of the 512MB memory is used by the operating system.
  • Page 26: Important Safety Instructions

    5-3. Important Safety Instructions 1. Read and keep these instructions. Follow all instructions. Heed all warnings. 2. To reduce the risk of fire or electric shock, do not use or operate this apparatus in or near water or wet locations. Do not spill liquid on this apparatus. 3.
  • Page 27: Product Care

    5-4. Product Care 1. Exposure to extreme hot or cold temperatures may cause damage to the player or cause it to malfunction. Do not expose the player to direct sunlight continuously or leave it in a vehicle with the doors and windows closed. The case may become deformed or discolored or the player may malfunction.
  • Page 28: Copyright

    5-6. Copyright © 2005 DURABRAND All rights reserved. Marketed by Wal-Mart Stores, Inc. Bentonville, AR 72716. DURABRAND shall not be liable for any errors contained herein or for any damages arising out of or related to this document or the information contained herein, even if DURABRAND has been advised of the possibility of such damages.
  • Page 29: Demo Songs

    5-7. Demo songs Music provided courtesy of Balboa. http://www.BalboaNYC.com Lillies and Stray (Instrumental) written and performed by Loam Disher, Torello Disher, Robb Bruns and Tate Overton. IB-MP400-WC-E-061005...
  • Page 30: Ib-Mp400-Wc-E

    During the initial 1 year period after original purchase, we will service the set that is returned to LENOXX ELECTRONICS CORP, prepaid, at no charge. After the initial 1 year period expires, we will exchange, at no charge, any part that is defective, but will charge for the cost of labor, return postage paid by Lenoxx.
