Summary of Contents for i3International Veo 48016
- Page 1 48016 Quick Operation Manual ©2014 i3 International Inc. The contents of this user manual are protected under copyrights and computer program laws.

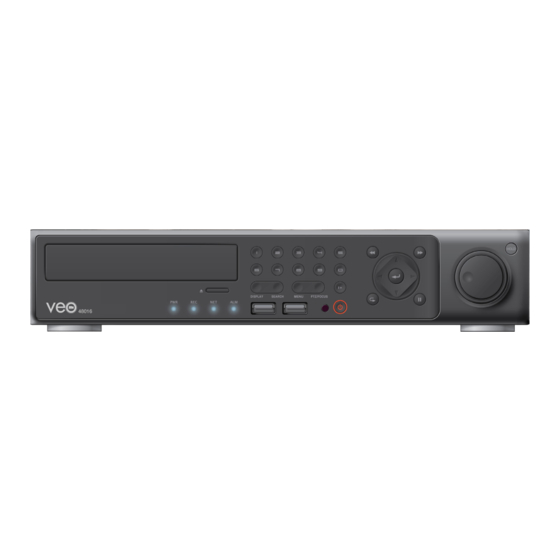

- Page 2 YOUR VEO DVR Your Veo DVR is a piece of electronic surveillance equipment. Up to 16 analog cameras are connected to the DVR and the recorded video is stored on the internal hard drive. This user guide will show you how to use your Veo DVR to view LIVE video to monitor your facility or to track an event or an individual.
- Page 3 LOGIN Important: Your Veo DVR is pre-programmed to log out after 10 minutes of inactivity. To view live or recorded video, you must first login. Step 1. Using the mouse cursor, click on the UP / DOWN arrows to select the user type from ADMIN, MANAGER or USER. Step 2.
-
Page 4: Viewing Live Video
VIEWING LIVE VIDEO After logging in, you will be able to view live video from all connected cameras in a multi-screen view. Where no camera is present, or where camera is out of order, blue screen will be displayed with text “NO SIGNAL”. Call your installer for service if a previously working camera can no longer be seen in the Live view screen. -
Page 5: Search Window
SEARCHING RECORDED VIDEO / PLAYBACK To search recorded video, click the SEARCH icon in the Quick Menu panel. The SEARCH window will be displayed. Search Window Your DVR uses a calendar and timeline search method for quick access to recorded footage. Playing back your video is as easy as 1-2-3. Step 1. -
Page 6: Playback Mode
Playback Mode Playback Mode window will be displayed. Use the Playback Control panel at the bottom of the screen to control video playback. Use your mouse cursor to double-click on the camera view you would like to see in the Full Screen mode. Double-click on the screen to move between multi-screen and Full Screen modes. - Page 7 PANO (PANORAMIC) PLAYBACK Pano Playback feature segments recorded video footage from the selected calendar day into eight 3-hour clips and plays them back simultaneously in a split screen mode. Pano feature can only be used on one camera at-a-time. This feature allows fast, at-a-glance review of video footage from a single camera.
- Page 8 ARCHIVING VIDEO FOOTAGE TO USB FLASH DRIVE OR CD/DVD To archive / save a video clip, follow the steps below. Step 1. Plug in your USB flash drive into the USB port on the front panel of the DVR, if using, OR Press the CD/DVD eject button on the front panel of the DVR and insert a blank CD or DVD disk into the drive.
- Page 9 Step 8. Click the QUERY icon to calculate the total size of the video backup. Step 8 Step 9. Make sure there is sufficient available empty space on your selected DEVICE to accommodate the file of that size. In this example, the total size of the backup is 125.6 MB. Step 10.
