TruVue 70140WN Instruction Manual

SPECIFICATION
70140WN
Model
Pick up Sensor 1/3" SONY EFFIO-E Exview HAD CCD II
Effective Picture Elements
PAL:1020(H)x596(V)
(H×V)
Horizontal Resolution 700 TV Line
Minimum Lux 0.001 Lux
Min Illumination
0Lux (with IR LED ON)
S/N Ratio 52dB
Scanning System
PAL 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter PAL: 1/50s~1/100,000s
Gama Characteristic
IR Distance
30 Meters (with ￠ 5 X36 PCS Infrared LED)
Video Output 1Vpp, 75
Auto Gain Control Auto (adjustable)
OSD Menu Joystick control
Power / / / / C urrent DC12V(+/-10%) / 5 00mA
2.8~12mm Fixed Iris Manual Zoom Lens
Lens/Angle
/90~30 Degree
Dimension (mm) 131(Dia) x 93(H) (mm)
Weight (g)
IP Rating
Operating Temperature -10~+45 ℃ RH95% MAX

PACKING LIST

No Name Model
1. 700TVL Vandal proof IR Dome
70140WN
Colour Camera
2.
User Guide NA
3
Mounting Hardware NA
CAUTIONS, WARRANTY TERMS & CONDITIONS
Thank you for purchasing this quality product. Before operating the product
please read the instruction manual carefully to ensure proper use of the
product. Please store this instruction manual in a safe place for future
reference. Camera will not be covered under warranty if the following is not
adhered to.
1. Power supply for camera
(1)Use recommended 12VDC regulated power supply only
(2)Be sure to connect each power lead from the 12VDC power
supply to the appropriate terminal marked with "+" and "-". "+" is for
+12VDC and "-"is for -12VDC. Wrong connection will cause malfunction
and damage to the video camera and will not be covered under manufacturers
warranty
2. Operating conditions and locations
1) Do not attempt to aim the camera at the sun or any other extremely
bright objects. This will cause smearing to appear irrespective of whether the
camera is operating or not. This can and will damage the CCD (Charge
0.45
Coupled Device) sensor.
(2)Do not mount the camera in the following locations.
i) Subjected to extremely high or low temperatures. Make sure the
cameras' operating temperature range does not exceed -10
ii) Subjected to high levels of humidity and dust. (Operating humidity
range: maximum 95 % (non condensation))
iii) Where there are large amounts of water vapours and steam.
iv) Subjected to excessive vibrations.
v) Avoid installing near wireless communication devices which emit
strong electromagnetic fields, some irregularity such as noise on video image
may occur.
3. Do not allow the camera to be subjected to strong impacts or shocks. The
camera could be damaged by improper handling or storage.
If any of the above should occur, immediately turn off the camera power
800
supply and consult your dealer/installer.
NB: Never attempt to disassemble or modify the camera.
IP66
Number
1
1
1
℃ ~ +45 ℃
Alexandria Tel 02 9693 5144,
Northmead Tel 02 9890 5300
Mt Waverley Tel 03 9558 8455,
Tullamarine Tel 03 9338 2427
WA: Tel 08 6462 8080
QLD: Tel 07 3552 5966
SA: Tel 08 8297 5555

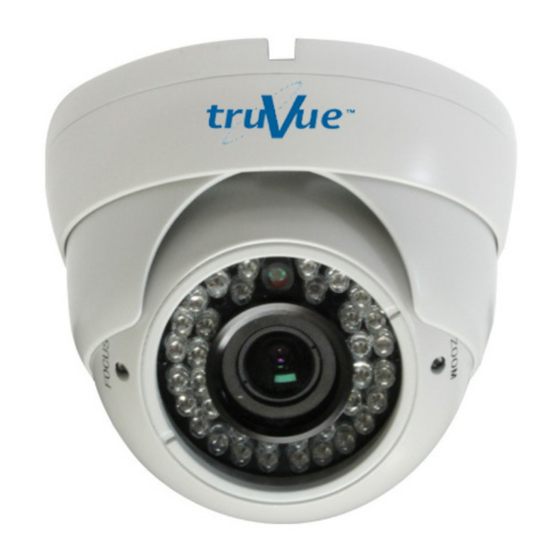

TruVue Sony EFFIO-E CCD
700TVL Colour Camera
Vandal Proof Weather Proof Indoor/
Outdoor IR Colour/BW Dome
Camera with OSD menu
Notes: Before attempting to connect or
operate this product, please read these
instructions carefully and save this manual
for future reference.
Do not attempt to disassemble the
camera. If the camera fails to work,
please contact your local Security
Merchants branch
