One Tech OTP-GL300C User Manual

OTP-GL300C Glasses camcorder
Thank you for purchasing our product. This product has multi-usage including take photos 、video and used as a removable
disk and the PC camera. This product can be operated simply. And this device is beautiful and practical. It is easy to carry. And it is
many fields of necessary practical tools such as business, education, security, media, judicial, tourism, and medical treatment.

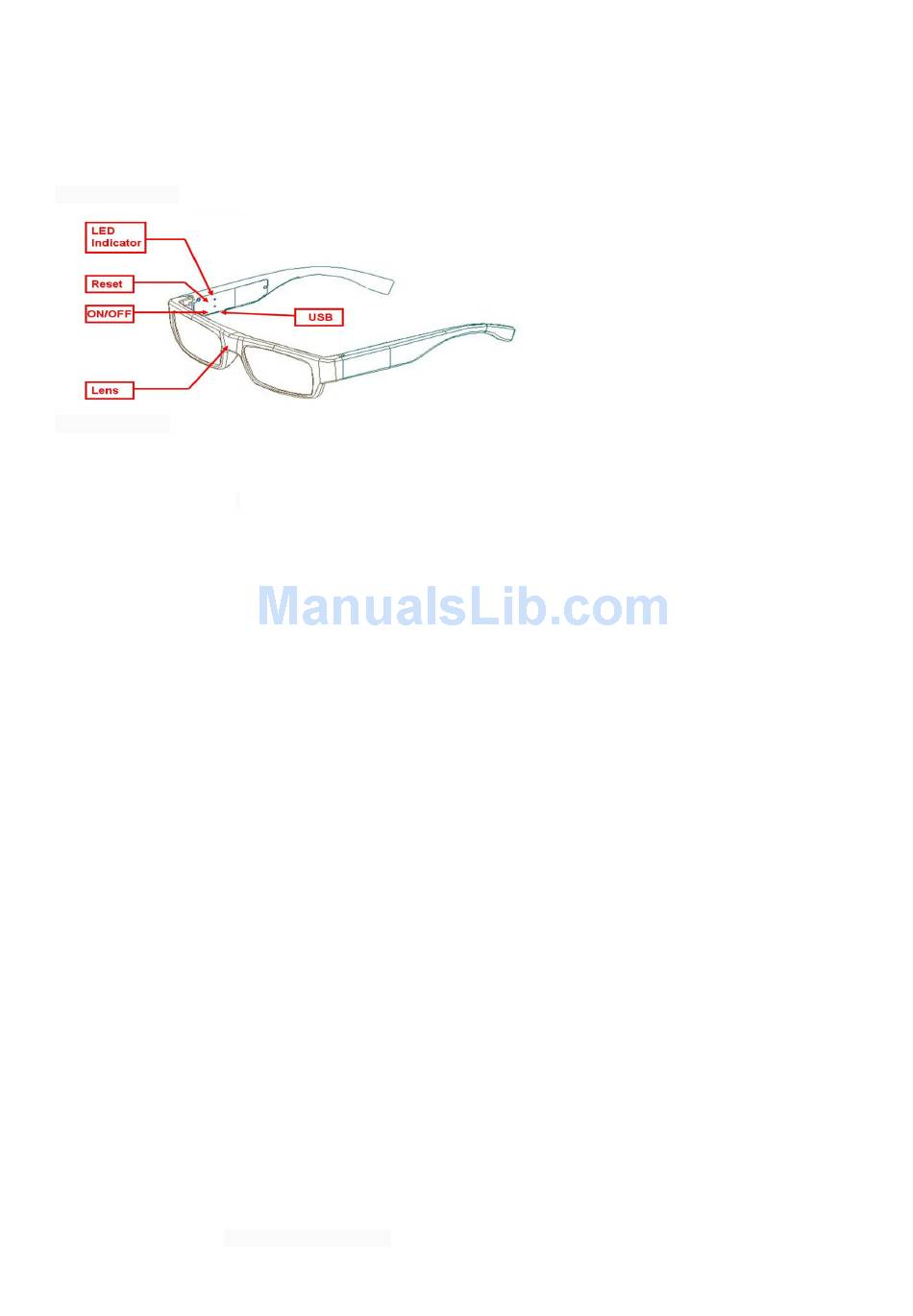

Product structure
Operation Guide
Charge the battery: The product has an internal, rechargeable battery; please charge the battery when you use it in the first
time. The battery can be charged by following ways:
1) By connecting to PC. Take the USB of product into the computer USB port, then can be charged.
2) By battery charger. Put the product with USB cable into Electrical outlet, then can be charged.
During charging, the blue indicator will blink, when the battery's power is full, the blue indicator keeps on.
Note: when the battery's power is low. , the blue indicator will blink for seconds, and then the product will shut down
automatically .please charge the product immediately.
Turn your product on and recording:
Click the Record/Stop button for about 3 seconds, the blue light will turn on, the product will be in preparing state, and then the
green light will turn on and flash slowly, to start recording video and sound recordings, the green light will flash slowly 10 times and
then off to continue recording.
To obtain perfect video, please place the product under enough illumination. Keep the product toward the target, and at least
50cm from the target. When the video is continue (indicator light do not link), click the Record/Stop button can stop the video, and
automatic save file, the blue lights will keep on when it finished.
If the continuous recording time is over 60 minutes, the product will save the current recording data, and then restart video
recording automatically.
Photo taking: Every time you turn the product on, it will start Video Recording automatically, Click the Record/Stop button once,
will stop recording.
When the product is in Video Standby Mode (blue indicator is on), click the Record/Stop button 3 times quickly and continuously,
the product will enter Photo Standby Mode, and the blue and green indicators will blink alternately. Click the Record/Stop button once
to take photo, the blue indicator blinks. Every time you press the button, photos will be taken and saved each time. When photo
taking finished, the blue and green indicators will blink alternately waiting the next photo taking. To obtain clear picture, please keep
the product static and not shake during photographing.
To quit the Photo mode, again click the Record/Stop button 3 times quickly and continuously, the product will back to Video
Standby Mode, the blue indicator keeps on.
Voice Recording:
When the product is in Video Standby Mode (blue indicator is on), click the Record/Stop button 2 times quickly, the product will
start voice recording, and the blue indicator will blink slowly. To quit the voice recording mode, just click the Record/Stop button once,
the product will back to Video Standby Mode, the blue indicator keeps on.
Turn your product off:
When the product is working or stand-by, press and holds the Record/Stop button for about 3 seconds, the indicators will flash
quickly 10 times and then off indicate the product is off.
Connecting to PC：When the product is in Standby Mode or shut down it means the indicator off or the blue light keeps on, you
can insert the product into the USB port of computer. Please do not connect the product to computer during video/Voice recording or
photo taking.
User manual
(No hole on the frame for lens-Patent design)
