Summary of Contents for Wispeco Roll-A-Door RC-1

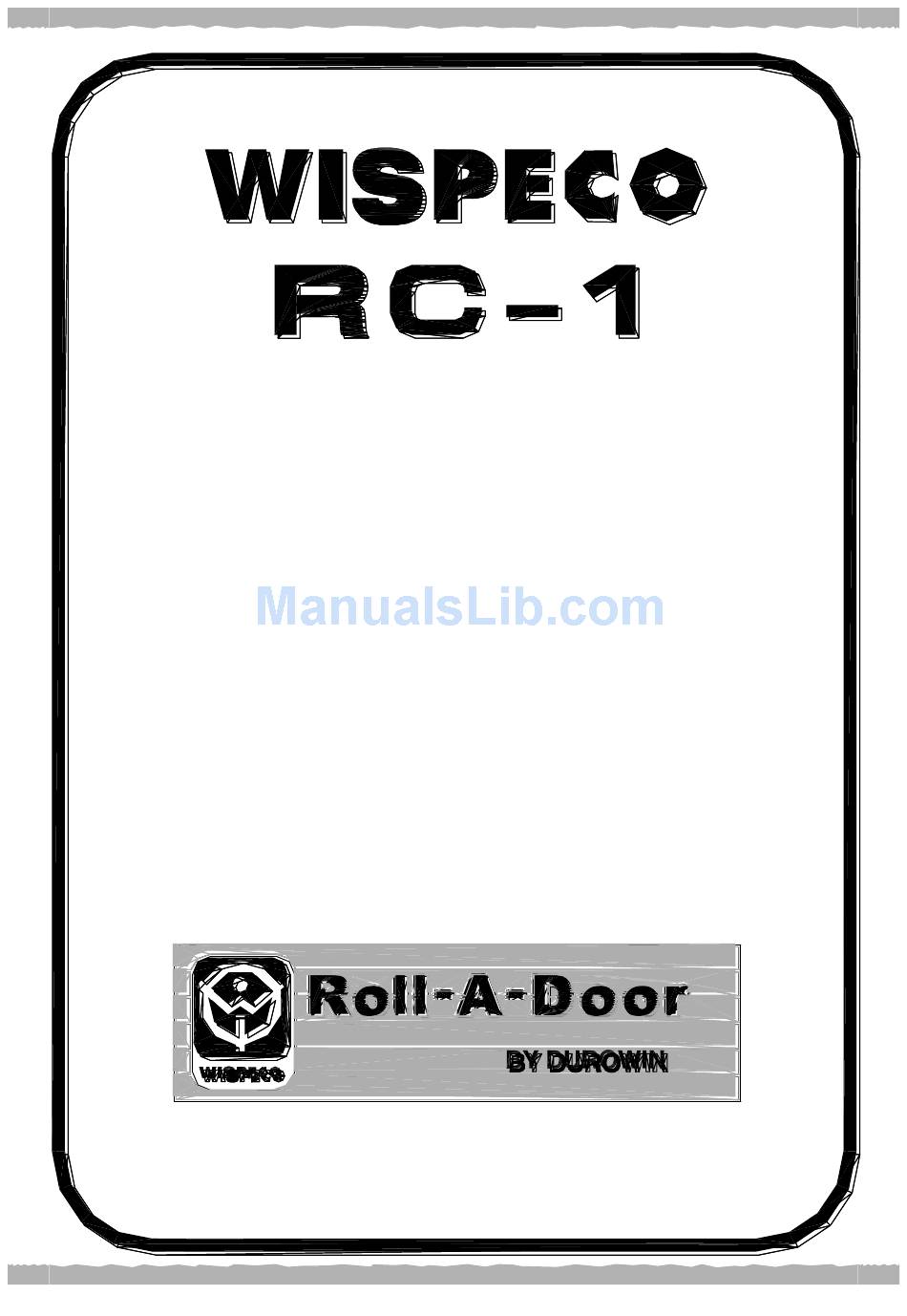

- Page 1 Automatic Garage Door Operator Installation Instruction...
- Page 2 PLEASE READ THESE IMPORTANT SAFETY RULES Failure to comply with the following Safety Rules may result in Serious Personal injury and/or Property Damage. ADDITIONAL SAFETY protection The Garage door must be WELL BALANCED. STRONGLY recommend the fitting of a Photo Sticking or binding doors must be repaired by a Electric beam.
- Page 3 FEATURES OPEN AND CLOSE DRIVE Your Easy Roller Automatic Garage To store any code simply press and BUTTONS Door Opener has many features hold the Door Code button on the Another feature developed by which you will appreciate. The Opener and press the Transmitter Automatic Technology Australia in components and materials used in...
- Page 4 OPERATING CONTROLS 1. LIGHT CODE button (White) OPEN LIMIT ADJUST EXTERNAL RECEIVER is used for storing or erasing the SCREW (Green) is used to fine INPUT is the input where an transmitter button (code) you wish adjust the open limit stop position. external receiver can be connected to use to turn the courtesy light on Check installation section on how...
- Page 5 OPERATING CONTROLS ...
- Page 6 PACKAGE CONTENTS ITEM QUANTITY DRIVE UNIT FOUR CHANNEL TRANSMITTER PTX-4 HOLDER PTX-4 BATTERY (12 VOLTS) WEIGHT BARS (NOT INCLUDED IN SOME COUNTRIES SCREWS (M4 x 25mm) SCREWS (# 6 x 25mm) PLASTIC WALL PLUGS INSTALLATION MANUAL SEQUENCE OF INSTALLATION...
- Page 7 INSTALLATION MINIMUM SIDE ROOM SIDE ROOM REQUIREMENTS 135mm Figure 1 shows the minimum side room that is required. 85mm The distance between the edge of the door curtain and the inside of the bracket is 85mm, and the distance between the edge of the door curtain and the outside of bracket is 135mm.
- Page 8 INSTALLATION cont... FIG. 6 4. FIXING DRIVE ASSEMBLY TO THE DOOR (RIGHT HAND INSTALLATION) The Drive Assembly can be fixed to the Roll Up Garage Door in a variety of ways. Below we will describe one method of fixing. Make sure there is enough side room (135mm from end of door shaft to the wall) to slide Drive Assembly onto shaft.
- Page 9 INSTALLATION cont... FIG. 9 5. FIXING OF DOOR CURTAIN TO DRUM WHEEL The door curtain has to be secured to the drum wheel with suitable fasteners. 1. With the door in the fully closed position mark the curtain (as per Fig. 9) on both ends of the door. 2.
- Page 10 INSTALLATION cont... FIG. 12 If the door has not reached the desired NOTE: limit position by more then 30 mm, then it is recommended that the green limits cam be adjusted again before the green fine adjustment screw is adjusted. CLOSE LIMIT ADJUSTMENT Press in and hold the Red Close button.
- Page 11 INSTALLATION cont... FIG. 14 OPEN LIMIT ADJUSTMENT Press in and hold the Green Open Button (Fig 14) The door should start opening. Release the Green Open button when the door reaches the desired open limit stop position. If the Green LED (Fig. 14) is illuminated and the desired limit stop position has been reached then the limit adjustment is complete.
-
Page 12: Safety Obstruction Force
INSTALLATION cont... FIG. 16 7. SETTING OF OPEN AND CLOSE SAFETY OBSTRUCTION FORCE The Safety Obstruction Force is calculated automatically and set in memory on the EasyRoller. This applies to both the Open Force and Close Force. Warning: When step 7.1 is initiated the Garage Door will do a full open and close cycle automatically. - Page 13 INSTALLATION cont. 7.4 SAFETY OBSTRUCTION TEST TESTING CLOSE CYCLE 1. Open the door by pressing the Yellow O/S/C button7 (Fig 18). 2. Place a length of timber 100mm X 50mm on the floor directly under the door (FIG. 17). 3. Press the Yellow O/S/C button to close door. The door should strike the object and start to re-open.
- Page 14 INSTALLATION cont... 9. SETTING THE TRANSMITTER TO OPERATE THE COURTESY LIGHT The Transmitter can be programmed to operate the Courtesy Light on the Door Opener. 1. Press and hold Light Code button 1 on the Control Panel (FIG. 20). 2. Press the button on the Transmitter you would like to use to control the light for approximately two seconds, Pause for two seconds.
- Page 15 INSTALLATION cont... 12. FITTING OF SAFETY PHOTO ELECTRIC BEAM (OPTIONAL) Locate the Photo Electric Beam (P.E.) normally closed contact type in a strategic location within doorway. Remove shunt from P.E connector (FIG.23) and connect the plug from the P.E. wiring harness to P.E. connector 15 (FIG.24).
-
Page 16: Obstruction Force Margin
INSTALLATION cont... FACTORY SET DEFAULTS. DEFAULT STEP MAXIMUM MAXIMUM MOTOR RUN TIME 30 Sec. COURTESY LIGHT TIME 3 Min. 10 Sec. 10 Min. OBSTRUCTION FORCE MARGIN AUTO CLOSE TIME 0 Sec 5 Sec. 4 Min. DOOR STATUS INDICATORS. DOOR OPENER STATE OPEN CLOSE SERVICE... -
Page 17: Technical Specifications
INSTALLATION cont... TECHNICAL SPECIFICATIONS INPUT VOLTAGE: 230 - 240 VAC 50 Hz (Other voltages available on request 110VAC 60Hz, 127VAC 60Hz) Primary Voltage 230 V / 240 V AC TRANSFORMER: Secondary Voltage 24 V AC 100 VA Controller Voltage 24V DC OPENER LIFTING FORCE 250 N OPENER OPENING / CLOS-... - Page 18 FAULTS AND REMEDIES SYMPTOMS POSSIBLE CAUSES REMEDY Door will not operate Main Power not turned on Turn on Mains Power Door is obstructed Remove obstruction Door in locked or motor jammed Unlock door Inspect door and remove jam Door will not reverse when obstructed Door needs to be re-initialised Fully close the door and press the Reset button (refer installation instruction step...
- Page 19 PARTS LIST...
- Page 20 * * WA R R A N T Y A N D E X C L U S I O N O F L I A B I L I T Y * * UNIT NO: ……………...…… Thank you for purchasing a Wispeco RC1 Remote Control Unit RC1 unit is covered by the following warranty:-...
Need help?
Do you have a question about the Roll-A-Door RC-1 and is the answer not in the manual?
Questions and answers
What is the pin layout of the external receiver. +24v, Com, Trigger
The pin layout for the external receiver input of the Wispeco RC-1 is as follows:
- +24V: Provides 24 volts DC power, maximum 30mA
- Com: Common ground
- Trigger: Input signal from the external receiver to activate the opener
This layout allows an optional external receiver to be connected and powered.
This answer is automatically generated
How do you reset RC -1
To reset the Wispeco Roll-A-Door RC-1, press and hold the Force Margin Set button (button 14), then press the RESET button (button 6) for two seconds. Release both buttons to recall the factory set force.
This answer is automatically generated
How do you set limits on the RC-1 roller door
To set limits on the Wispeco Roll-A-Door RC-1 for a right-hand installation:
1. Put the Drive Assembly in manual mode.
2. Move the door up by hand to the desired open position.
3. Remove the Light Diffuser.
4. Rotate the green limit cam anticlockwise by hand until it clicks the open limit switch.
5. Move the door down by hand to the desired closed position.
6. Rotate the red limit cam clockwise by hand until it clicks the close limit switch.
7. Connect the power.
Note: The O/S/C button will not function until the limits are set.
This answer is automatically generated
Why the door doesn't want to set the limits
The Wispeco Roll-A-Door RC-1 will not set the limits because the O/S/C button will not function until the limits are adjusted and Step 7.1 is completed. Additionally, the limit cams, limit fine adjustment screws, and door inch buttons must be correctly set using the color-coded system (green for open limit and red for close limit).
This answer is automatically generated
