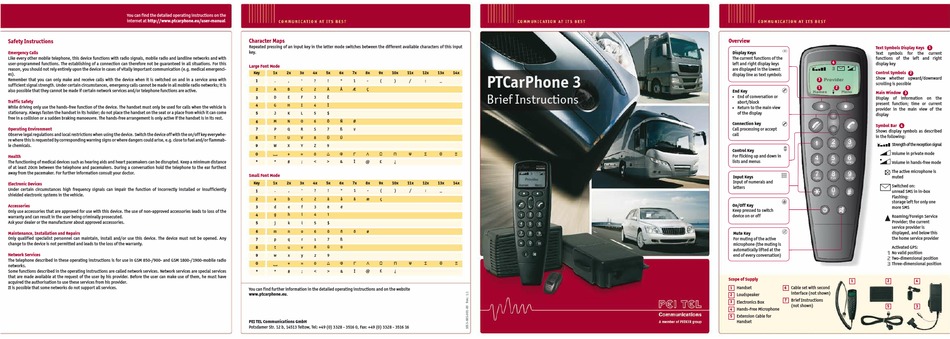

Pei tel PTCarPhone 3 Brief Instructions

You can find the detailed operating instructions on the
internet at http://www.ptcarphone.eu/user-manual

Safety Instructions

Emergency Calls

Like every other mobile telephone, this device functions with radio signals, mobile radio and landline networks and with
user-programmed functions. The establishing of a connection can therefore not be guaranteed in all situations. For this
reason, you should not rely entirely upon the device in cases of vitally important communication (e.g. medical emergenci-
es).
Remember that you can only make and receive calls with the device when it is switched on and in a service area with
sufficient signal strength. Under certain circumstances, emergency calls cannot be made in all mobile radio networks; it is
also possible that they cannot be made if certain network services and/or telephone functions are active.

Traffic Safety

While driving only use the hands-free function of the device. The handset must only be used for calls when the vehicle is
stationary. Always fasten the handset in its holder; do not place the handset on the seat or a place from which it can come
free in a collision or a sudden braking manoeuvre. The hands-free arrangement is only active if the handset is in its rest.

Operating Environment

Observe legal regulations and local restrictions when using the device. Switch the device off with the on/off key everywhe-
re where this is requested by corresponding warning signs or where dangers could arise, e.g. close to fuel and/or flammab-
le chemicals.

Health

The functioning of medical devices such as hearing aids and heart pacemakers can be disrupted. Keep a minimum distance
of at least 20cm between the telephone and pacemakers. During a conversation hold the telephone to the ear furthest
away from the pacemaker. For further information consult your doctor.

Electronic Devices

Under certain circumstances high frequency signals can impair the function of incorrectly installed or insufficiently
shielded electronic systems in the vehicle.

Accessories

Only use accessories that are approved for use with this device. The use of non-approved accessories leads to loss of the
warranty and can result in the user being criminally prosecuted.
Ask your dealer or the manufacturer about approved accessories.

Maintenance, Installation and Repairs

Only qualified specialist personnel can maintain, install and/or use this device. The device must not be opened. Any
change to the device is not permitted and leads to the loss of the warranty.

Network Services

The telephone described in these operating instructions is for use in GSM 850-/900- and GSM 1800-/1900-mobile radio
networks.
Some functions described in the operating instructions are called network services. Network services are special services
that are made available at the request of the user by his provider. Before the user can make use of them, he must have
acquired the authorisation to use these services from his provider.
It is possible that some networks do not support all services.
Character Maps
Repeated pressing of an input key in the letter mode switches between the different available characters of this input
key.
Large Font Mode
Key 1x 2x 3x 4x 5x 6x 7x 8x 9x 10x 11x 12x
1 . , ' ? ! " 1 - ( ) / :
2 A B C 2 Ä Å Æ Ç
3 D E F 3 È
4
G H I 4 Ì
5 J K L 5 $
6 M N O 6 Ö Ñ Ø
7 P Q R S 7 ß
8 T U V 8 Ü U
9 W X Y Z 9
Δ Φ Γ Λ Ω Π Ψ Σ
0 + = 0
* * # ; < > & Ì @ £ ¿
Small Font Mode
Key 1x 2x 3x 4x 5x 6x 7x 8x 9x 10x 11x 12x
1 . , ' ? ! " 1 - ( ) / :
2 a b c 2 ä å ã æ ç
3 d e f 3 è é
4 g h i 4 ì
5 j k l 5 $
6 m n o 6 ö ñ õ ø
7 p q r s 7 ß
8
t u v 8 ü u
9 w x y z 9
Δ Φ Γ Λ Ω Π Ψ Σ
0 + = 0
* @ £ ¿
* # ; < > & Ì
You can find further information in the detailed operating instructions and on the website
www.ptcarphone.eu.
PEI TEL Communications GmbH
Potsdamer Str. 12 b, 14513 Teltow, Tel: +49 (0) 3328 - 3516 0, Fax: +49 (0) 3328 - 3516 16
13x 14x
PTCarPhone 3
_
Brief Instructions
Θ Ξ
13x 14x
_
Θ Ξ

Overview

Text Symbols Display Keys
Display Keys Text symbols for
The current functions of the
functions of the left and right
4
left and right display keys display key
3
are displayed in the lowest
Control Symbols
display line as text symbols
Show whether upward/downward
3 Provider
scrolling is possible
1 2 1
End Key
Names Menu
Main Window 3
End of conversation or
 Display of information on the
abort/block
present function; time or current
Return to the main view
 provider in the main view of the
of the display
display
Connection key
Symbol Bar 4
Call processing or accept
Shows display symbols as described
call
in the following:
Strength of the reception signal
Control Key
Volume in private mode
For flicking up and down in
lists and menus
Volume in hands-free mode
The active microphone is
Input Keys muted
Input of numerals and
Switched on:
letters
unread SMS in in-box
Flashing:
storage left for only one
On/Off Key
more SMS
Keep pressed to switch
device on or off
Roaming/Foreign Service
Provider; the current
service provider is
displayed, and below this
Mute Key
For muting of the active the home service provider
microphone (the muting is
Activated GPS:
automatically lifted at the
1
No valid position
end of every conversation)
2 Two-dimensional position
3
Three-dimensional position

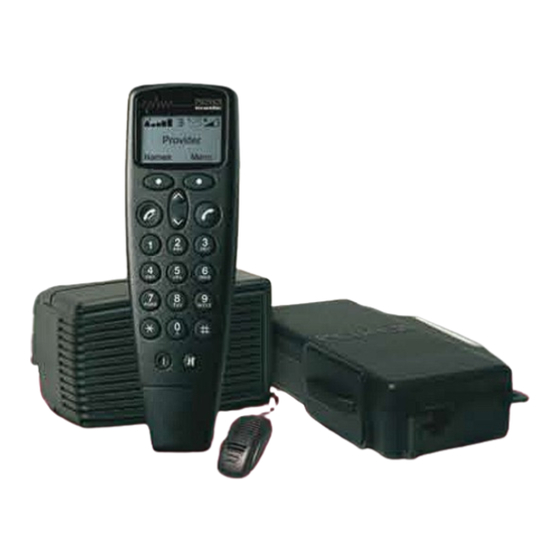

Scope of Supply
1 2
1 Handset 6 Cable set with second
interface (not shown)
2 Loudspeaker
7 Brief Instructions
3 Electronics Box
(not shown)
5
Hands-Free Microphone
4
5 Extension Cable for
Handset
1
the current
2
4
3
